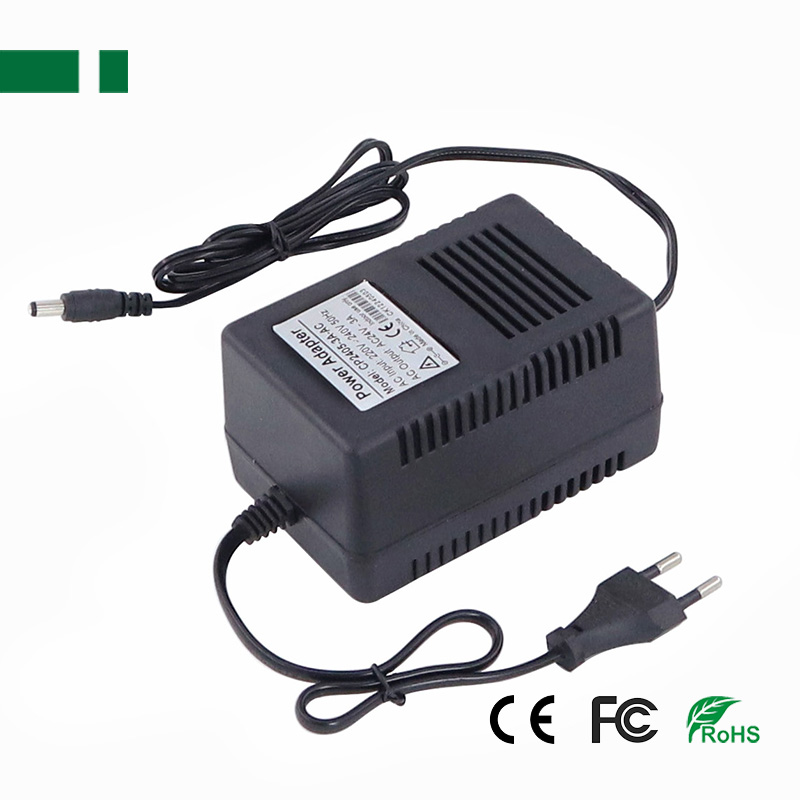

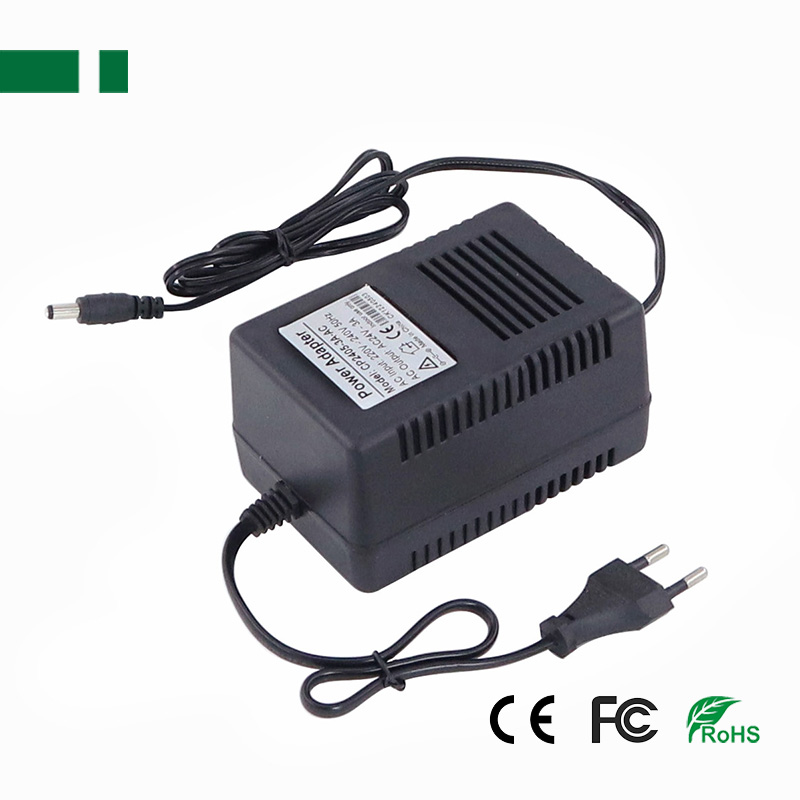

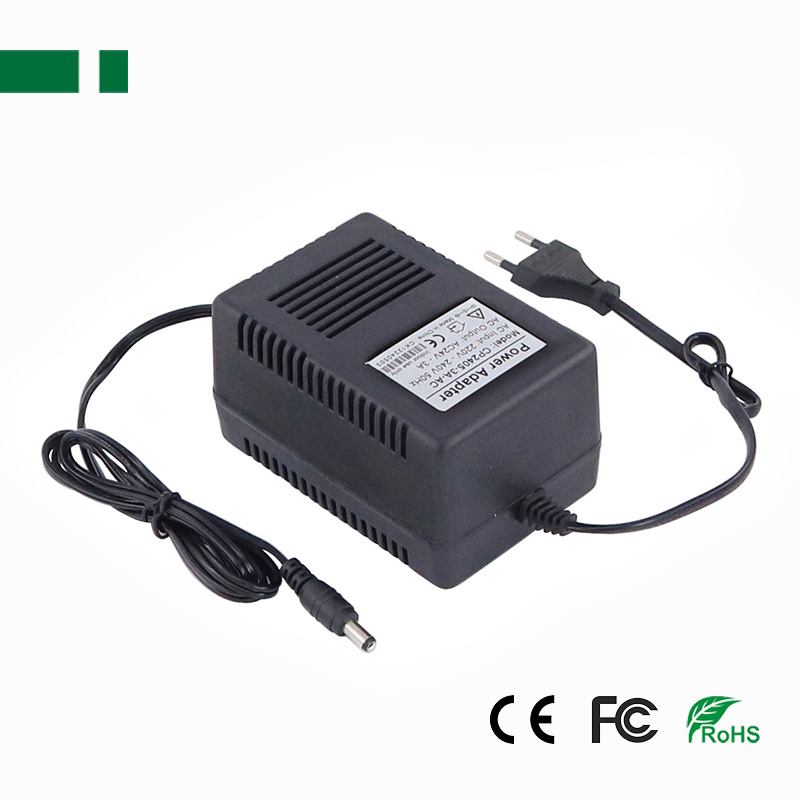

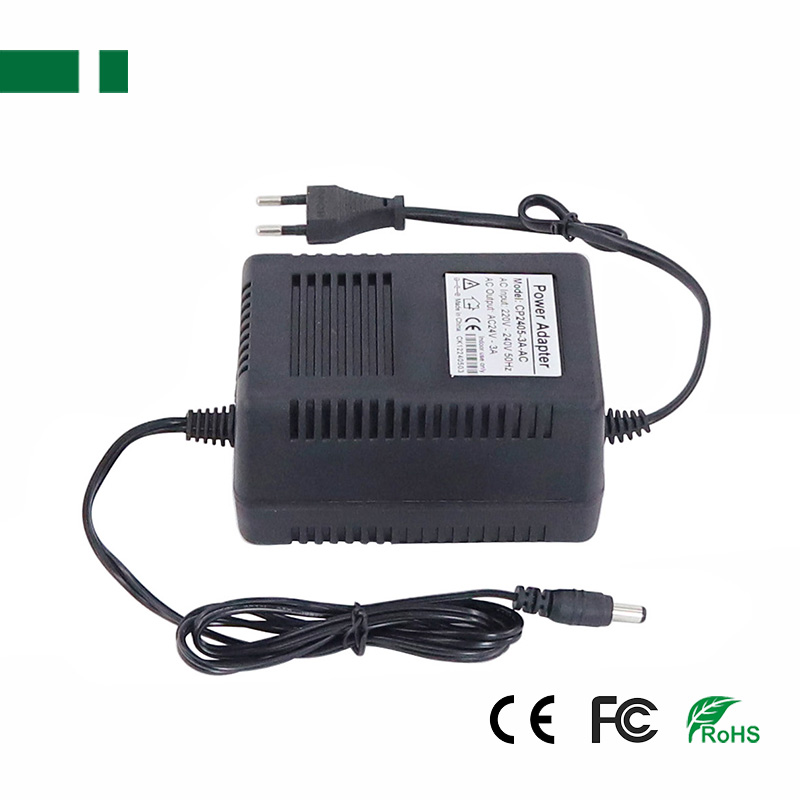

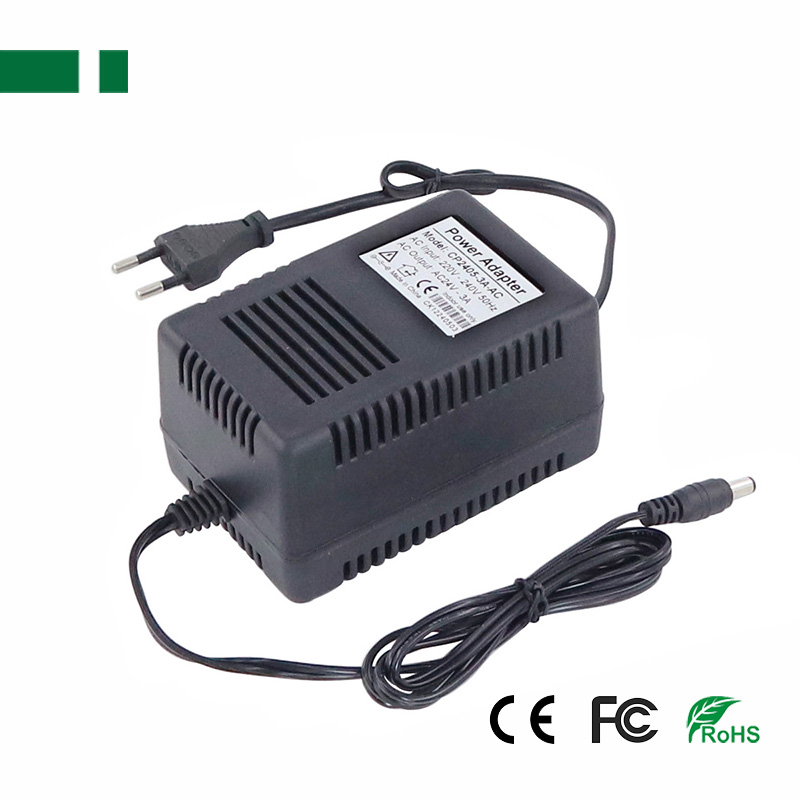

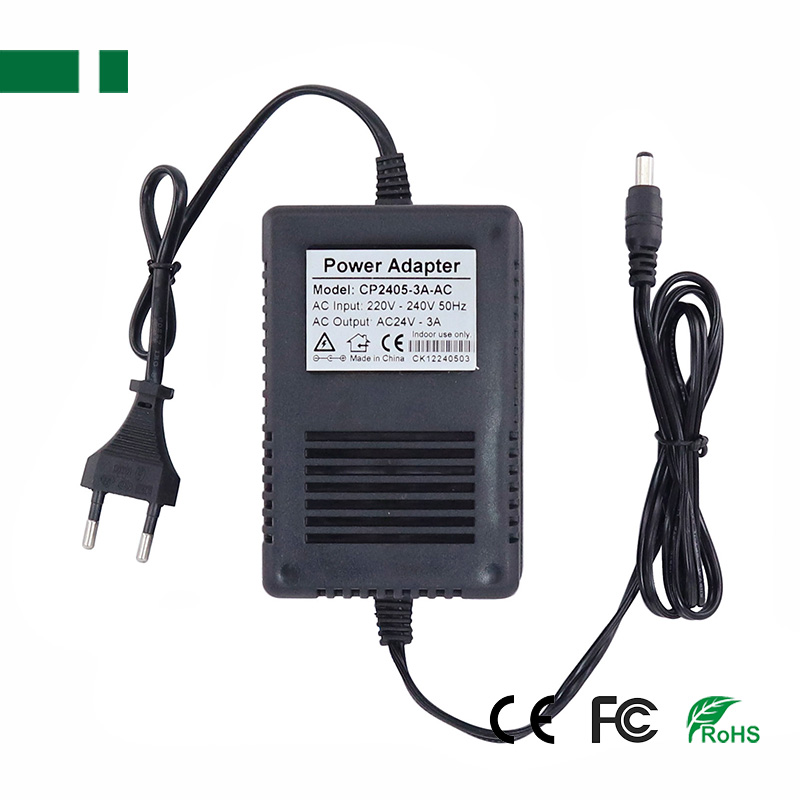

72W AC24V Power Adapter
Output voltage & current: AC24V 3A
100% full load burn-in test
72W AC Power Adapter
◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Features:
1. 72W Output Power Adapter
2. Output voltage & current: AC24V 3A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Specification:
| Model | CP2405-2A-AC | CP2405-3A-AC | CP2405-5A-AC | |
| Output | DC output Voltage | 24V±10% | ||
| Output Current Range | 0-2A | 0-3A | 0-5A | |
| Wave and Noise | 120mVp-p | |||
| DC output Power | 24W | 72W | 120W | |
| Efficiency | 85% | |||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | |||
| Input | Voltage Range | 220V~240VAC 50Hz | ||
| Input Current | 0.24A/ 230V | 0.33A/ 230V | 0.55A/ 230V | |
| Leakage Current | <1mA/ 240VAC | |||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | |||
| Other | Dimension | 120*80*64mm(L*W*H) | 120*80*65mm(L*W*H) | 120*80*65mm(L*W*H) |
| Weight | 945g | 1236g | 1335g | |
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | |||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | |||
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH | ||
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | |||
| Temperature coefficient | ±0.03%°C(0~50°C) | |||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | |||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | ||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | |||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | ||
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | |||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | |||
| Notes | 1. All parameters NOT specially mentioned are measured at
230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | |||
