▪ 8-ch 1080P HD-CVI/TVI/AHD Fiber Converter;
▪ Fiber interface: Single mode single fiber FC/UPC;
▪ Transmission distance: 0-10KM;
▪ Power Supply: DC12V;
▪ Dimension: 187(L)*175(W)*45(H)mm;
▪ The Coaxial HD Fiber Converter is designed for long-distance optical fiber transmission HD-CVI/ AHD/ TVI composite video, and adopts self-developed uncompressed digital photoelectric conversion technology. Use fiber-optic point-to-point transmission of megapixel HD video for video transmission without delay and high reliability.
Description:
The Coaxial HD Fiber Converter is designed for long-distance optical fiber transmission HD-CVI/ AHD/ TVI composite video, and adopts self-developed uncompressed digital photoelectric conversion technology. Use fiber-optic point-to-point transmission of megapixel HD video for video transmission without delay and high reliability.
Feature:
▪ 8-ch 1080P HD-CVI/TVI/AHD Fiber Converter;
▪ Compatible with Hikvision (TVI), Dahua (CVI), XM (AHD) Coaxial HD camera:
▪ Fiber interface: Single mode single fiber FC/UPC;
▪ Transmission distance: 0-10KM;
▪ Power Supply: DC12V;
▪ Dimension: 187(L)*175(W)*45(H)mm;

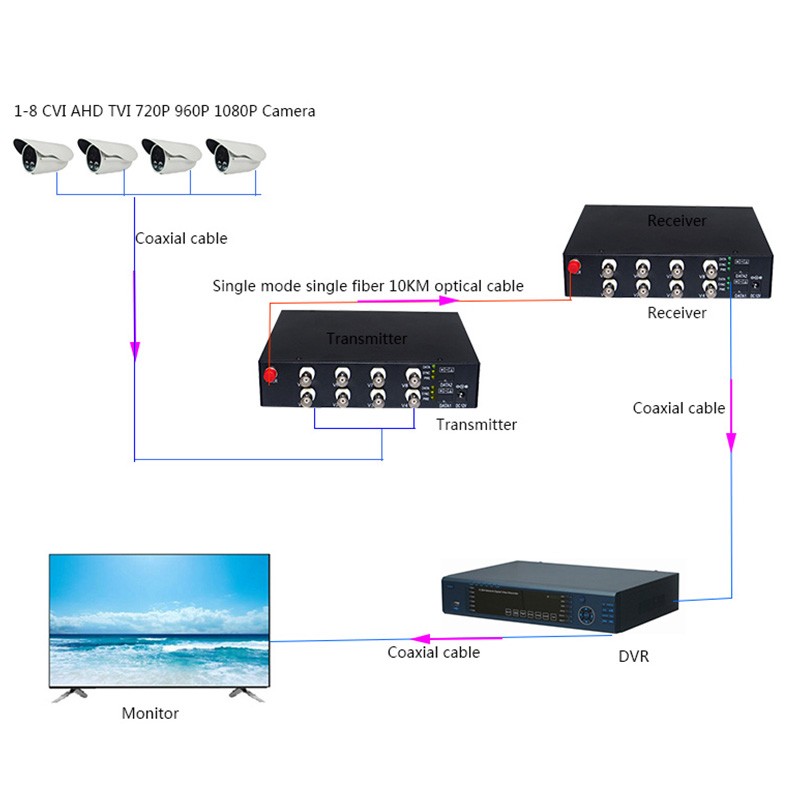

▪ Application: Security Monitoring System, Remote Multimedia Teaching, Video Conferencing System & Intelligent Community System etc..
Specification:
| Item | 1080P-960P-720P HD-CVI/ HD-TVI/ HD-AHD Coaxial HD Fiber Converter | |||||
| Model | Video Interface | Video Pixels | Data Format | Dimension/ mm | Fiber Interface | Transmit Distance |
| COV-HD1V-1080P | BNC *1-ch | HD-AHD/ CVI/ TVI: 1080P/2MP (1920×1080) 960P/1.3MP (1280×960) 720P/1MP (1280×720) | N/A | 110*92*25mm (L*W*H) | Single mode single fiber FC/UPC | Max. 10KM |
| COV-HD1V1D-1080P | RS485 | |||||
| COV-HD2V-1080P | BNC *2-ch | N/A | 110*92*25mm (L*W*H) | |||
| COV-HD2V1D-1080P | RS485 | |||||
| COV-HD4V-1080P | BNC *4-ch | N/A | 165*145*25mm (L*W*H) | |||
| COV-HD4V1D-1080P | RS485 | |||||
| COV-HD8V-1080P | BNC *8-ch | N/A | 187*175*45mm (L*W*H) | |||
| COV-HD8V1D-1080P | RS485 | |||||
| COV-HD8VR-1080P | BNC *8-ch | N/A | 480*185*50mm (L*W*H) | |||
| COV-HD8V1DR-1080P | RS485 | |||||
| COV-HD16V-1080P | BNC *16-ch | N/A | 480*185*50mm (L*W*H) | |||
| COV-HD16V1D-1080P | RS485 | |||||
