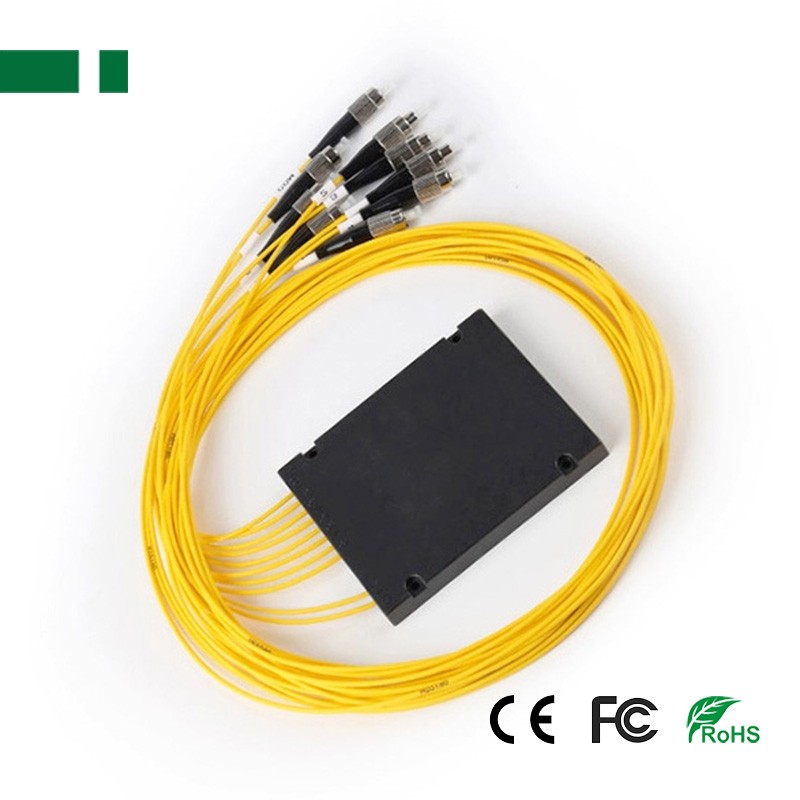

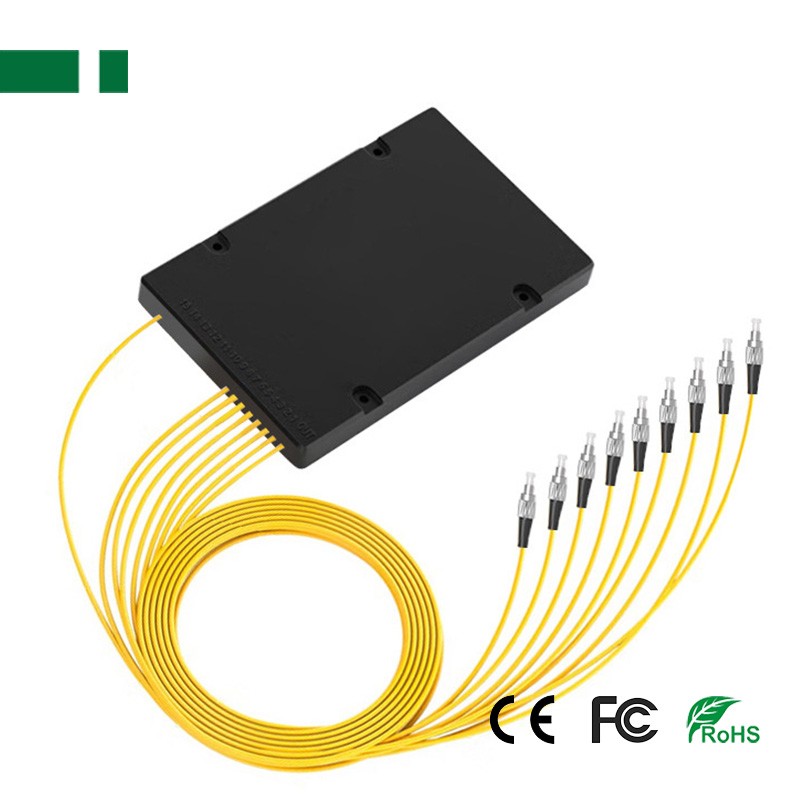

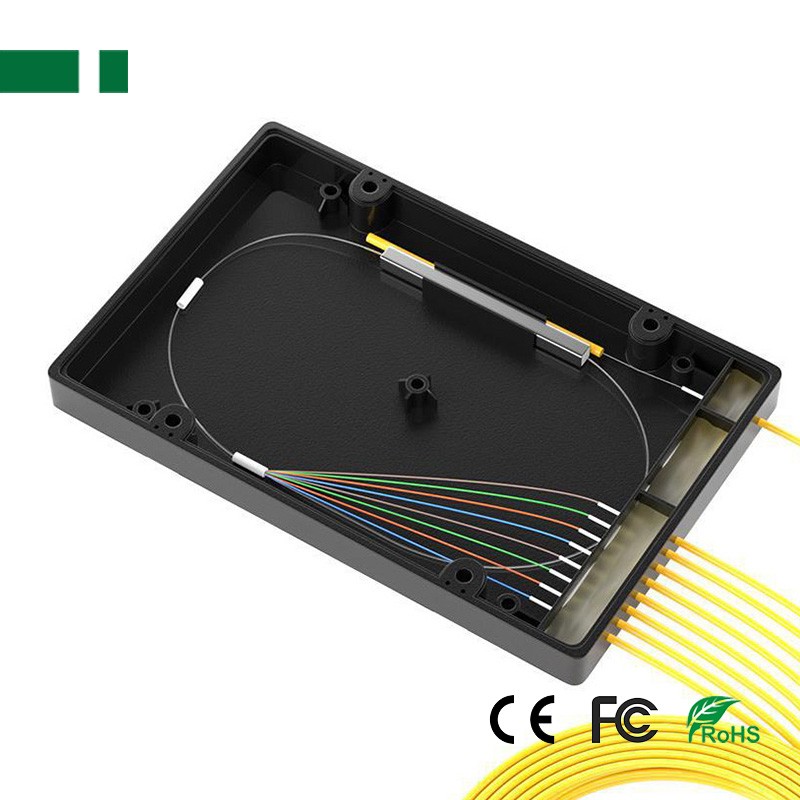

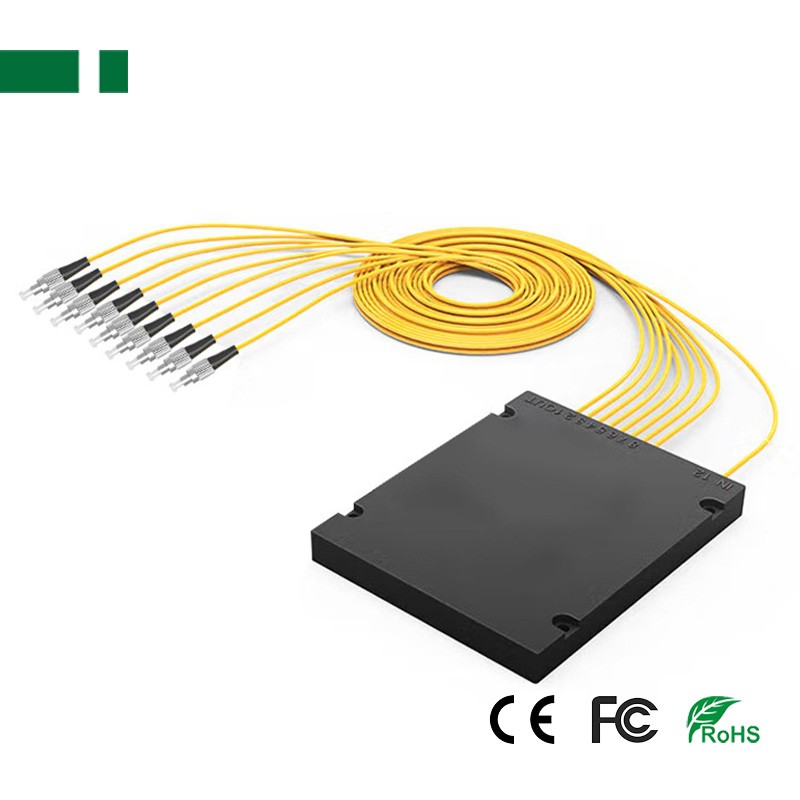

COS03-108P/FC 1*8 FC/UPC ABS Box PLC Optic Splitter

Description:

Optical splitter is one of passive devices, also called passive optical splitter. They do not require external energy, as long as there is incident light. The optical splitter consists of entrance and exit slits, reflection mirror and dispersive elements, and its function is to separate the required resonance absorption line. The key component of the optical splitter is the dispersion element, now most of instruments use fiber gratings as the dispersion element. There are two types of fiber splitter classified by their working principle: fused biconical taper splitter (FBT splitter) and planar light wave circuit splitter (PLC splitter).

Feature:

▪ 1-to-8 FC/UPC Single Mode ABS Box PLC Optic Splitter;

▪ Operating Wavelength: 1260~1650nm;

▪ Insertion Loss: ≤S7.2dB;

▪ Callback loss: ≤50dB;

▪ Dimension: 105*68*9mm;

▪ Channel equal distribution, which can evenly distribute signals to users;

▪ Application: FTTX System, LAN/ WAN, Analog/ Digital Passive Network, CATV Fiber Optic Sensor, Measuring Instrument.

Specification:

1*2   SC Single Mode Mini FBT Optic Splitter
Picture	Model	Channel	Conenctor	Fiber Type	Wavelength	Dimension(L*W*H)
	COS01-102F/SCU	1*2 Ports	SC/UPC	Single Mode	1310~1550nm	60*7*4mm
	COS01-102F/SCA	1*2 Ports	SC/APC			60*7*4mm
1*2 SC Single Mode   Mini FBT Optic Splitter
Picture	Model	Channel	Conenctor	Fiber Type	Wavelength	Dimension(L*W*H)
	COS02-102F	1*2 Ports	None	Single Mode	1310~1550nm	90*10*10mm
	COS02-102F/FC	1*2 Ports	FC/UPC			90*10*10mm
	COS02-102F/SC	1*2 Ports	SC/UPC			90*10*10mm
1*4/ 1*8/ 1*16/ 1*32   SC Single Mode Mini PLC Optic Splitter
Picture	Model	Channel	Conenctor	Fiber Type	Wavelength	Dimension(L*W*H)
	COS01-104P/SC	1*4 Ports	SC/UPC	Single Mode	1260~1650nm	60*7*4mm
	COS01-108P/SC	1*8 Ports				60*7*4mm
	COS01-1016P/SC	1*16 Ports				60*12*4mm
	COS01-1032P/SC	1*32 Ports				80*20*6mm
1*2/ 1*4/ 1*8/ 1*16/   1*32/ 1*64 FC Single Mode ABS Box PLC Optic Splitter
Picture	Model	Channel	Conenctor	Fiber Type	Wavelength	Dimension(L*W*H)
	COS03-102P/FC	1*2 Ports	FC/UPC	Single Mode	1260~1650nm	105*68*9mm
	COS03-104P/FC	1*4 Ports				105*68*9mm
	COS03-108P/FC	1*8 Ports				105*68*9mm
	COS03-1016P/FC	1*16 Ports				105*68*9mm
	COS03-1032P/FC	1*32 Ports				110*79*18mm
	COS03-1064P/FC	1*64 Ports				110*79*18mm
1*2/ 1*4/ 1*8/ 1*16/   1*32/ 1*64 SC Single Mode ABS Box PLC Optic Splitter
Picture	Model	Channel	Conenctor	Fiber Type	Wavelength	Dimension(L*W*H)
	COS03-102P/SC	1*2 Ports	SC/UPC	Single Mode	1260~1650nm	105*68*9mm
	COS03-104P/SC	1*4 Ports				105*68*9mm
	COS03-108P/SC	1*8 Ports				105*68*9mm
	COS03-1016P/SC	1*16 Ports				105*68*9mm
	COS03-1032P/SC	1*32 Ports				110*79*18mm
	COS03-1064P/SC	1*64 Ports				110*79*18mm
1*2/ 1*4/ 1*8/ 1*16/   1*32/ 1*64 SC Single Mode Plug-in PLC Optic Splitter
Picture	Model	Channel	Conenctor	Fiber Type	Wavelength	Dimension(L*W*H)
	COS04-102P/SC	1*2 Ports	SC/UPC	Single Mode	1260~1650nm	130*100*25mm
	COS04-104P/SC	1*4 Ports				130*100*25mm
	COS04-108P/SC	1*8 Ports				130*100*25mm
	COS04-1016P/SC	1*16 Ports				130*100*50mm
	COS04-1032P/SC	1*32 Ports				130*100*100mm
	COS04-1064P/SC	1*64 Ports				130*100*200mm
