Aviation Cable

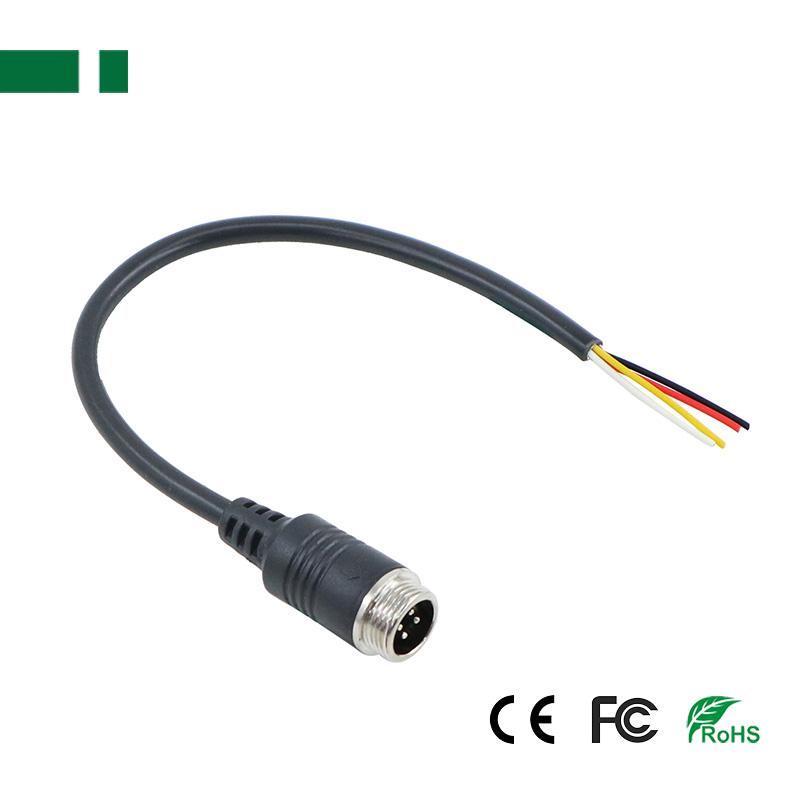

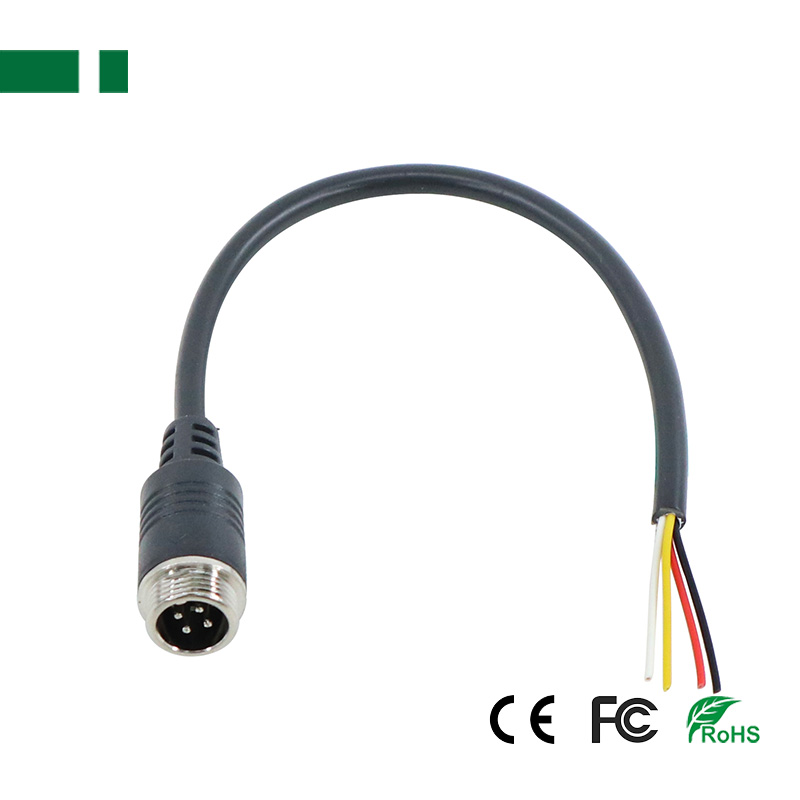

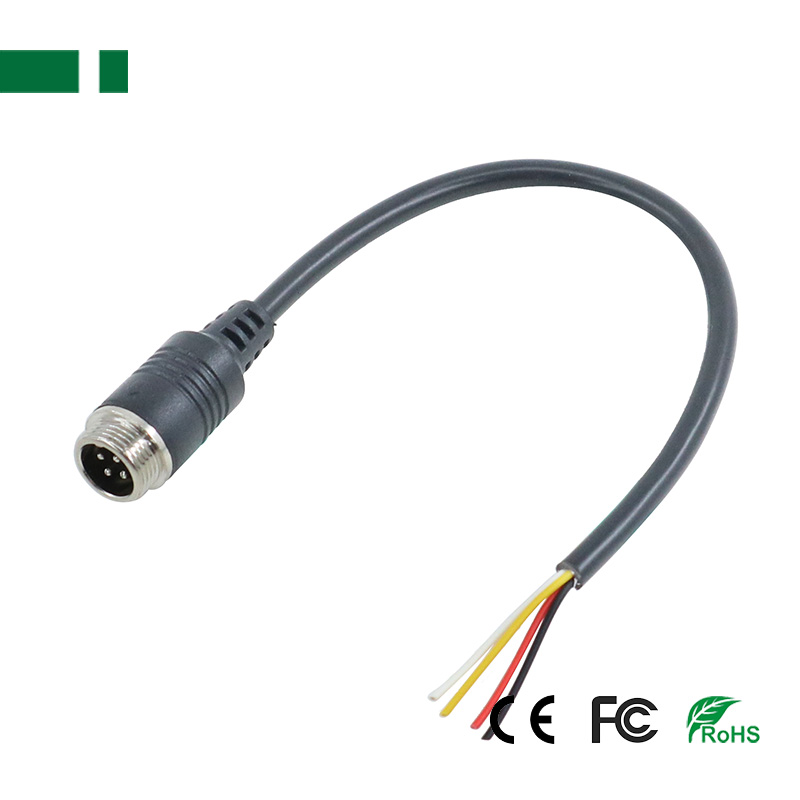

CMA-M 4-Pin Aviation Male Plug Video Cable

CMA-M 4-Pin Aviation Male Plug Video Cable

4-Pin Aviation Male Plug Video Cable
Working Power: 12-24V.
Length: 20cm.
Material of cable core: Copper.
Product description: 4 pin aviation video extension cable, high quality and exquisite workmanship, can be widely used in RV, Truck, Tanker Truck , Semi-truck, Trailer, Horse Trailer, Bus, Motorhome, Farm Harvester Tractor
INQUIRY EMAIL

4-Pin Aviation Male Plug Video Cable M12 for Car Camera, DVR Video Camera & CCTV Monitor.

4 pin aviation video extension cable, high quality and exquisite workmanship, can be widely used in RV, Truck, Tanker Truck , Semi-truck, Trailer, Horse Trailer, Bus, Motorhome, Farm Harvester Tractor, Caravans , Van, Long-distance Car for connecting backup camera system, surveillance CCTV system.

Feature:
1. Type: M12 Aviation Video Cable.
2. Color: Black.
3. Working Power: 12-24V.
4. Length: 20cm.
5. Connect type: 4 pin male plug.
6. Material of external mold: PVC Plastic (Black).
7. Material of cable core: Copper.
8. Material of the nut: Zinc Alloy;
9. Main use: Car and truck monitoring;
10. Fitment: For Car Bus Truck Rear View Reverse Camera.

Specification:

4-Pin Aviation Male Plug Video Cable M12 for Car Camera
Model	CMA-M	CMA-MS
Wire diameter	OD: 4.8mm

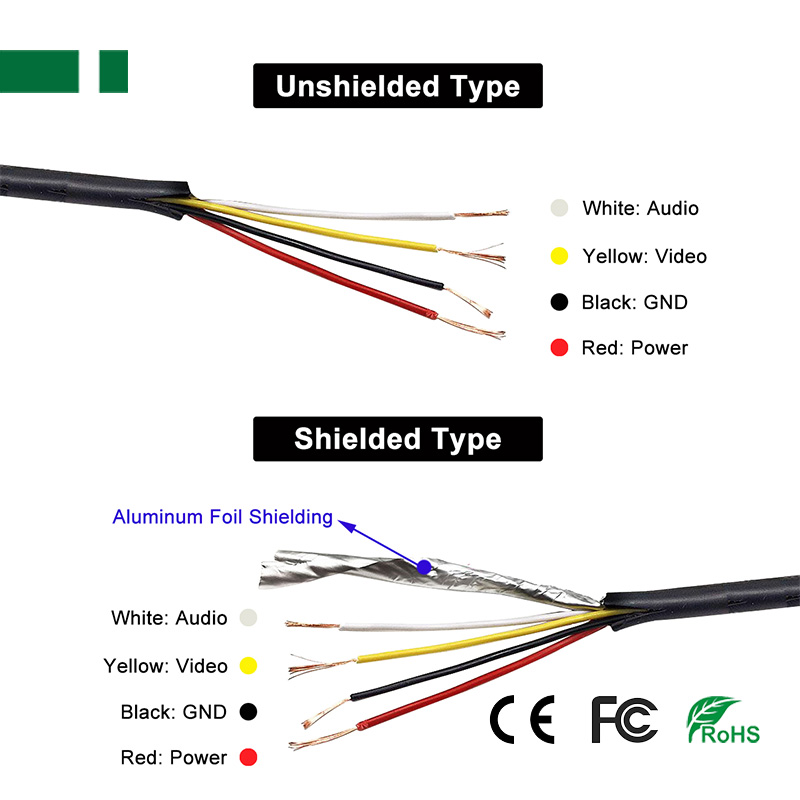

Type	Unshielded type	Shielded type with Aluminum foil
Length	20cm
Wire Specs	4*10/0.1 Copper wire
Connect type	4-pin Male Plug Connector
Material	Copper + Zinc Alloy + PVC
Color	Black
Production type	Injection molding
Working Current	1-2A
Working Power	DC12-24V
Working temperature	—20℃ ~ +105℃
