CLB-X400 32-55 Inch TV Wall Mount Bracket

32-55 Inch TV Monitor VESA 75/100/200 LCD/ LED TV Wall Mount Bracket

Feature:

Universal Design:

Our TV bracket fits most 32-55 inch TVs weighing up to 25kgs. Removable extender brackets forms different combinations achieving one stop solution for most medium TVs, compatible faceplate fits VESA 50*50mm-400*400mm

Scope:

Fit for most HDTV flat panel TV, LCD TV, LED TV, Plasma TV. Suitable for family, entertainment, public places and commercial places such as living room, KTV, bars, airports, railway stations, bus stations, shopping malls, stores waiting hall, lounge, large conference rooms, classrooms, lobby and restaurants and etc.

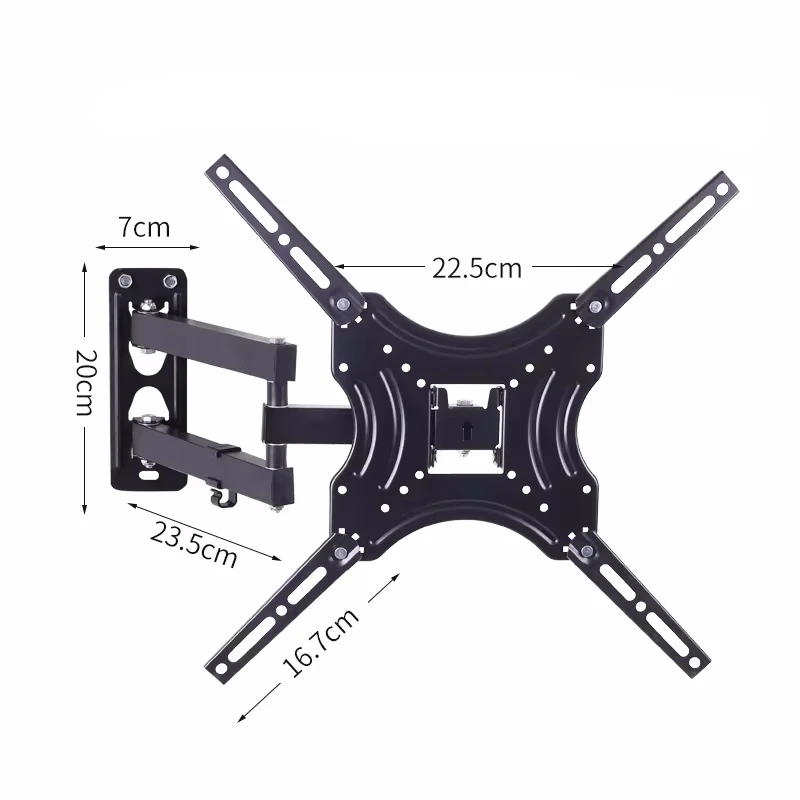

Specification:

Type -------------------------------------------------------------TV Wall Mount Bracket

Color ------------------------------------------------------------Black

Applicable Size --------------------------------------------------32-55 inches

Material ----------------------------------------------------------SPCC

Distance From the Wall ------------------------------------------37 * 370mm

Max Capacity ----------------------------------------------------25KG

VESA Standard Pitch ---------------------------------------------75 * 75~400 * 400mm

Wall panel size: 65 * 205mm
Panel size: 225 * 225mm
Extension 165mm
Forearm length: 160mm
Rear arm: 210mm  Axial height: 130mm
Pitch angle:+10 °
Applicable size: 32-55 inches
