CKM-1021-4K

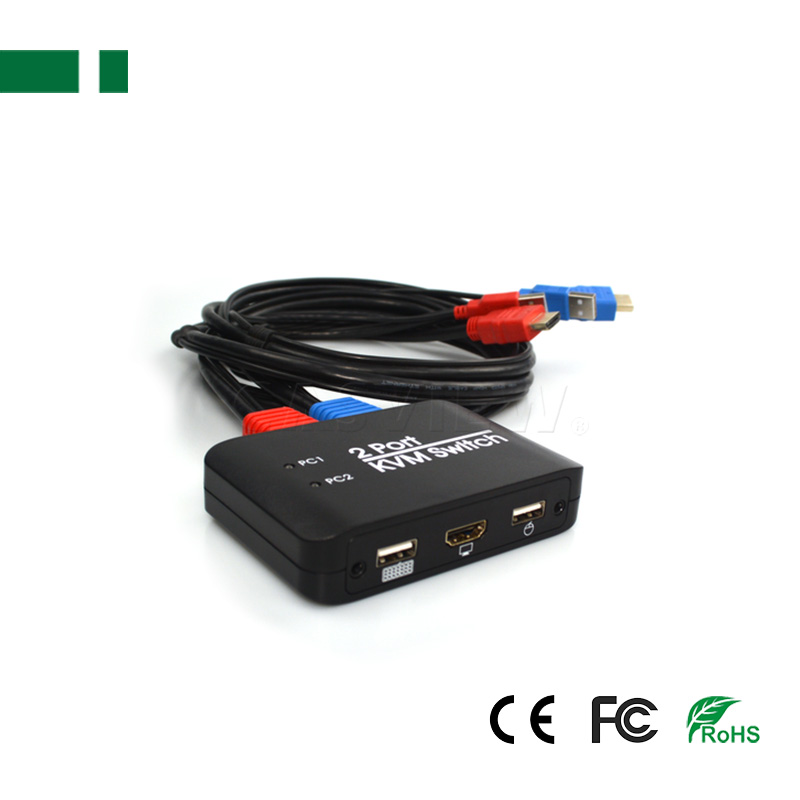

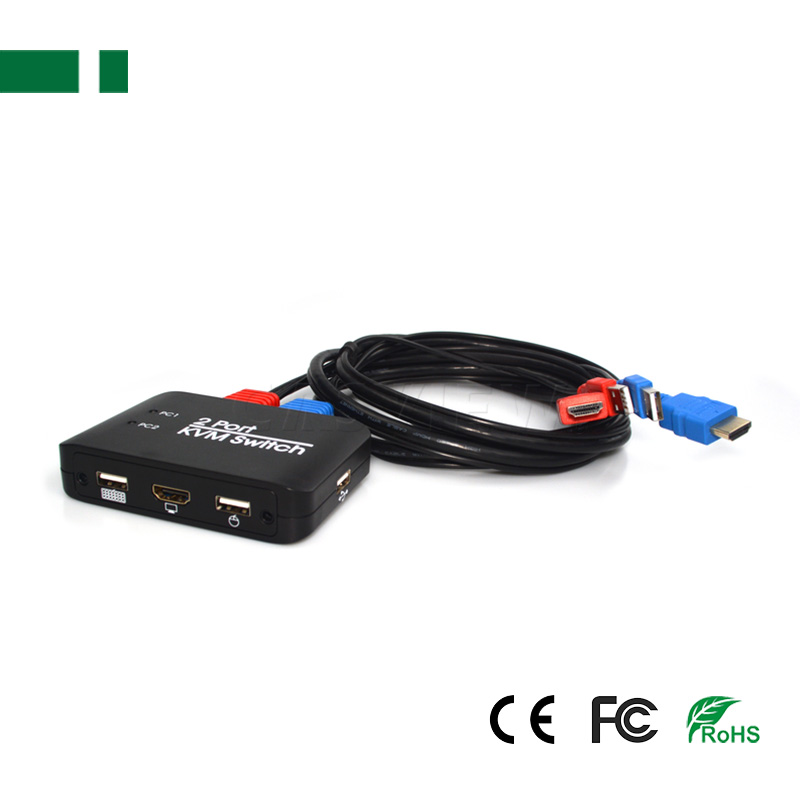

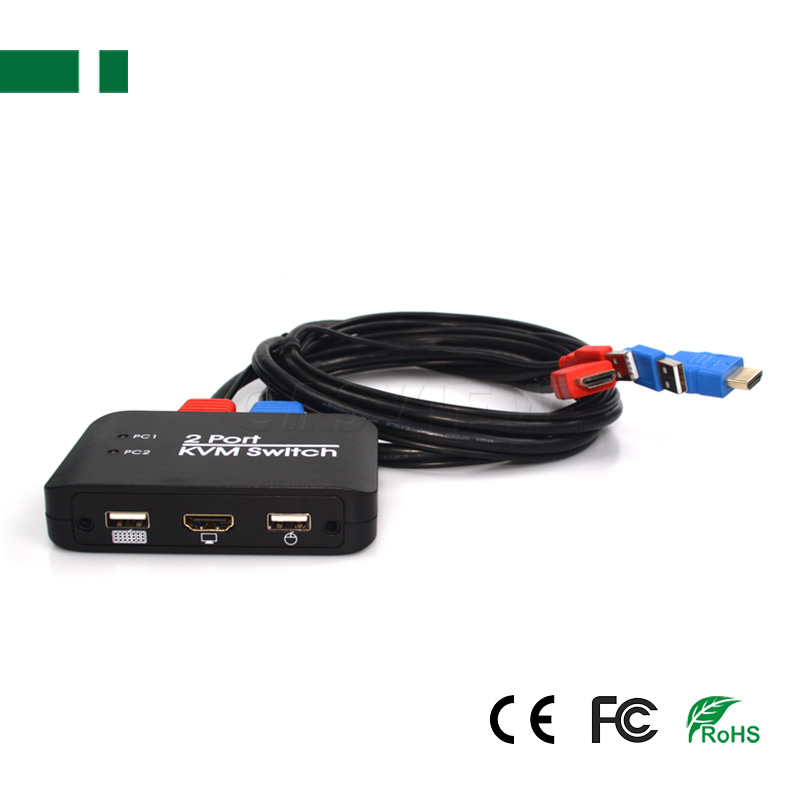

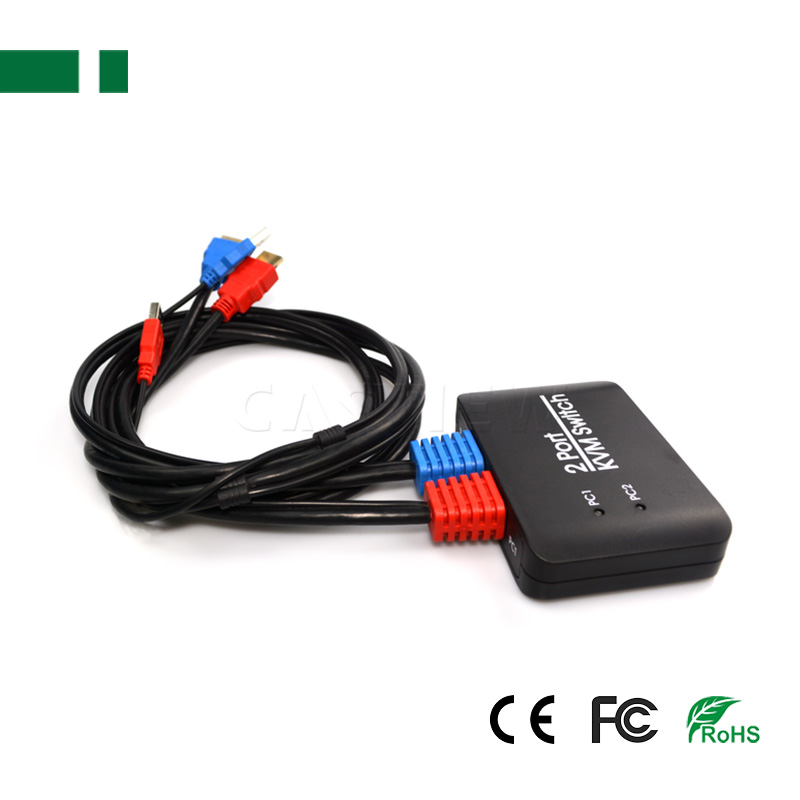

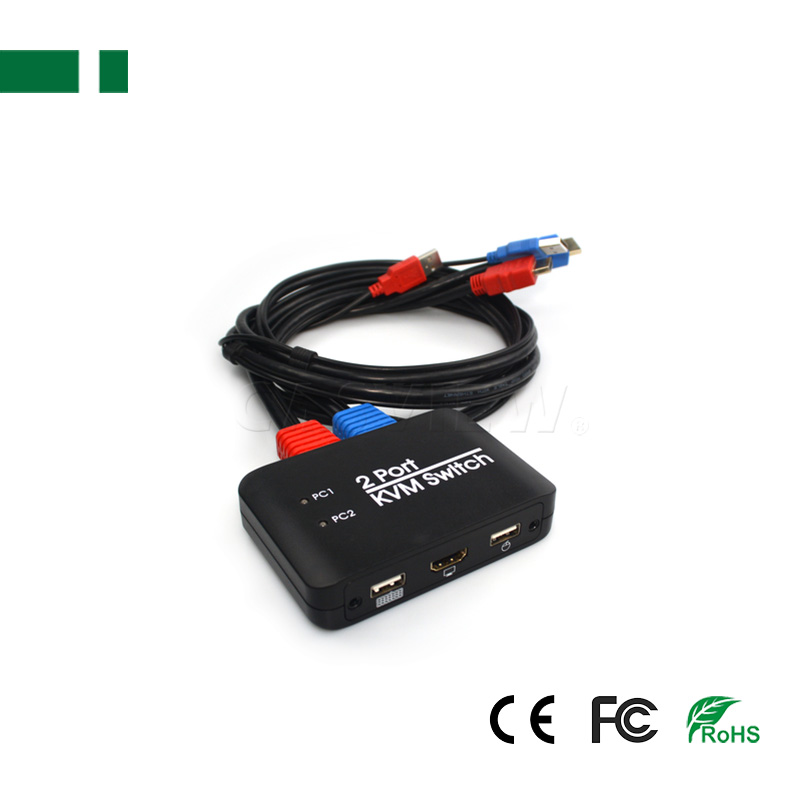

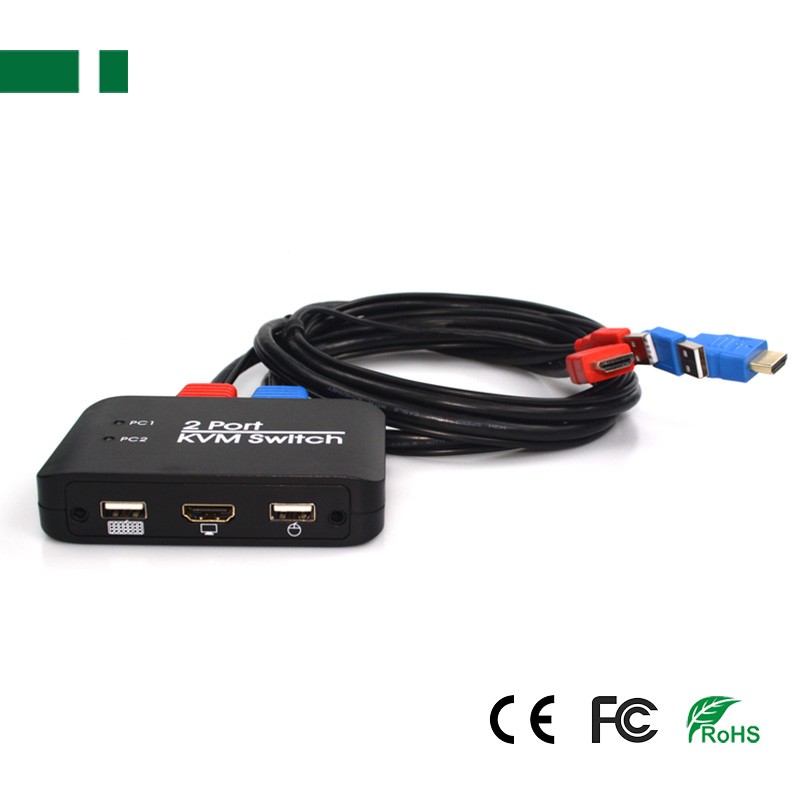

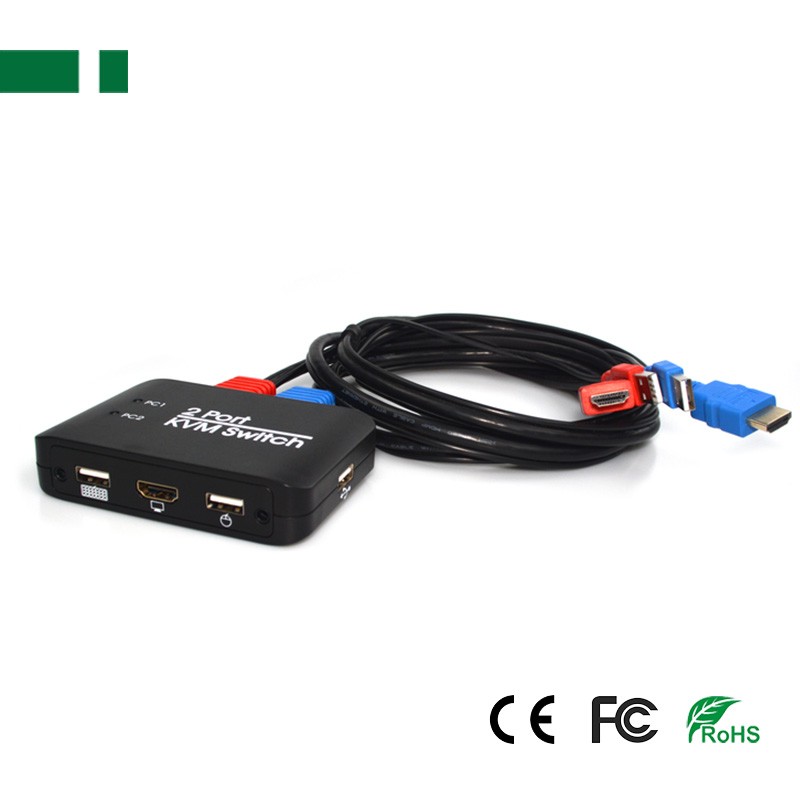

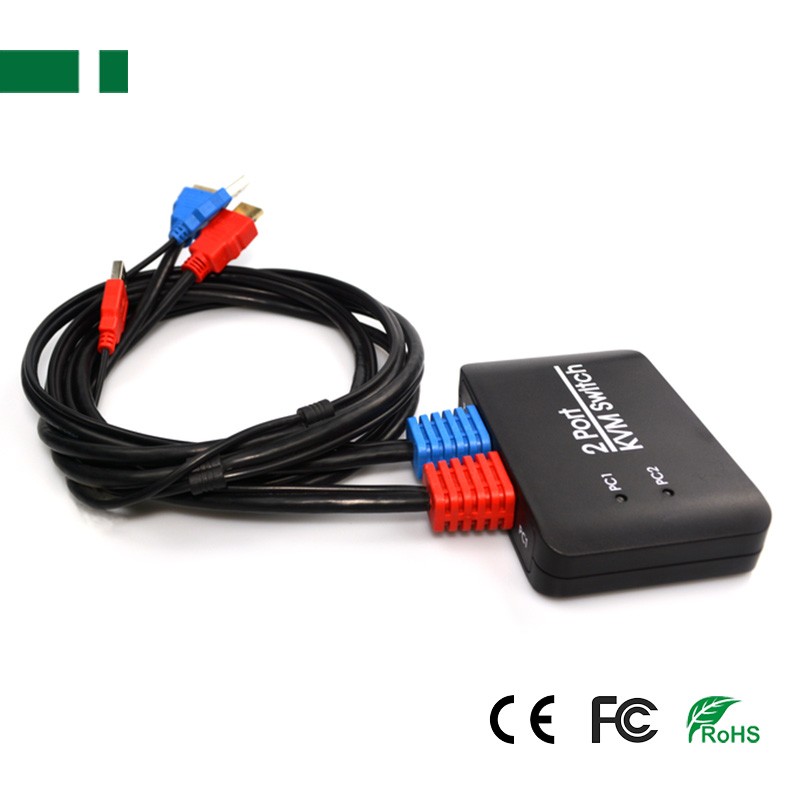

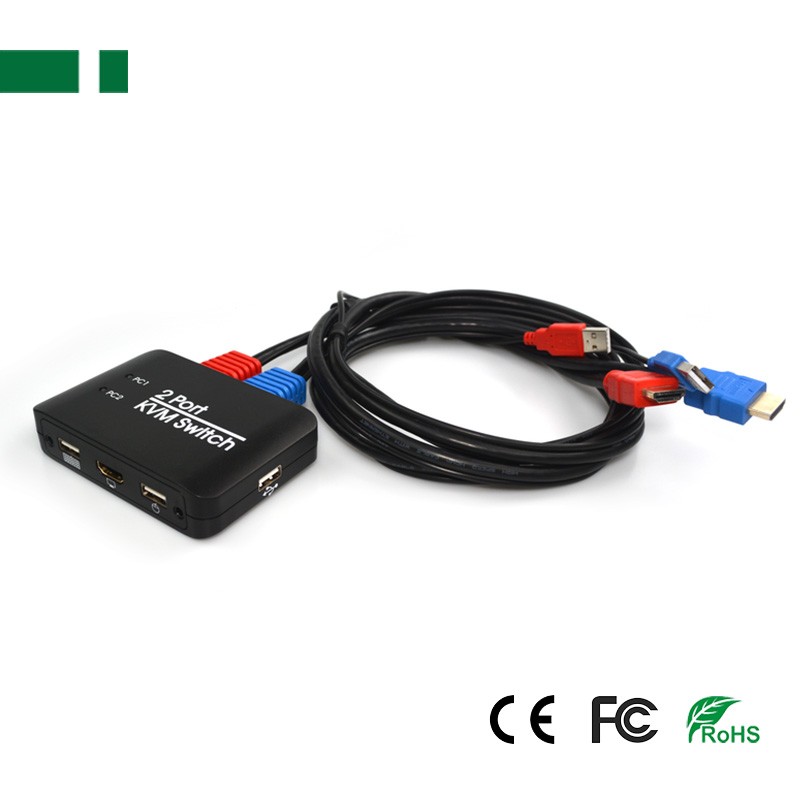

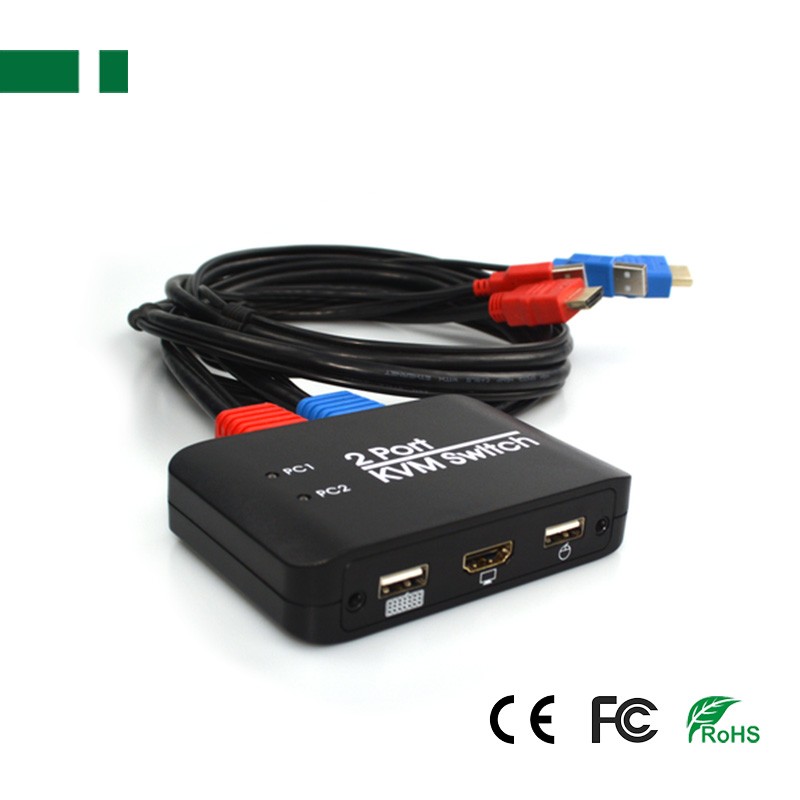

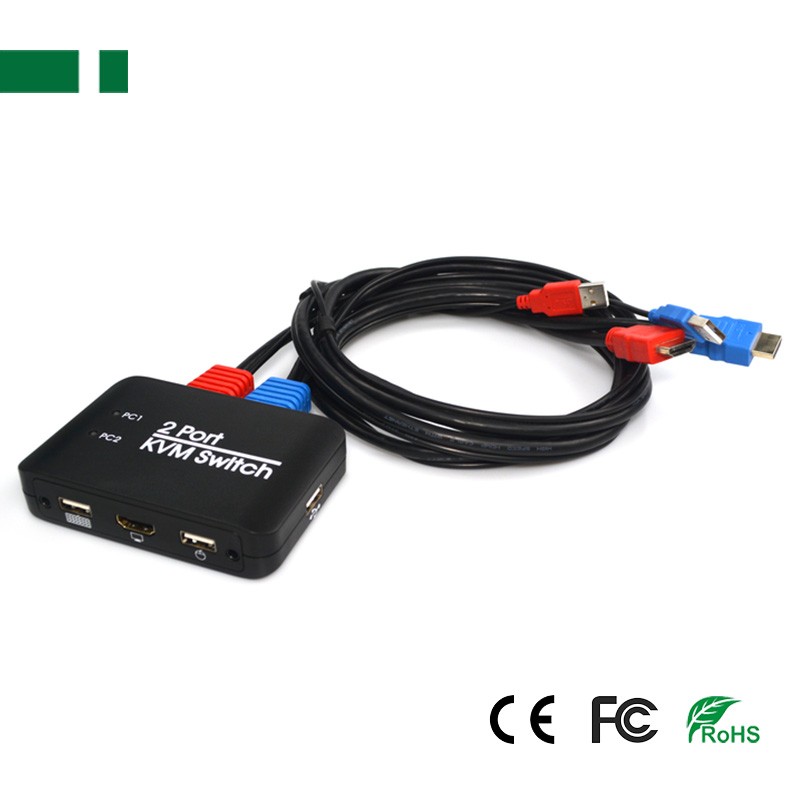

  • 2 Port 4K@60Hz HDMI KVM Switch
  • USB in & output: USB2.0;
  • Support U disk read and write;
  • Applicable system: Windows, Apple, MAC, Linux, Netware, Unix, Android;
  • Product description: 2 Port 4K@60Hz HDMI KVM Switch 1. Support 3 Switch ways (Hot-key/ IR Remote/ Control Button); 2. HDMI in & output: 4K@60Hz, HDMI2.0; 3. USB in & output: USB2.0; 4. Support U disk read and write;
  • INQUIRY   EMAIL

Download for More Details

This product can control multiple computers through a set of mouse, keyboard and display. It is easy to operate, improves work efficiency, saves cost of use, and is widely used in various fields.

Features:
1. Support Key-press switch
2. Support infrared remote control switching
3. Support button switch
4. Support U disk
5. Support LED switch channel indication
6. Support most mouse and keyboard on the market

Specifications:
Applicable system .............................................Windows,Apple,MAC, Linux,Netware,Unix,Android
Input port........................................................ ...............HDMI, USB-A
Output port.......................................................... .......................HDMI
Control port................................................................................USB-A
Read and write port...................................................................USB-A
USB port version.....................................................................USB 2.0
HDMI version............................. ........................................... HDMI2.0
Maximum support resolution................................................4K@60Hz
Host size....................................... ...............105x70x23mm (Lx WxH)
Wire length...................................................................................1.2m
Weight......................................... .......................... ............ 265G
Shell material................................................ .............................plastic
Max Working Current............................................................... ......1W
Operating Temperature Range............................................-10~+55℃
Storage Temperature Range...............................................-20~+60℃
Operating Humidity Range..............10~90%RH(No Condensation)
Storage Humidity Range....................5~95%RH(No Condensation)

Package Contents:
KVM switch.............................................1pcs
User Manual.............................................1pcs
Remote control receiving line...........1pcs(Optional accessories)
Remote control button......................1pcs(Optional accessories)

Note:
Please correctly use and keep the splitter to guarantee the product performance and work as expected.
1.Please do not expose this unit to the damp, high-temperature, dusty, erosive, or oxidative environment.
2.All parts will be free from the strong shake, hit, fall.
3.Please do not touch the item with wet hands.
4.Please hold the plug when unplugging. Do not pull the power cable directly.
5.Please turn the unit off when it is not in use for a long period of time.
6.Please do not open the cover and do not touch the inside parts. Please use the original factory power adapter
