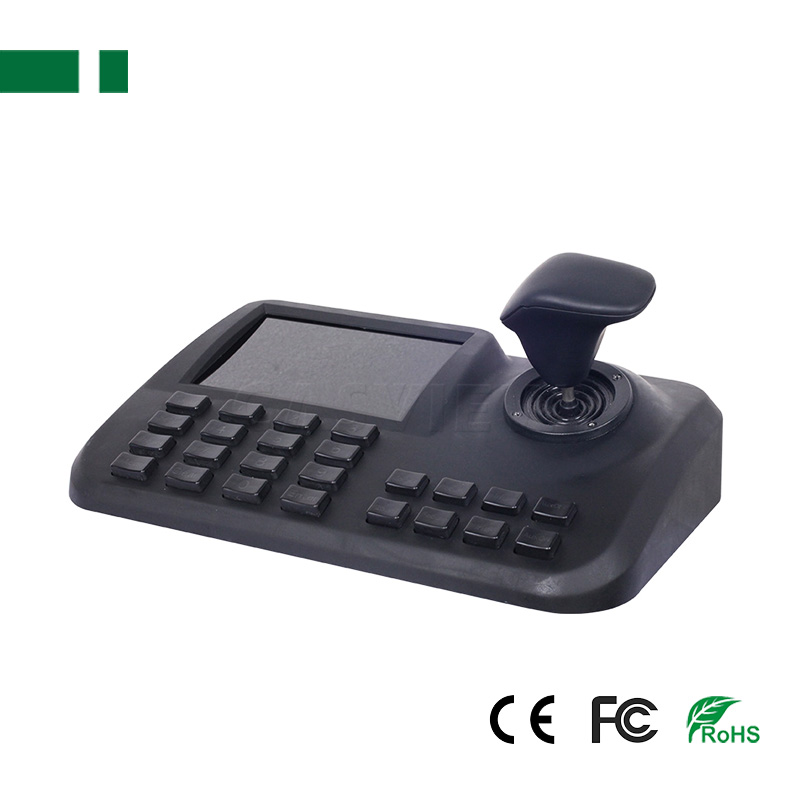

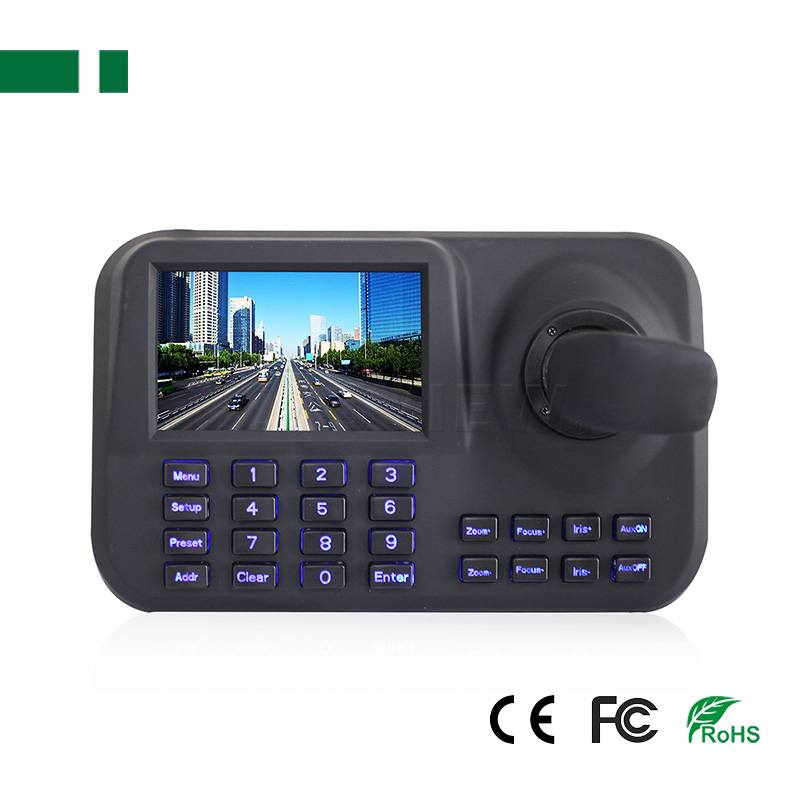

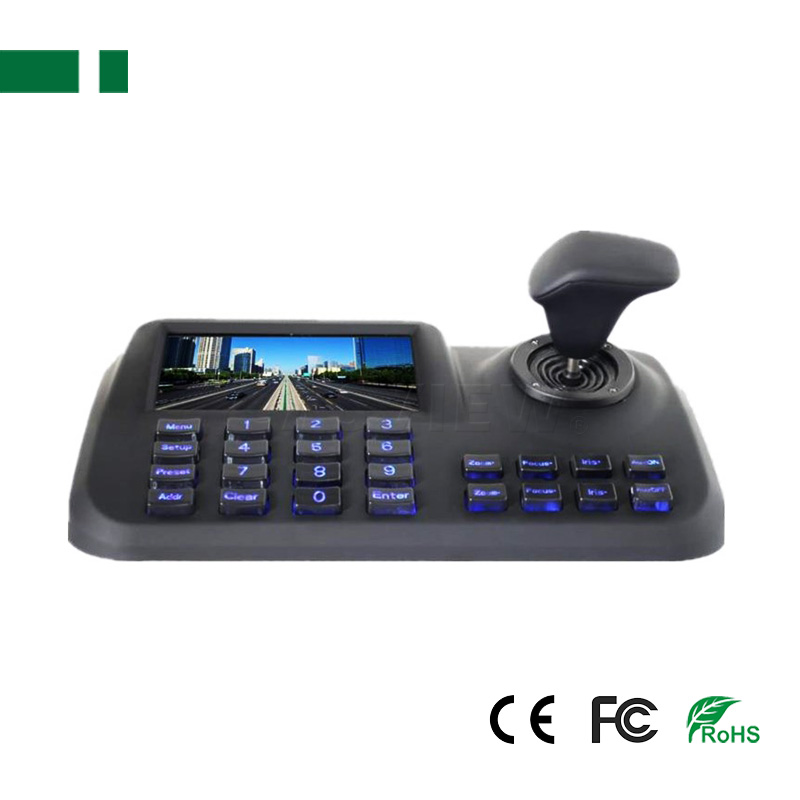

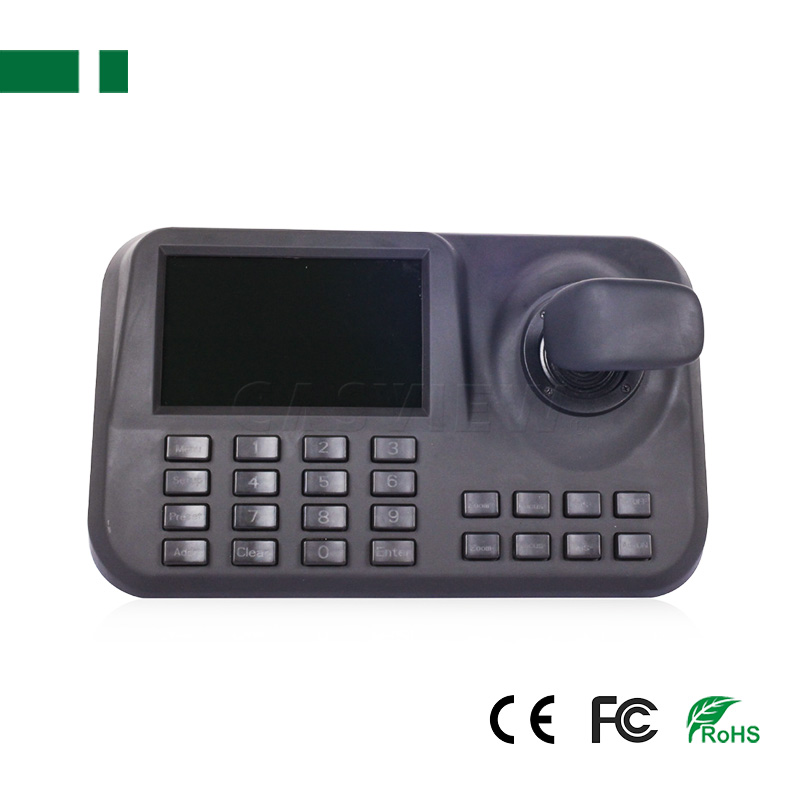

CKB-1008W Network keyboard controller for CCTV System

Network keyboard controller for CCTV System

This network control keyboard is a powerful three-dimensional with multi-function , Easy to operate, no need to make any setting,plug and play; powerful hardware decoding capabilities, the first to achieve industry IP dome unlimited access for large safe City projects, support 5.0 "LED LCD HD real-time display; Support HDMI output to achieve the main console screen and control equipment screen salvo (comes matrix switching function), reducing installation costs! To support ONVIF2.4, back-end PTZ not restricted by manufacturer , wide compatibility, with PTZ tour, A-B scan, 360°, pattern and so on functions.

Production Feature:

1. Supports Tour,360 Scan and A-B Scan and so on function ;

2. To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug, without any set, automatically add and allocate IP address by keyboard;

3. Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively;

4. Chinese and English switch ;

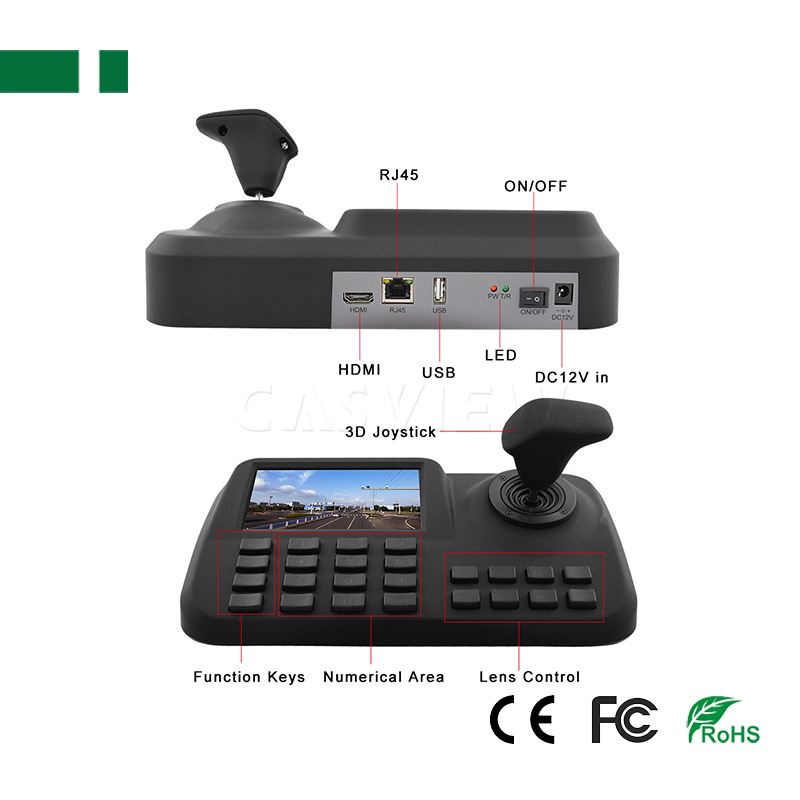

5. To support USB、HDMI interface output, can be realize main screen picture any switch on control board;

6. To support 5.0”HD LED , real display image on control device;

Speicification:
