CFS-10G101-1F1E-SFP 10Gigabit 1 SFP to 1 RJ45 Fiber Optic Media Converter

10Gigabit 1*SFP Port to 1*Ethernet Port SFP Media Converter;

Descripcion

10Gigabit Ethernet media converters with an external power supply are designed to transmit and receive 1.0Gbps data over fiber.
The electrical interface will automatically negotiate to 100Mbps or 1000Mbps or 1.0Gbps Ethernet speeds without any adjustments.
The SFP optical interface operates at an Ethernet speed of 1000Mbps.
Both are environmentally hardened and can operate at extreme temperatures.

Specification:

1/2/4/8 Gigabit SFP Port to 1/2/4/8 10/100/1000Mbps Ethernet Port Optical Media Converter
Model	CFS-G101-1F1E-SFP	CFS-G101-1F2E-SFP	CFS-G101-1F4E-SFP	CFS-G101-2F2E-SFP	CFS-G102-2F4E-SFP	CFS-G102-2F8E-SFP	CFS-G102-8F2E-SFP	CFS-G102-4F2E-SFP	CFS-10G101-1F1E-SFP
TX/RX SFP Port	1-CH	1-CH	1-CH	2-CH	2-CH	2-CH	8-CH	4-CH	1-CH
SFP Speed	1.25Gbps								10Gbps
RJ45 Port	1-CH	2-CH	4-CH	2-CH	4-CH	8-CH	2-CH	2-CH	1-CH
Ethernet Speed	10/100/1000Mbps Adaptive								10Gbps
SFP Moudle	SC/FC/ST/LC Optional
Wavelength	1310nm / 1550nm
Distance	Depends on SFP Module
Power supply	DC5V-DC12V, US or EU Plug Optional

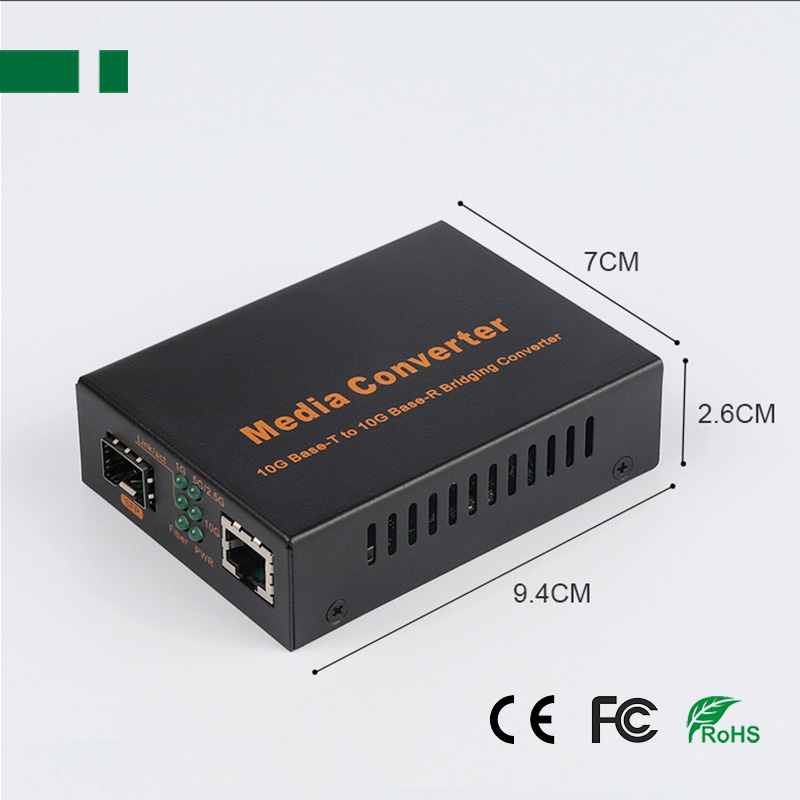

Dimension	100*70*26 mm	100*70*26 mm	100*70*26 mm	90*70*26 mm	160*80*28 mm	195*87*28 mm	217*150*27 mm	160*80*28 mm	94*70*26 mm

Feature
1. There is a 10Gbps full-duplex fiber port that converts to a 1/2/4/8 RJ45 1.0Gbps Ethernet port for your choice.

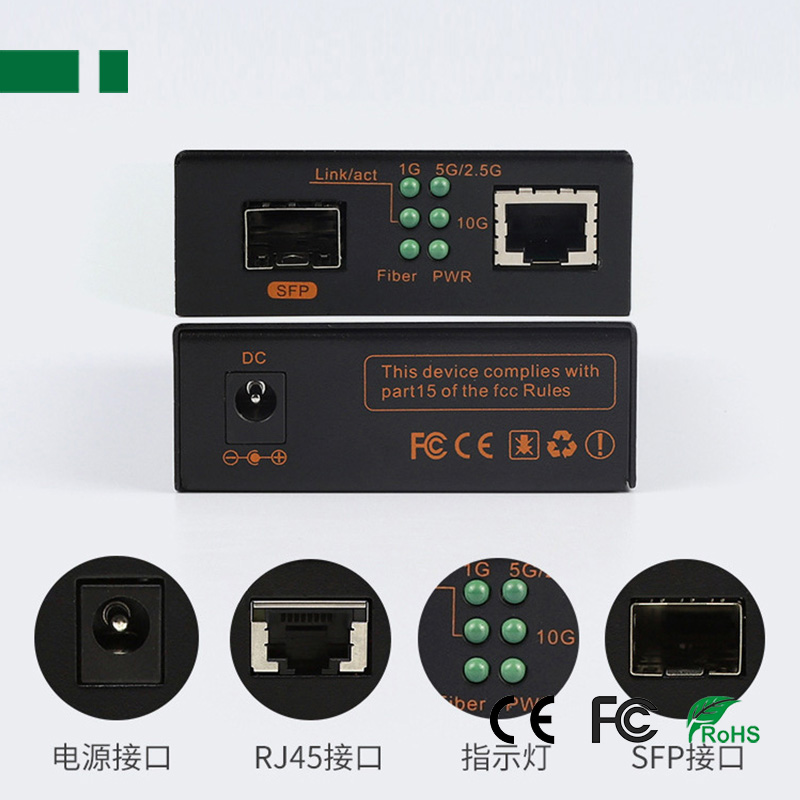

2. Each port has a complete LED indicator for installation, commissioning and maintenance.
3. Support for 9K giant packages.
4. Supports direct forwarding mode with less time delay.
5. Low power consumption, only 1.5W at full load.
6. Isolation protection function, good data security.
7. The optical fiber transmission distance depends on the performance of the SFP module and is selected according to your needs.
8. Small size, suitable for installation in various places.
9. Low power automatic bargaining chip to ensure stable and long-term operation.
