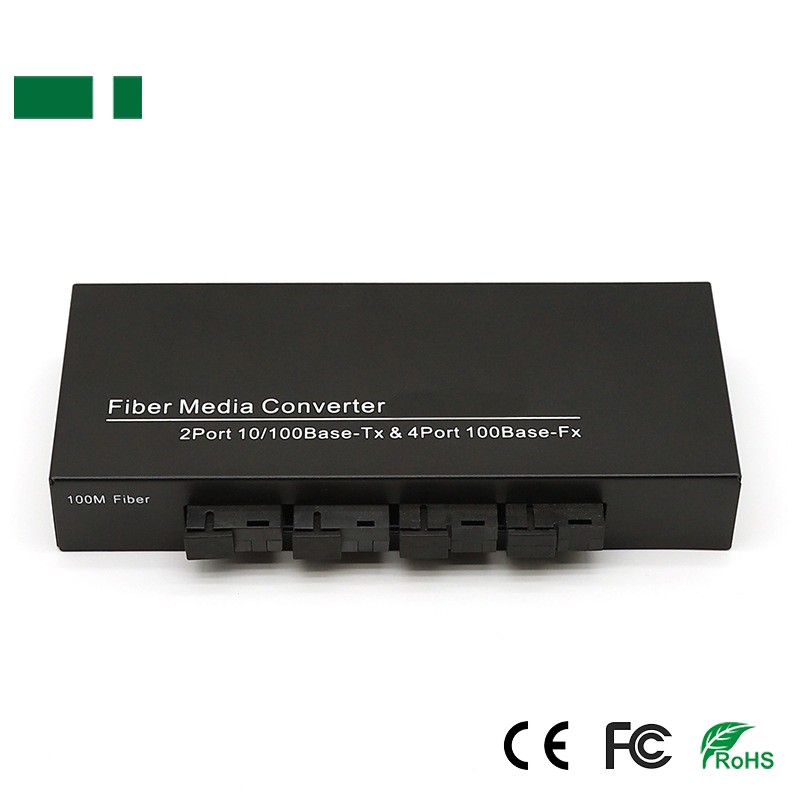

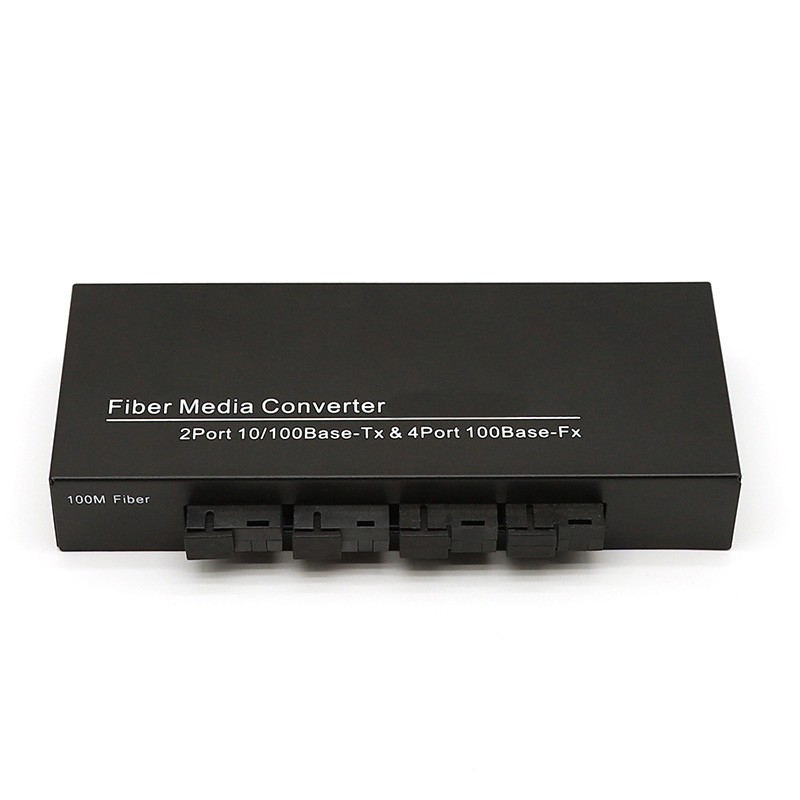

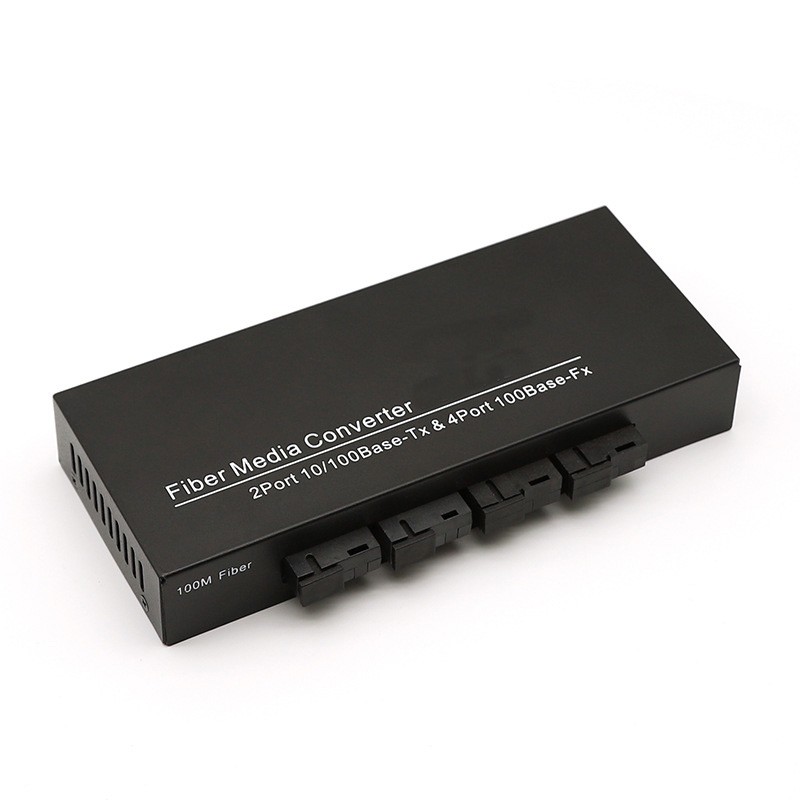

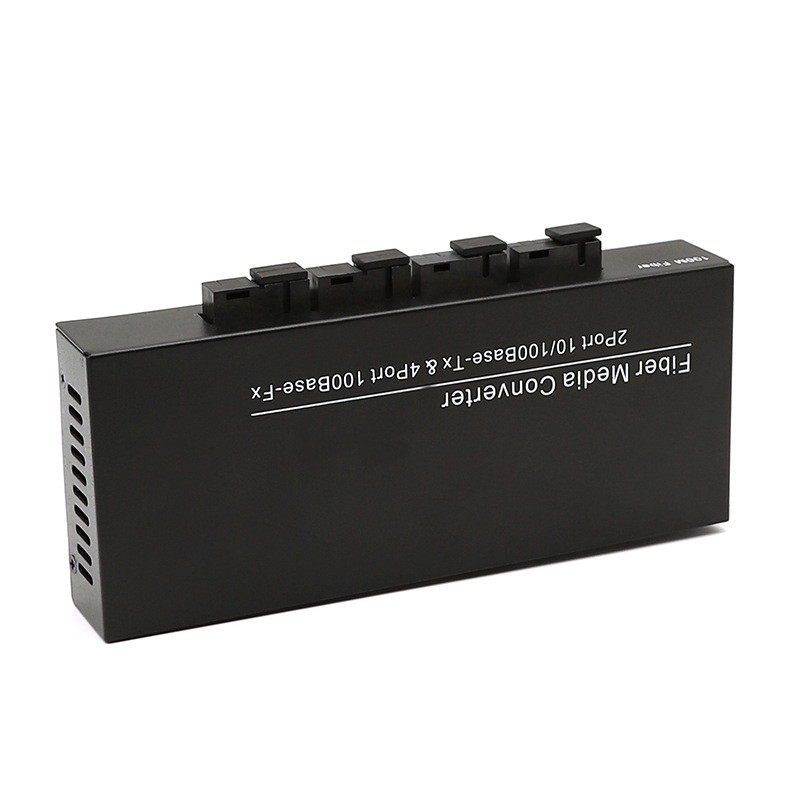

CFS-102-4F2E 100Mbps 4 SC to 2 RJ45 Fiber Optic Transceiver

10/100Mbps 4SC to 2 RJ45 Fiber Optic Transceiver

Instruction
The 10/100Mbps Ethernet Media Converters with an external power supply are designed to transmit and receive 10/100Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps or 100Mbps Ethernet rate without any adjustments.

Type: 10/100M Optic Media Converter
Power: DC 5V
Power Adapter: EU/US Plug
Connector A: 4 TX/RX SC Port

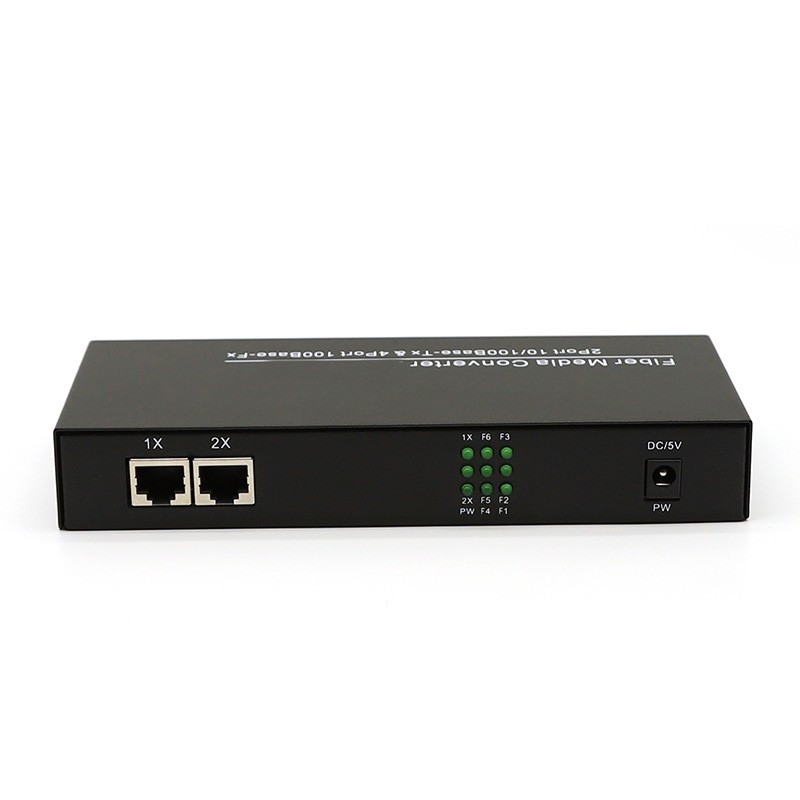

Connector B: 2 RJ45 Port
Fiber Port Type: SC Port
Ethernet Port Rate: 10/100Mbps adaptive
SC Port Rate: 100Mbps
Wavelength: 1310nm / 1550nm
Distance: 20Km

Feature
4*100Mbps full-duplex fiber port and 2*100Mbps Ethernet port.
Each port has a complete LED Indicator light for installation, commissioning, and maintenance.
Support 9K Jumbo Packet.
Support direct forwarding mode, which supports less time delay.
Low power consumption, only 1.5W in full load condition.
Support isolation protection function, and good data security.
The optical fiber transmission distance depends on the performance of the SCmodule, please choose according to your needs.
Small size, suitable for installation in various places.
Auto-negotiation low power consumption chips to ensure a very long time and stable operation.
