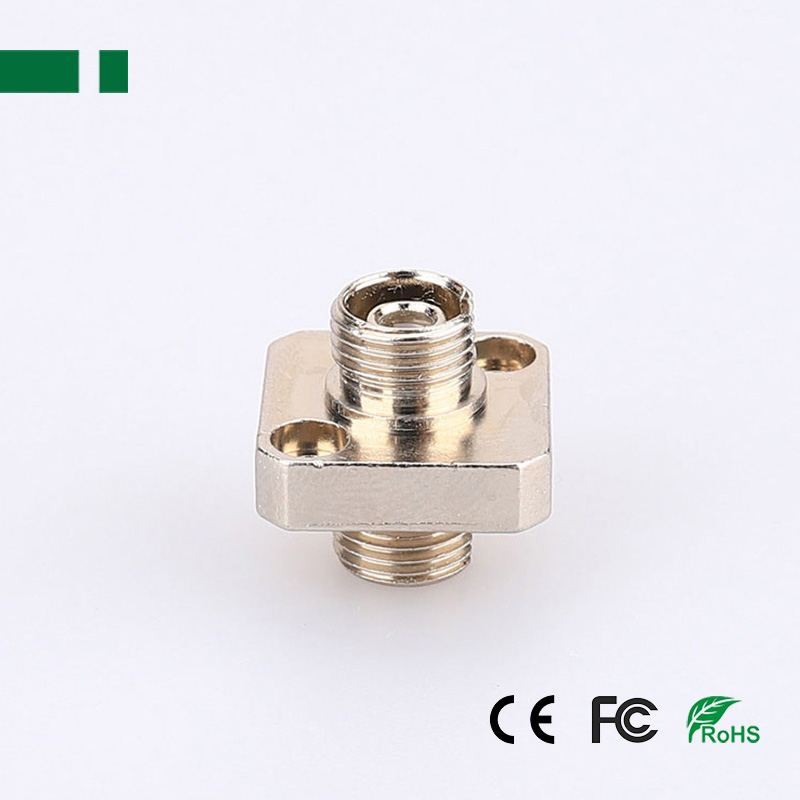

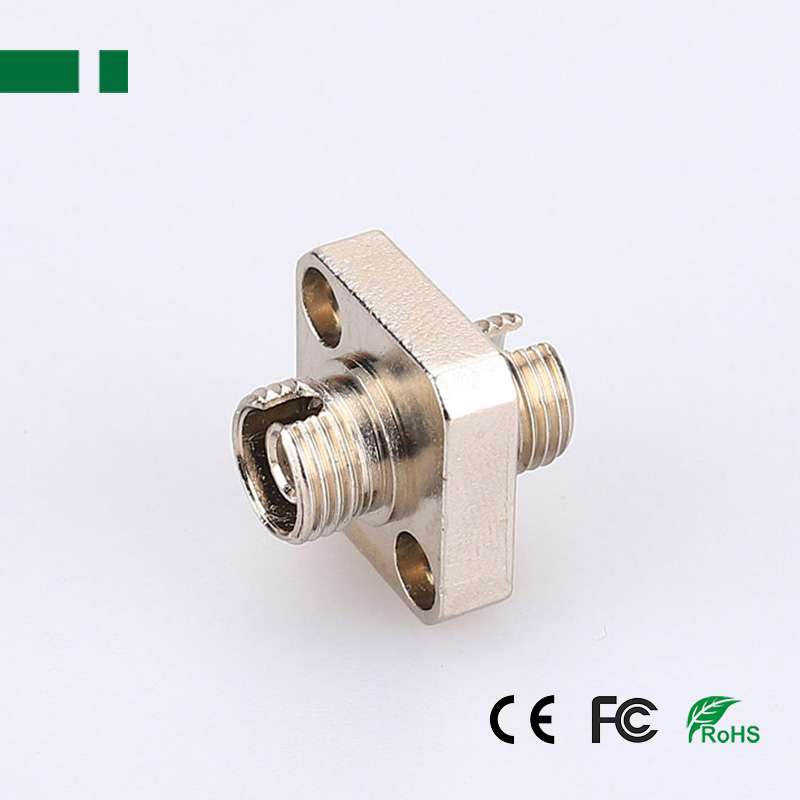

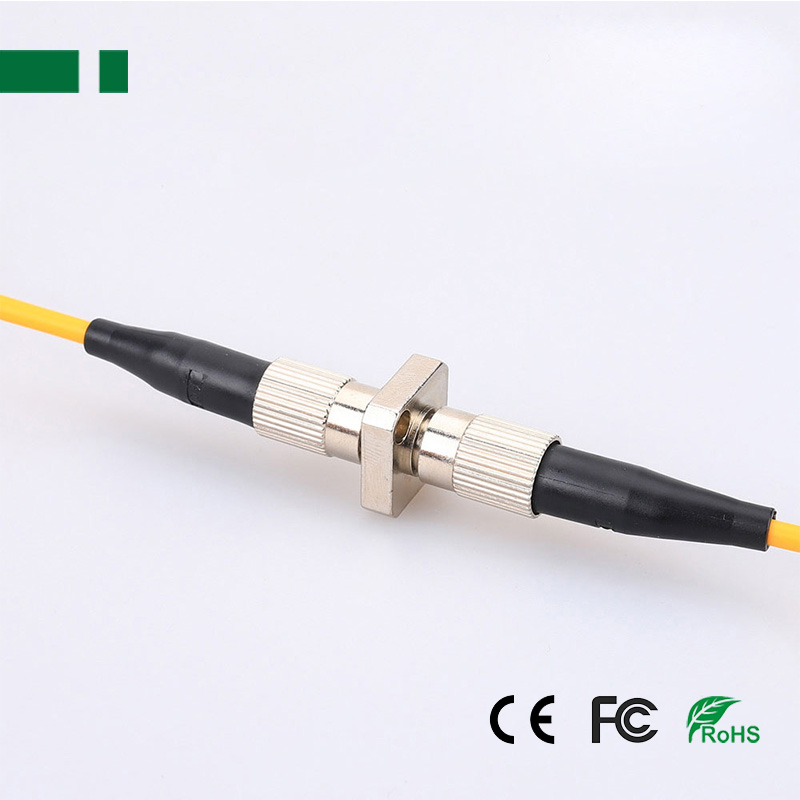

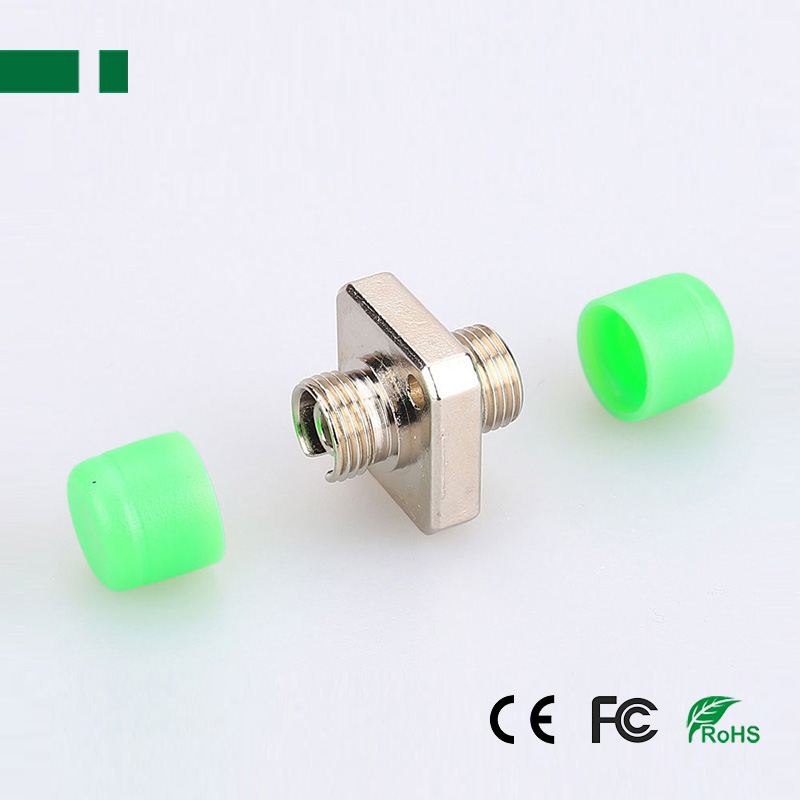

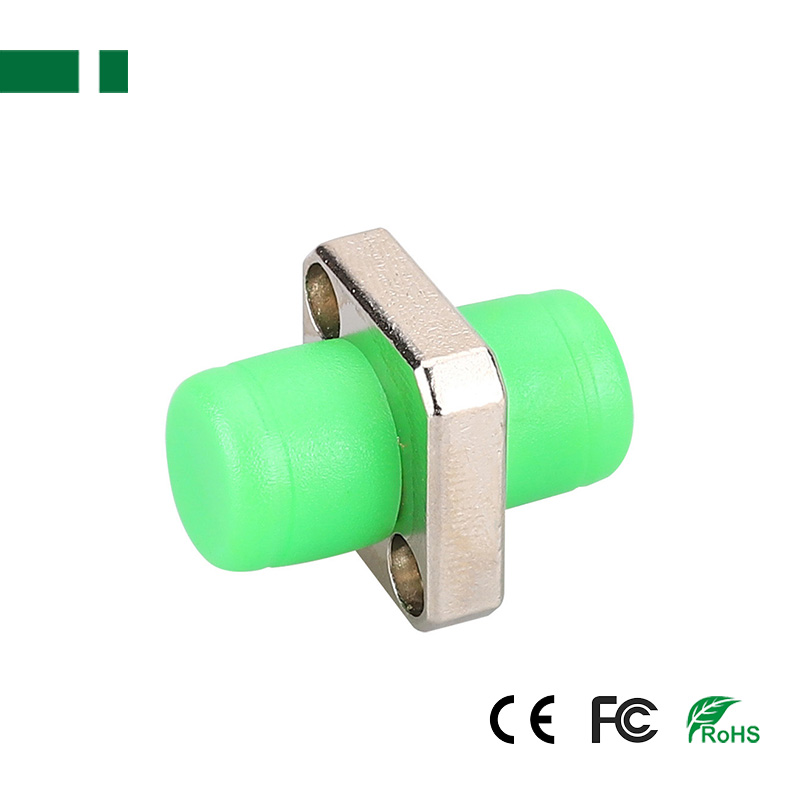

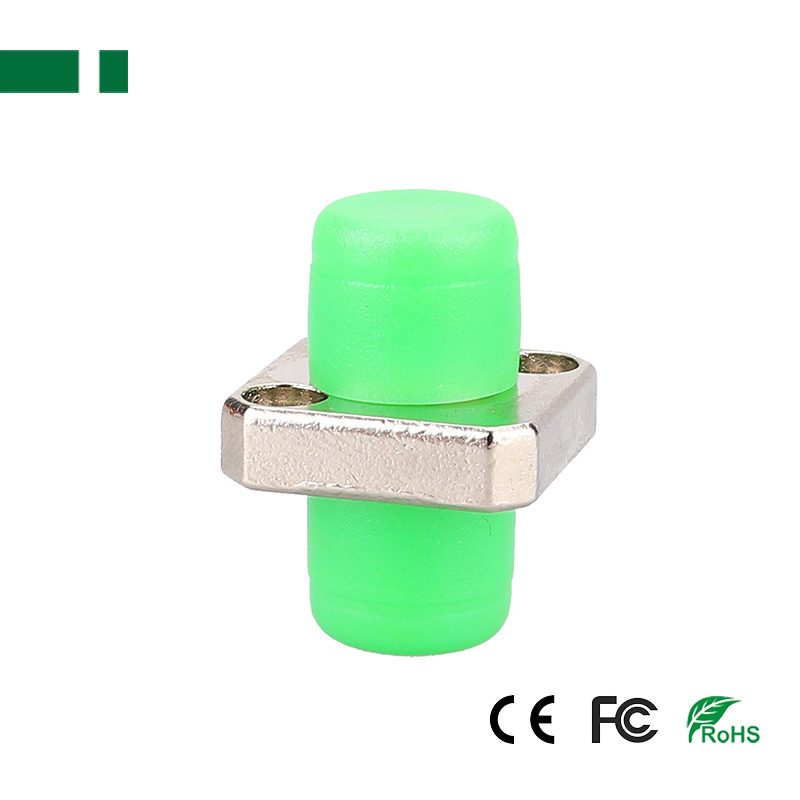

FC Female APC to FC Female APC Fiber Optic Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
FC Female APC to FC Female APC Fiber Optic Adapter
Description:
FC Female to FC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts FC connector to FC connector, Variable FC interface conversion FC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
Specification:
| ITEM | FC/ST to FC/ST UPC/ APC Connector Fiber Optic Adapter | ||||
| Model | CFC06-FCUF-FCUF | CFC06-FCUF-FCUF-D | CFC06-FCAF-FCAF | CFC06-FCAF-FCAF-D | CFC06-STUF-STUF |
| Connector A | FC Female UPC | FC Female APC | ST Female UPC | ||
| Connector B | FC Female UPC | FC Female APC | ST Female UPC | ||
| Dimension | 22(L)*10(D)mm | 22*10*10mm | 22(L)*10(D)mm | 22*10*10mm | 37(L)*10(D)mm |
| Net Weight | 8g | 8.3g | 8g | 8.3g | 8.4g |
| Housing | Metal, Ceramic | ||||
| Insert Loss | 1310nm<0.3dB, 1550nm<0.3dB | ||||
| Return Loss | 1310nm≥50dB, 1550nm≥50dB | ||||
| Interchangeability | ≤0.2dB | ||||
| Repeatability | ≤0.1dB | ||||
| Durability | ≤0.2dB (1000 times mating) | ||||
| Tensile Strength | > 10kg | ||||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||||
