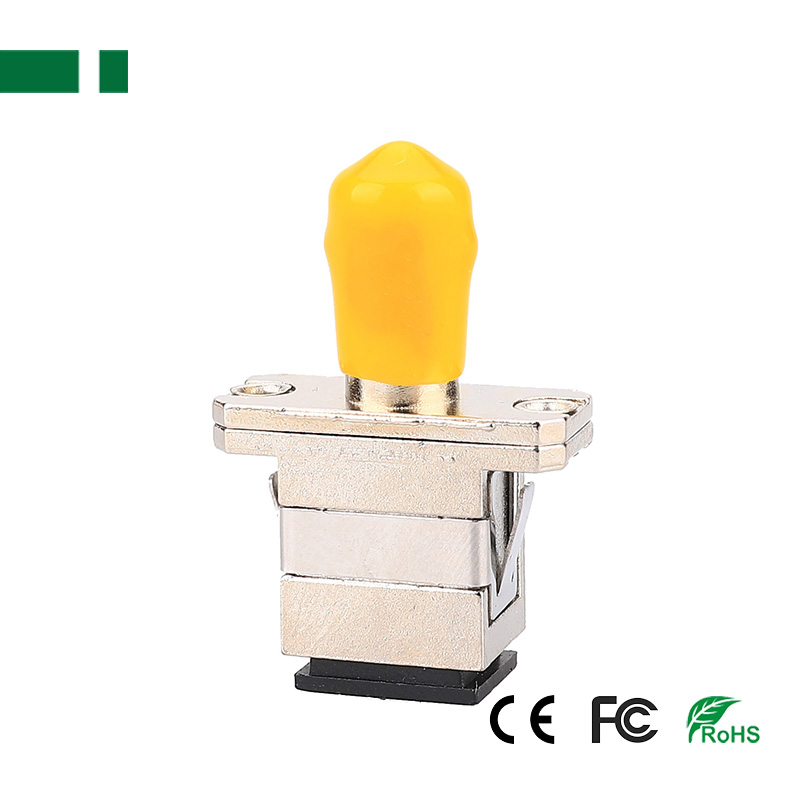

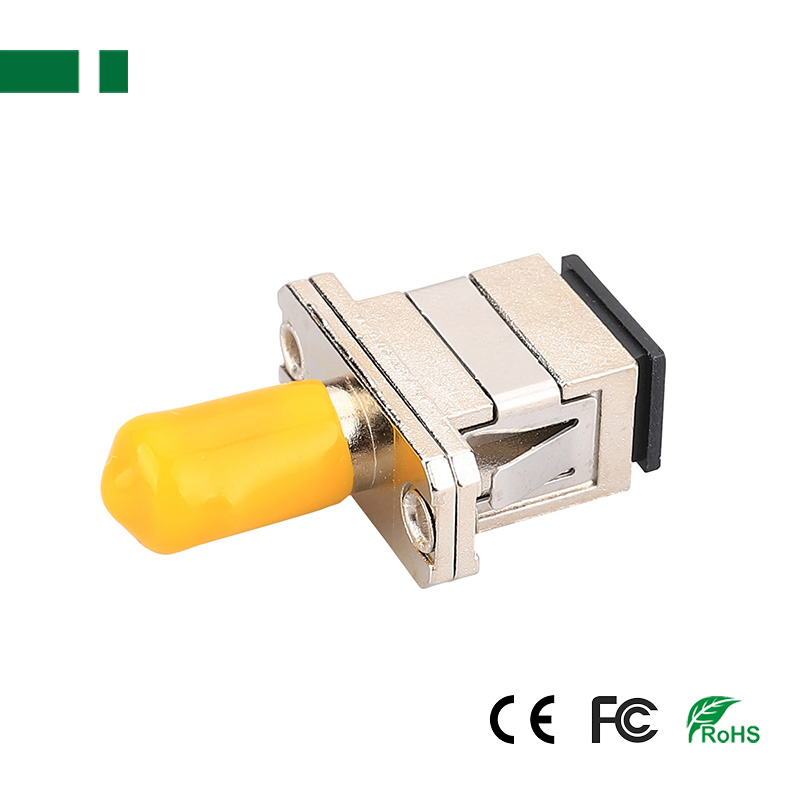

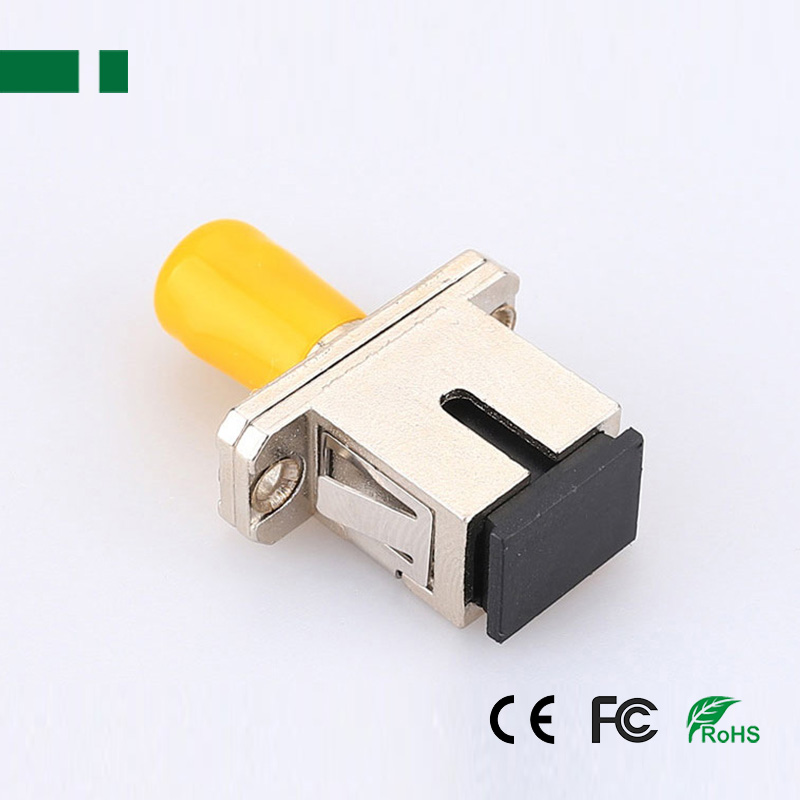

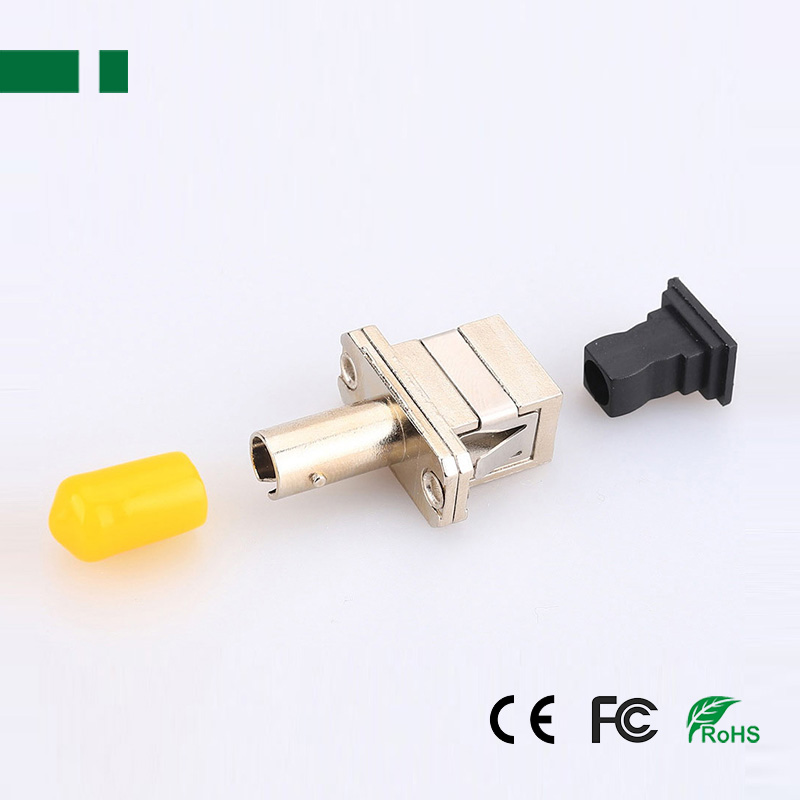

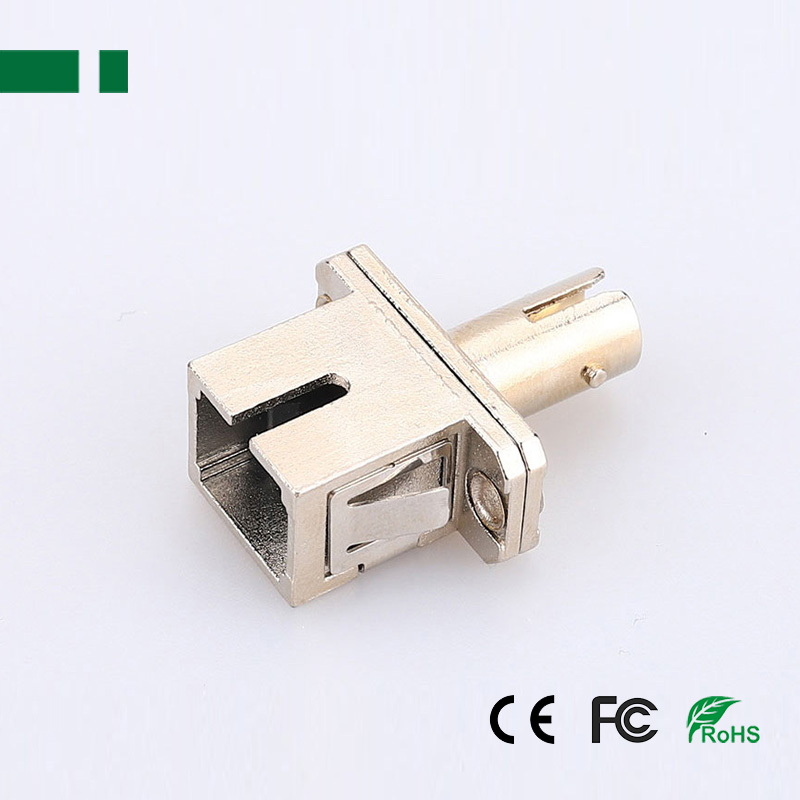

SC Female UPC to ST Female UPC Fiber Optic Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
SC Female UPC to ST Female UPC Fiber Optic Adapter
Description:

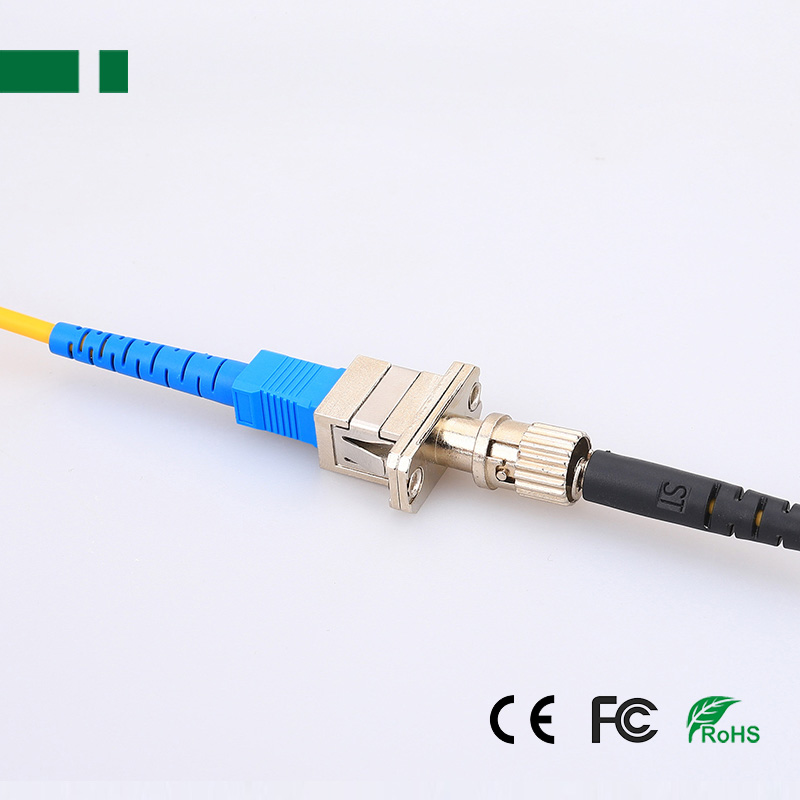

SC Female to ST Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts SC connector to ST connector, Variable SC interface conversion ST interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
Specification:
| ITEM | FC/SC to FC/ST UPC Connector Fiber Optic Adapter | |||
| Model | CFC07-FCUF-SCUF | CFC07-FCUF-SCUF-1 | CFC07-FCUF-STUF | CFC07-SCUF-STUF |
| Connector A | FC Female UPC | FC Female UPC | SC Female UPC | |
| Connector B | SC Female UPC | ST Female UPC | ||
| Net Weight | 7.5g | 8.3g | 7g | 9g |
| Housing | Metal, Ceramic | |||
| Insert Loss | 1310nm<0.3dB, 1550nm<0.3dB | |||
| Return Loss | 1310nm≥50dB, 1550nm≥50dB | |||
| Interchangeability | ≤0.2dB | |||
| Repeatability | ≤0.1dB | |||
| Durability | ≤0.2dB (1000 times mating) | |||
| Tensile Strength | > 10kg | |||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |||
