Fiber Optic Connector

CFC07-FCUF-SCUF-1 FC Female UPC to SC Female UPC Fiber Optic Adapter

CFC07-FCUF-SCUF-1 FC Female UPC to SC Female UPC Fiber Optic Adapter

FC Female UPC to SC Female UPC Fiber Optic Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
INQUIRY EMAIL

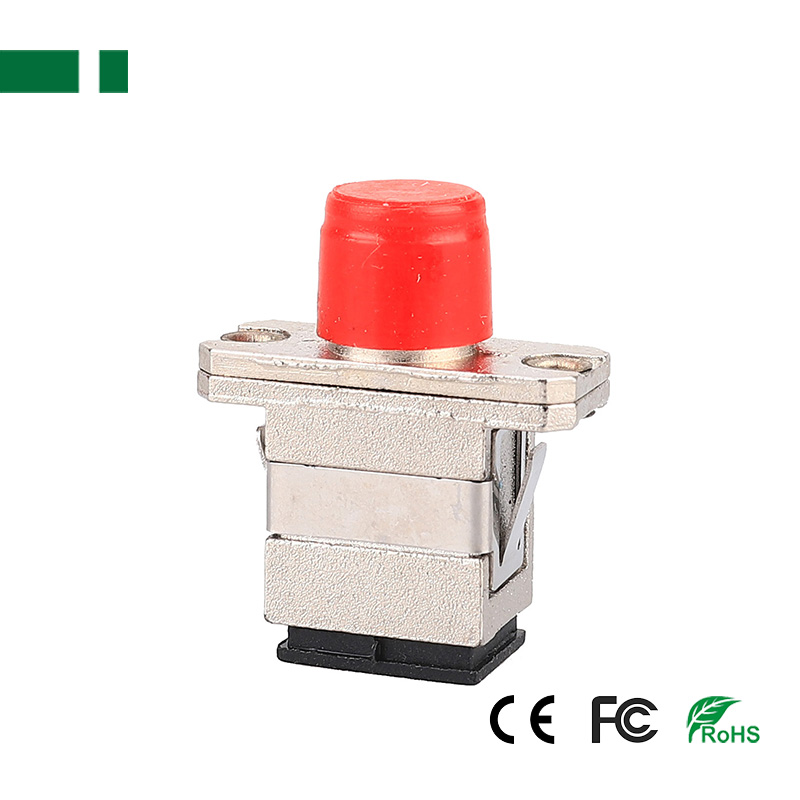

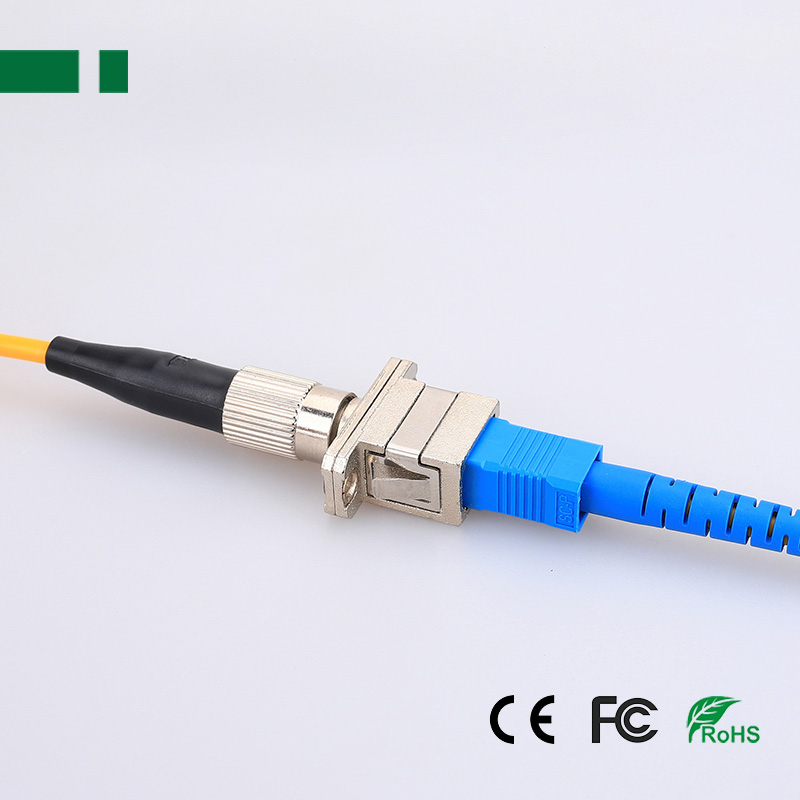

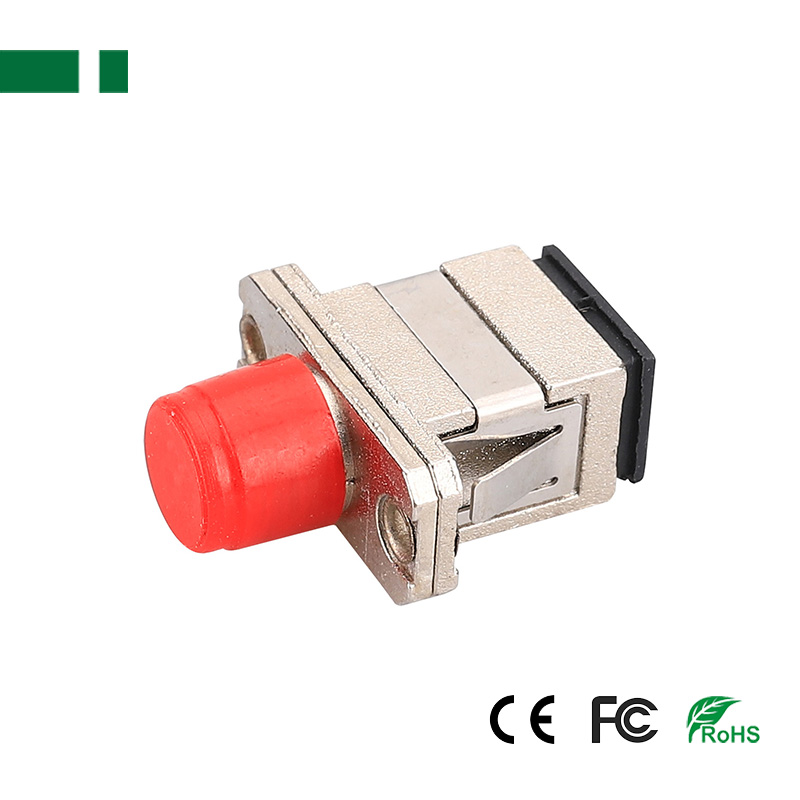

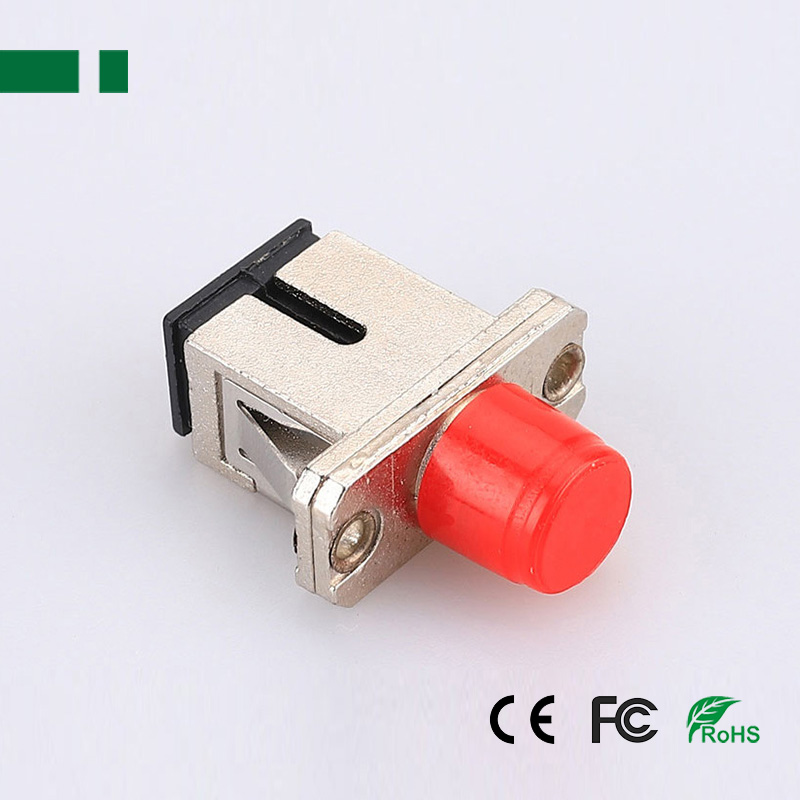

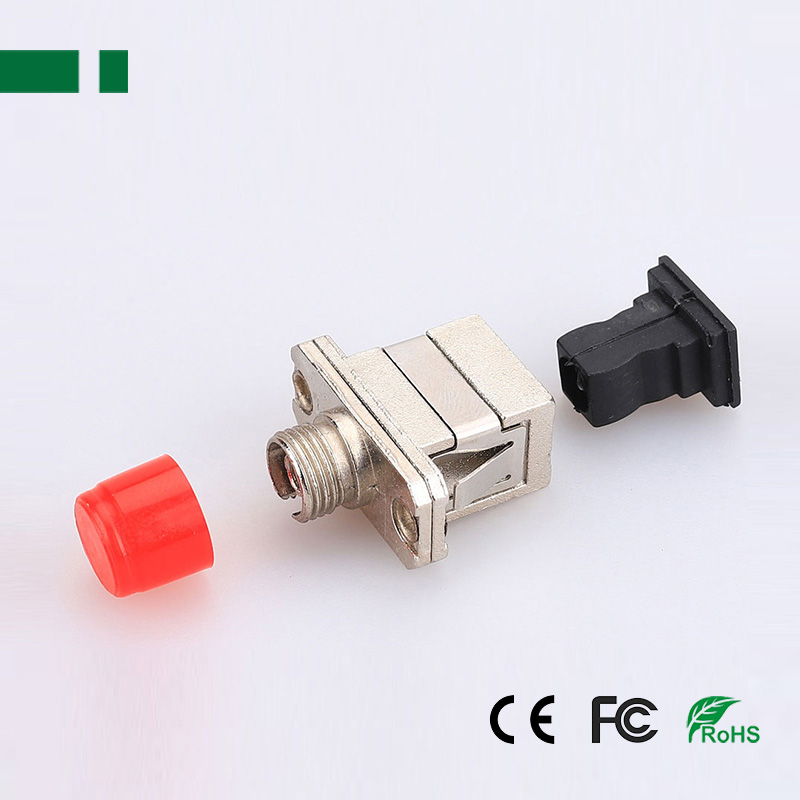

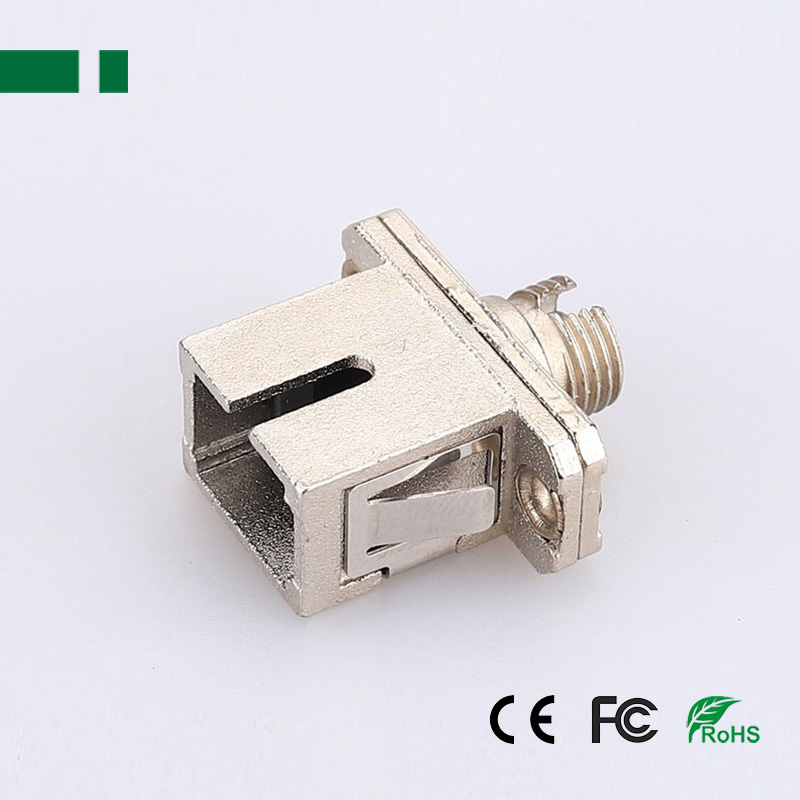

FC Female UPC to SC Female UPC Fiber Optic Adapter

Description:
FC Female to SC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts FC connector to SC connector, Variable FC interface conversion SC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

ITEM	FC/SC to FC/ST UPC Connector Fiber Optic Adapter
Model	CFC07-FCUF-SCUF	CFC07-FCUF-SCUF-1	CFC07-FCUF-STUF	CFC07-SCUF-STUF
Connector A	FC Female UPC		FC Female UPC	SC Female UPC
Connector B	SC Female UPC		ST Female UPC
Net Weight	7.5g	8.3g	7g	9g
Housing	Metal, Ceramic
Insert Loss	1310nm<0.3dB, 1550nm<0.3dB
Return Loss	1310nm≥50dB, 1550nm≥50dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
