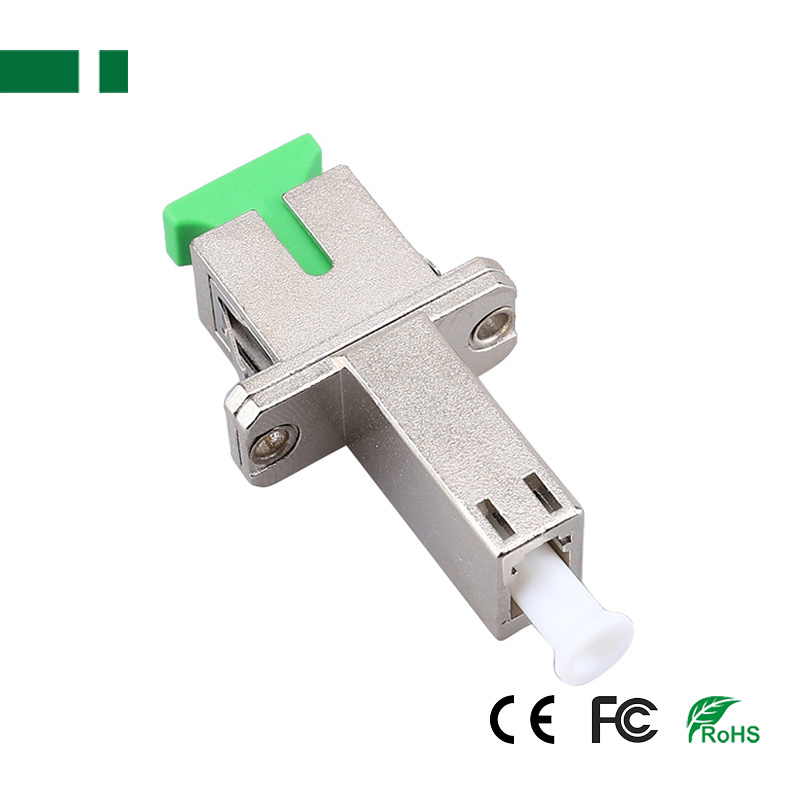

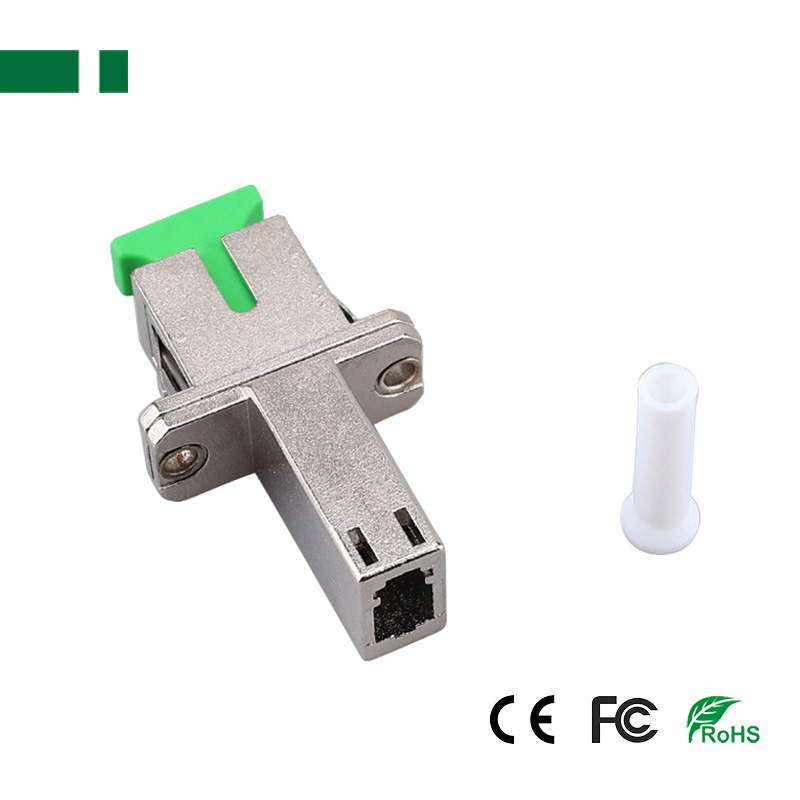

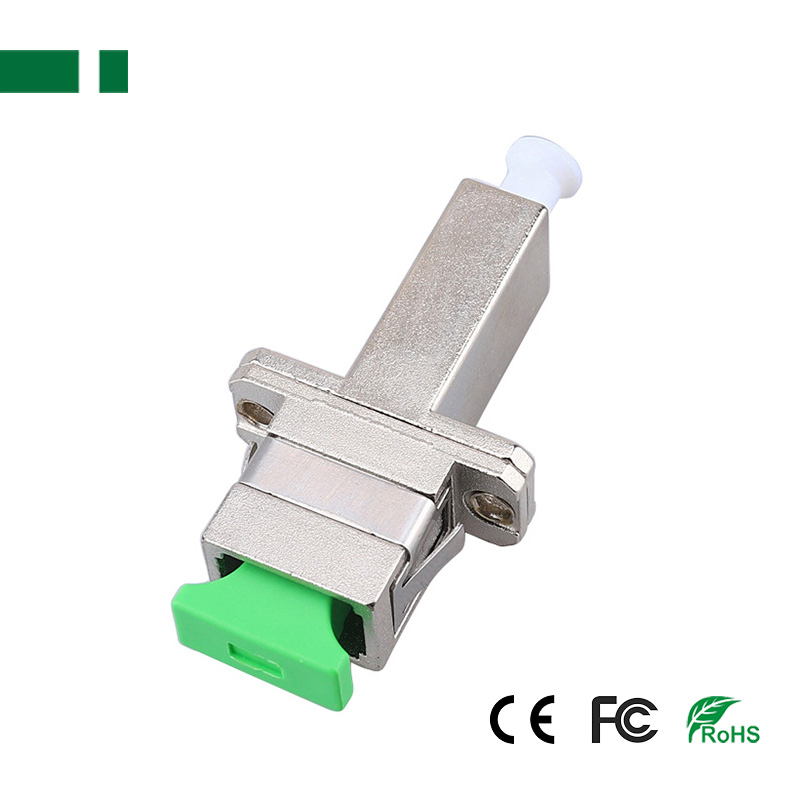

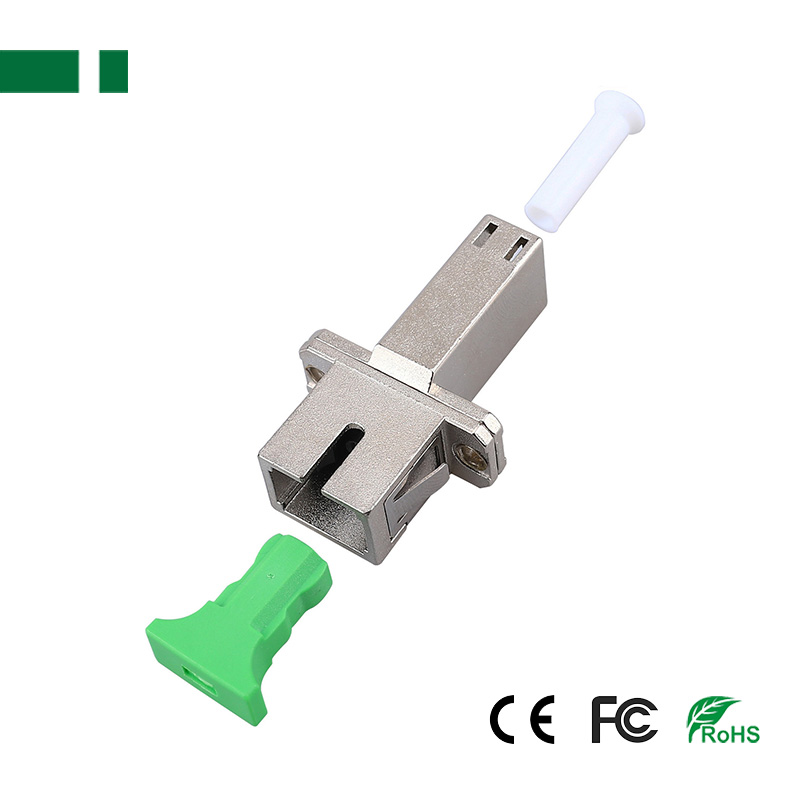

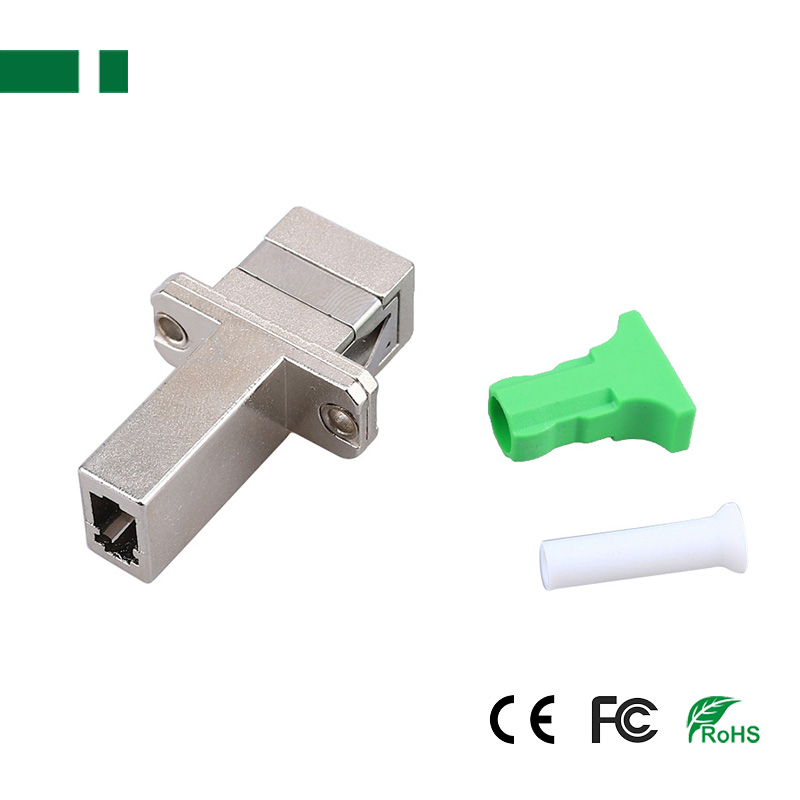

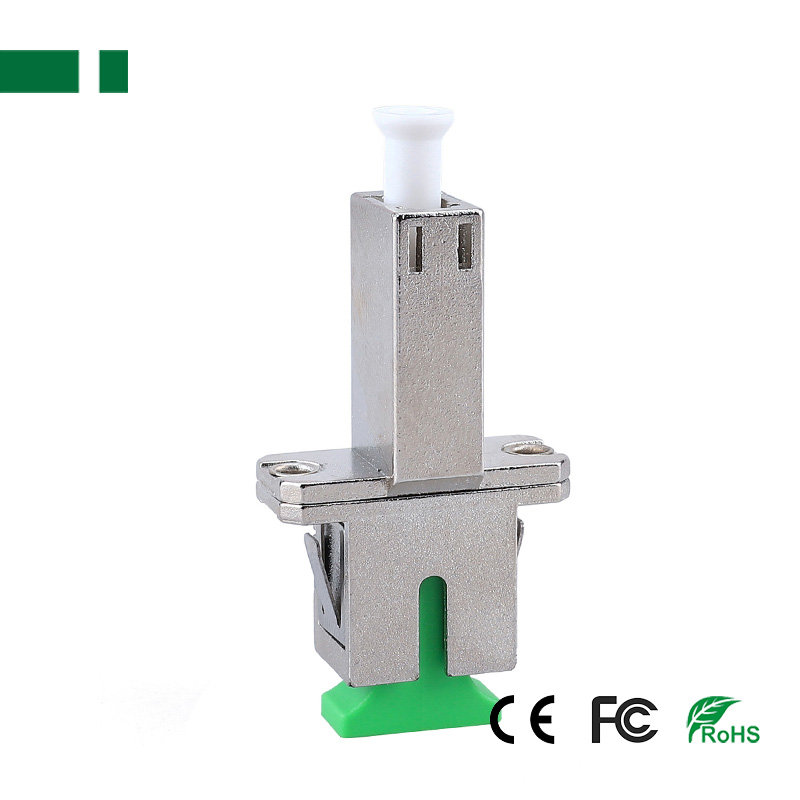

LC Female APC to SC Female APC Fiber Optic Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
LC Female APC to SC Female APC Fiber Optic Adapter
Description:
LC Female to SC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts LC connector to SC connector, Variable LC interface conversion SC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
Specification:
| ITEM | UPC/ APC LC to FC/ SC/ ST Connector Fiber Optic Adapter | ||||
| Model | CFC01-LCUF-FCUF | CFC01-LCAF-FCAF | CFC01-LCUF-SCUF | CFC01-LCAF-SCAF | CFC01-LCUF-STUF |
| Connector A | LC Female UPC | LC Female APC | LC Female UPC | LC Female APC | LC Female UPC |
| Connector B | FC Female UPC | FC Female APC | SC Female UPC | SC Female APC | ST Female UPC |
| Dimension | 42*22*10mm | ||||
| Net Weight | 12.3g | 12.5g | 14.3g | 14.6g | 13.2g |
| Housing | Metal, Ceramic | ||||
| Insert Loss | 1310nm<0.3dB, 1550nm<0.3dB | ||||
| Return Loss | 1310nm≥50dB, 1550nm≥50dB | ||||
| Interchangeability | ≤0.2dB | ||||
| Repeatability | ≤0.1dB | ||||
| Durability | ≤0.2dB (1000 times mating) | ||||
| Tensile Strength | > 10kg | ||||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||||
