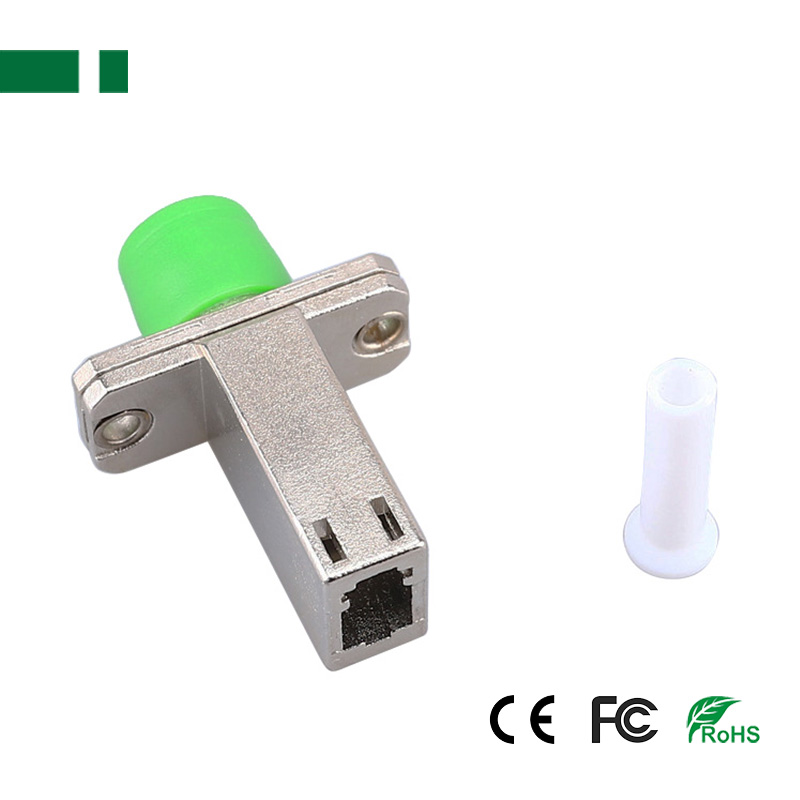

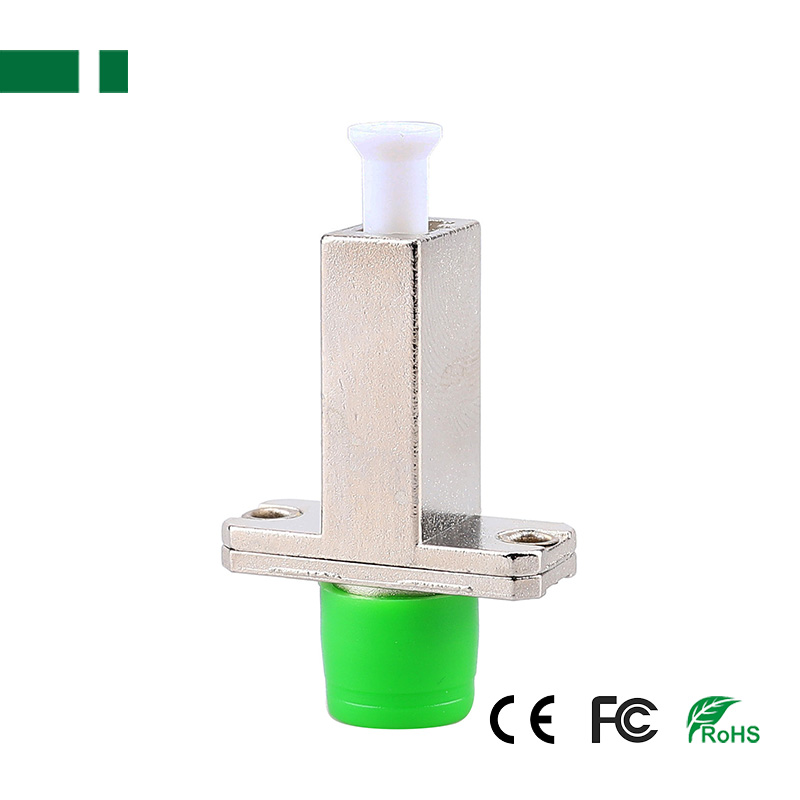

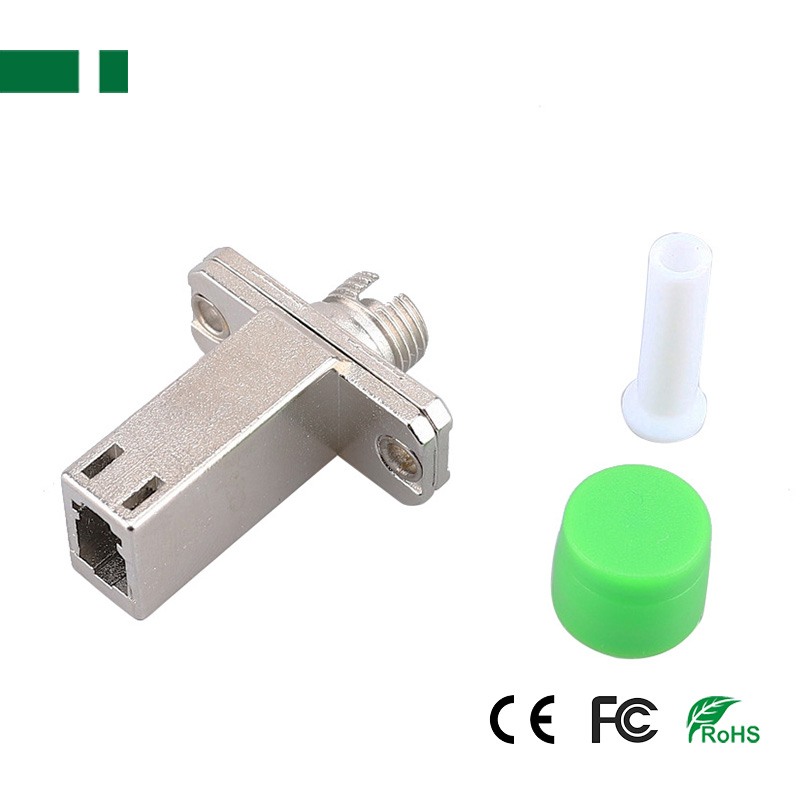

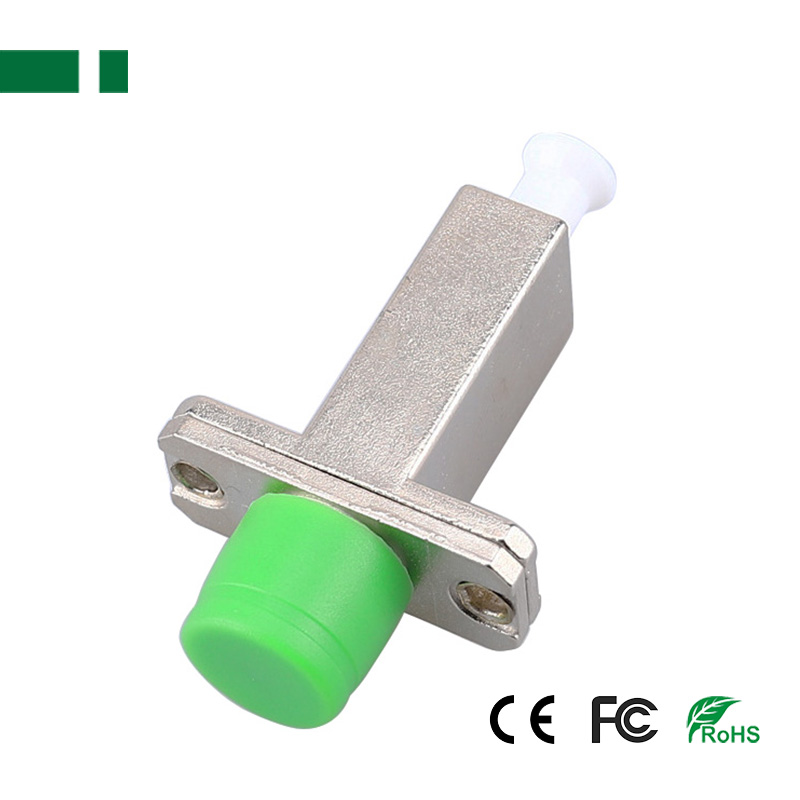

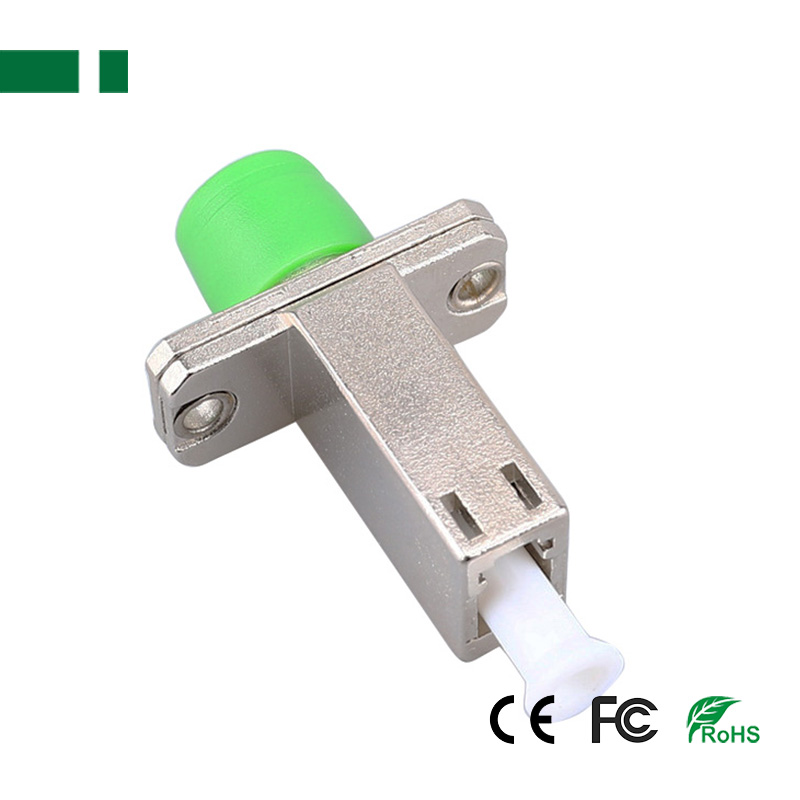

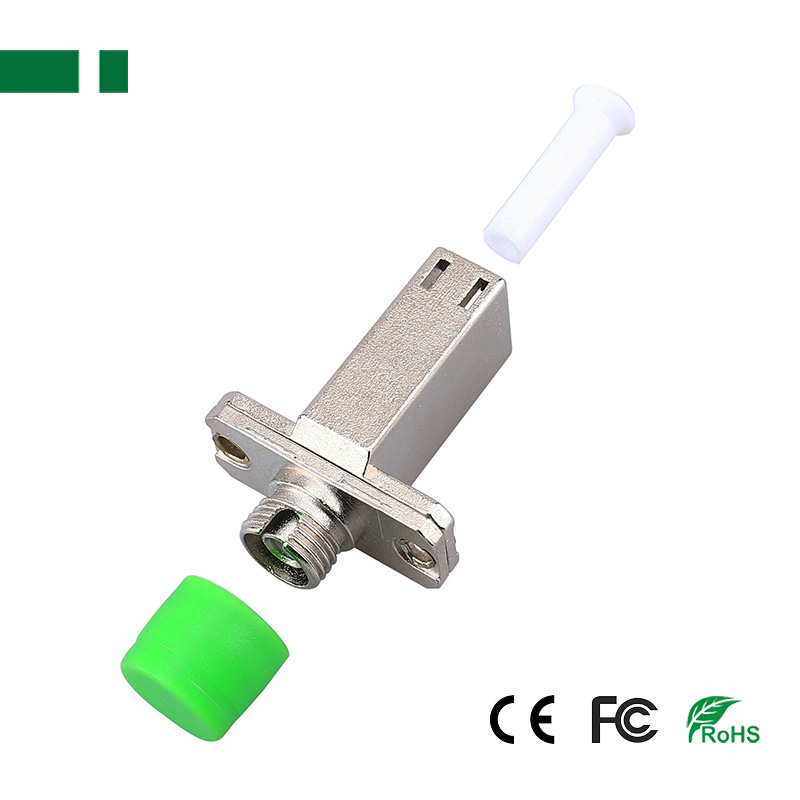

ITEM | UPC/ APC LC to FC/ SC/ ST Connector Fiber Optic Adapter | ||||
Model | CFC01-LCUF-FCUF | CFC01-LCAF-FCAF | CFC01-LCUF-SCUF | CFC01-LCAF-SCAF | CFC01-LCUF-STUF |
Connector A | LC Female UPC | LC Female APC | LC Female UPC | LC Female APC | LC Female UPC |
Connector B | FC Female UPC | FC Female APC | SC Female UPC | SC Female APC | ST Female UPC |
Dimension | 42*22*10mm | ||||
Net Weight | 12.3g | 12.5g | 14.3g | 14.6g | 13.2g |
Housing | Metal, Ceramic | ||||
Insert Loss | 1310nm<0.3dB, 1550nm<0.3dB | ||||
Return Loss | 1310nm≥50dB, 1550nm≥50dB | ||||
Interchangeability | ≤0.2dB | ||||
Repeatability | ≤0.1dB | ||||
Durability | ≤0.2dB (1000 times mating) | ||||
Tensile Strength | > 10kg | ||||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
