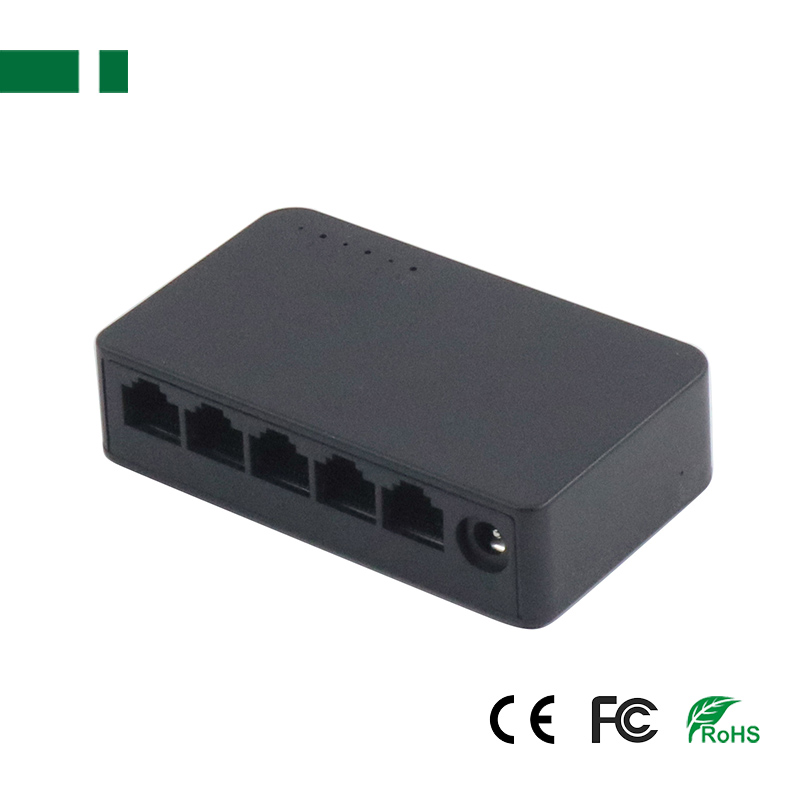

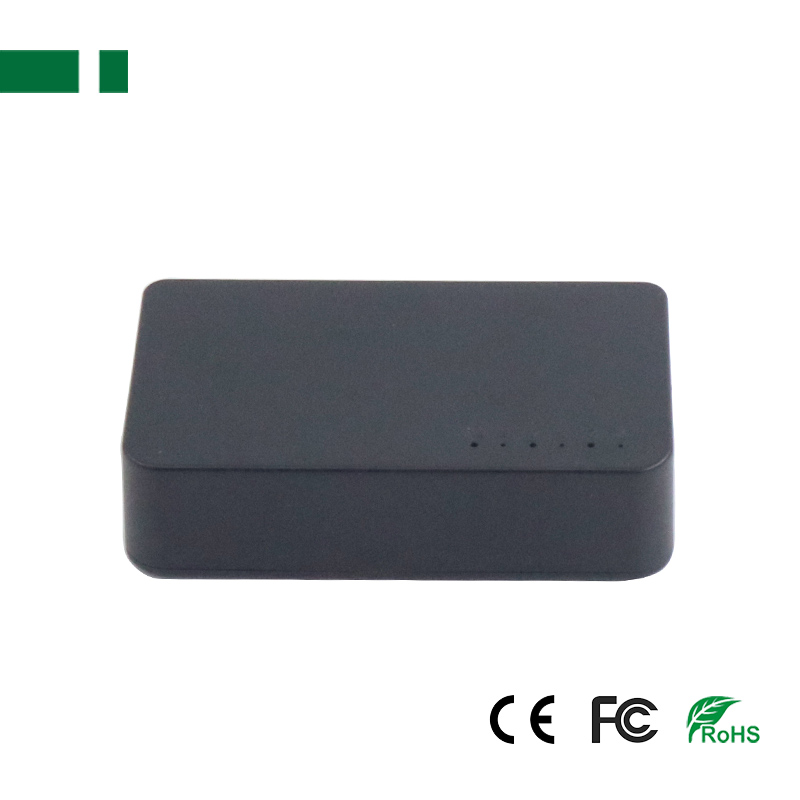

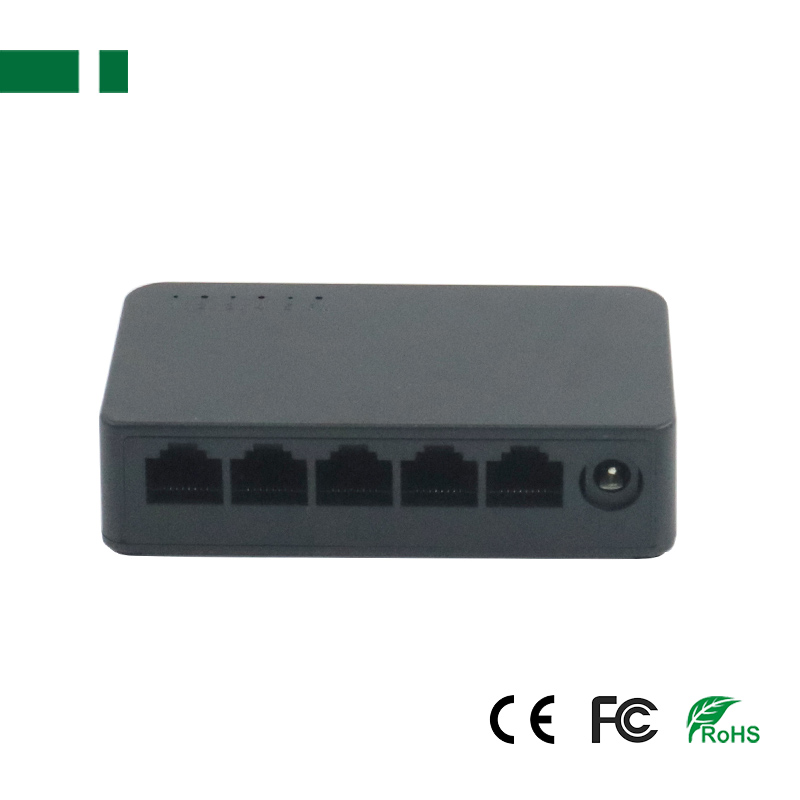

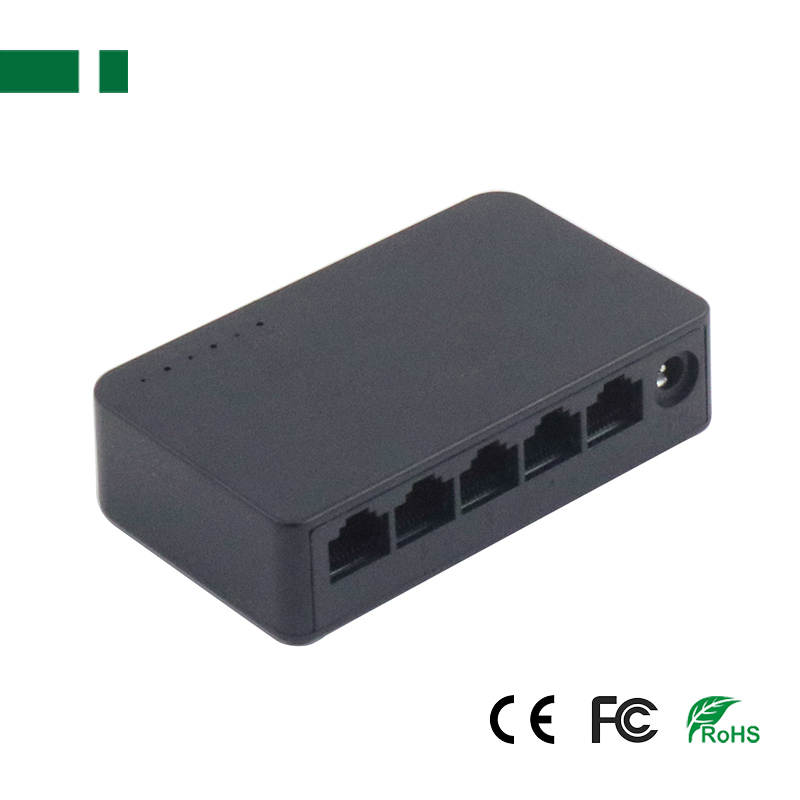

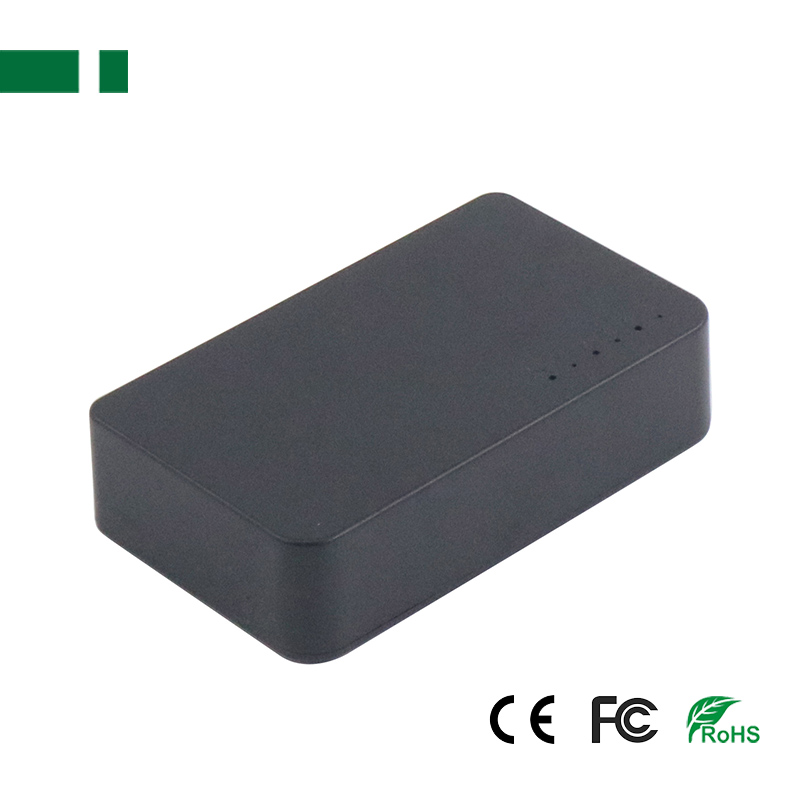

CES-G1105 5 Ports 1000Mbps Network Switch

  • 5 Ports 1000Mbps Network Switch
  • Auto-MDI/MDIX eliminates the need for crossover cables.
  • Supports MAC address auto-learning and auto-aging.
  • Size(W×D×H): 97*68*25mm
  • Product description: 1000Mbps non-managed switch, provide 5 *10/100/1000Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small
  • INQUIRY   EMAIL

5 Ports 1000Mbps RJ45 Fast Network Switch Ethernet Smart Switcher Hub with EU/US Adapter Mini Network Switch

Description:
1000Mbps non-managed switch, provide 5* 10/100/1000Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home office, small and medium business environment.

Features:
● 5* 10/100/1000Mbps RJ45 Ports   AUTO Negotiation/AUTO MDI/MDIX
● Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
● Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
● Auto-MDI/MDIX eliminates the need for crossover cables.
● Supports MAC address auto-learning and auto-aging.
● Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
● Fanless design ensures quiet operation.
● Desktop or wall-mounting design.
● Plug and Play design simplifies installation.

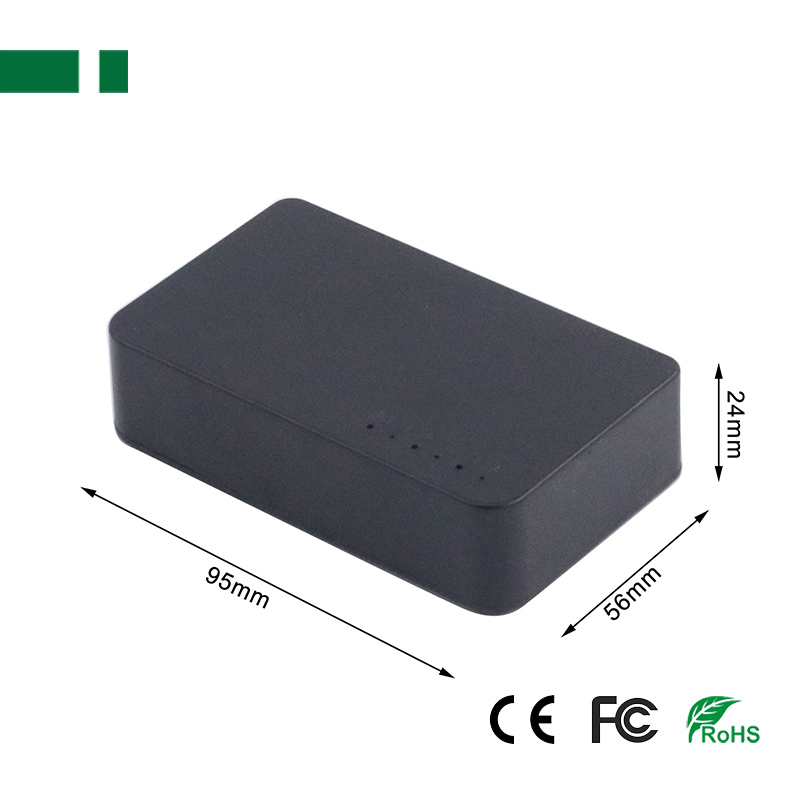

● Size(W×D×H): 95*56*24mm

Specification:

Model CES-1105 CES-G1105
Port number 5 port 10/100Mbps Auto MDI-MDIXRJ45 5 port 10/100/1000Mbps Auto MDI-MDIXRJ45
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Network media 10Base-T, cat6 or above UTP,10Base-Tx, cat5 UTP
Data rate 10/100Mbps 10/100/1000Mbps
Forwarding rate 10Mbps / 14,880pps, 100Mbps / 148,800pps
LED Indicator 10/100Mbps (Link/Act), Power
Dimension 80*50*22mm 95*56*24mm
Power Input DC5V/500mA
Power Consumption Max. 1.5W
Operating Temperature 0℃-40℃
Relative Humidity 10%-90%(non-condensing)
Storage Temperature -40℃-70℃
Relative Humidity 5%-90%(non-condensing)

Packaging contains:
1* 5 Port Desktop Switch
1* DC5V Power supply
