Ethernet Switch

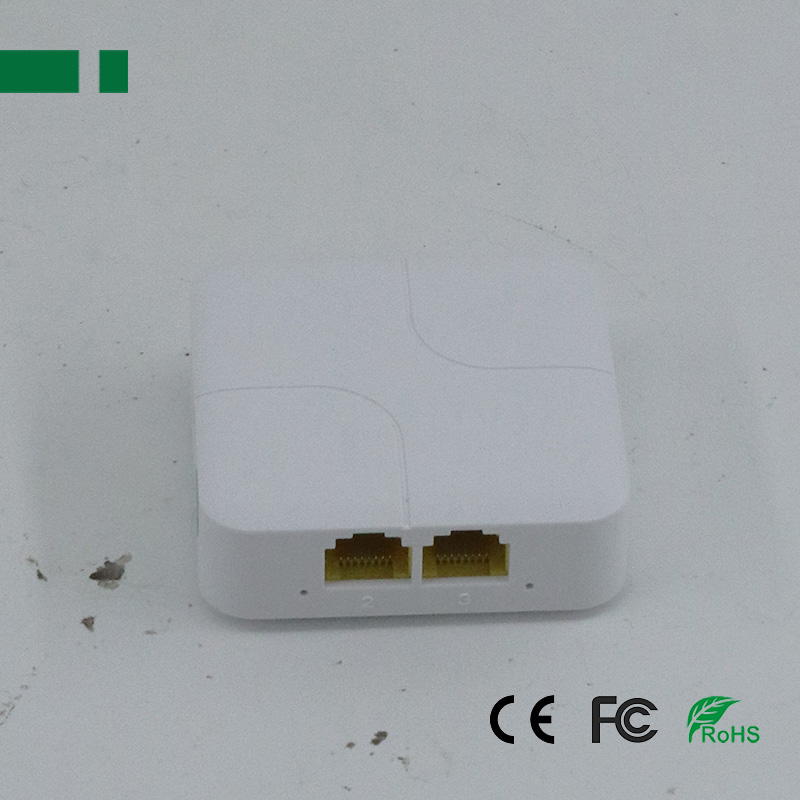

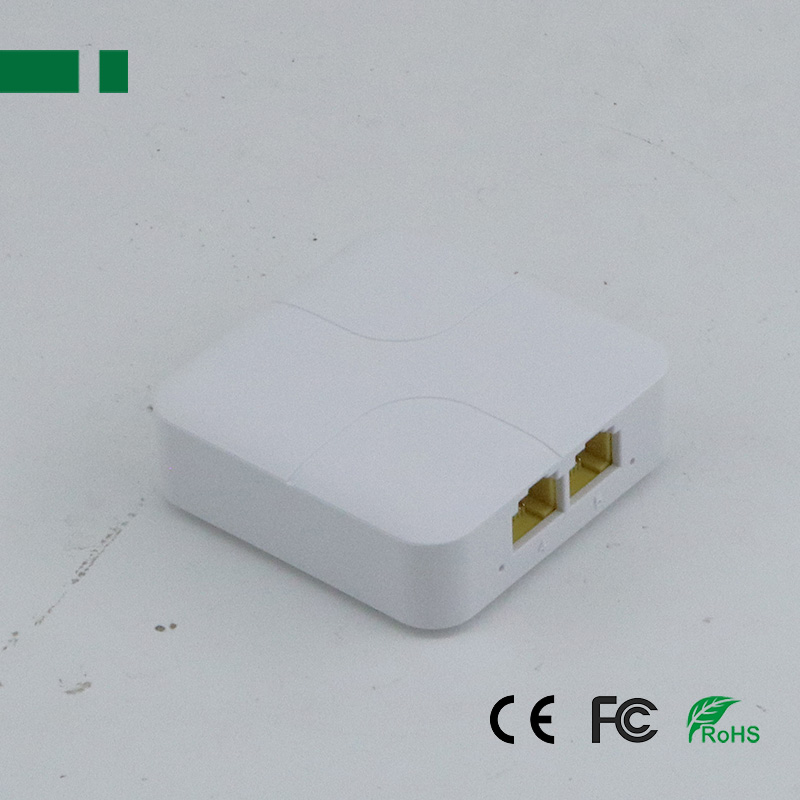

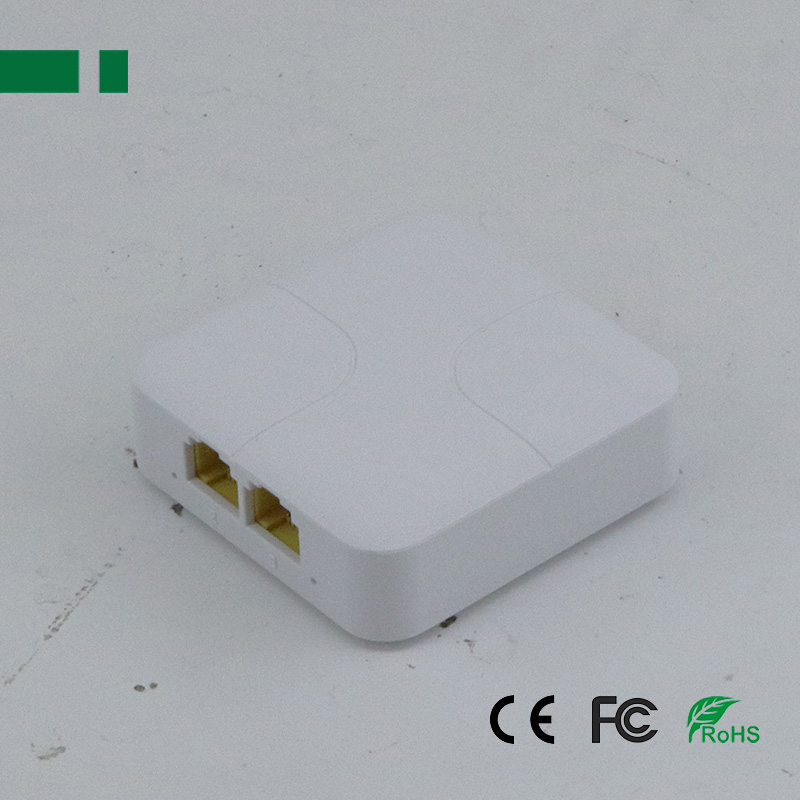

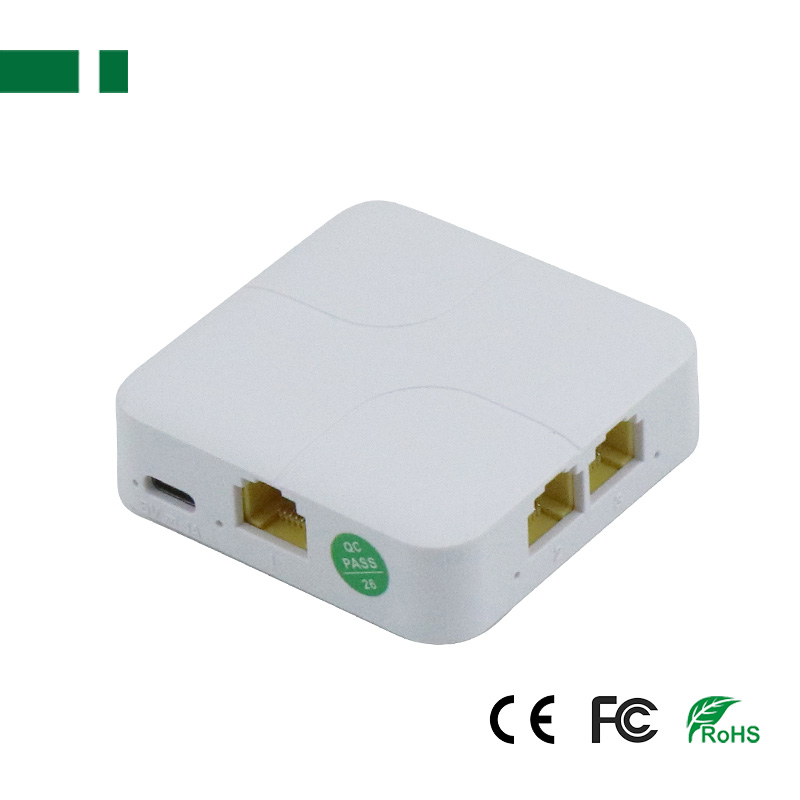

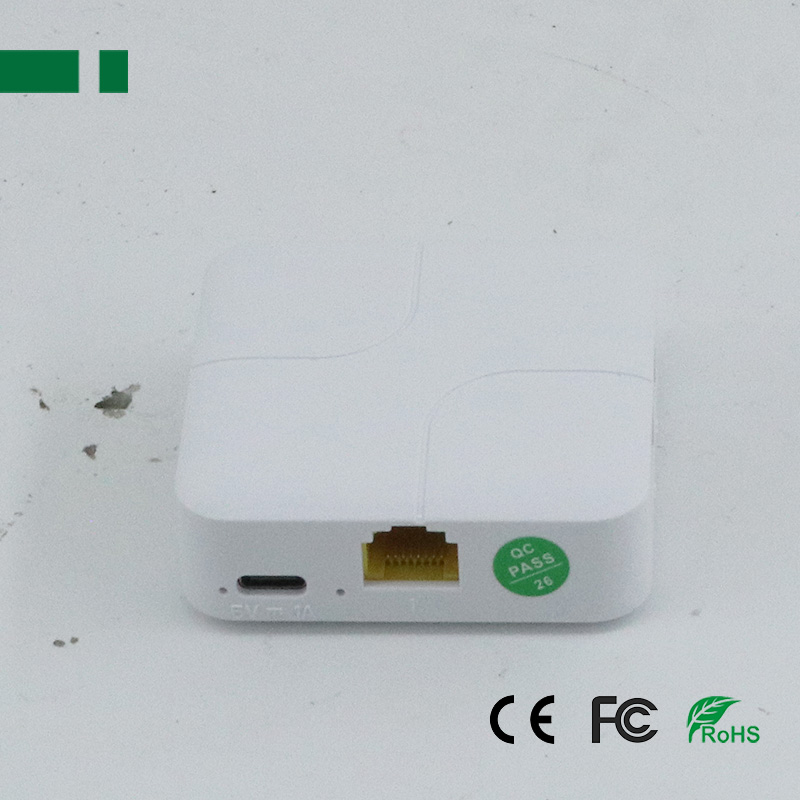

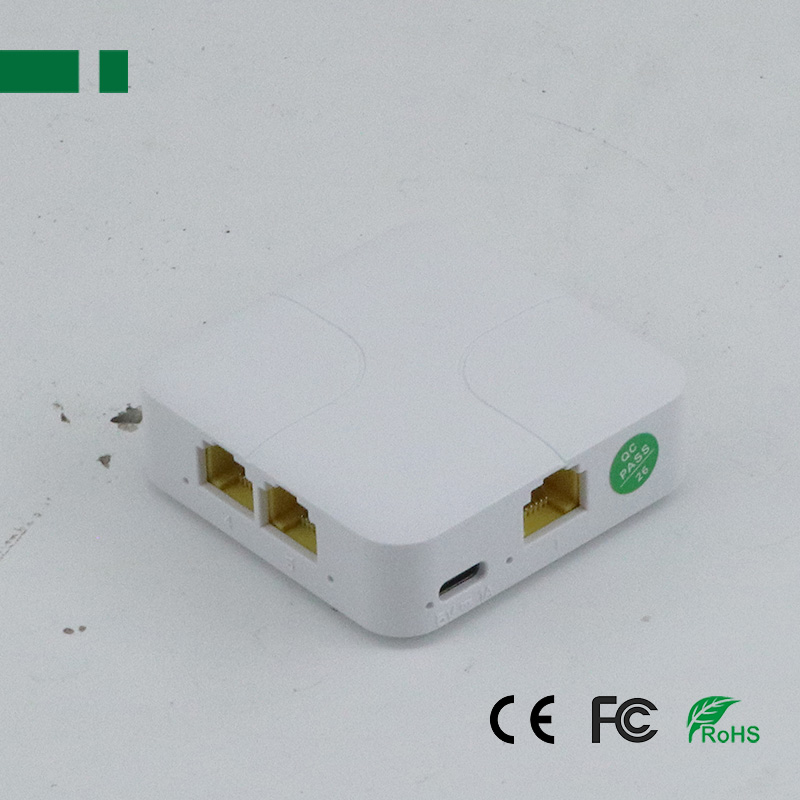

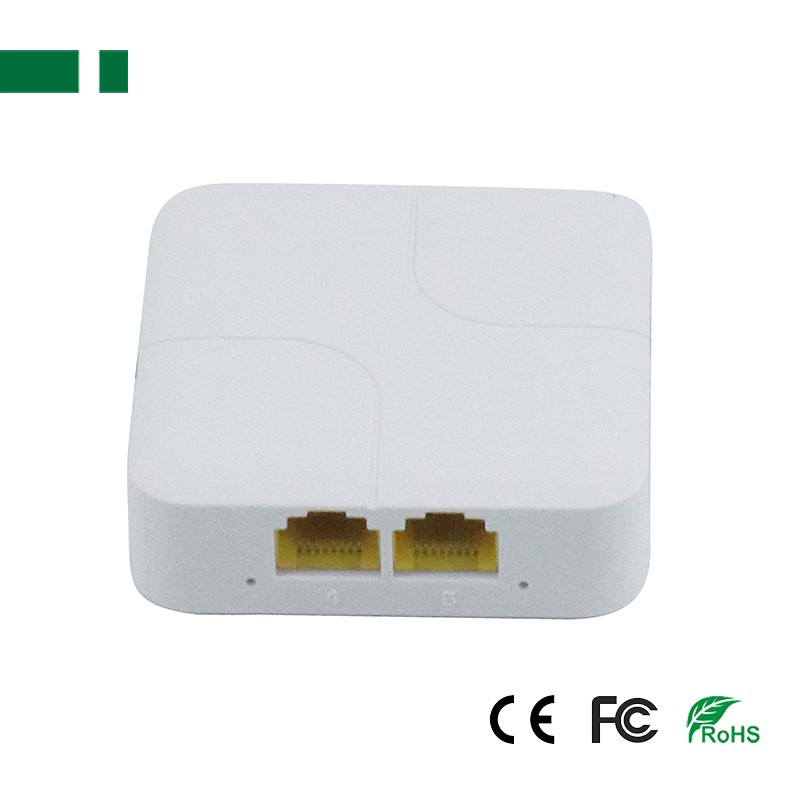

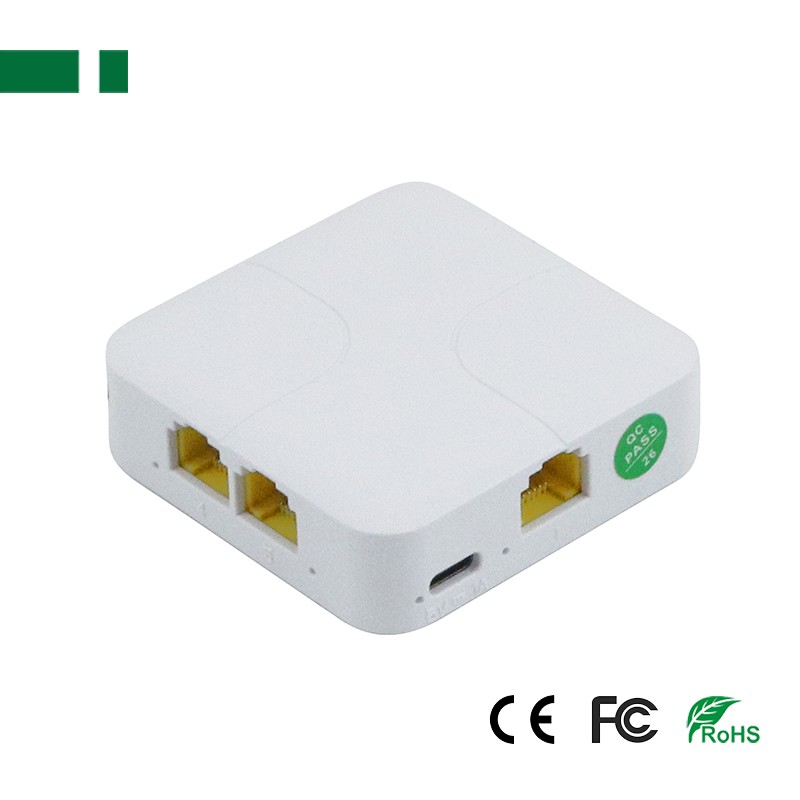

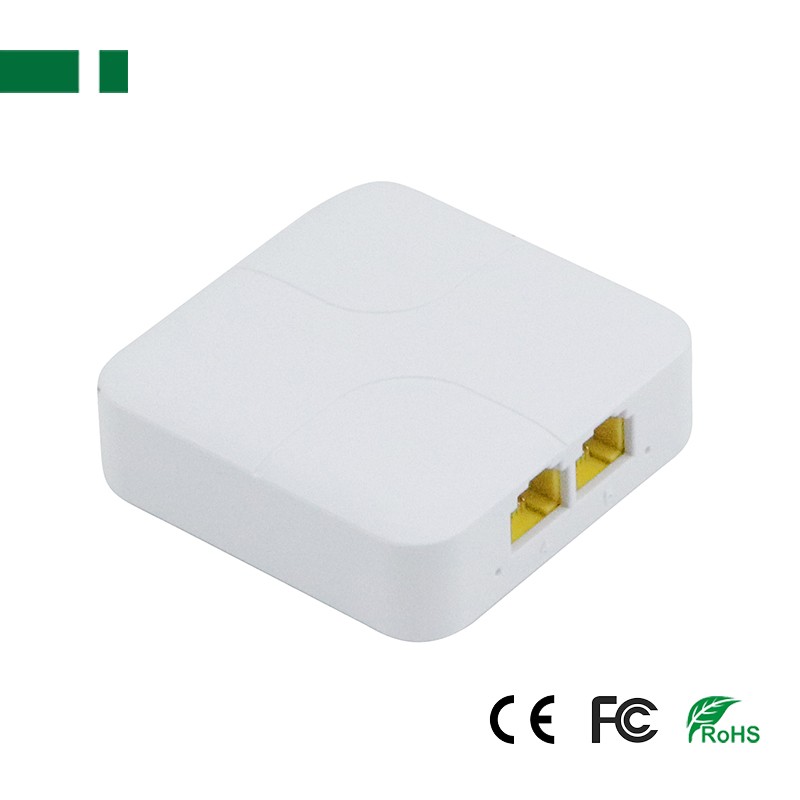

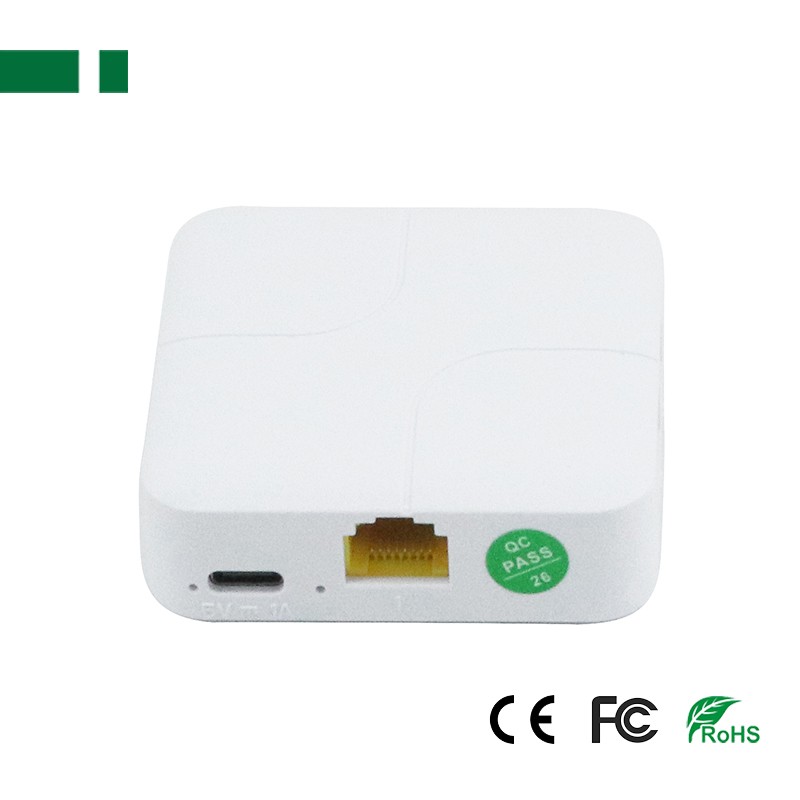

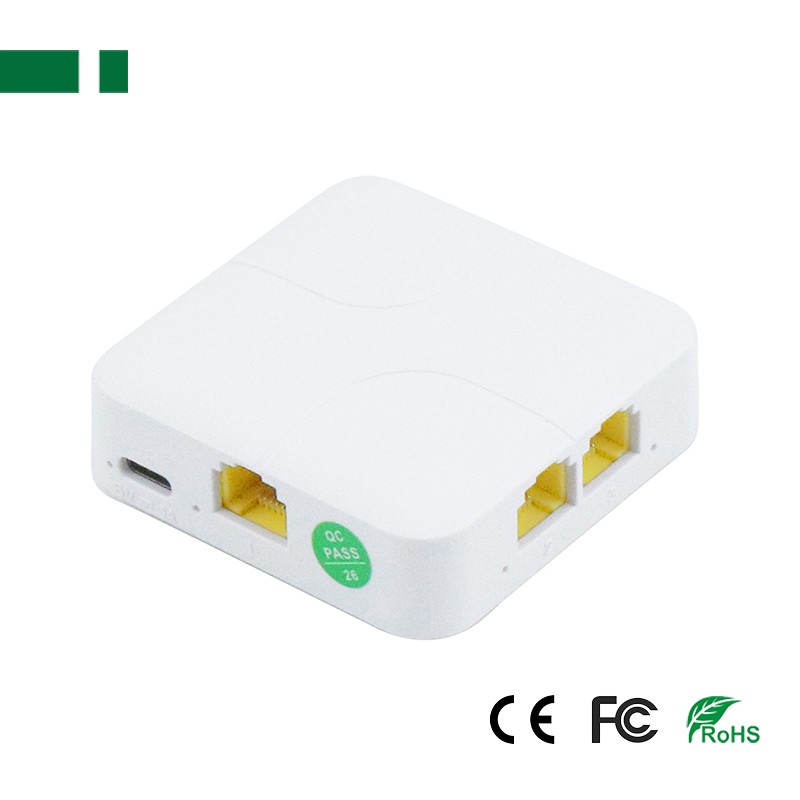

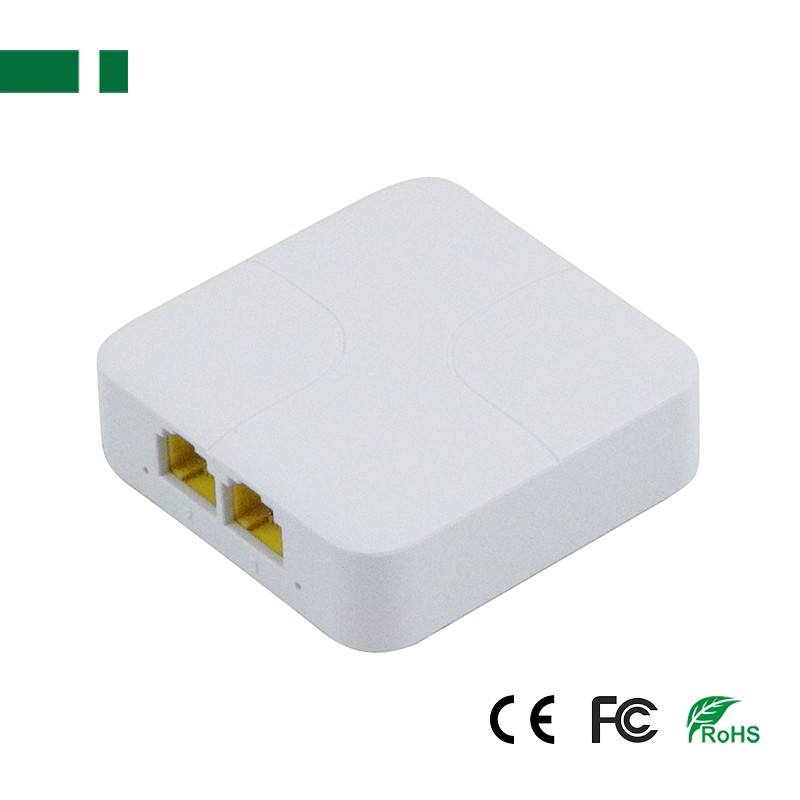

CES-05GE 5 Ports Gigabit RJ45 Fast Network Switch
- 5 Ports 1000Mbps Network Switch
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Supports MAC address auto-learning and auto-aging.
- Size(W×D×H): 62*62*21mm
- Product description: 1000Mbps non-managed switch, provide 5* 10/1000Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small hom
5 Ports Gigabit RJ45 Fast Network Switch Ethernet Smart Switcher Hub
Description:
1000Mbps non-managed switch, provide 5* 10/1000Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home office, small and medium business environment.
Features:
● 5* 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
● Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
● Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
● Auto-MDI/MDIX eliminates the need for crossover Cables.
● Supports MAC address auto-learning and auto-aging.
● Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
● Fanless design ensures quiet operation.
● Desktop or wall-mounting design.
● Plug and Play design simplifies installation.
Specification:
Description:
1000Mbps non-managed switch, provide 5* 10/1000Mbps RJ45 adaptive ports, supporting all port line speed forwarding, mute operation, easy to use, no configuration, plug and play, suitable for small home office, small and medium business environment.
Features:
● 5* 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
● Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
● Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
● Auto-MDI/MDIX eliminates the need for crossover Cables.
● Supports MAC address auto-learning and auto-aging.
● Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
● Fanless design ensures quiet operation.
● Desktop or wall-mounting design.
● Plug and Play design simplifies installation.
Specification:
| Model | CES-03GE | CES-05GE |
| Port number | 3 ports 10/100/1000Mbps Auto MDI-MDIX RJ45 | 5 ports 10/100/1000Mbps Auto MDI-MDIX RJ45 |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az | |
| Network media | 10Base-T, cat6 or above UTP,10Base-Tx, cat5 UTP | |
| Data rate | 10/100/1000Mbps | |
| Forwarding rate | 10Mbps / 14,880pps, 100Mbps / 148,800pps | |
| LED Indicator | 10/100/1000Mbps (Link/Act), Power | |
| Dimension | 62*62*21mm | |
| Power Input | DC5V/500mA | |
| Power Consumption | Max. 1.5W | |
| Operating Temperature | 0℃-40℃ | |
| Relative Humidity | 10%-90%(non-condensing) | |
| Storage Temperature | -40℃-70℃ | |
| Relative Humidity | 5%-90%(non-condensing) | |
