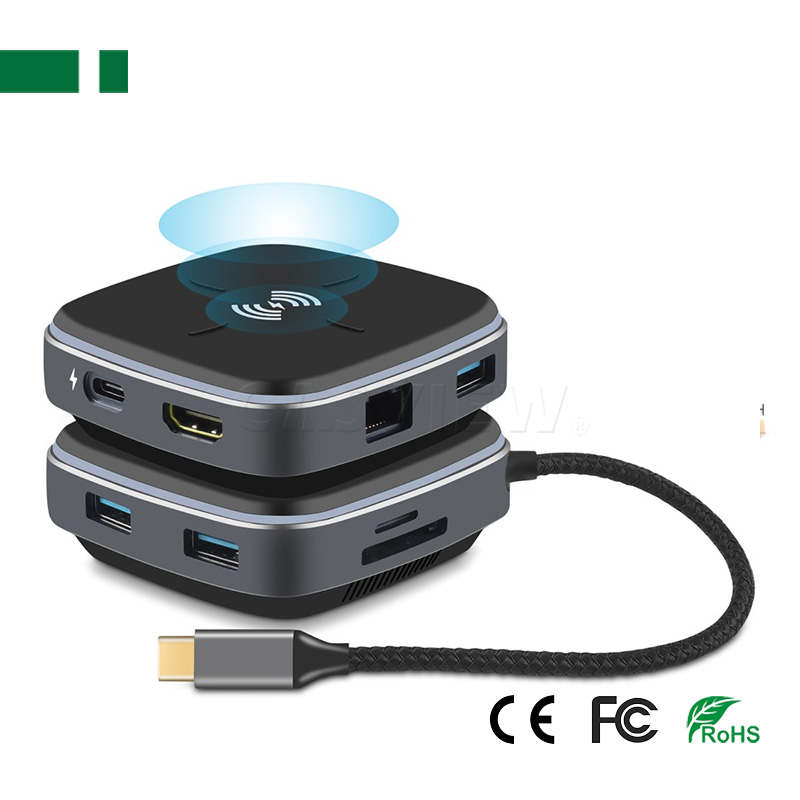

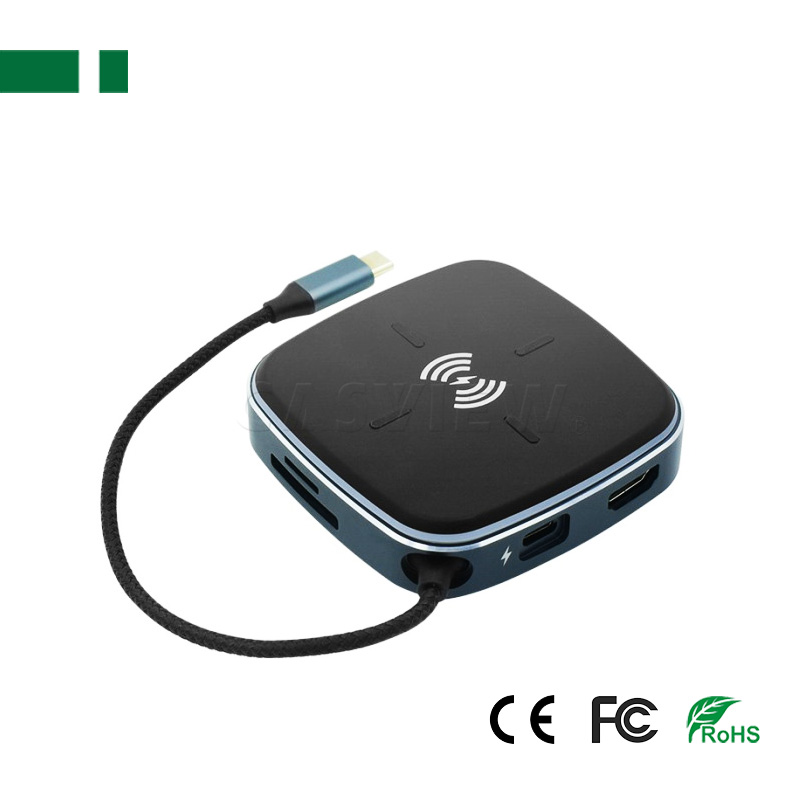

CDC-8901 Multifunctional Type-C Docking Station with Wireless Charger

Download for More Details

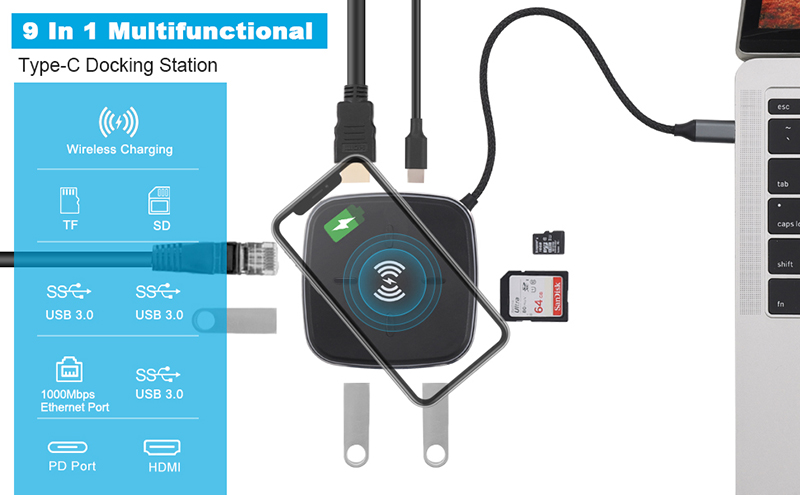

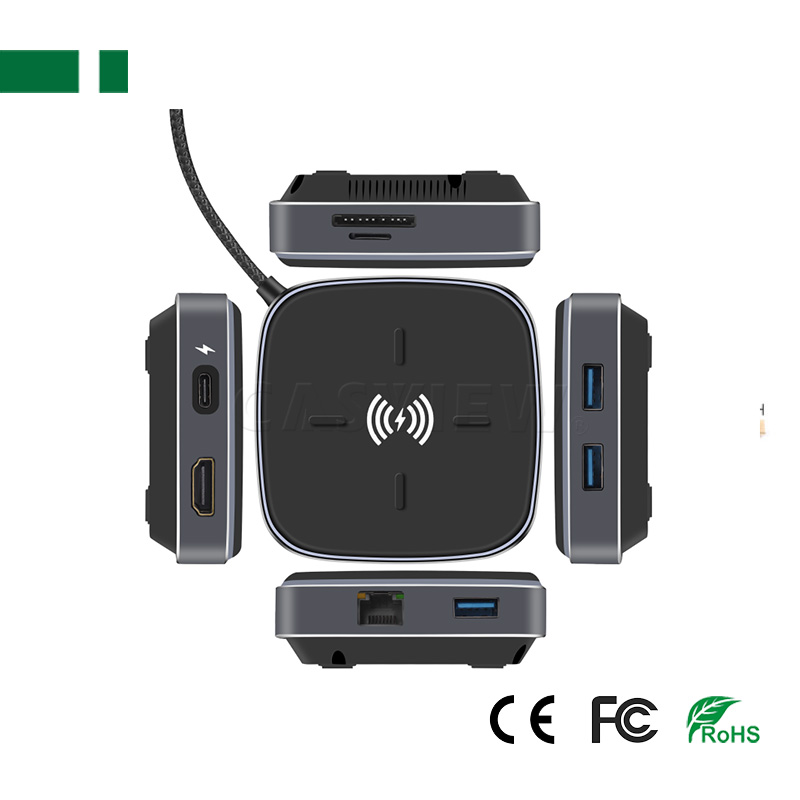

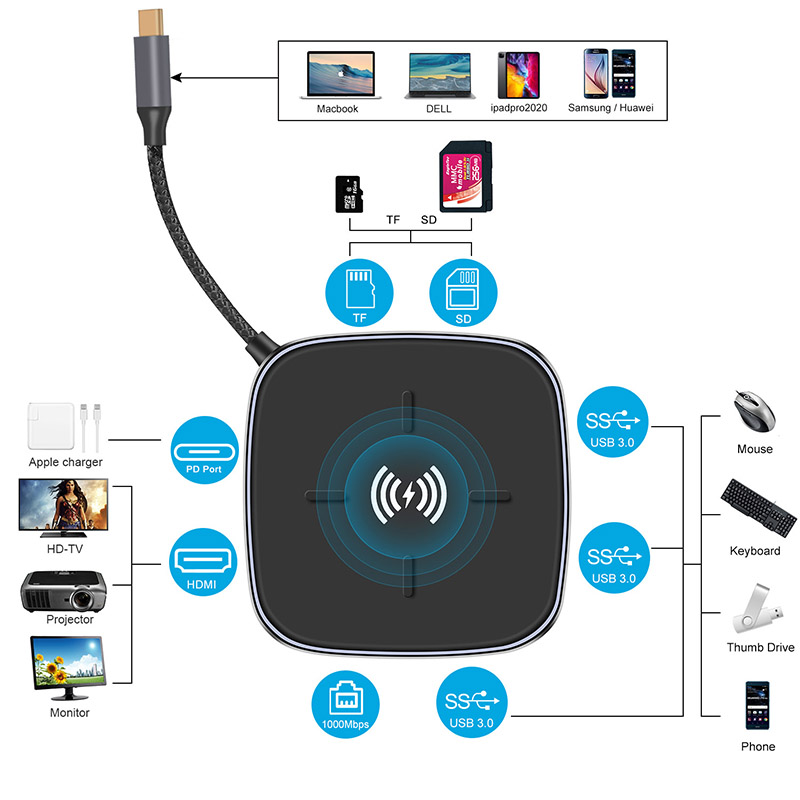

Multifunctional Type-C Docking Station with Wireless Charger (Model: CDC-8901), support expand Type-C interface to HDMI, USB3.0, RJ45 Gigabit Ethernet port and Card reader (TF/SD) etc.

Features :
1. Comes with Type-C cable,plug and play;
2. Support USB3.0 hub to expand 3*USB3.0 ports;
3. Supports TF or SD card reader;
4. Support RJ45 Gigabit Ethernet;
5. HDMI Output resolutions up to 4K;

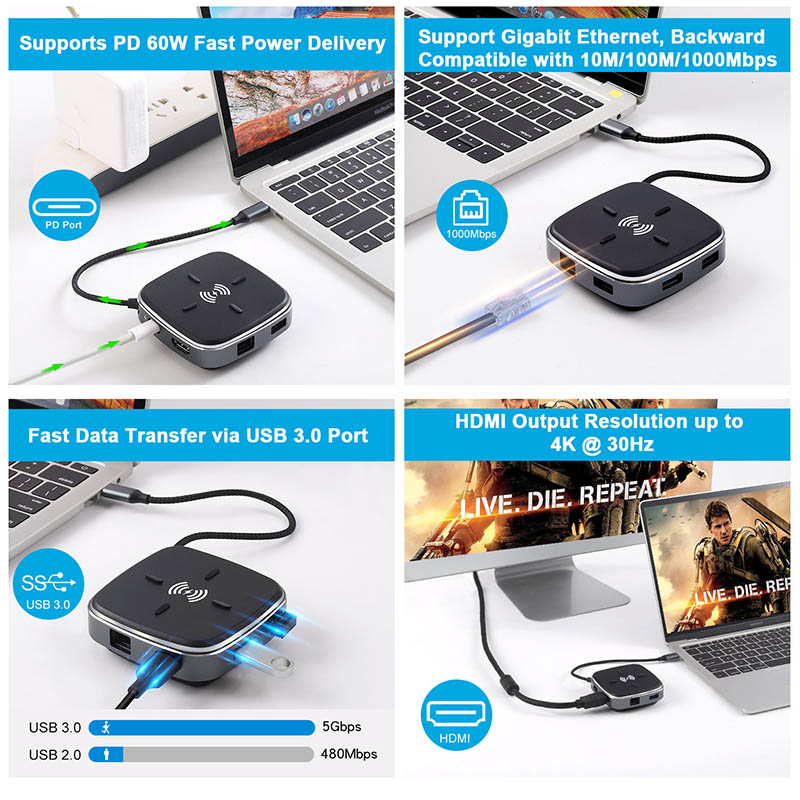

6. Supports PD 60W fast power delivery;

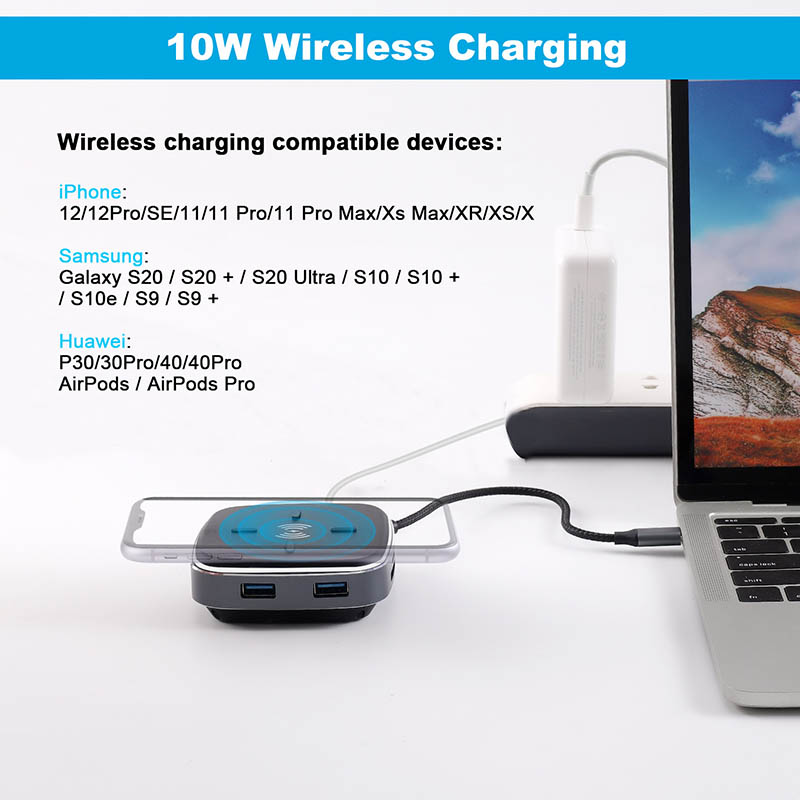

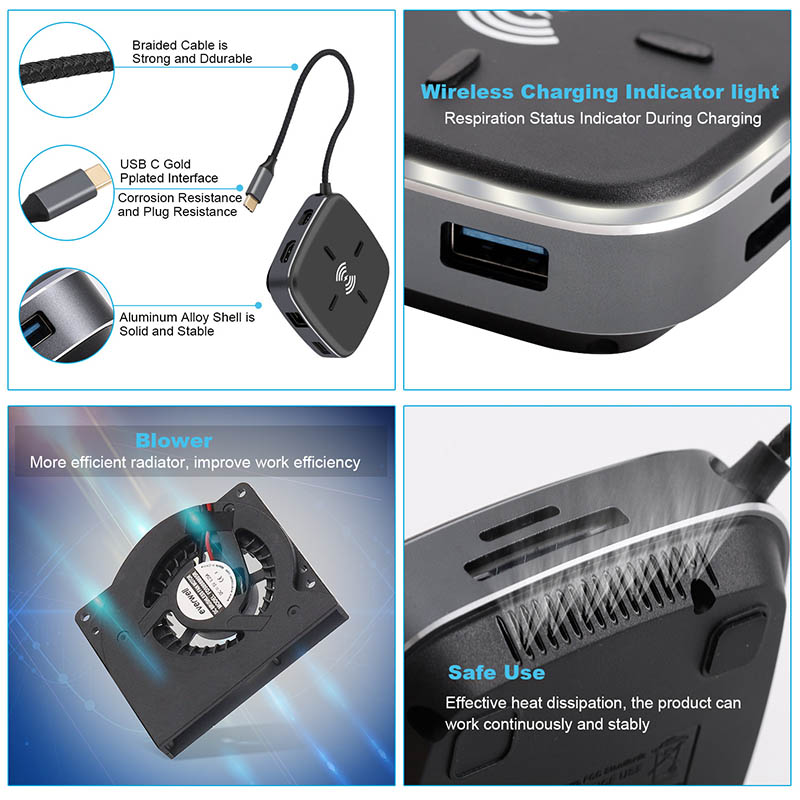

7. Supports 7.5W wireless charging;
9. Size: 390x 96.5x 25.8mm, N.W.: 125g.

Product Specifications:

HDMI output max resolutions:..............3840x2160/30Hz
RJ45 max speed..............................................1000Mb/S
USB port max speed..............................................5Gb/S
TF card max speed........……………...............…480Mb/s
SD card max speed.....……………….............…480Mb/s
PD charging power...................................................60W
PD Maximum input voltage........................................20V
Wireless charging max power............................9V/7.5W
Range of working temperature………...…......-10~+55℃
Storage temperature…….………....................-26~+60℃
Working humidity………....10~90%RH(non-condensing)
Storage humidity....…….....5~95%RH（non-condensing）

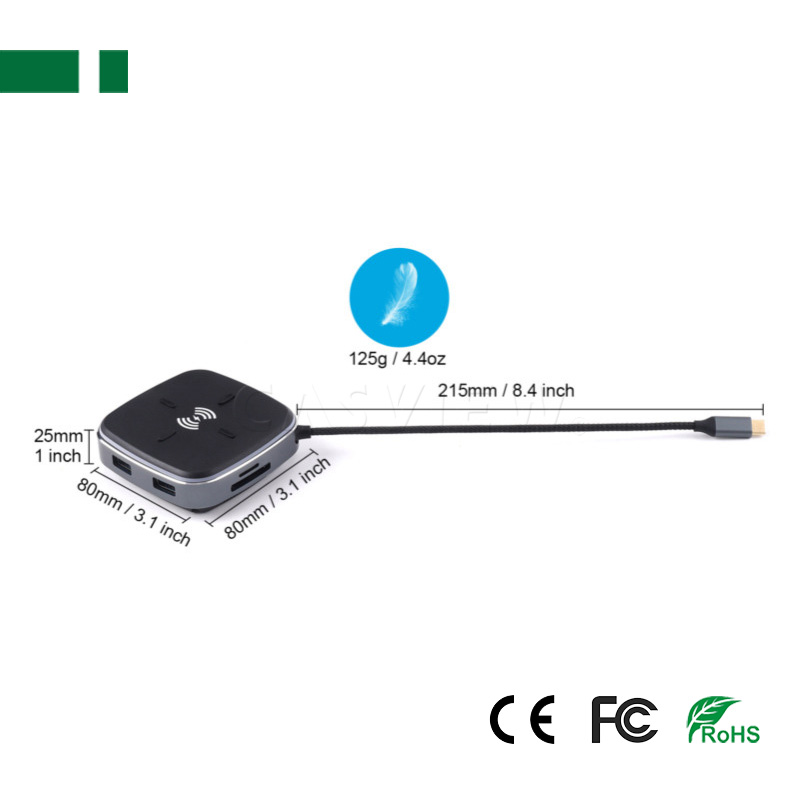

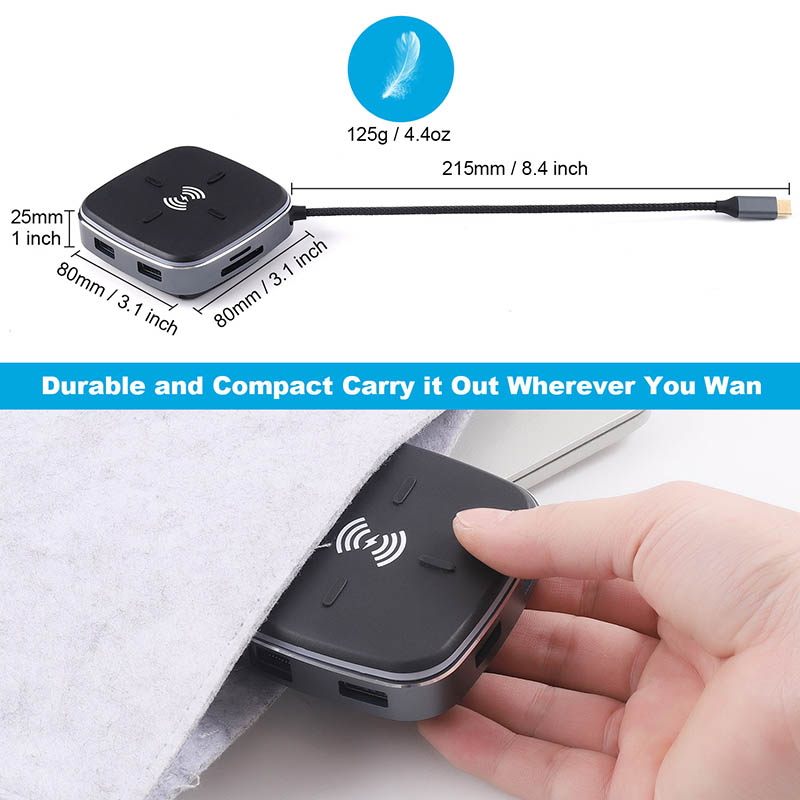

Bare metal size……….........…….…390x 96.5x 25.8 mm
Bare weights…………………..…..….………...….... 125g
Shell Material…………………….………......Plastic+Alloy
Shell Color………..………………….……................Black

Note:

1. Please use≥60W Power Adapter in order to make sure product works stable and full, if using≤60W power adapter，maybe it cause product works unstable.

2. Do not place the metal block on the top of the docking station for a long time.

3. TF and SD card can’t be recognized on the same time,Only plug in TF card or SD card separately when using

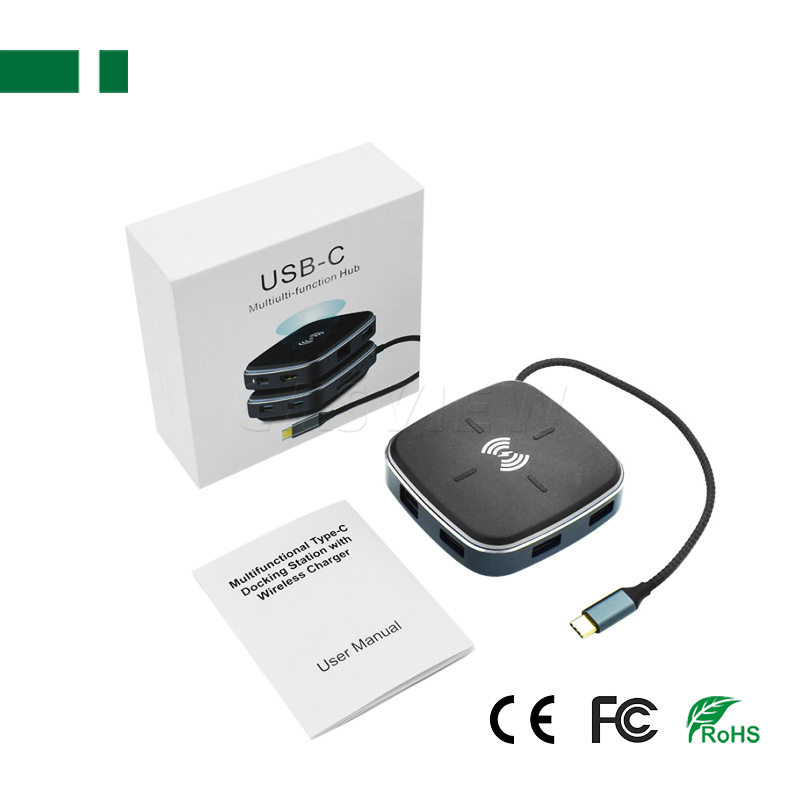

Package included:

Multifunctional Type-C Docking Station.................1PCS

User Manual……………………...........................…1PCS
