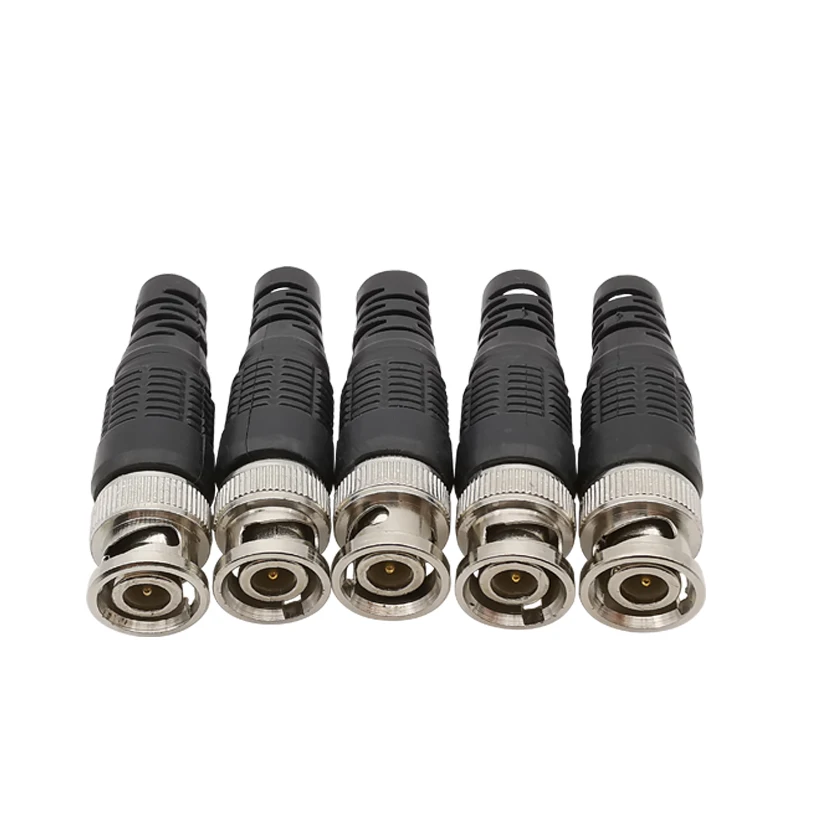

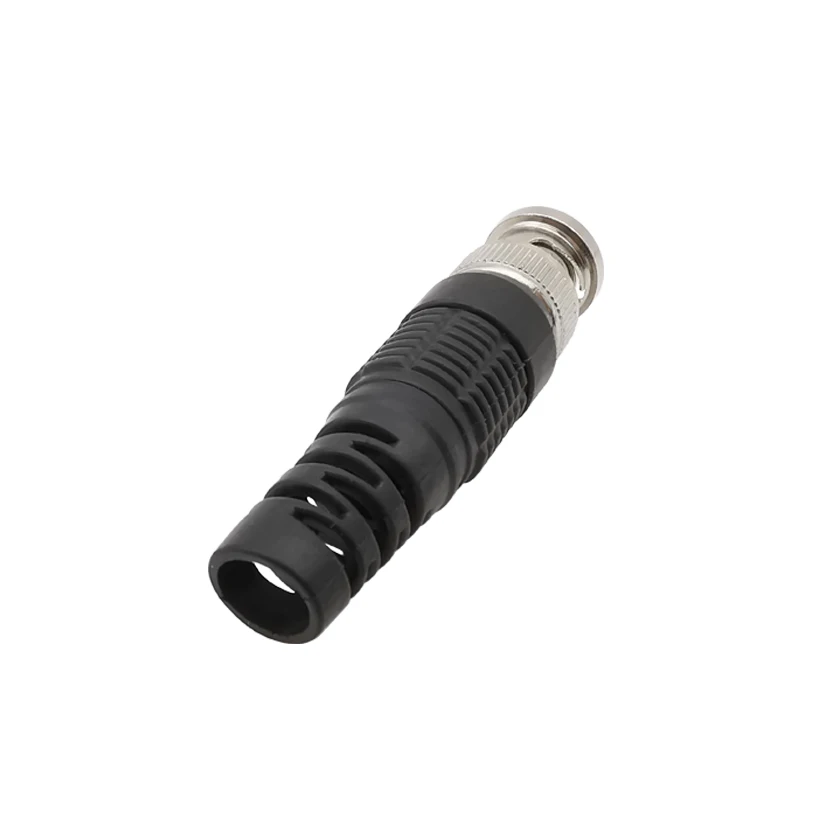

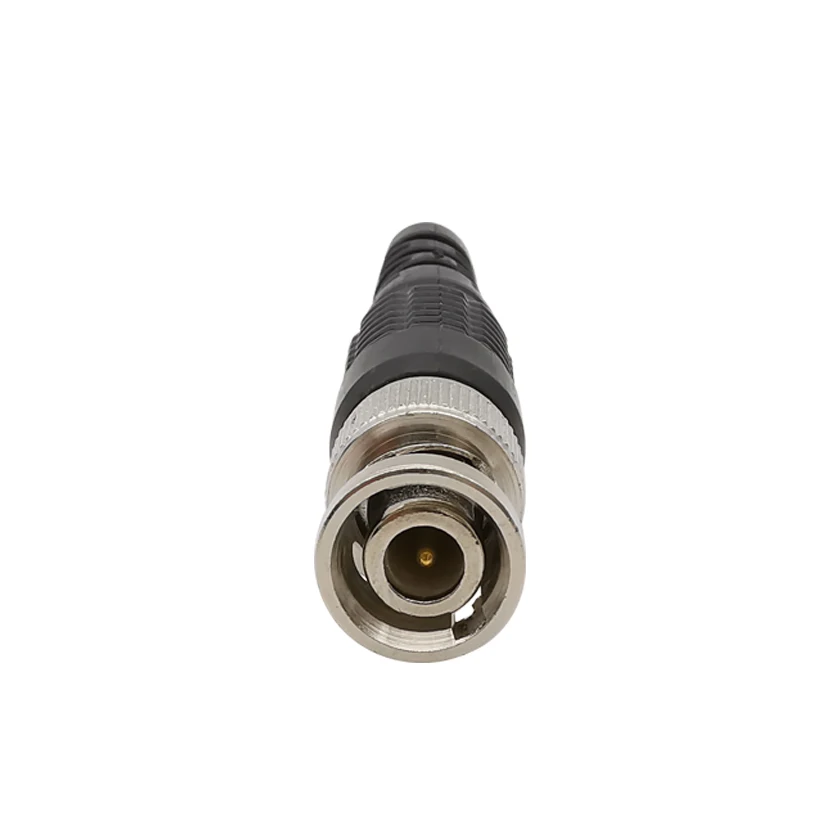

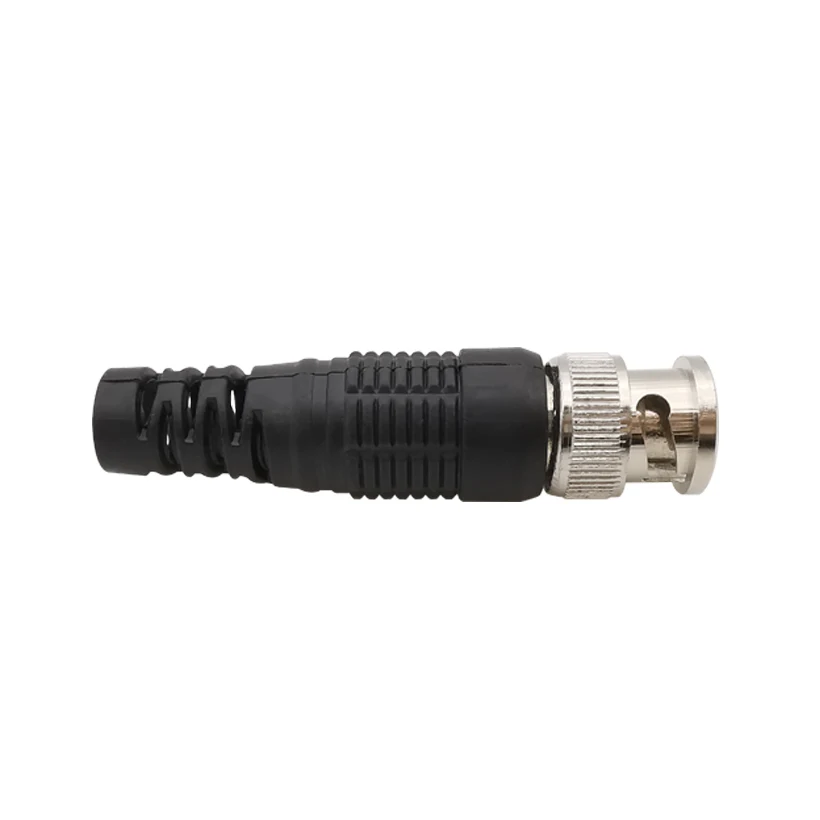

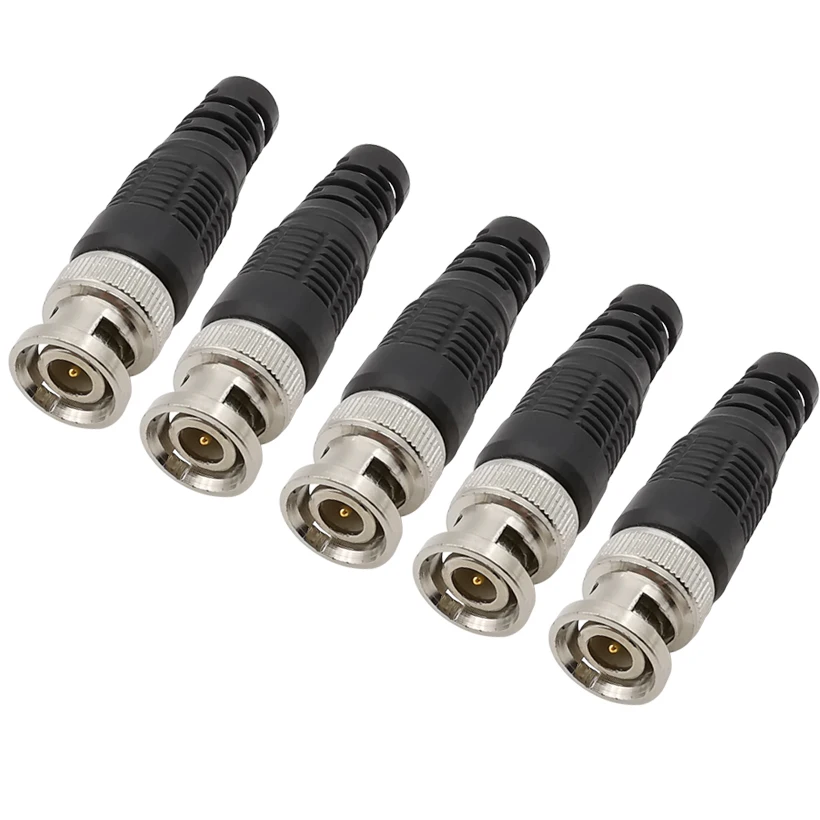

Solderless BNC Male Connector

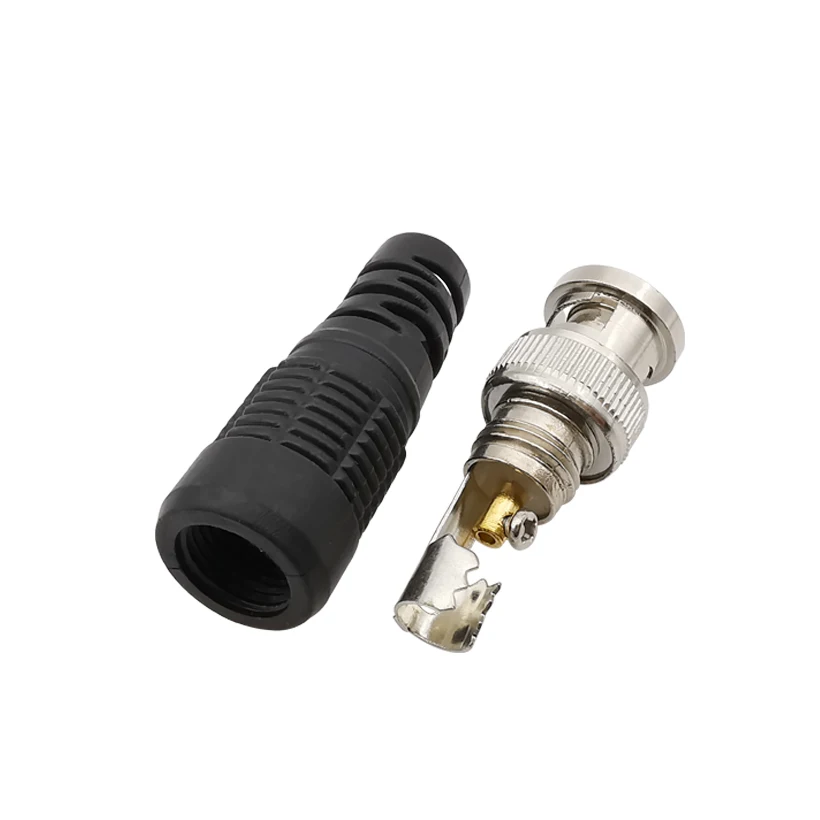

with Screw inside
RG58/ RG59/ RG60 optional
CBN-072M-3 RG6/75-5 Solderless BNC Male Connector
Male Solderless BNC Connector for CCTV Camera Security System
Main Features
1. Connectors: Solderless Male BNC to Coaxial Cable
2. Can connect a RG59 / RG-6 coaxial cable to a BNC connection port
3. Easier for camera installation, save time and more securer cable connection;
4. General quality termination;
5. No electrical tap, No splicing, no crimping, but only a small screw driver;
6. Material: Copper Pin and Zinc Alloy body;
7. Size: 5.9cm(length)x 1.35cm(width);
8. Net Weight: Approx. 11.9G
9. Packing list: 100pcs/pack
Specification:
| Model | CBN-072F | CBN-072M | CBN-072M-3 |
| Connectors | Female BNC Connector | Male BNC Connector | Male BNC Connector |
| Installation | Solderless with screw inside | Solderless with screw inside | Solderless with screw inside |
| Material | Zinc Alloy Body + Copper Pin + Plastic | ||
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ | ||
| Insulation Resistance | ≥5000MΩ | ||
| Frequency Range | 0~3GHZ | ||
| Disengage Force | ≥0.6N | ||
| Attenuation | 0.5dB type | ||
| Wire Type | coaxial cable | ||
| DC Loop Resistance | 52 ohms per 1,000 ft | ||
| Withstand Voltage | 1500V rms | ||
| Frequency Response | DC to 8 MHz | ||
| Working Tempremature | -10°C to +70°C | ||
| Humidity | 0 to 95% | ||
| Packing | 100pcs/bag | ||
| Dimension | 14*55.6*7.2mm | ||
| Weight | 10.9g | ||
