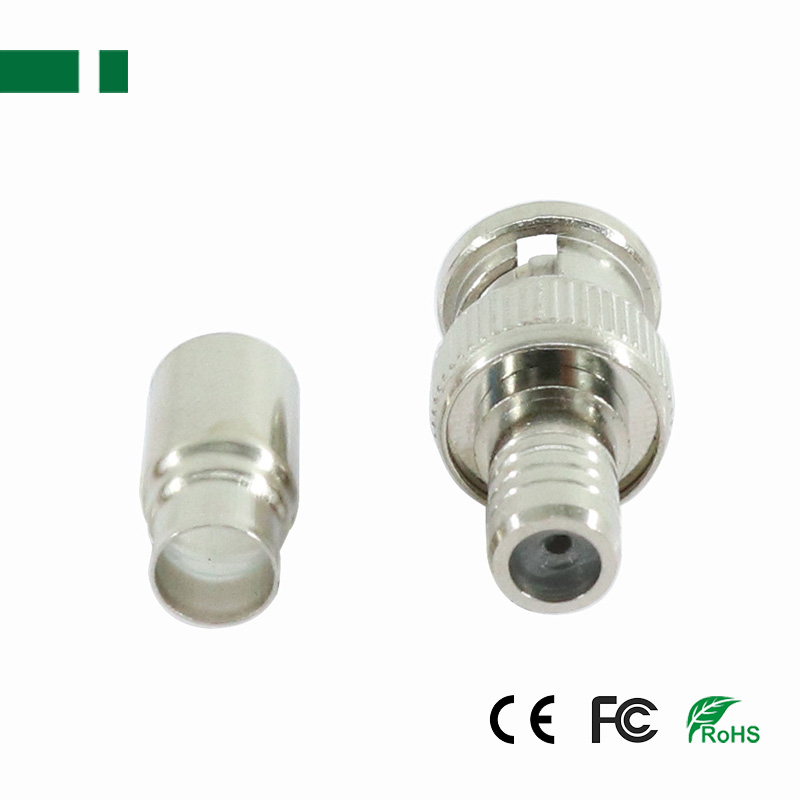

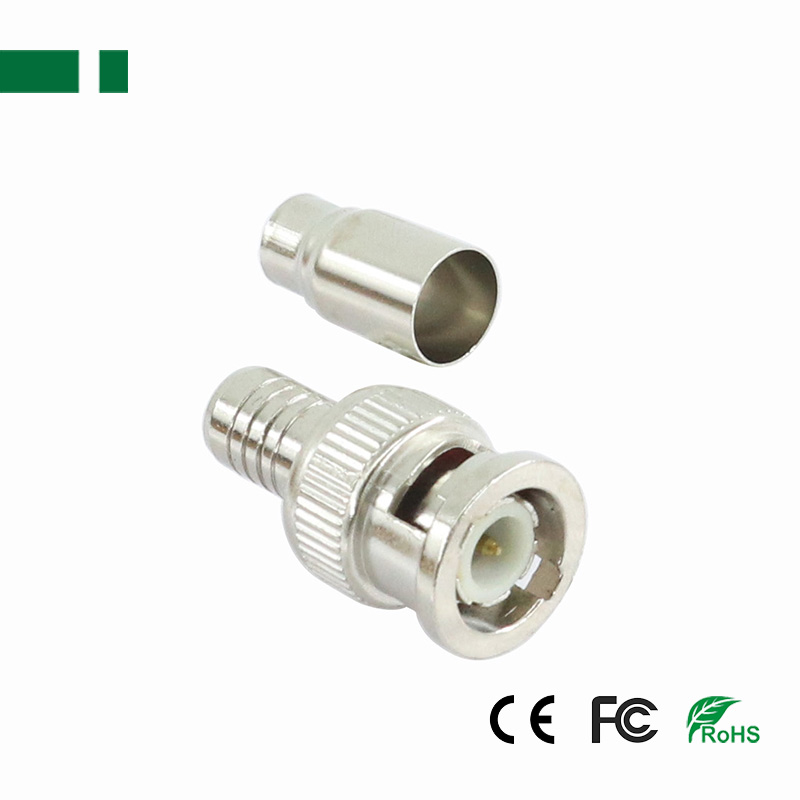

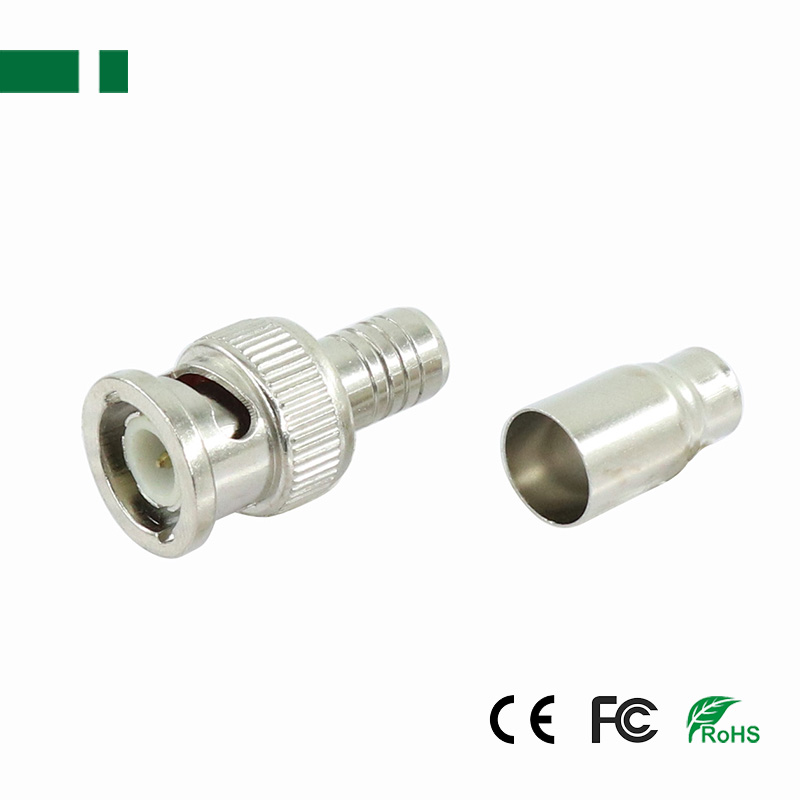

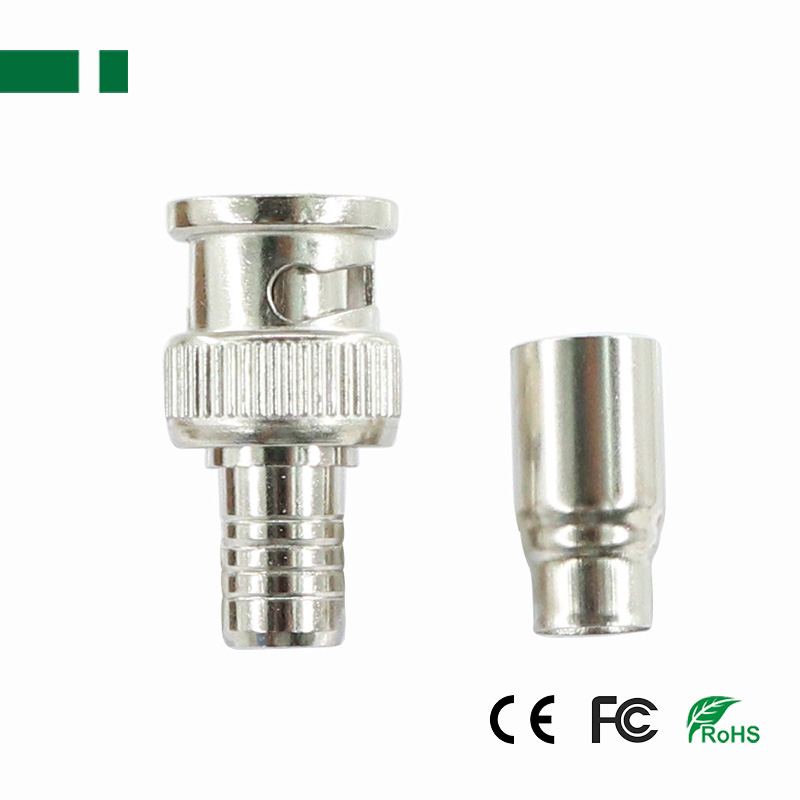

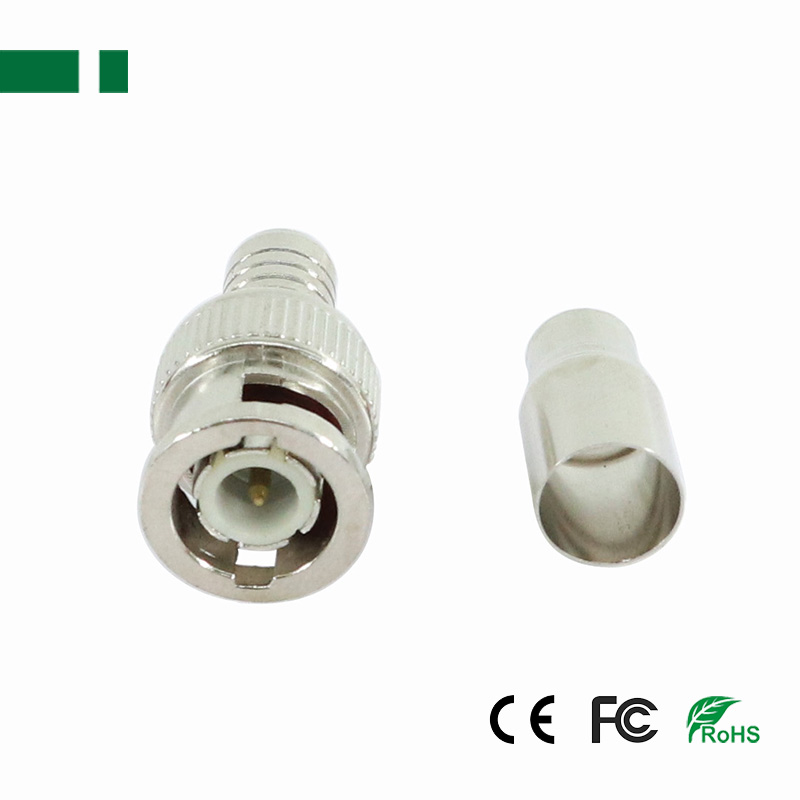

BNC Male Crimp Connector
Nickel plated brass body with die cast head
for RG58, RG59, RG60
Nickel plated brass body with die cast head Two step ferrule with strain relief crimp RG58/59/60 Crimping Tool is required Material: Nickel plated body for enhanced corrosion resistance
BNC Male Crimp Connector for RG58, RG59, RG60
Nickel plated brass body with die cast head
Two step ferrule with strain relief crimp
RG58/59/60 Crimping Tool is required
Material: Nickel plated body for enhanced corrosion resistance
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money
<div class="rich-text-table" style="color:#222222;font-family:Roboto, Arial, " font-size:14px;background-color:#ffffff;"="">
| Model | CBN-028 |
| Impedance | 50Ω,75Ω |
| Resistanc | Inner conductor ≤2.0mΩ |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ |
| Insulation Resistance | ≥5000MΩ |
| Frequency Range | 0~3GHZ |
| Disengage Force | ≥0.6N |
| Attenuation | 0.5dB type |
| Wire Type | Coaxial Cable |
| DC Loop Resistance | 52 ohms per 1,000 ft |
| Withstand Voltage | 1500V rms |
| Frequency Response | DC to 8 MHz |
| Working Temperature | -10°C to +70°C |
| Humidity | 0 to 95% |
| Packing | 100pcs/bag |
