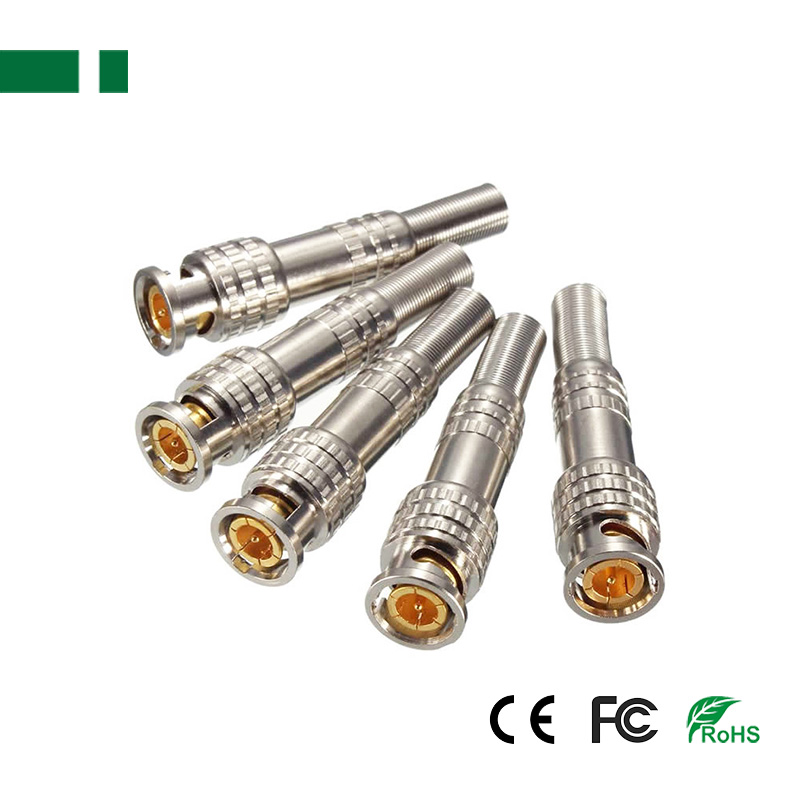

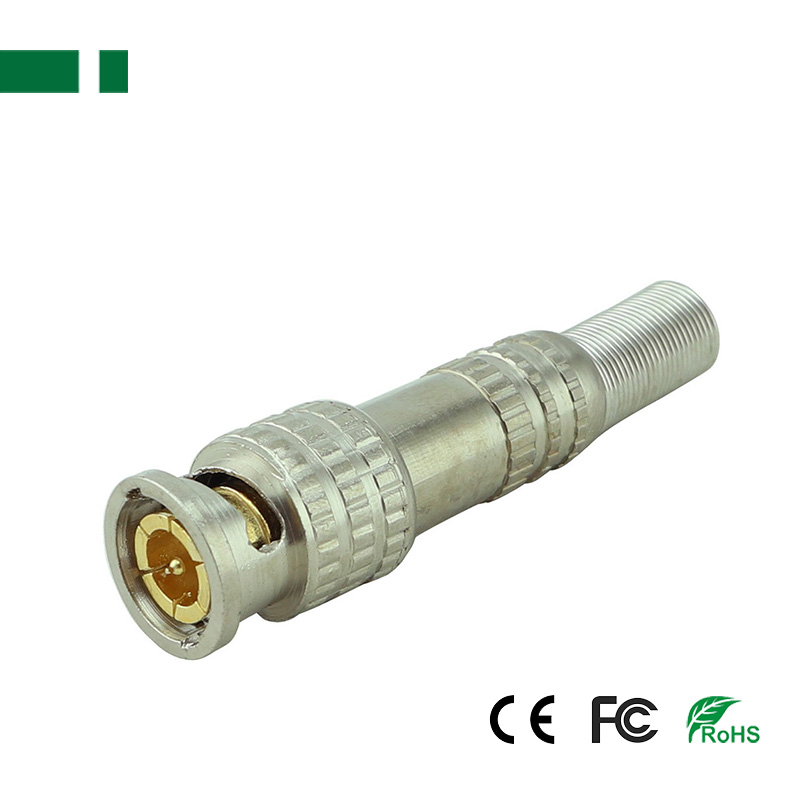

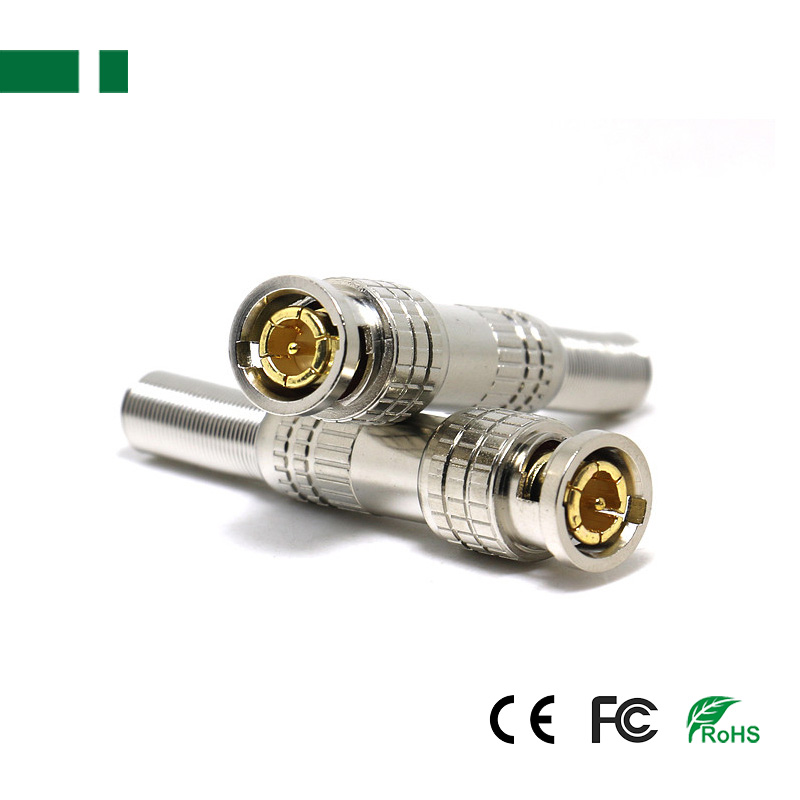

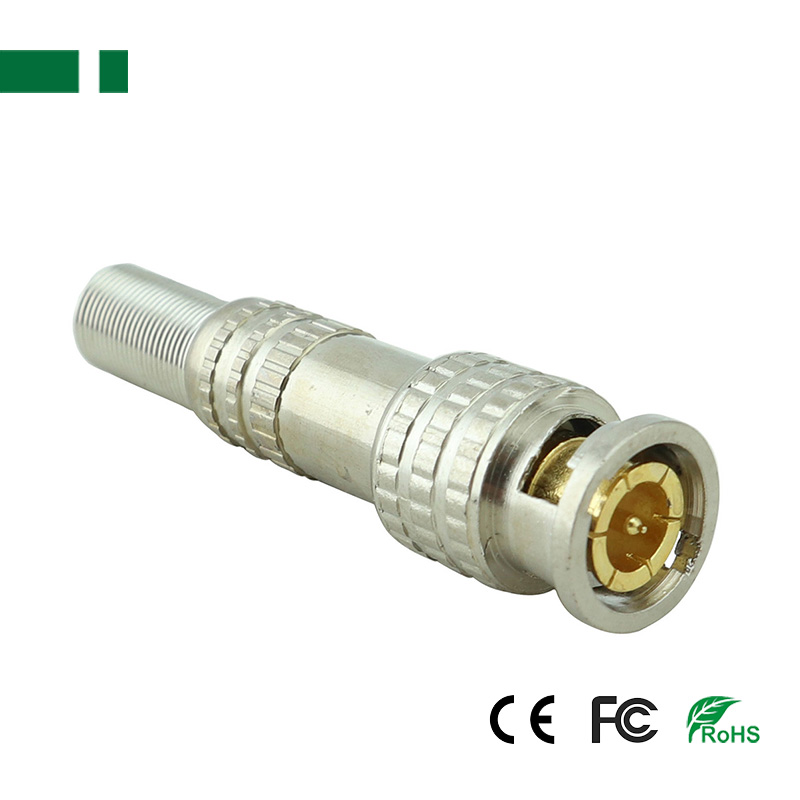

Male Solder BNC Connector for CCTV Camera Security System

Main Features
1. Connectors: Solder free Male BNC to Coaxial Cable
2. Can connect a RG59 / RG-6 coaxial cable to a BNC connection port
3. Easier for camera installation, save time and more securer cable connection;
4. General quality termination;
5. No electrical tap, No splicing, no crimping, but only a small screw driver   ;
6. Material: Copper Pin and Zinc Alloy body;

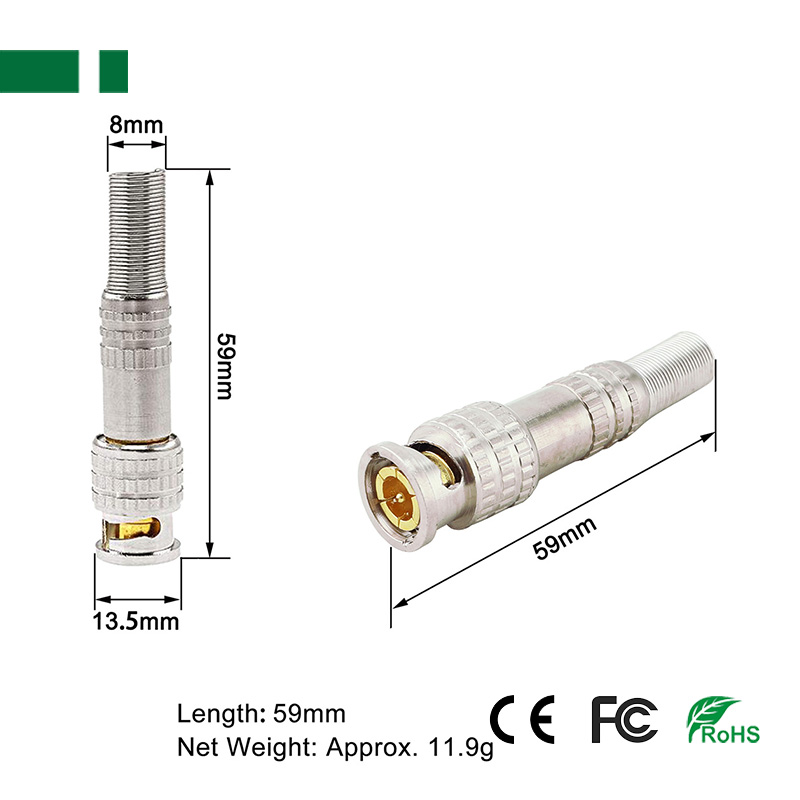

7. Size: 5.9cm(length)x 1.35cm(width);
8. Net Weight: Approx. 11.9G
9. Packing list: 100pcs/pack

Specification:
Model CBN-021 CBN-022
Connectors Male BNC
Installation Solder type without screw Solderless with screw inside
Material Zinc Alloy Body + Copper Pin
Contact Resistance center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance ≥5000MΩ
Frequency Range 0~3GHZ
Disengage Force ≥0.6N
Attenuation 0.5dB type
Wire Type coaxial cable
DC Loop Resistance 52 ohms per 1,000 ft
Withstand Voltage 1500V rms
Frequency Response DC to 8 MHz
Working Tempremature -10°C to +70°C
Humidity 0 to 95%
Packing 100pcs/bag
Dimension 13.5*59*8mm
Weight 11.9g
