BNC Connector

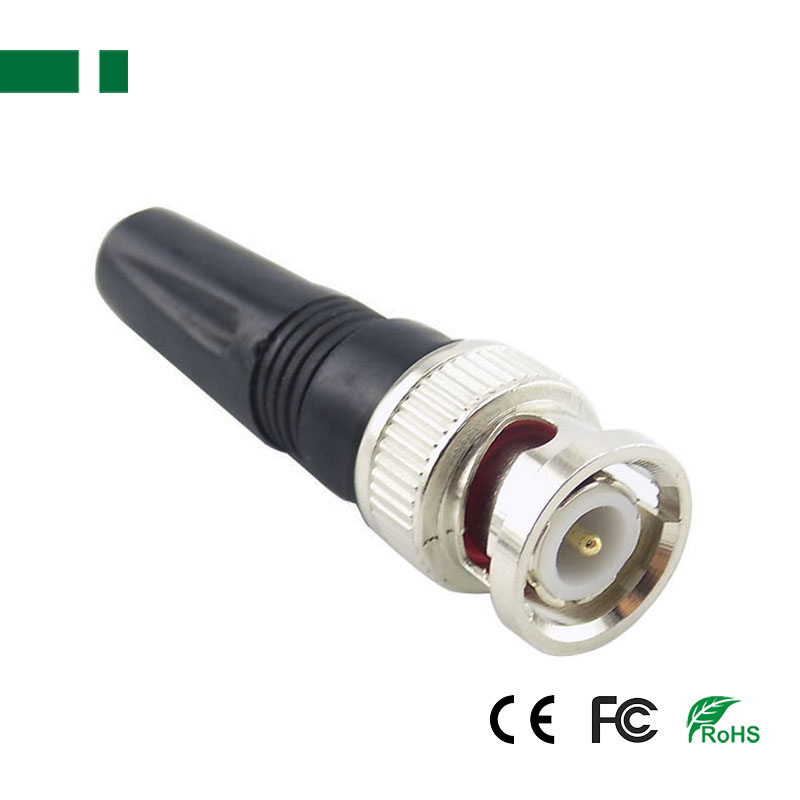

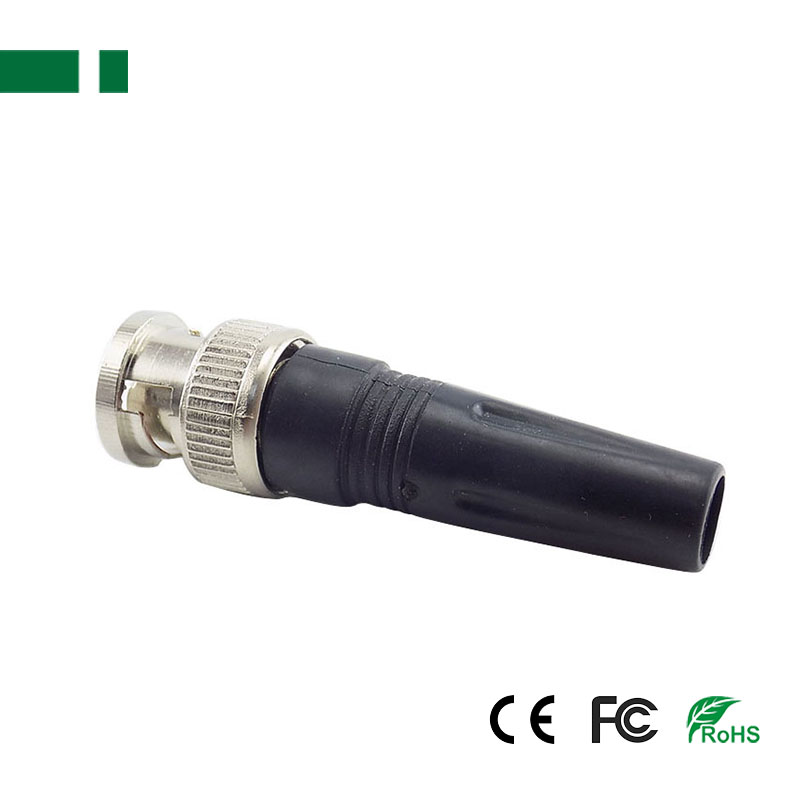

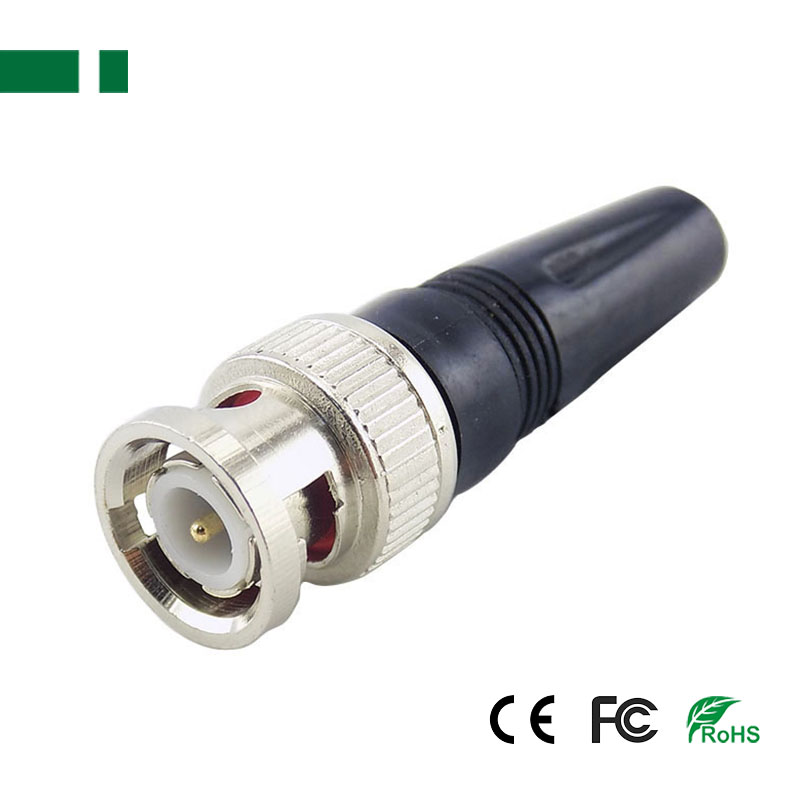

CBN-012 75-5/ RG6 BNC Male with Screw-type

CBN-012 75-5/ RG6 BNC Male with Screw-type

BNC75-5 Connector
Great for cctv system connection
Simply & Professional appearance for cabling
Product description: 75-5/ RG6 BNC Male with Screw-type. email: info@casview.com
INQUIRY EMAIL

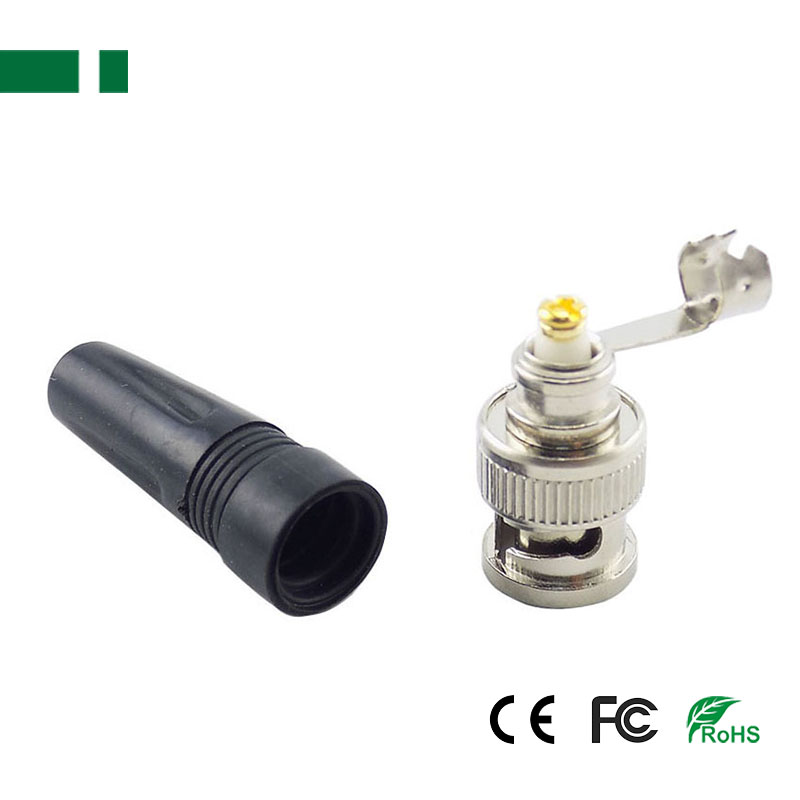

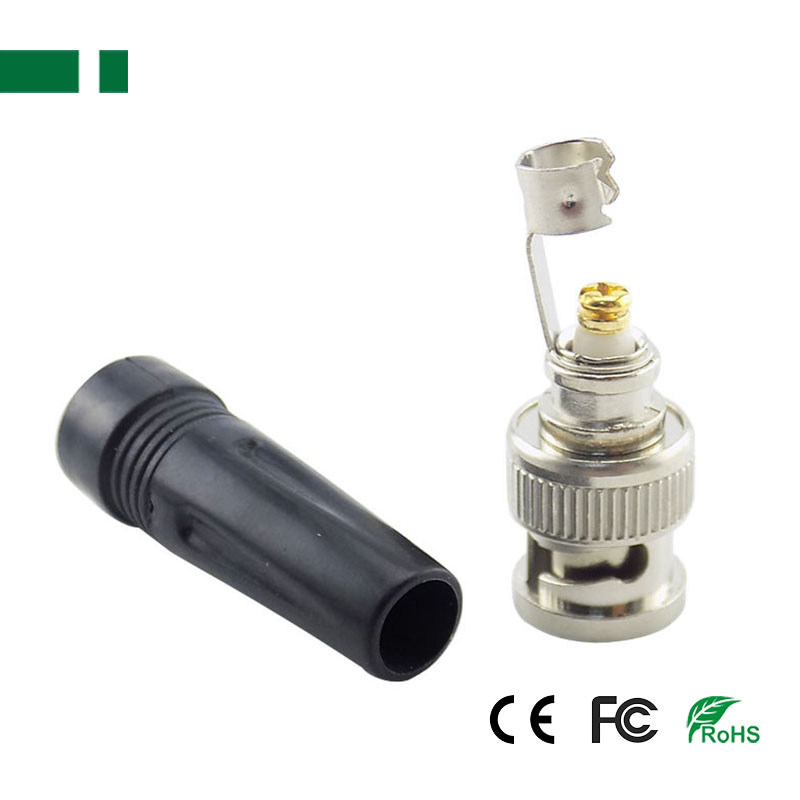

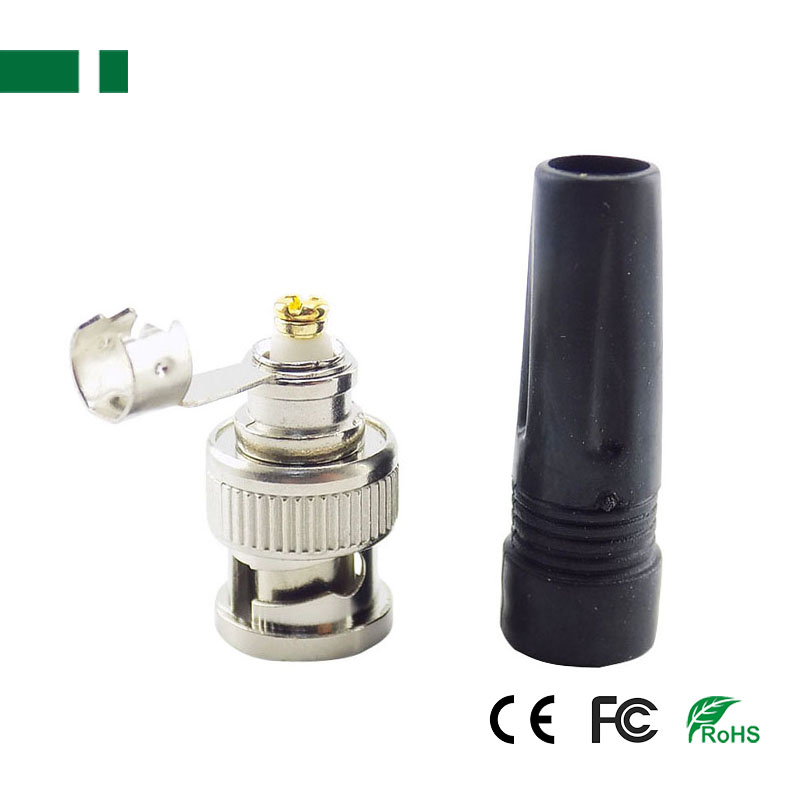

BNC75-5 Connector, Solderless with screw inside
100% brand new and high quality product
Great for cctv system connection
High quality termination
Simply & Professional appearance for cabling
Easier for CCTV camera installation save time and money

Model	CBN-012
Impedance	50Ω,75Ω
Resistanc	Inner conductor ≤2.0mΩ
Contact Resistance	center conductor≤1.5mΩ; outer conductor≤1mΩ
Insulation Resistance	≥5000MΩ
Frequency Range	0~3GHZ
Disengage Force	≥0.6N
Attenuation	0.5dB type
Wire Type	coaxial cable
DC Loop Resistance	52 ohms per 1,000 ft
Withstand Voltage	1500V rms
Frequency Response	DC to 8 MHz
Working Temperature	-10°C to +70°C
Humidity	0 to 95%
Packing	100pcs/bag
