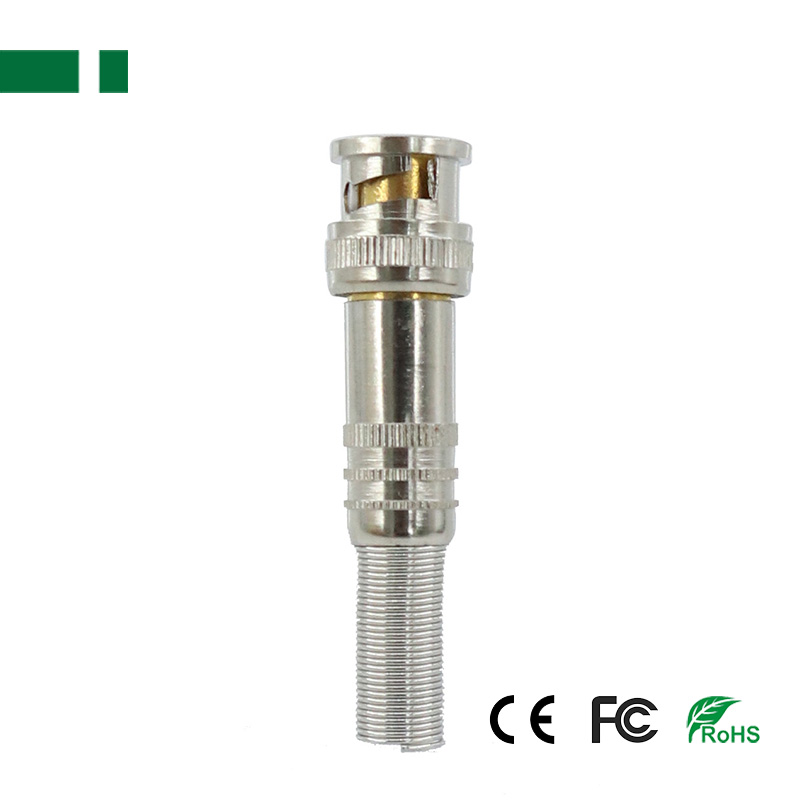

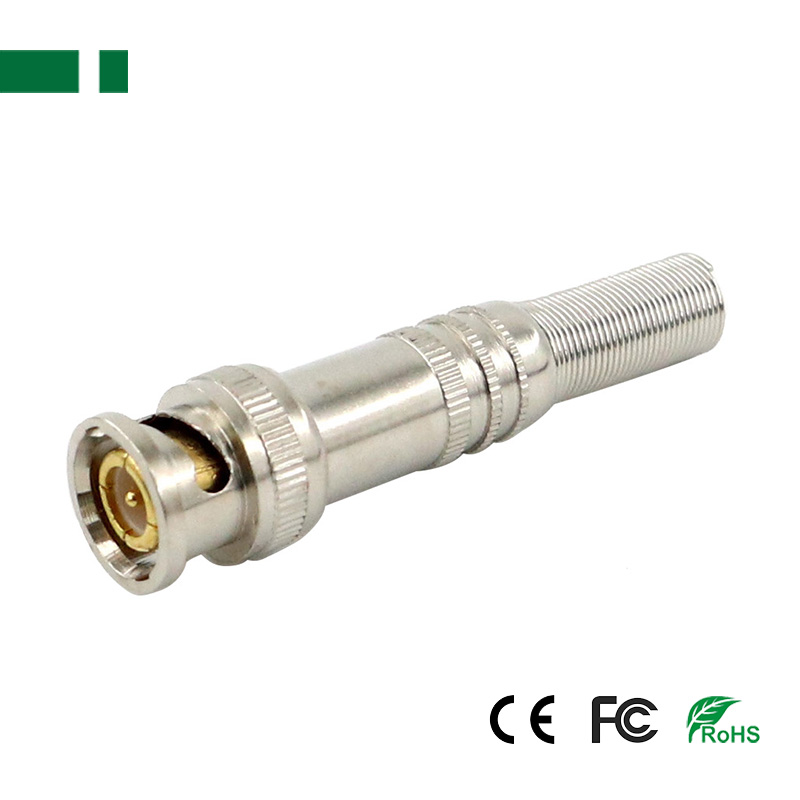

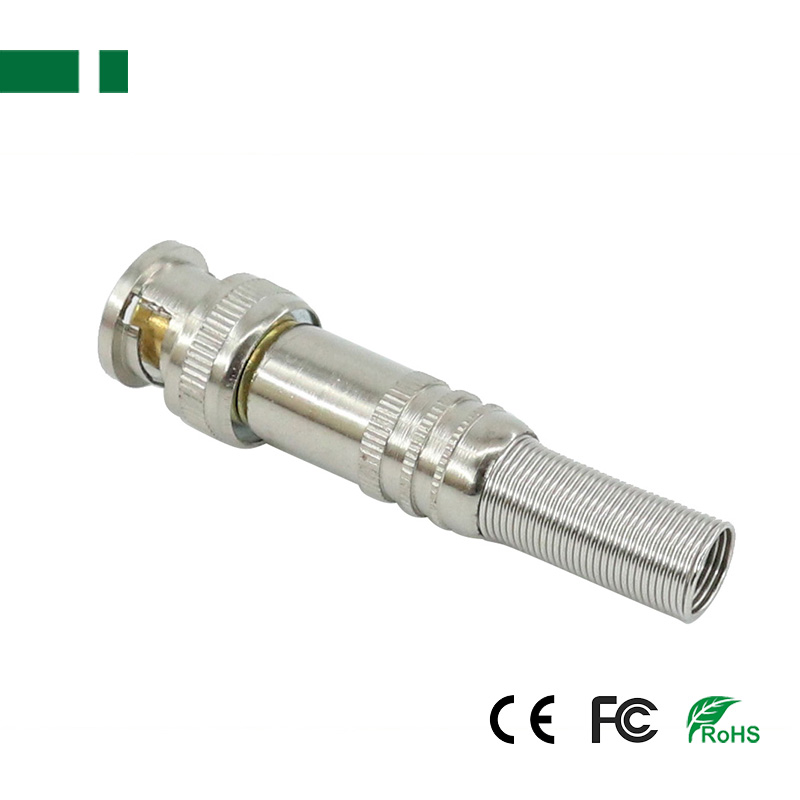

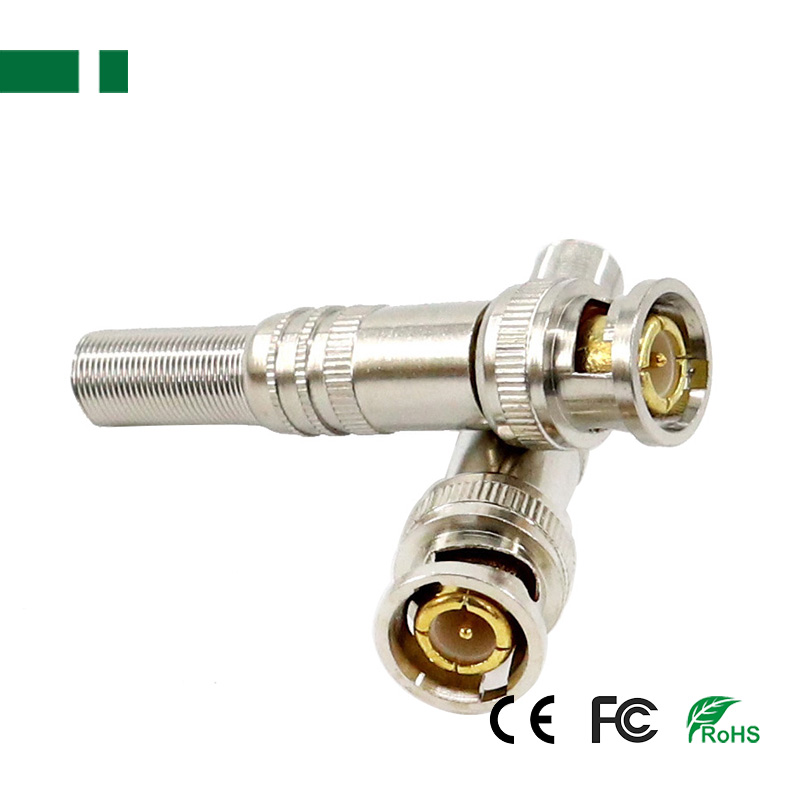

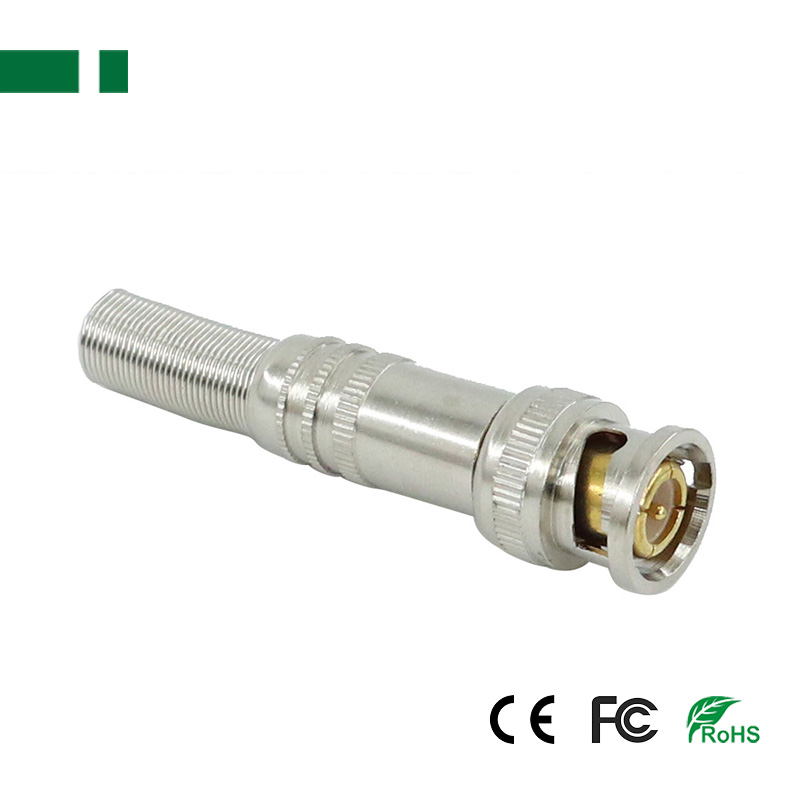

BNC Male Connector
with Screw
Zinc Alloy Body, Nickel plated
Solderless Type BNC Male Connector with Screw. email: info@casview.com
Male Solderless BNC Connector for CCTV Camera Security System
Main Features
1. Connectors: Solderless with screw Male BNC to Coaxial Cable
2. Can connect a RG59 / RG-6 coaxial cable to a BNC connection port
3. Easier for camera installation, save time and more securer cable connection;
4. General quality termination;
5. No electrical tap, No splicing, no crimping, but only a small screw driver ;
6. Material: Copper Pin and Zinc Alloy body;
7. Size: 5.9cm(length)x 1.35cm(width);
8. Net Weight: Approx. 11.9G
9. Packing list: 100pcs/pack
Specification:
| Model | CBN-001 | CBN-002 |
| Connectors | Male BNC | |
| Installation | Solder type without screw | Solderless with screw inside |
| Material | Zinc Alloy Body + Copper Pin | |
| Contact Resistance | center conductor≤1.5mΩ; outer conductor≤1mΩ | |
| Insulation Resistance | ≥5000MΩ | |
| Frequency Range | 0~3GHZ | |
| Disengage Force | ≥0.6N | |
| Attenuation | 0.5dB type | |
| Wire Type | coaxial cable | |
| DC Loop Resistance | 52 ohms per 1,000 ft | |
| Withstand Voltage | 1500V rms | |
| Frequency Response | DC to 8 MHz | |
| Working Tempremature | -10°C to +70°C | |
| Humidity | 0 to 95% | |
| Packing | 100pcs/bag | |

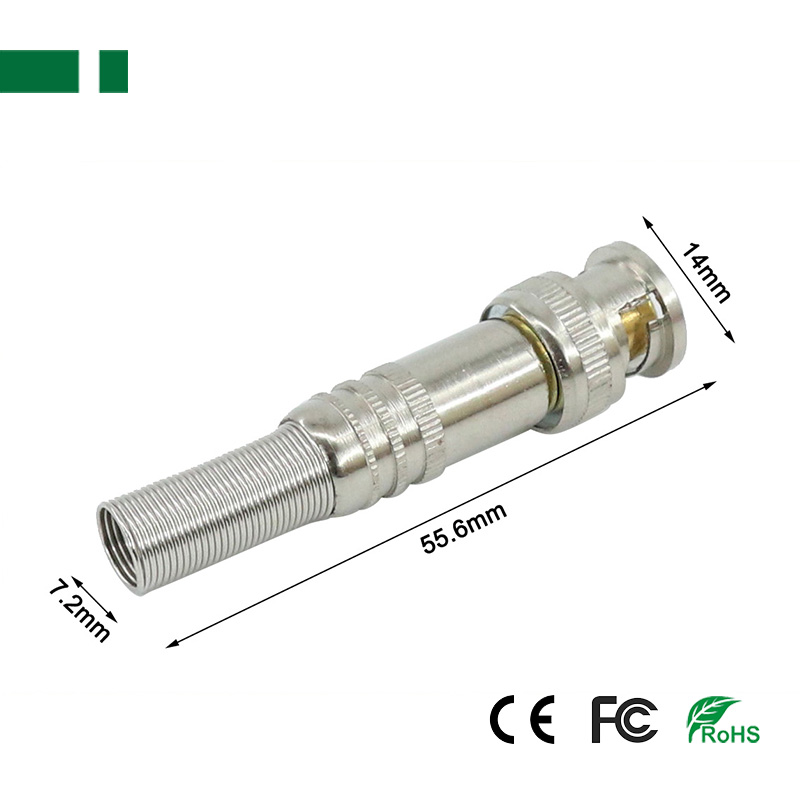

| Dimension | 14*55.6*7.2mm | |
| Weight | 10.9g | |
