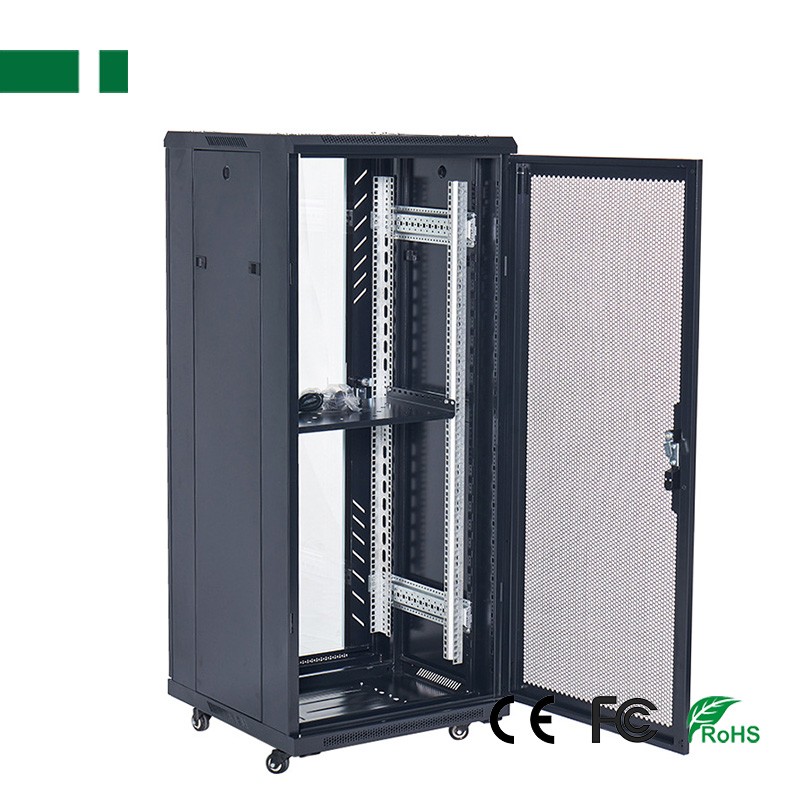

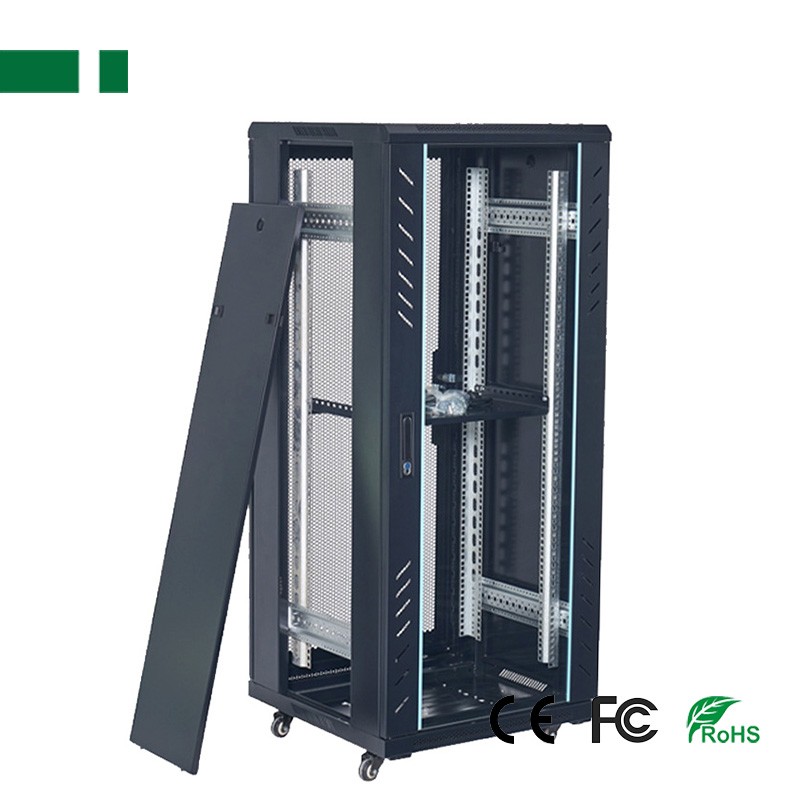

▪ 37U Floor-Standing Network Server Cabinet;
▪ Material: 0.8mm thickness SPCC cold rolled steel;
▪ Process: Electrostatic Plastic Spraying;

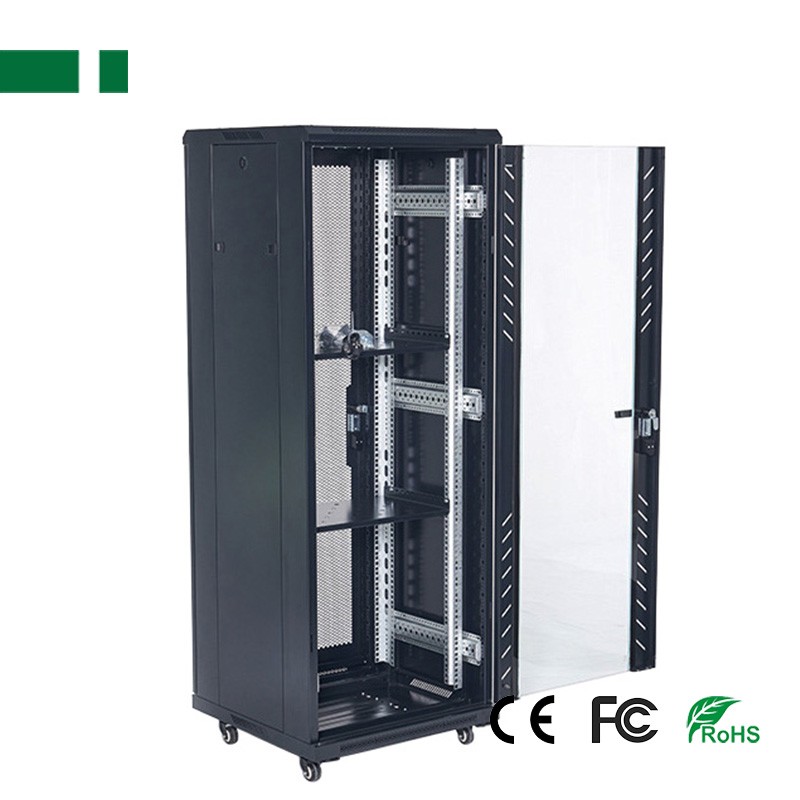

▪ Front Door: 5mm Toughened Glass Door;
▪ Strong Load-bearing Capacity: up to 110.23lbs;

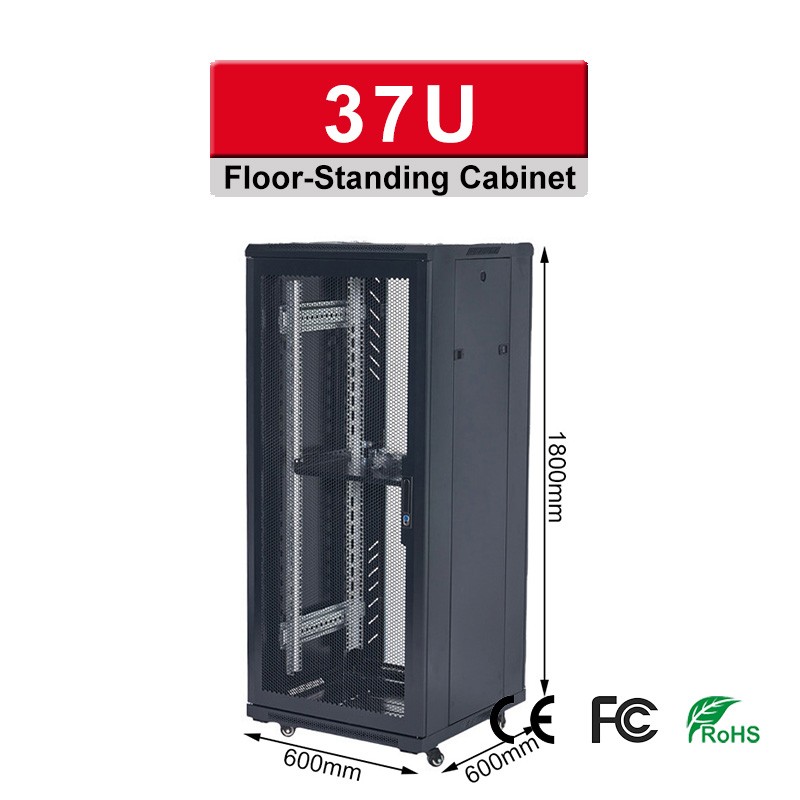

▪ Size: 600mm(Length)*1800mm(Height)*600mm(Width);
▪ The Network Server Cabinet, sometimes referred to as a network rack or data cabinet, is a specialized enclosure designed to house and organize network equipment. Typically made of sturdy steel, designed specifically to house, protect, and manage.
Description:
The Network Server Cabinet, sometimes referred to as a network rack or data Cabinet, is a specialized enclosure designed to house and organize network equipment. Typically made of sturdy steel, designed specifically to house, protect, and manage.
It combines a compact design with safe and reliable features, designed to provide a storage space that is both functional and secure for your network equipment. Whether it's switches, routers, or small servers, it can easily accommodate them all.
Feature:
▪ 37U Floor-Standing Network Server Cabinet;
▪ Material: 0.8mm thickness SPCC cold rolled steel;
▪ Process: Electrostatic Plastic Spraying;
▪ Front Door: 5mm Toughened Glass Door;
▪ Strong Load-bearing Capacity: up to 110.23lbs;
▪ Mounting Type: Floor-Standing;
▪ Product Size: 600mm(Length)*1800mm(Height)*600mm(Width);
▪ Application: Server Room, Data Center Server Rack, Broadband Network, Integrated Cabling, Monitoring System, Telecommunications, Office Network, Control Center etc..
Specification:

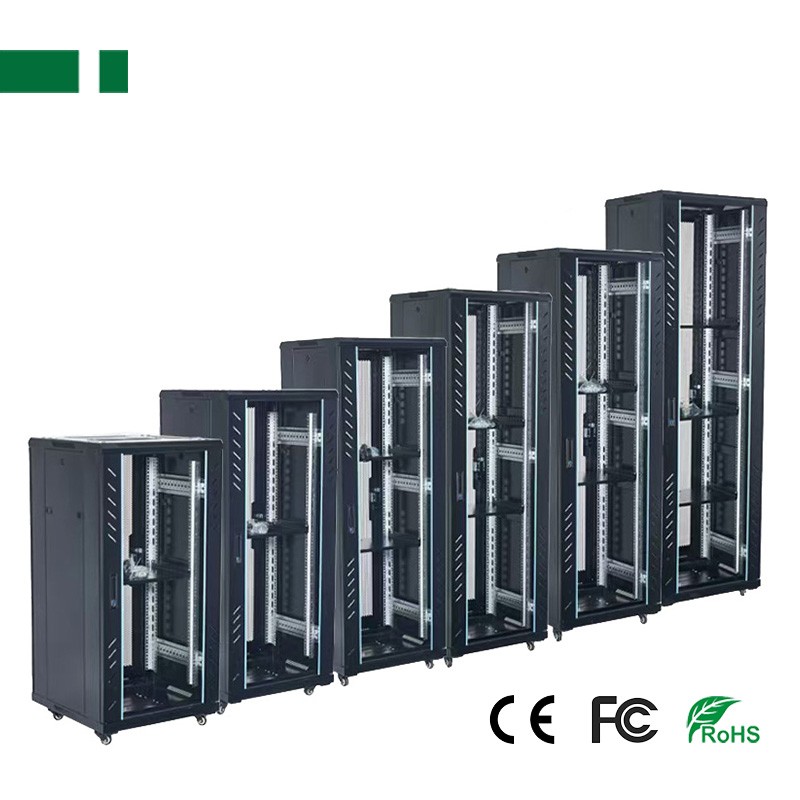

| 15U/18U/ 22U/ 27U/ 32U/ 37U/ 42U/ 47U Floor-Standing Network Server Cabinet | ||||||
| Item | Model | Size (L*H*W) | Body Thickness | Pole Thickness | Body Material | Door Material |
| 15U | CB-F606-15U | 600*800*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| 18U | CB-F606-18U | 600*1000*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| CB-F608-18U | 600*1000*800mm | 0.8mm | 1.5mm | |||
| 22U | CB-F606-22U | 600*1200*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| CB-F608-22U | 600*1200*800mm | 0.8mm | 1.5mm | |||
| 27U | CB-F606-27U | 600*1400*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| CB-F608-27U | 600*1400*800mm | 0.8mm | 1.5mm | |||
| 32U | CB-F606-32U | 600*1600*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| CB-F608-32U | 600*1600*800mm | 0.8mm | 1.5mm | |||
| 37U | CB-F606-37U | 600*1800*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| CB-F608-37U | 600*1800*800mm | 0.8mm | 1.5mm | |||
| 42U | CB-F606-42U | 600*2000*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| CB-F608-42U | 600*2000*800mm | 0.8mm | 1.5mm | |||
| 47U | CB-F606-47U | 600*2200*600mm | 0.8mm | 1.5mm | SPCC Cold Rolled Steel | 5mm Tempered Glass |
| CB-F608-47U | 600*2200*800mm | 0.8mm | 1.5mm | |||
