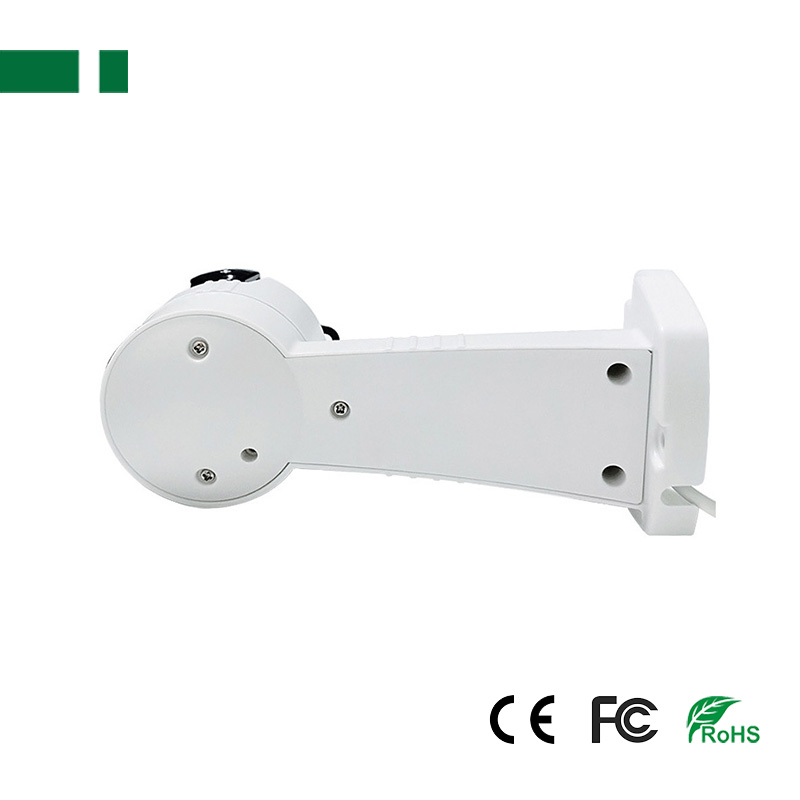

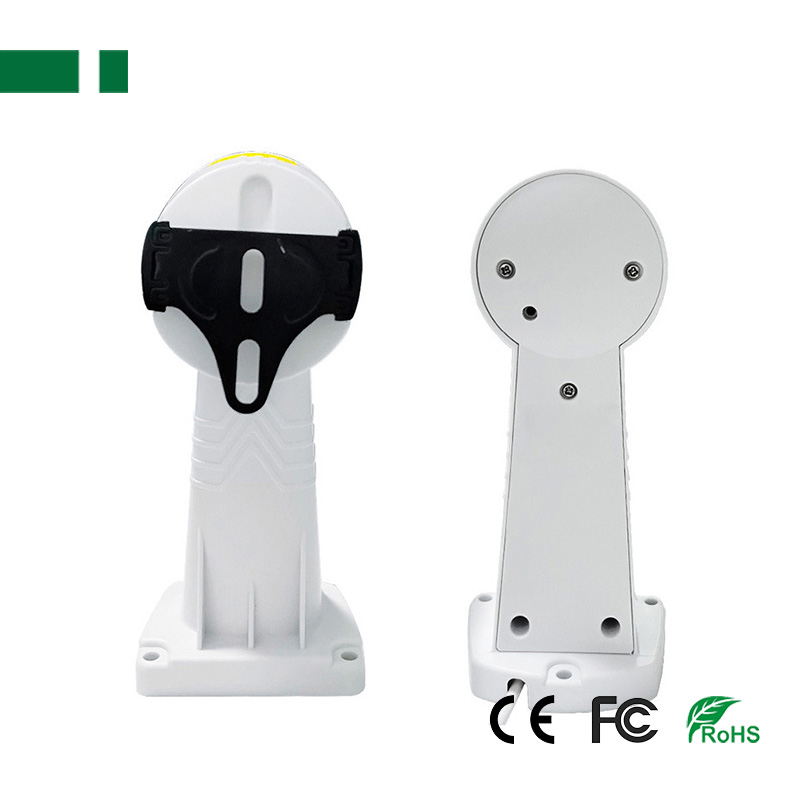

CB-198 RS485 Motorized Pan and Tilt PTZ Bracket
- RS485 Motorized Pan and Tilt PTZ Bracket
- Load-bearing: 1.5KG.
- 255 degrees Horizontal rotate

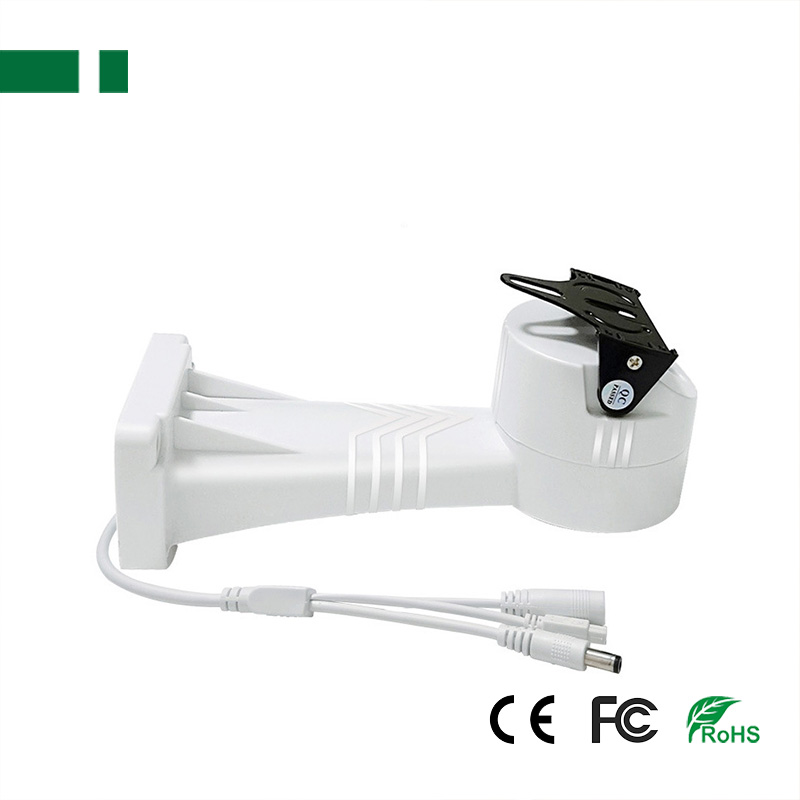

- DC 12V power input, RS485 control cable
- Product description: This rotate stand is a good solution for cctv camera to make it to be with rotate function. You can easily upgrade the high-definition camera to up and down and left and right can be rotated without w
RS485 Motorized Pan and Tilt PTZ Bracket for Wire Control CCTV IP or Analog Camera Preset Tour Scanner, Horizontal Rotate and Vertical Rotation
Description:
This rotate stand is a good solution for cctv camera to make it to be with rotate function. You can easily upgrade the high-definition camera to up and down and left and right can be rotated without wiring. Especially customized high quality and durable motor. Work stable and have long work life.
Features:
1. Maximum load weight: about 1.5kg.
2. Completely independent intellectual property.

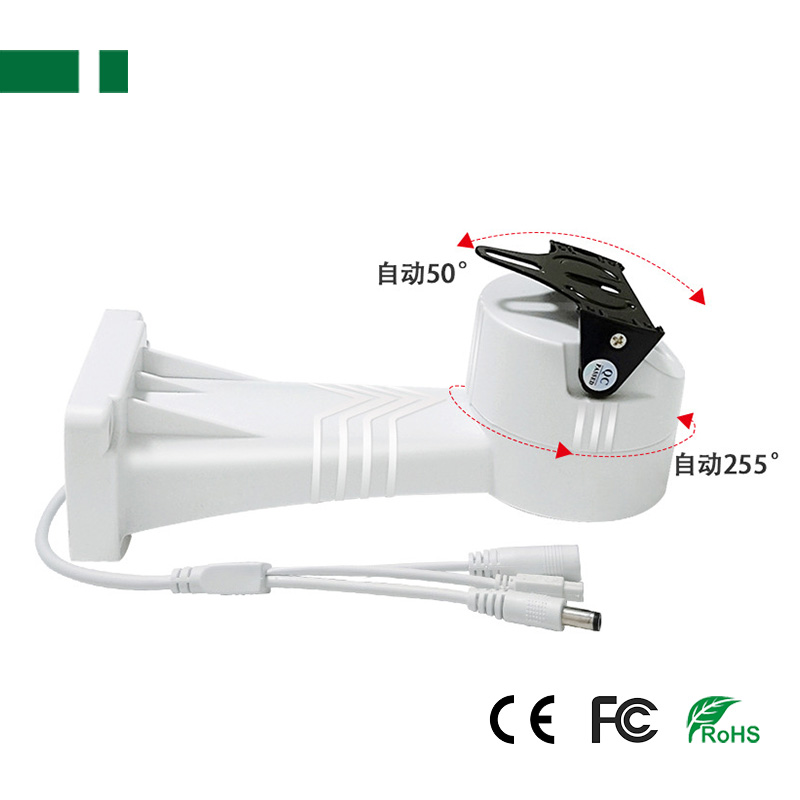

3. 255 degrees Horizontal rotate. Left and right stop positions are flexibly adjustable.
4. Built-in Intelligent decoder, intelligent preset position, intelligent scan function.
5. Available to set 1 home position.
6. Rotating speed is adjustable, 6 degrees/ 12 degrees/ 20 degrees per second.
7. DC 12V power input, RS485 control cable.
8. Easy to connect with HD camera RS485 and DC 12V output.
9. Easy to make fixed HD camera with rotation function, without extra wiring required.
10. Especially customized high quality and durable motor, stable working and long service life.
11. Only 170mm length, easy to install, compatible with all kinds of HD cameras and analog cameras.
12. Waterproof design, dust-proof and high temperature resistance. Industrial level plastic material.
13. Support baud rate 2400bps (default) and 9600bps (Please leave message for 9600bps in order. It is only available for >/=2pcs.)
14. RS485 port was upgraded to pitch 3.81mm 2-pin plug (Same as DVR). A 2-pin terminal socket is provided for spare use.
Application Advantages:
1. Can connect to IP module RS485 port directly, matching with network HD camera perfectly.
2. Can be remotely controlled over DVR/NVR, platform software and smart phone, without extra wiring required.
3. Competitive price and high performance/price ratio. You can make the fixed camera to pan/tilt control at low cost.
4. Can reduce the quantity of fixed camera with this rotating bracket to save lots of project cost, enabling you have more competitiveness than other sellers.
5. Especially suitable for indoor fixed camera to view wider angle.
Example:

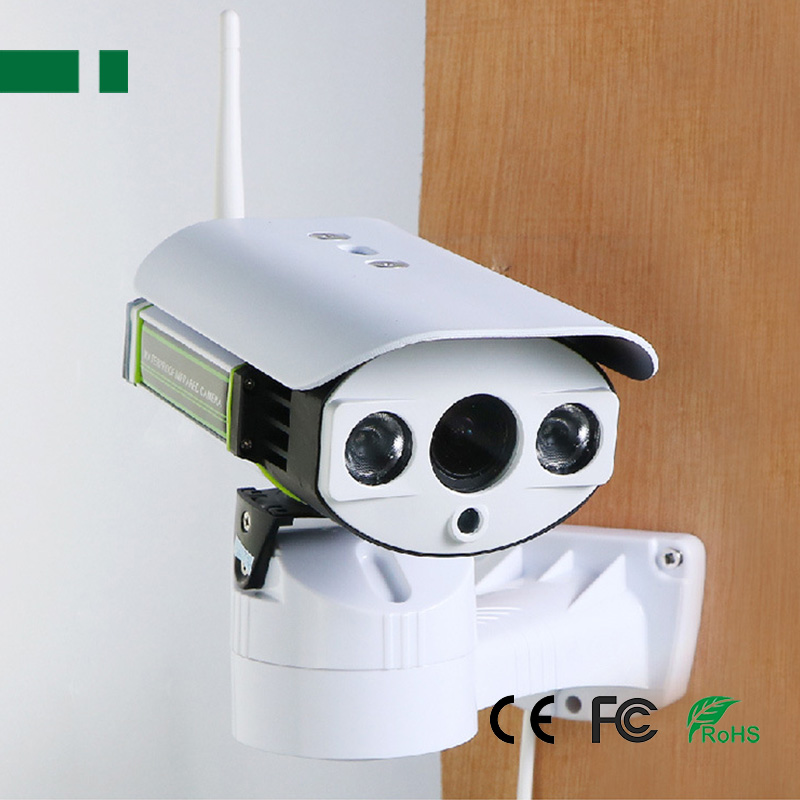

When we install a camera in the room, and want to view wider range, we usually use 3.6mm Lens which is with bigger angle of view but shorter view distance. This makes the camera's resolution can not be perfect, but if this camera is equipped with our pan/tilt bracket, 6mm lens can improve the resolution, in the meanwhile, you can view wider angle of view and longer distance, although 6mm lens can not reach 90 degrees like 3.6mm lens, but the rotating bracket allows the fixed lens camera to achieve the maximum monitoring range to 255 degrees. As a result, monitoring range and resolution have been improved, customer evaluations will be better.
How To Use:
It is very easy to use this bracket. Power up the bracket first. Connect it with the RS485 port of your DVR, keyboard controller, CCTV Tester or other equipment through the bracket RS485 connection. Operate the direction buttons or joystick on your DVR or keyboard controller to control the bracket horizontal and vertical movement.
Package Content:
1* Pan/Tilt Bracket (Default baud rate 2400bps. 9600bps version is only available for order >/=2PCS.)
1* Screw Pack
1* 2-pin Terminal Socket
1* User Manual
Description:
This rotate stand is a good solution for cctv camera to make it to be with rotate function. You can easily upgrade the high-definition camera to up and down and left and right can be rotated without wiring. Especially customized high quality and durable motor. Work stable and have long work life.
Features:
1. Maximum load weight: about 1.5kg.
2. Completely independent intellectual property.
3. 255 degrees Horizontal rotate. Left and right stop positions are flexibly adjustable.
4. Built-in Intelligent decoder, intelligent preset position, intelligent scan function.
5. Available to set 1 home position.
6. Rotating speed is adjustable, 6 degrees/ 12 degrees/ 20 degrees per second.
7. DC 12V power input, RS485 control cable.
8. Easy to connect with HD camera RS485 and DC 12V output.
9. Easy to make fixed HD camera with rotation function, without extra wiring required.
10. Especially customized high quality and durable motor, stable working and long service life.
11. Only 170mm length, easy to install, compatible with all kinds of HD cameras and analog cameras.
12. Waterproof design, dust-proof and high temperature resistance. Industrial level plastic material.
13. Support baud rate 2400bps (default) and 9600bps (Please leave message for 9600bps in order. It is only available for >/=2pcs.)
14. RS485 port was upgraded to pitch 3.81mm 2-pin plug (Same as DVR). A 2-pin terminal socket is provided for spare use.
Specification:
| Model | CB-198 |
| Product load | 1.5KG |
| Support Agreement | PELCO-D |
| Baud rate | 2400 |
| Address range | 1-200 |
| Control method | RS485 |
| Horizontal rotation angle | 255 degrees |
| Rotational speed | horizontal speed 6 degrees, 12 degrees, 20 degrees |
| Vertical rotation angle | 50 degrees |
| Vertical rotation speed | 9 degrees/second |
| Limit | left and right electronic limit, can be set arbitrarily |
| Limit automatic scan | Yes, three speed adjustable |
| Preposition | Yes, 8 presets |
| Preset cruising | Yes, 1 preset cruise line, 3 of rotate speed |
| Watch bit function | Yes |
| Manually reset function | Yes |
| Address | 128 Soft Address Codes |
| Control method | RS485 |
| Interface | DC Power Supply + RS485 |
| Power supply | DC 12V±5% / 100mA |
| Power consumption | 0.9W |
| Working environment | -25 °C -55 °C, humidity less than 95% (non-condensing) |

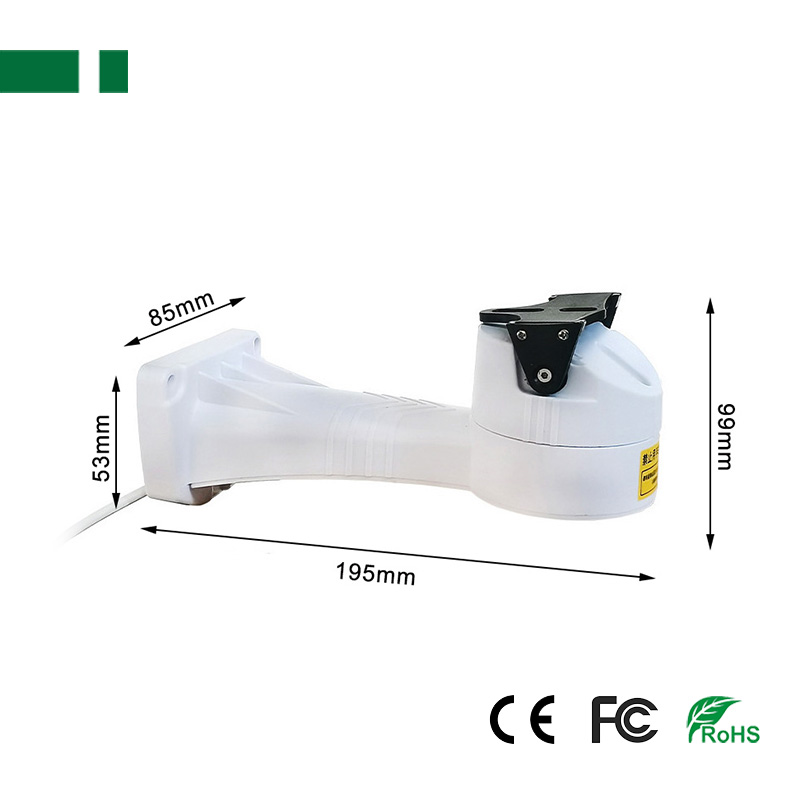

| RS485 Wire Cntrol omnibearing length | 195mm |
| RS485 (Horizontal rotation ) length | 170mm |
1. Can connect to IP module RS485 port directly, matching with network HD camera perfectly.
2. Can be remotely controlled over DVR/NVR, platform software and smart phone, without extra wiring required.
3. Competitive price and high performance/price ratio. You can make the fixed camera to pan/tilt control at low cost.
4. Can reduce the quantity of fixed camera with this rotating bracket to save lots of project cost, enabling you have more competitiveness than other sellers.
5. Especially suitable for indoor fixed camera to view wider angle.
Example:
When we install a camera in the room, and want to view wider range, we usually use 3.6mm Lens which is with bigger angle of view but shorter view distance. This makes the camera's resolution can not be perfect, but if this camera is equipped with our pan/tilt bracket, 6mm lens can improve the resolution, in the meanwhile, you can view wider angle of view and longer distance, although 6mm lens can not reach 90 degrees like 3.6mm lens, but the rotating bracket allows the fixed lens camera to achieve the maximum monitoring range to 255 degrees. As a result, monitoring range and resolution have been improved, customer evaluations will be better.
How To Use:
It is very easy to use this bracket. Power up the bracket first. Connect it with the RS485 port of your DVR, keyboard controller, CCTV Tester or other equipment through the bracket RS485 connection. Operate the direction buttons or joystick on your DVR or keyboard controller to control the bracket horizontal and vertical movement.
Package Content:
1* Pan/Tilt Bracket (Default baud rate 2400bps. 9600bps version is only available for order >/=2PCS.)
1* Screw Pack
1* 2-pin Terminal Socket
1* User Manual
