CB-172A CB-172C CB-172F CB-172H Stainless Steel Bracket for Infrared Beam

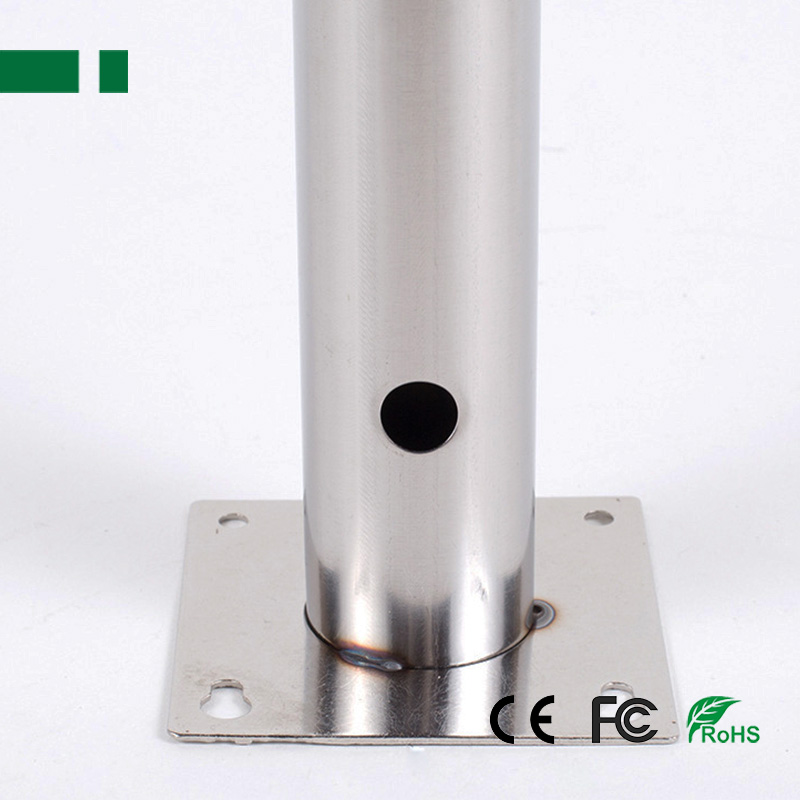

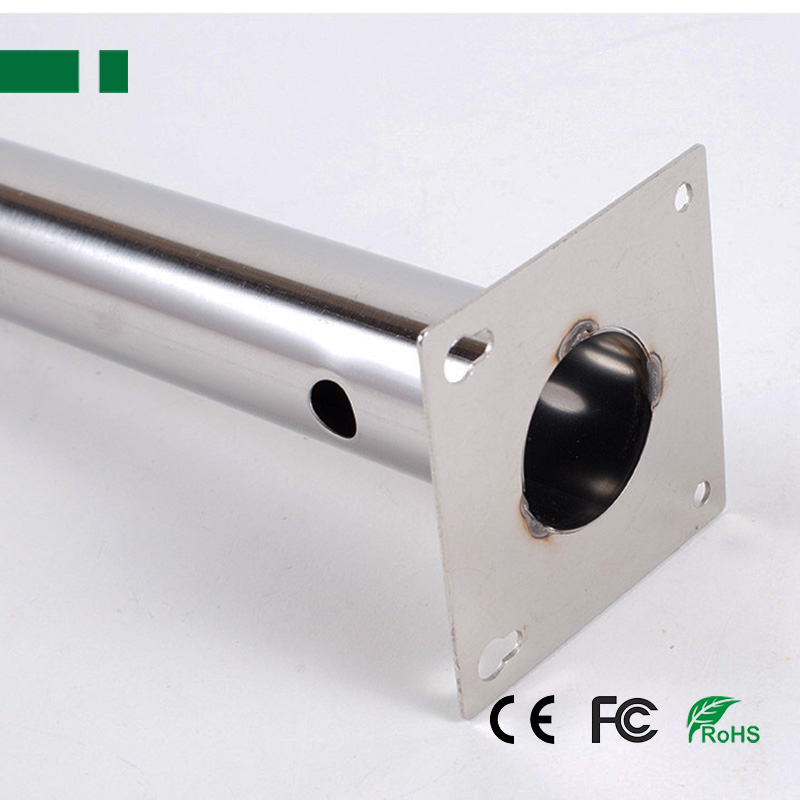

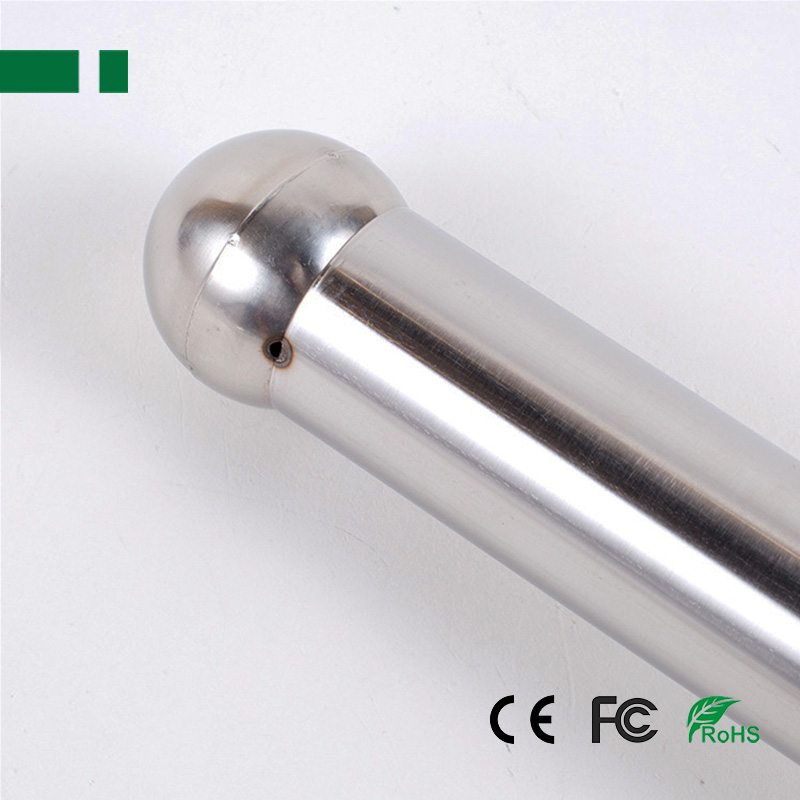

"T" type Stainless Steel Bracket for Infrared Beam

Description
This pole mount bracket is for easy installation of outdoor antennas for all wireless bridges, outdoor security cameras for home or other wireless systems. This antenna mount pole bracket can be installed on a pole or wall-mounted, both installation methods are very simple, you can choose according to your needs. Wireless Bridge Bracket Mount

Features
1. Color: Silver
2. Perfect for outdoor wireless monitoring directional antenna wall mount.
3. Designed especially for outdoor use, the wireless bridge bracket mount can be placed anywhere, from your roof to a wall.
4. Made of sturdy and rust-proof stainless steel materials, durable and reliable to use.
5. Wall mounted installation bracket, the antenna mount is fit for various wall surfaces.
6. Strong, wear-resistant, strong load-bearing capacity, not easy to deform and break, which can serve you well.

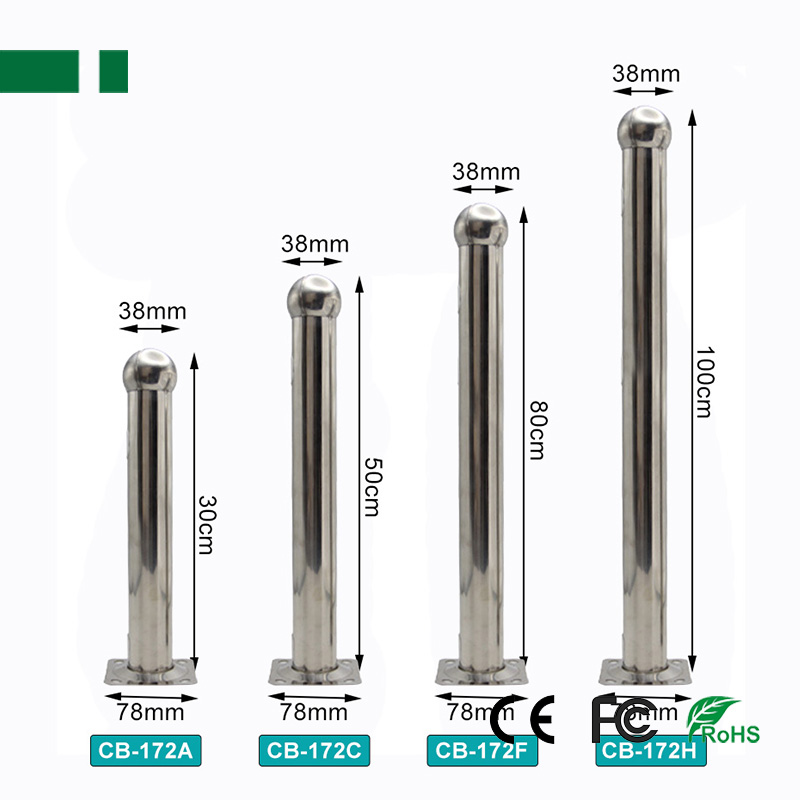

	"T"  type Stainless Steel Bracket for Infrared Beam
	Model	Specification
	CB-172A	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*300(H)mm, Vertical Mounting.
	CB-172C	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*500(H)mm, Vertical Mounting.
	CB-172F	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*800(H)mm, Vertical Mounting.
	CB-172H	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*1000(H)mm, Vertical Mounting.

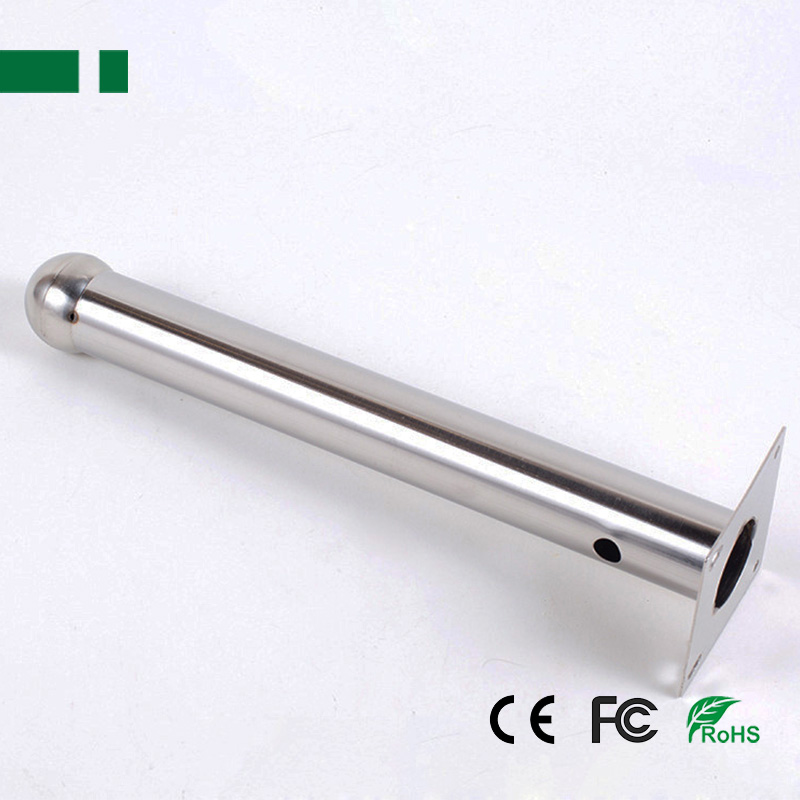

	"L" type  Stainless Steel Bracket for Infrared Beam
	Model	Specification
	CB-173B	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*380(H)mm, Wall mounted.
	CB-173C	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*480(H)mm, Wall mounted.
	CB-173D	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*600(H)mm, Wall mounted.
	CB-173E	Material: Stainless  Steel, Diameter: 3.8mm, Size: 78*78*700(H)mm, Wall mounted.

Package:
1 x Wireless Bridge Bracket Mount
