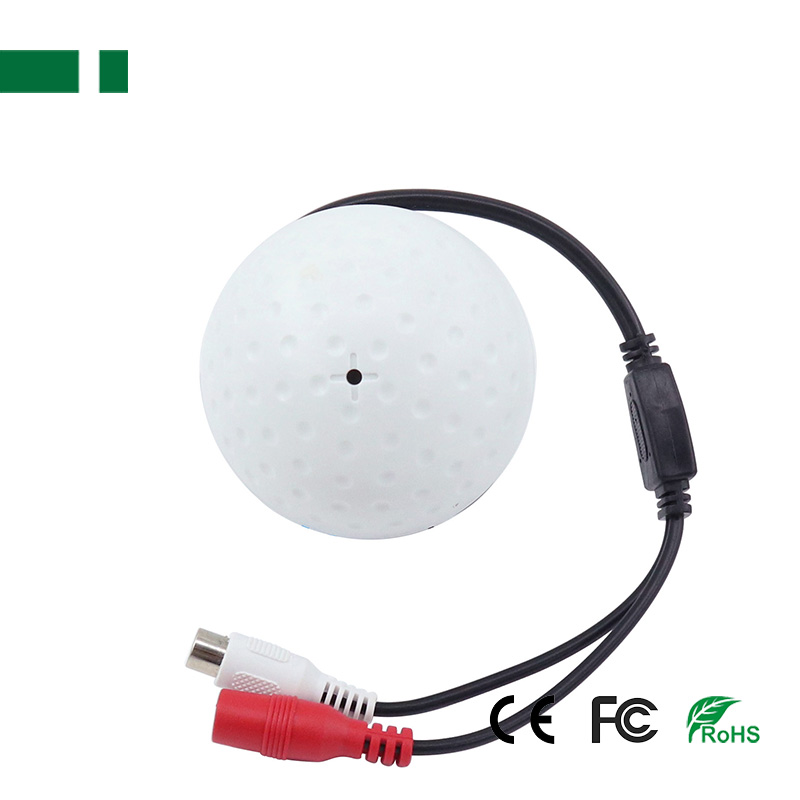

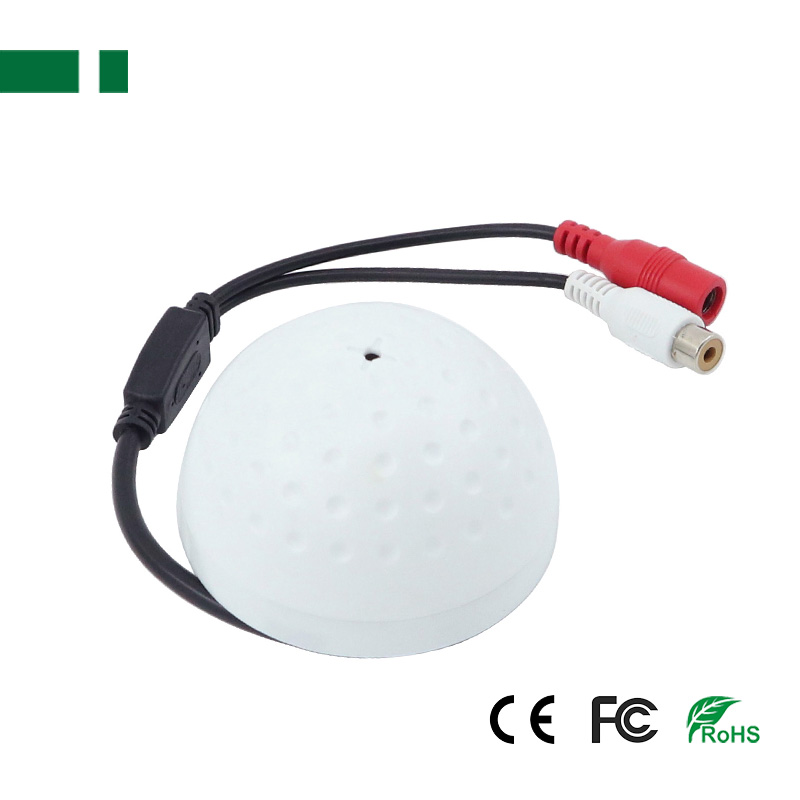

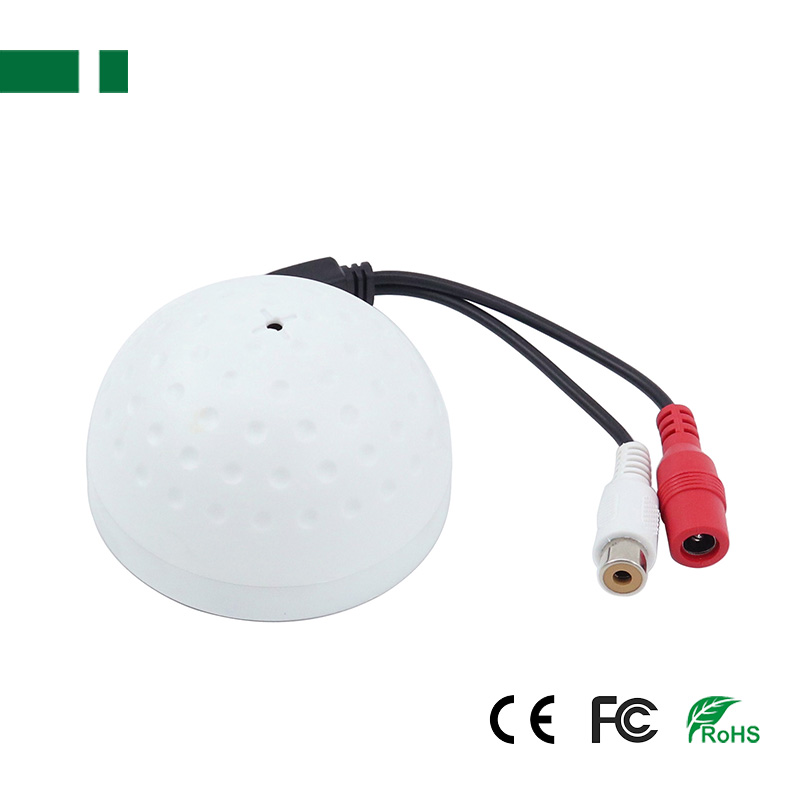

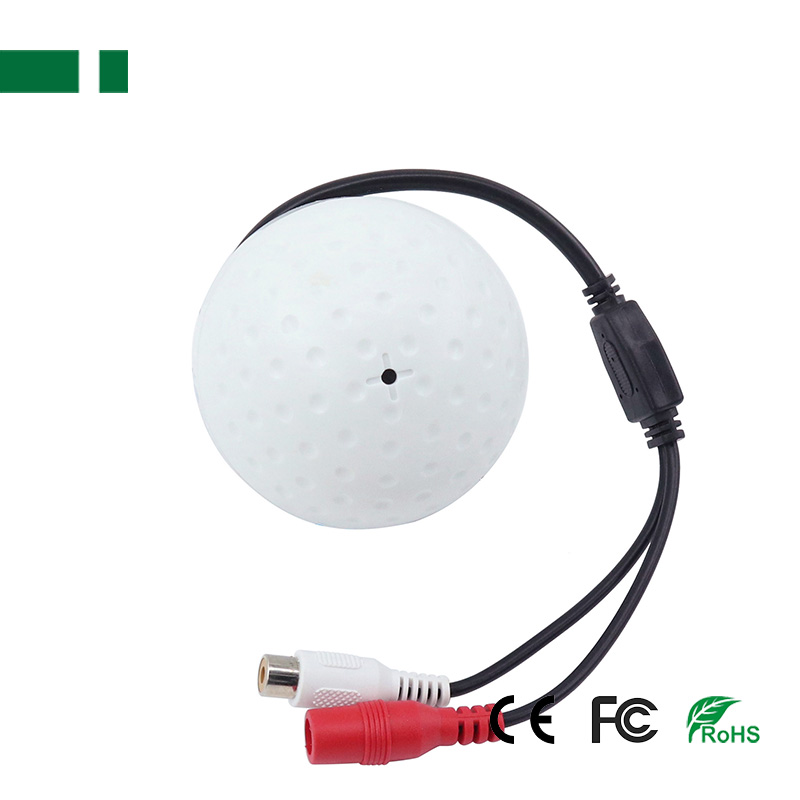

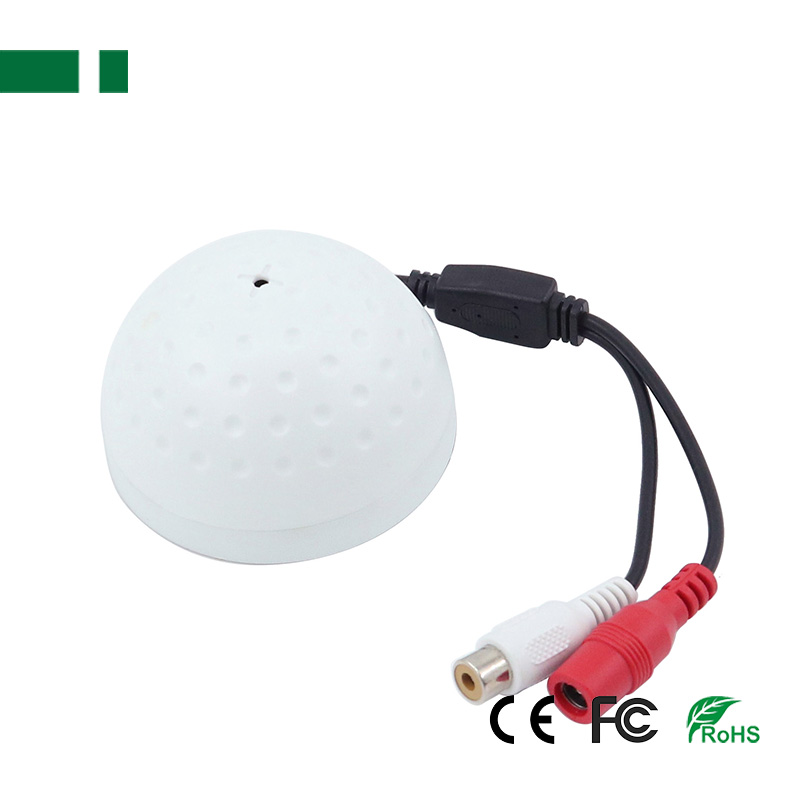

Mini High Sensitivity Hidden Audio Pickup
Audio Montor Range:30㎡ with better quality

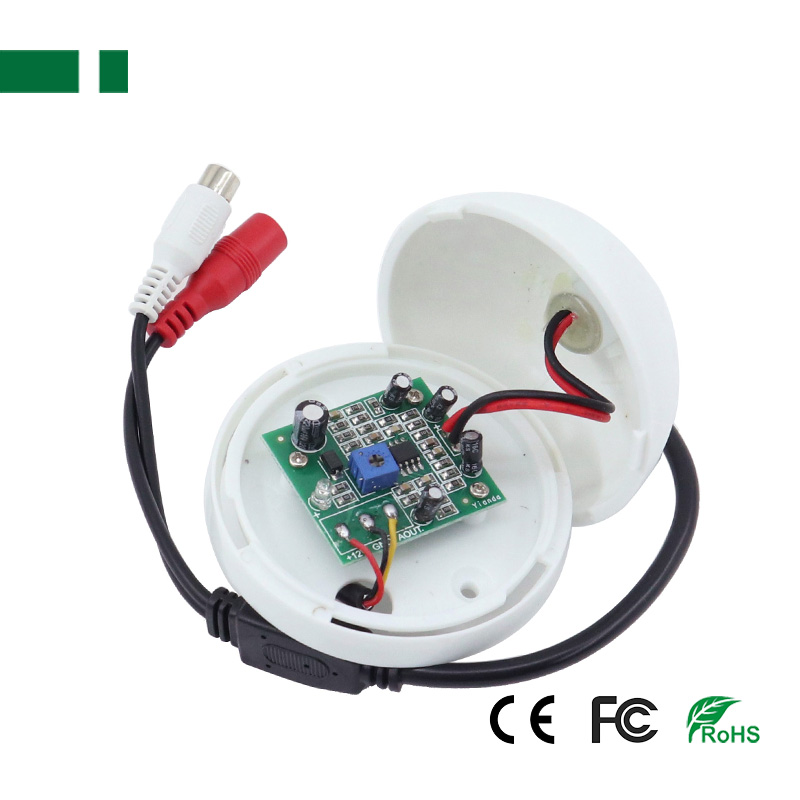

DSP built-in noise reduction circuit
AGC circuit built-in gain
This Audio pickup for CCTV Security System， Built-in reverse power protective circuit, low power expense, wide voltage range, safe and reliable to use.
This Audio pickup for CCTV Security System.
Wide Range: Designed for the monitoring and recording applications within normal range, the widest monitoring range can be up to 100 square meters.
High sensitivity Sound Monitor: clear voice, low noise, high fidelity, applies to a variety of situations, such as for bank, examination room, shopping malls and so on.
Safe Use: Built-in reverse power protective circuit, low power expense, wide voltage range, safe and reliable to use.
Easy Installation: Compact design, small size, plug and play.
Features:
1. Plug & Play
2. Extremely Sensitive
3. Great for Security Monitoring
4. Higher S/N Ratio
5. Range: 30 Square metres
6. Audio Output: RCA Female
7. Sensitivity : 200mA/ubar
8. Work current : 5 mA - 60mA
9. Work Voltage: 9 - 12V
10. Frequency: 100-6000HZ
11. Max output Voltage: 5V-upp
Specification:
| Model | CAP-408B |
| Audio Monitoring Range | 30m² |
| Connector Type | "+"Red power supply,"-" Black power supply, S+ White signal |
| Sensitivity | -47DB |
| Work Voltage | 6-14V |
| Current Consumption | 5mA-60mA |
| Frequency Range | 100~6000Hz |
| Frequency Response | 2.5dB |
| Max output Voltage | 5VPP |
| Output Impedance | 600Ω |
| Working Temperature | -10°C to +70°C |
| Size | 6*14mm |
| Monitoring of: 10 m2 100m2 Signal transmission line With a core line with the best shield | |
