Features:
1. Transmit PAL/NTSC HD CVI/TVI/AHD/CVBS Video signal via UTP, DC12V power supply.
2. Up to 400M, work with Passive Video Balun, for HD CVI/TVI/AHD Cameras.
3. Up to 800M, work with Passive video balun, for CVBS Cameras.
4. Use Press Terminal block(screwless), easy to install.
5. Dial switch(contrast), Knob switch(brightness), easy to use.
6. Smallest size in Chinese Mainland, BNC male connector. Directly connect with DVR, Video Splitter, Matrix or Monitor.
7. lightning-proof, common-mode anti-interference function.
8. highest cost performance ratio.
Specifications:
Signal bandwidth ---------------------------------------------------------------------------------------------------- 0-80MHZ
Common-mode rejection ratio(CMRR) ------------------------------------------------------------------------------ 60dB
Cable Port ----------------------------pure copper BNC Male, 75Ωimpedance; Press terminal, 50Ωimpedance.
Video format --------------------------------------------------------------NTSC, PAL HD CVI/TVI/AHD/CVBS video signal.
LED indication -------------------------------------------------------------------------------------Power: Blue; Signal: Green.
Power ----------------------------------------------------------------------------------------------------------------------<0.15W
Power supply ----------------------------------------------------------------------------------DC12V 500mA power supply.
Transient overvoltage protection ------------------------------------------------------------------------------------------2KV
Operation Temp ------------------------------------------------------------------------------------------------------ -10℃ –70℃
Storage Temp ------------------------------------------------------------------------------------------------------ -40℃ –80℃
Case Material --------------------------------------------------------------------------------------------------------------ABS plastic

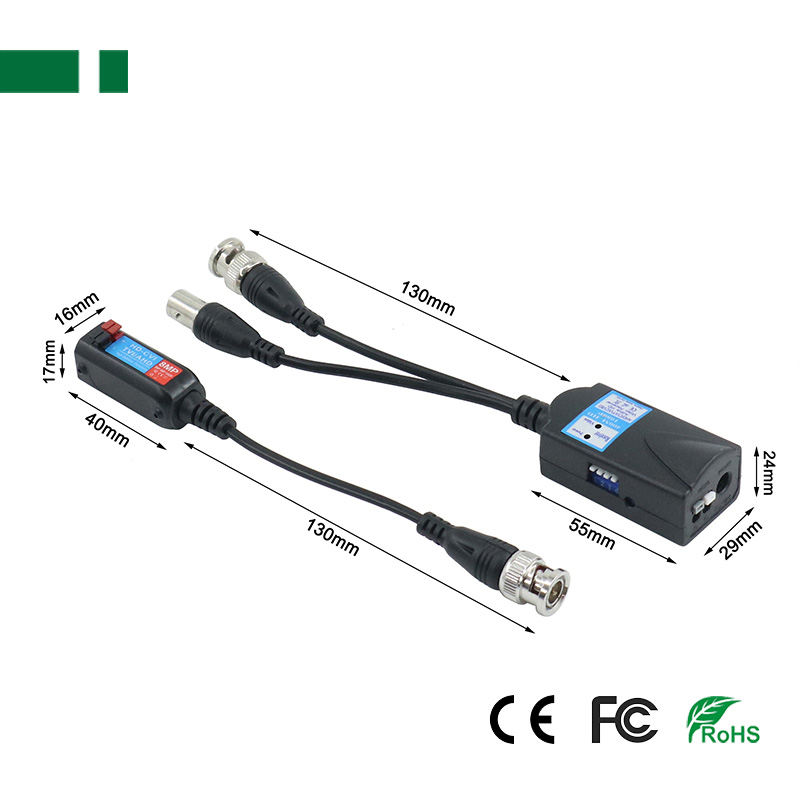

Product size ------------------------------------------------------------------------------------------------------ 55*28.6*20mm
Package ------------------------------------------------------------------------------------------------------Blister
packaging/box.
Cable standard:
Cable’s quality directly affect the video signal transmission quality. In order to achieve good quality video signal transmission, recommend use Standard CAT5e/6 or better UTP cable.
Warm Tips: Test cable quality, could use ”Multimeter” check one pcs twist pair wire’s DCImpedance. Normally request DC Impedance<18Ω/100m, that means <54Ω/Carton.
