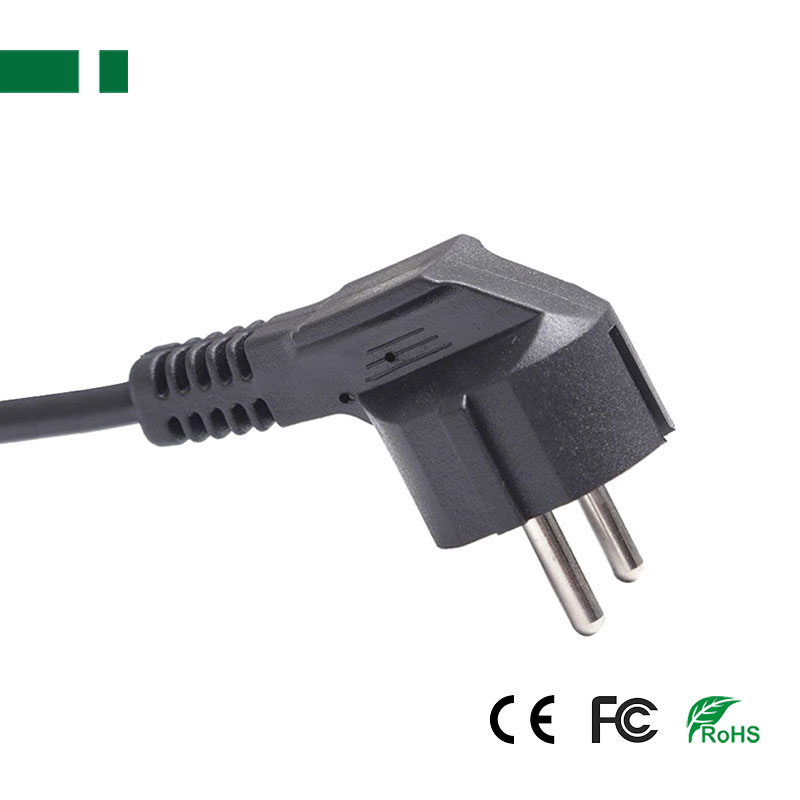

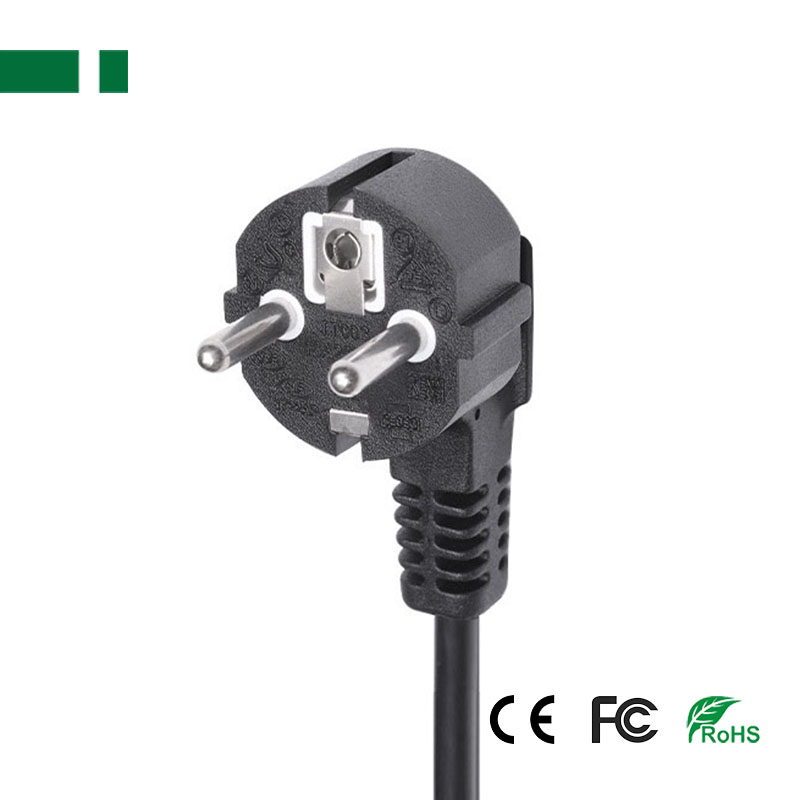

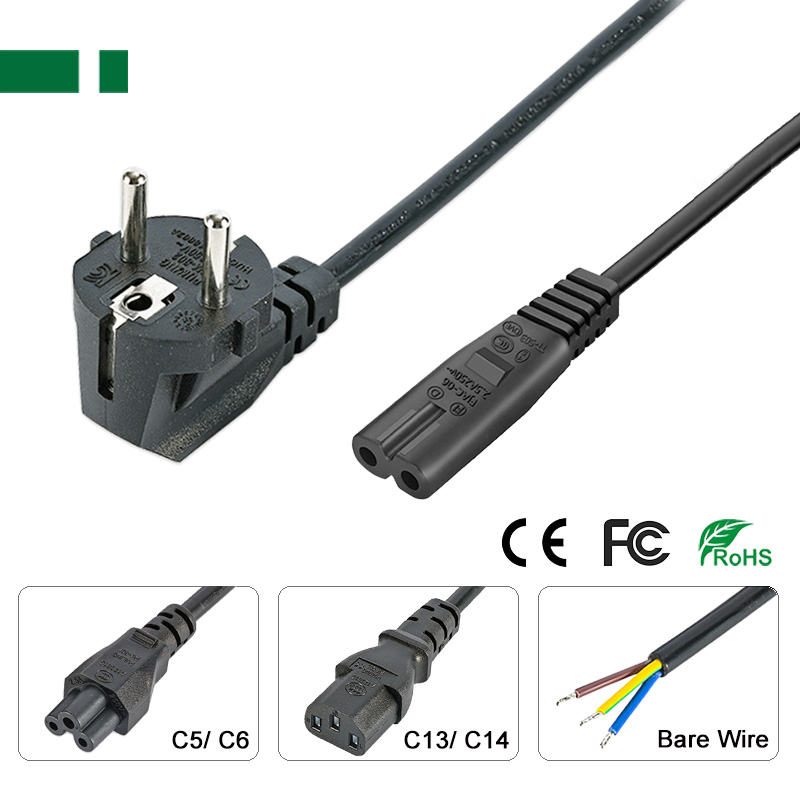

AC Power Cable with EU Type A Plug to C7 Connector
OD: 3*0.75mm², 1.5M length
Max output power: 500W
Conductor material: CCA
A different country may use different AC Cable power cord types, different plugs, and connectors, especially the plug types.
AC Power Cable with EU Type A Plug to C7 Connector. OD: 3*0.75mm², Max. 500W, 1.5M, CCA.
Network engineers who work around the world are well aware of the many different plugs and sockets in use in data centers. But the first-time experience in a foreign data center might be hard if you don’t know which AC Cable power cord is used there. There is more than one standard being used in the world. A different country may use different AC Cable power cord types, different plugs, and connectors, especially the plug types.
Specification:
| AC Cable Power Supply Cord type | ||||||
| Model | AC Plug | Connector type | OD | Length | Material | Max. Power |
| AC-EUC-B-A1 | EU Type C | Bare wires | 2*0.75mm² | 1.5M | CCA | 500W |
| AC-EUC-C13-A1 | C13 Connector | 1.2M | CCA | 500W | ||
| AC-EUC-C7-A1 | C7 Connector | 1.5M | CCA | 500W | ||
| AC-EUC-C5-A1 | C5 Connector | 1.2M | CCA | 500W | ||
| AC-EUE-B-A1 | EU Type A | Bare wires | 3*0.75mm² | 1.5M | CCA | 500W |
| AC-EUE-B-B1 | Bare wires | Cooper | 2000W | |||
| AC-EUE-C13-A1 | C13 Connector | CCA | 500W | |||
| AC-EUE-C13-B1 | C13 Connector | Cooper | 2000W | |||
| AC-EUE-C13-B2 | C13 Connector | Cooper | 3500W | |||
| AC-EUE-C5-A1 | C5 Connector | CCA | 500W | |||
| AC-GBA-B-A1 | GB Type A | Bare wires | 2*0.75mm² | 1.5M | CCA | 500W |
| AC-GBA-C13-A1 | C13 Connector | 1.2M | CCA | 500W | ||
| AC-GBA-C7-A1 | C7 Connector | 1.5M | CCA | 500W | ||
| AC-GBA-C5-A1 | C5 Connector | 1.2M | CCA | 500W | ||
| AC-GBI-B-A1 | GB Type I | Bare wires | 3*0.75mm² | 1.5M | CCA | 500W |
| AC-GBI-C13-A1 | C13 Connector | 1.5M | CCA | 500W | ||
| AC-GBI-C13-B1 | C7 Connector | 1.5M | CCA | 500W | ||
| AC-GBI-C5-A1 | C5 Connector | 1.5M | CCA | 500W | ||
| AC-UKG-B-A1 | UK Type G | Bare wires | 3*0.75mm² | 1.5M | CCA | 500W |
| AC-UKG-C13-A1 | C13 Connector | CCA | 500W | |||
| AC-UKG-C13-C1 | C13 Connector | Cooper | 2000W | |||
| AC-UKG-C7-A1 | C7 Connector | CCA | 500W | |||
| AC-UKG-C5-A1 | C5 Connector | CCA | 500W | |||
