IR Illuminator

CLR30-W12 CLR30-W24 CLR30-W220 CLR30-R12 CLR30-R220 IR Illuminator

34W output
DC12/24V/220V AC
30°/45°/60°/90° Angle optional
Aluminium Housing, IP65
Product description: 34W LED ILLUMINIATOR
INQUIRY EMAIL

Features:

IR Illuminator with 30pcs White Light or 30pcs Red Light
Power: 34W output
Illuminating range: viewing range 20-30m (outdoor)

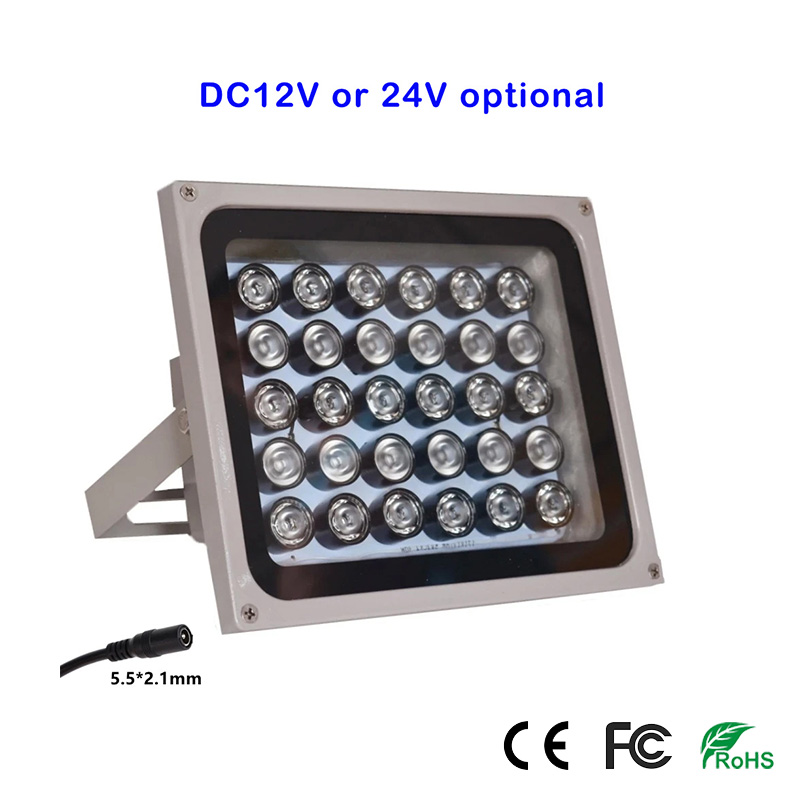

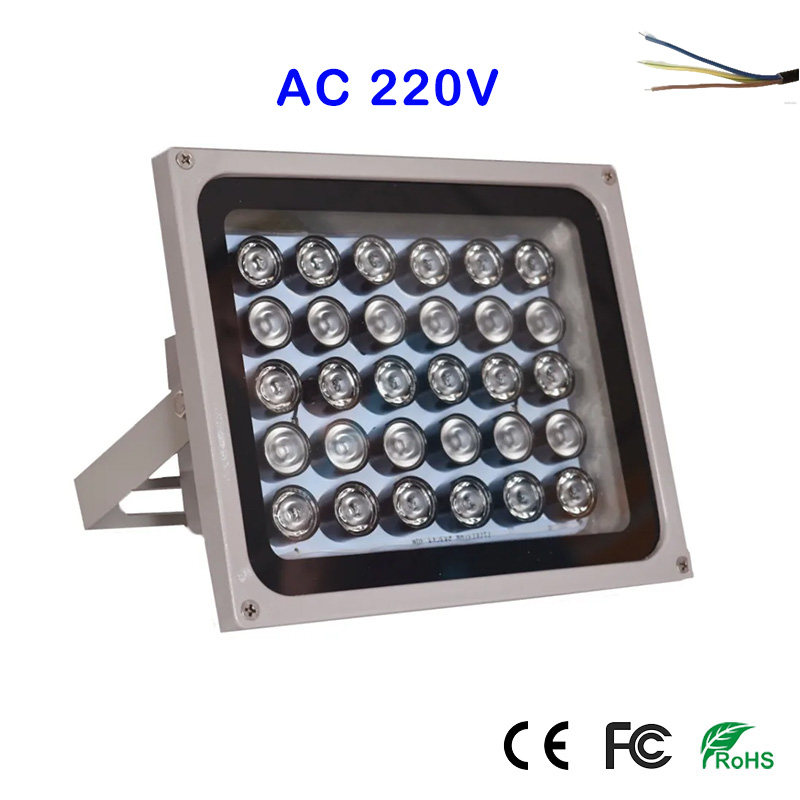

Adapter power supply: DC12V, DV24V or AC220V Optional
Auto turn-on when the surrounding is dark
Waterproof IP65
White Aluminium Housing, Silver Gray Color
Size:179mm*137mm*82mm

Angle: 30°/45°/60°/90° Angle optional (Notice: wider angle is less distance)
To adapt to the temperature:-20 ° C to + 50 °

Optional Models:

CLR-30-W12	30pcs White Light, DC12V	Distance: 50-80M (upon different angle)
CLR-30-W24	30pcs White Light, DC24V	Distance: 50-80M (upon different angle)
CLR-30-W220	30pcs White Light, AC220V	Distance: 50-80M (upon different angle)
CLR-30-R12	30pcs Red Light, DC12V	Distance: 50-80M (upon different angle)
CLR-30-R24	30pcs Red Light, DC24V	Distance: 50-80M (upon different angle)
CLR-30-R220	30pcs Red Light, AC220V	Distance: 50-80M (upon different angle)
