24W output
DC12/24V/220V AC
30°/45°/60°/90° Angle optional
Aluminium Housing, IP65
24W LED ILLUMINIATOR
Features:
IR Illuminator with 20pcs White Light or 20pcs Red Light
Power: 24W output
Illuminating range: viewing range 20-30m (outdoor)
Adapter power supply: DC12V, DV24V or AC220V Optional

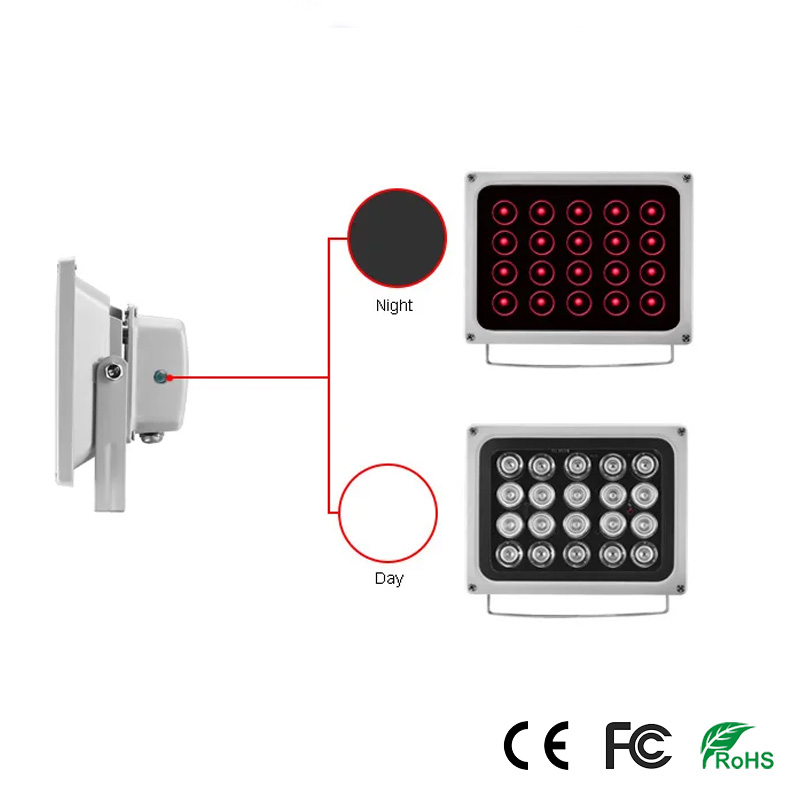

Auto turn-on when the surrounding is dark
Waterproof IP65
White Aluminium Housing, Silver Gray Color

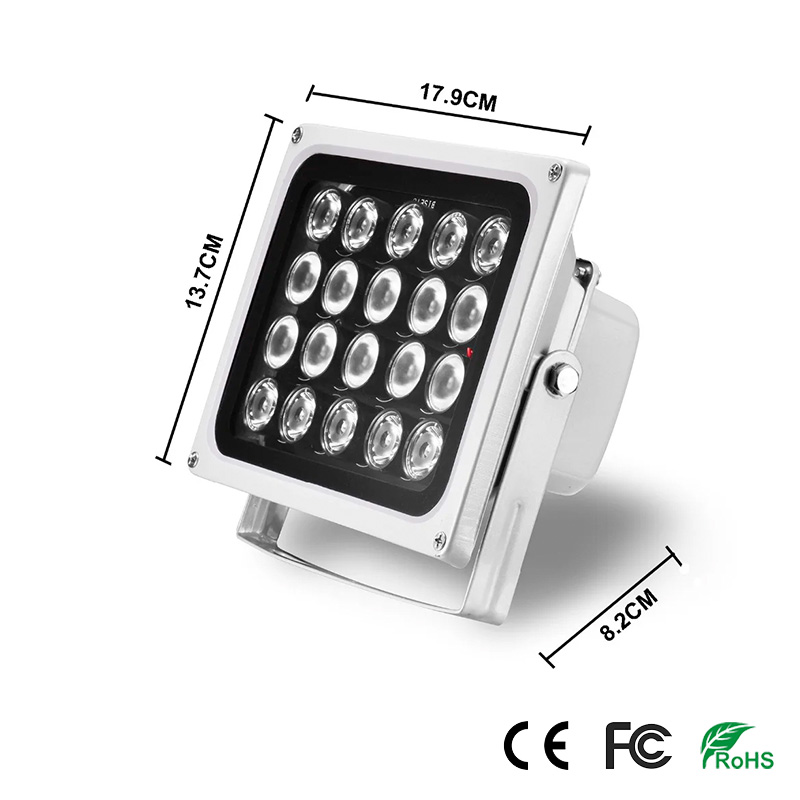

Size:179mm*137mm*82mm
Angle: 30°/45°/60°/90° Angle optional (Notice: wider angle is less distance)
To adapt to the temperature:-20 ° C to + 50 °
Optional Models:
| CLR-20-W12 | 20pcs White Light, DC12V | Distance: 40-50M (upon different angle) |
| CLR-20-W24 | 20pcs White Light, DC24V | Distance: 40-50M (upon different angle) |
| CLR-20-W220 | 20pcs White Light, AC220V | Distance: 40-50M (upon different angle) |
| CLR-20-R12 | 20pcs Red Light, DC12V | Distance: 40-50M (upon different angle) |
| CLR-20-R24 | 20pcs Red Light, DC24V | Distance: 40-50M (upon different angle) |
| CLR-20-R220 | 20pcs Red Light, AC220V | Distance: 40-50M (upon different angle) |
