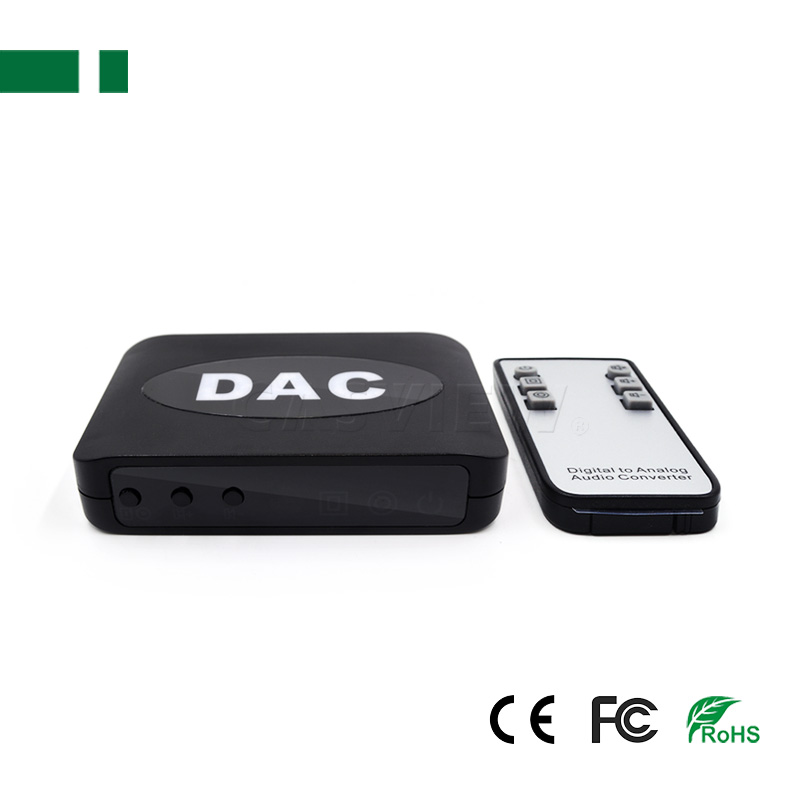

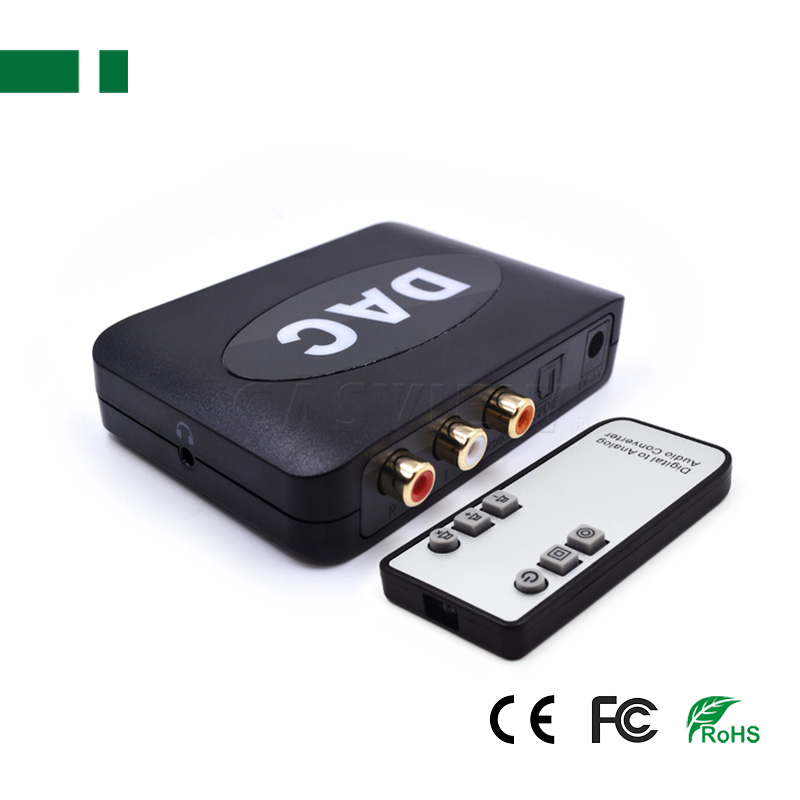

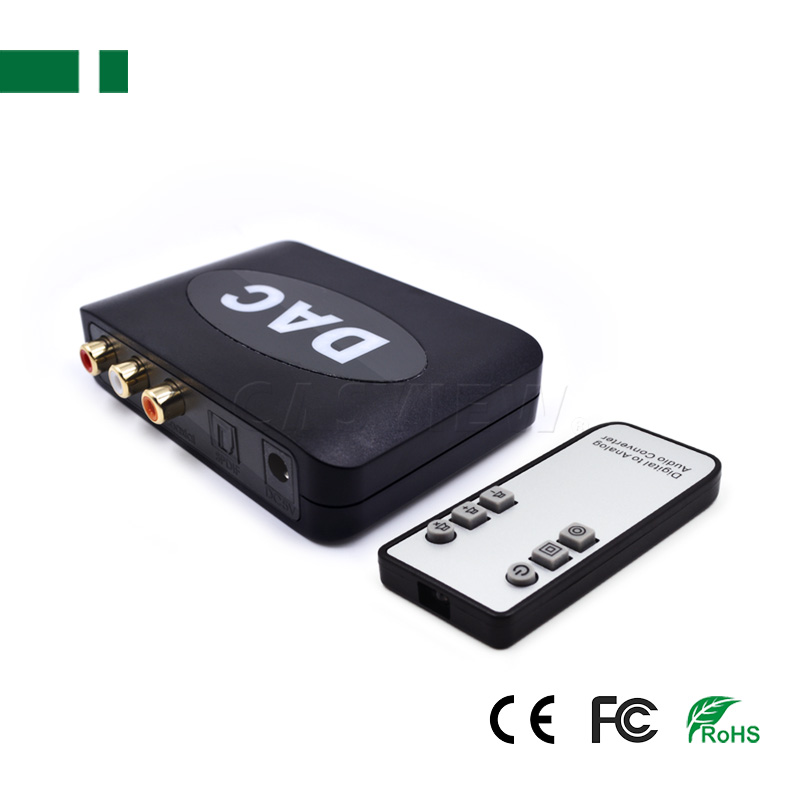

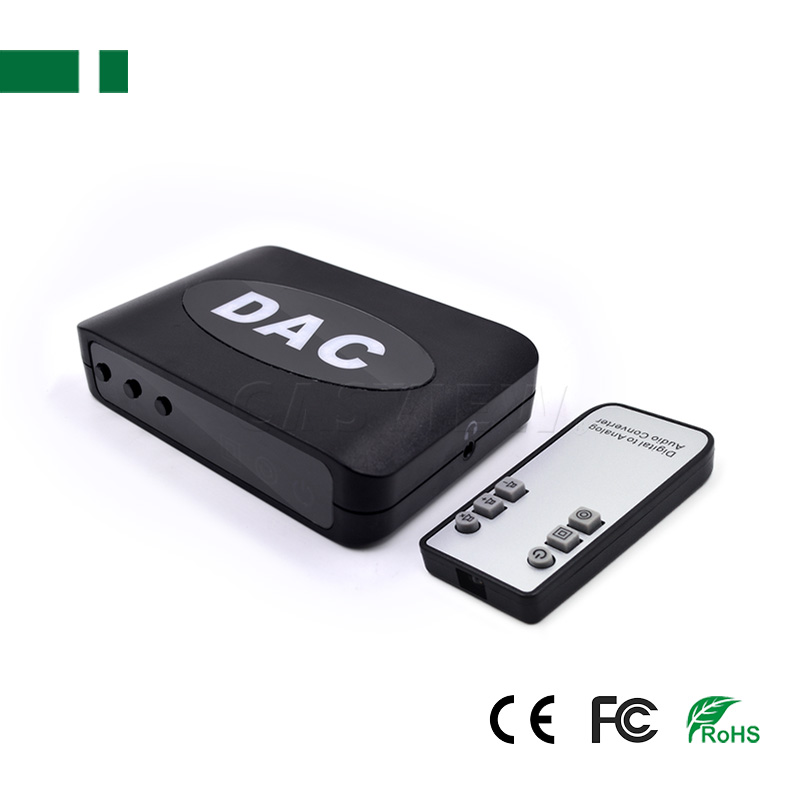

CVA-3033 Digital to Analog Audio Converter

Download for More Details

This digital to analog audio converter can convert optical or coaxial digital audio signals into stereo analog signals. Help users connect high quality digital audio signals to AV power amplifiers. The product is also equipped with remote control, flexible control of input channels, volume, mute, switch, etc. It is very suitable for home cinema, teaching, training structure, meeting room, home appliances store and other places.

Features：
1. Support an optical fiber and a coaxial interface input；
2. Built-in DAC chip, up to 192K/24bit sampling rate；
3. Supports 2*RCA and a 3.5mm audio output；
4. Support signal input switching；
5. Support Output Volume Control；
6. Supporting infrared remote control.
7. Size: 102.5*69.5*23mm, N.W.: 140g.

Specifications:
Audio Format ...............................................PCM/LPCM
Audio Sampling Rate ........................................32~192K
RCA Output Maximum Level …..........................1.2Vrms
3.5mm Audio Port Output Maximum Level ........…2Vrms
3.5mm Audio Port Output Maximum Power ..........30mW
Maximum operating voltage/current ……......…5V/50mA
Working environment temperature ….............-10~+55℃
Storage ambient temperature ….....................-26~+60℃
Humidity of working environment..................10~90%RH
Storage ambient humidity....……..............…...5~95%RH
Size.......………….................…..…...102.5x 69.5x 23mm
Weight………........................................……….…...140G
Shell material ……..…......................……..............
Plastic Color…………...……...............................................Black

Package Contents:：
Optical Cable......................................................…1PCS
USB Power Cable……...........................................1PCS
Remote...................................................................1PCS
User Manual……….............................................…1PCS
