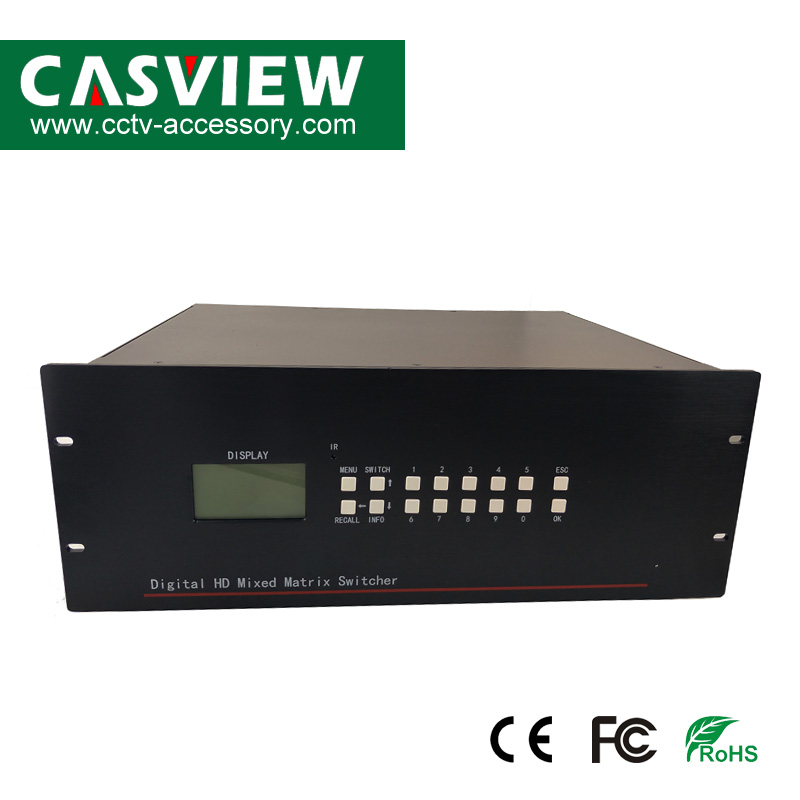

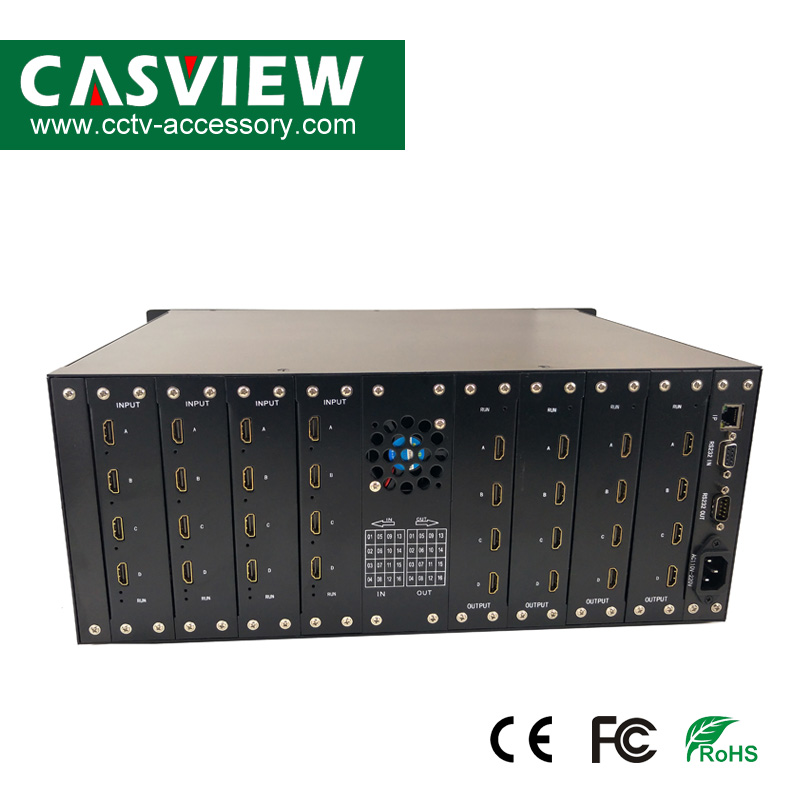

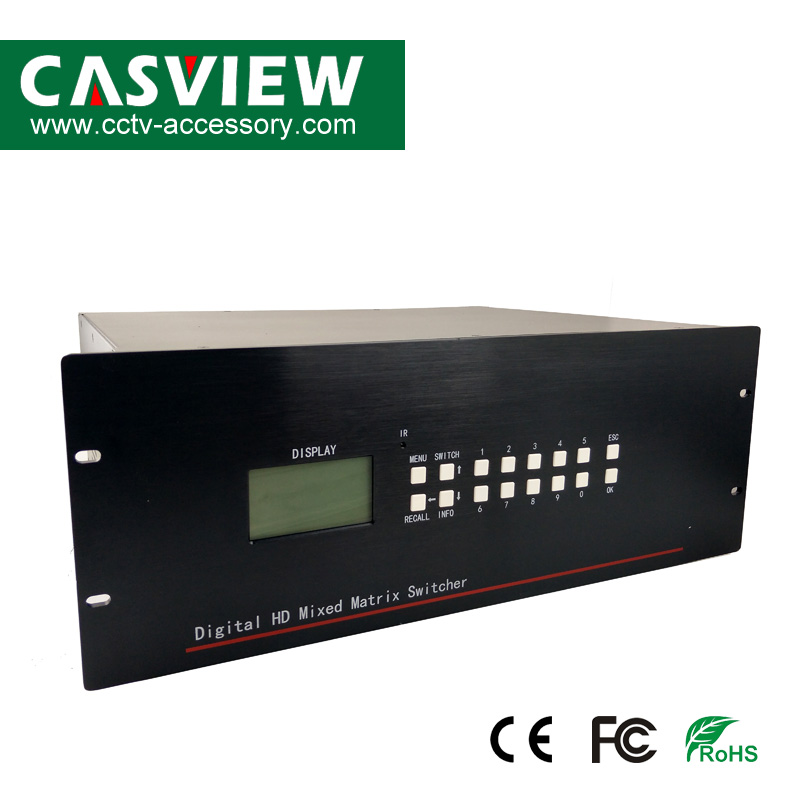

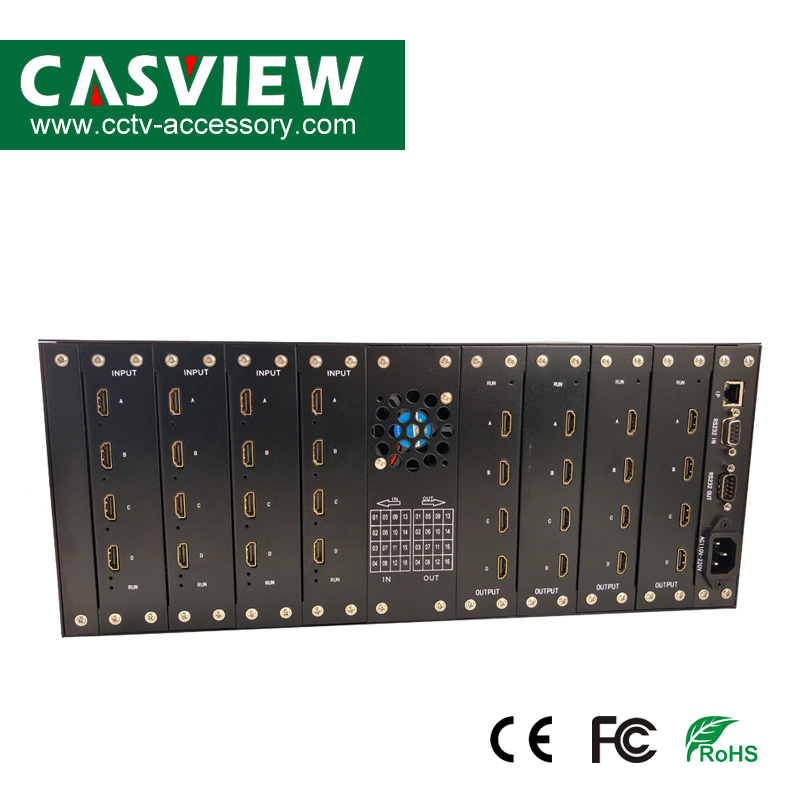

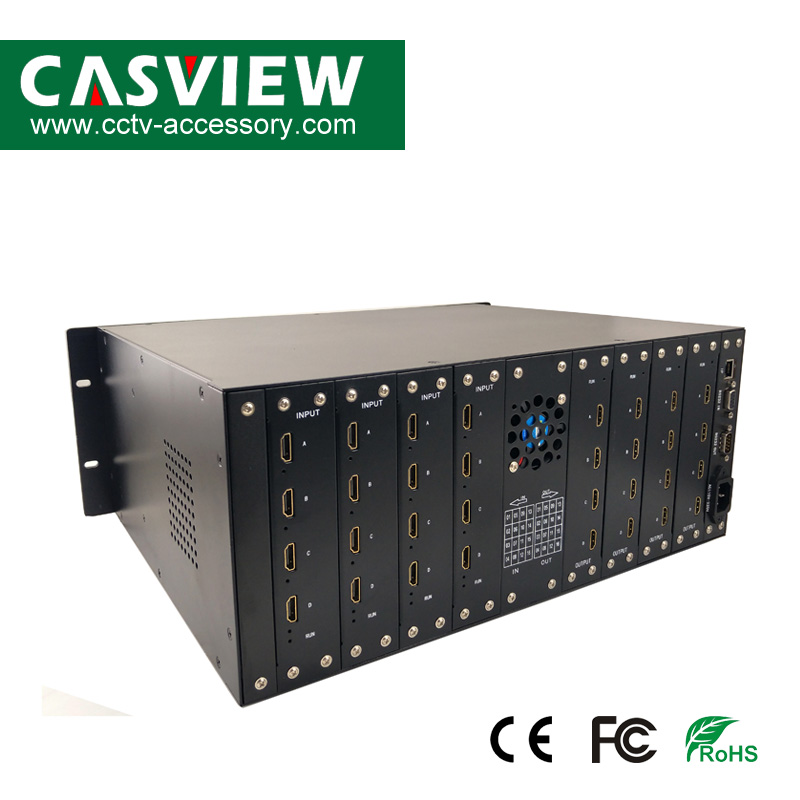

CHM-M1616-IP

Features:

1.Adopt Samsumg S3C2440 processor,faster and more stable
2.Adppt FPGA editable logic array circuit XC3S200A to make sure more stable performance
3.High-speed digital switching technology to avoid crosstalk, ghosting and smearing
4.Adopt USA 4.5GHz high bandwidth chip, the image is particularly clear
5.Support HDMI 1.4 and HDCP
6.Support signal timing reorganization,CEC,36-bit true color
7.Adopt Digital Synchronization Recognition Processing (DSIP) technology
8.Support seamless integration of CMMAW technology and CCSEB power management technology;
9.3D new blue matrix display
10.Built-in round-robin switching function, can set interval time and channel arbitrarily
11.Built-in 32groups of scene storage functions, can be directly operated on the panel
12.16CH HDMI audio and video signal input; 16CH HDMI audio and video signal output;
13.Support DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD Audio format
14.Input transmission distance up to 20m, output transmission distance up to 30m by using high quality HDMI 1.3 version cable
15.Dedicated port,can be directly connected to the wireless touch screen, plug and play;
16.Full-chip SMD process, featuring ESD static protection;
17.With infrared remote control and RS232 communication interface
18.Power-off field switching memory protection, video synchronization or separation switching
19.Universal wide voltage design, can adapt to AC 100~240V, 50/60Hz;
20.High quality, high volume production, high compatibility and stability, high cost performance
21.4U rackmount

Specifications
HDMI Video:
Port bandwidth:4.5GHz(-3Db)(Full load)
Gain:0dB
Pixel bandwidth:225 MHz
Bit rise time:0.6 NS (20%--80%)
Bit fall time:0.6 NS (20%--80%)
Support HDMI 1.4
Switching speed:200 ns(the longest time)
Maximum support resolution:Normal-PC:1600x1200@60_24bit, HDPC: 1920x1200P@ 60_24bit, HDTV:1920x1080P@60_36bit

HDMI Video Input/Output
Interface:HDMI Port (Type A 19-pin female)
Minimum/maximum level:0.5 V~1.0 Vp-p (No offset)
Digital video level :1.2 Vp-p
Resistance:100Ω
Return loss:-15dB @1MHz to 1.5GHz
Display data channel:5.0 Vp-p (TTL)
TDR Rise Time:75 PS
Clock recovery:automatic

Serial control interface: RS-232, 9-pin female D-type interface
Baud rate and protocol:Baud rate:9600, Data bit:8bit, Stop bit:1, No parity
Serial control port structure:2 = TX, 3 = RX, 5 = GND
KEYBOARD Control interface (optional):
Control interface: 4-pin Phoenix
How to use: Use with the extended keyboard
Control port structure:+5V=DC5V , + = DATA+, -=DATA- GND = Signal ground
with Lan port
Ethernet Control Protocol: TCP/IP
Ethernet control rate: adaptive 10M or 100M, full or half duplex
Power adapter format:100VAC~240VAC, 50/60 Hz
Operating Temperature range: -20°~ +70°C
Working humidity range:10% ~ 90%
