Video & Audio Extender
CHM-902 HDMI Extender over Powerline
- HDMI Extender over Powerline
- HDMI signal resolution supports 1080P@60Hz
- Transmission distance up to 300 meters
- RS232: Baud rate 38400bps
- Product description: The HDMI extender over power transmits the HDMI signal through the existing power cable. The wiring trouble can be completely solved without cabling.
Introduction
This creative product extend FULL HD HDMI signal up to 300 meters over Power Line.
It is only necessary to turn on one transmitter and multiple receivers within one electricity meter range, the HDMI signal can be automatically matched for transmission, the transmission distance can reach 300 meters. It is widely used in home theater, video conferencing, and video surveillance, high-media computer teaching systems, high-quality multimedia display and other fields.
Features
1. Extend FULL HD HDMI signal over 300 meters via power line or telephone line.
2. Powerful processing capability keep lower video latency < 200ms.
3. Adapt for all kinds of video transmission scenario.
4. Plug & play, need for install and cabling.
5. Industrial level quality insurances.
Specifications
Standard Power Input: 110V - 220V
Power Consumption: 5W
HDMI Port: HDMI A type Female
Link Connection: Power Line or Telephone Line
Transmission Distance: Up to 300 meters
Resolution Supported: 1080p@50Hz / 1080p@60Hz / 1080p@24Hz /1080p@25Hz /1080p@30Hz, 1080i@50Hz / 1080i@60Hz, 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz

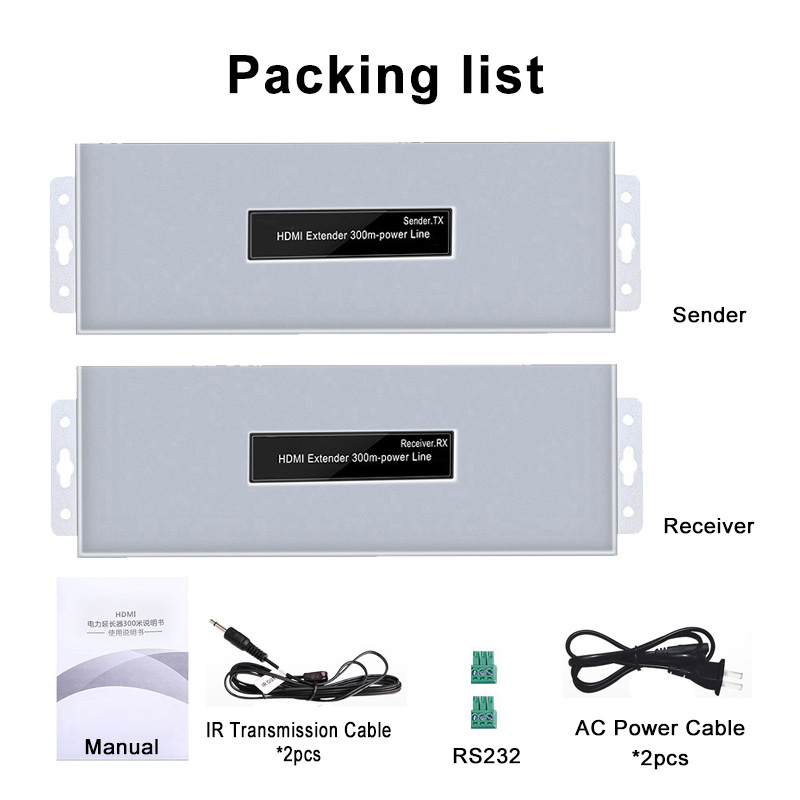

Package Contents: Sender *1pc, Receiver *1pc, Manual *1, AC power line *2pcs, IR transmission cable*2pcs, RS232 * 2pcs
Operating Temperature: -20°C - 70°C
Storage Temperature: -40°C - 80°C
Humidity: 20% ~ 90% RH(Non-condensing)
Weight: 1060g

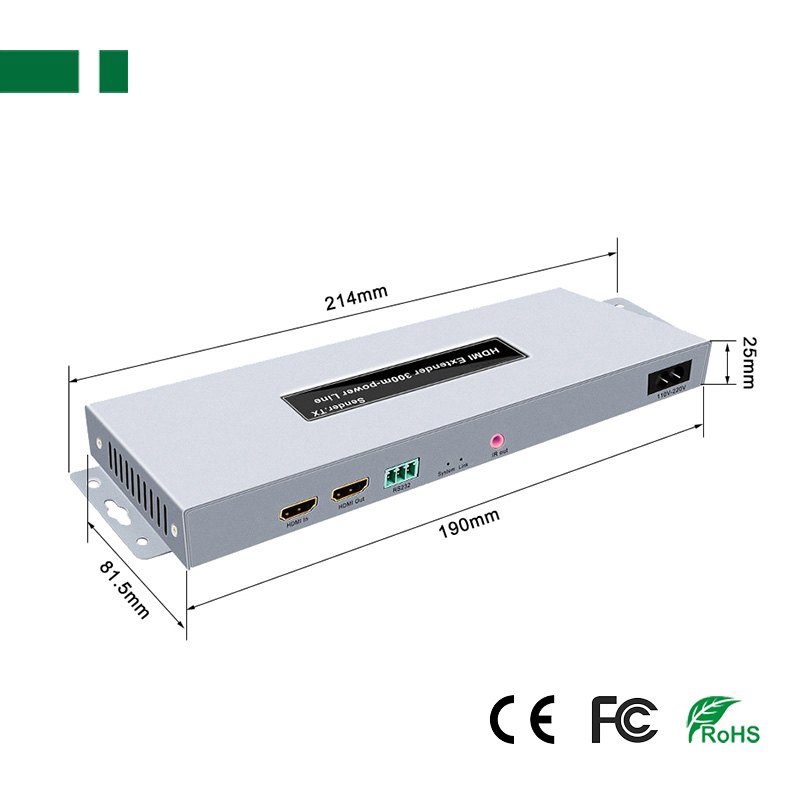

Size: 214*81.5*25mm
This creative product extend FULL HD HDMI signal up to 300 meters over Power Line.
It is only necessary to turn on one transmitter and multiple receivers within one electricity meter range, the HDMI signal can be automatically matched for transmission, the transmission distance can reach 300 meters. It is widely used in home theater, video conferencing, and video surveillance, high-media computer teaching systems, high-quality multimedia display and other fields.
Features
1. Extend FULL HD HDMI signal over 300 meters via power line or telephone line.
2. Powerful processing capability keep lower video latency < 200ms.
3. Adapt for all kinds of video transmission scenario.
4. Plug & play, need for install and cabling.
5. Industrial level quality insurances.
Specifications
Standard Power Input: 110V - 220V
Power Consumption: 5W
HDMI Port: HDMI A type Female
Link Connection: Power Line or Telephone Line
Transmission Distance: Up to 300 meters
Resolution Supported: 1080p@50Hz / 1080p@60Hz / 1080p@24Hz /1080p@25Hz /1080p@30Hz, 1080i@50Hz / 1080i@60Hz, 720p@50Hz / 720p@60Hz / 576i@50Hz / 480p@60Hz
Package Contents: Sender *1pc, Receiver *1pc, Manual *1, AC power line *2pcs, IR transmission cable*2pcs, RS232 * 2pcs
Operating Temperature: -20°C - 70°C
Storage Temperature: -40°C - 80°C
Humidity: 20% ~ 90% RH(Non-condensing)
Weight: 1060g
Size: 214*81.5*25mm
