Video & Audio Extender

CHM-104 40M 4K HDMI Extender

40M 4K*2K HDMI Extender;
Support HDMI 1.4b;
Support 3D, 4K*2K@30Hz;
Compliant with HDCP 1.4;
Product description: It regenerates the incoming HD signal by decoding and re-encoding it to a new standard HD signal, so it can extend the transimission range without degradation.
INQUIRY EMAIL

Introduce:
It regenerates the incoming HD signal by decoding and re-encoding it to a new standard HD signal, so it can extend the transimission range without degradation.
Extends 4096*2160P up to 40 meter transmission distance (Low resolution signal can be transimitted longer)

Features
1. 40M 4K*2K HDMI Extender;
2. Support HDMI 1.4b;
3. Support 3D, 4K*2K@30Hz;
4. Compliant with HDCP 1.4;
5. Operation frequency: up to 340MHz;
6. HD data rate: 3.4Gbps (Single link);
7. Input and output resolution:
HD:480I@60Hz, 576I@50Hz, 480P@60Hz, 1080P@60Hz, 1080P@50Hz, 1080I@50Hz, 1080P@30Hz, 1080P@25Hz, 1080P@24Hz, 2160P@30Hz;
8. No power plug and play easy to install;
9. Cable distance support: Over 40m with twisted-pair;

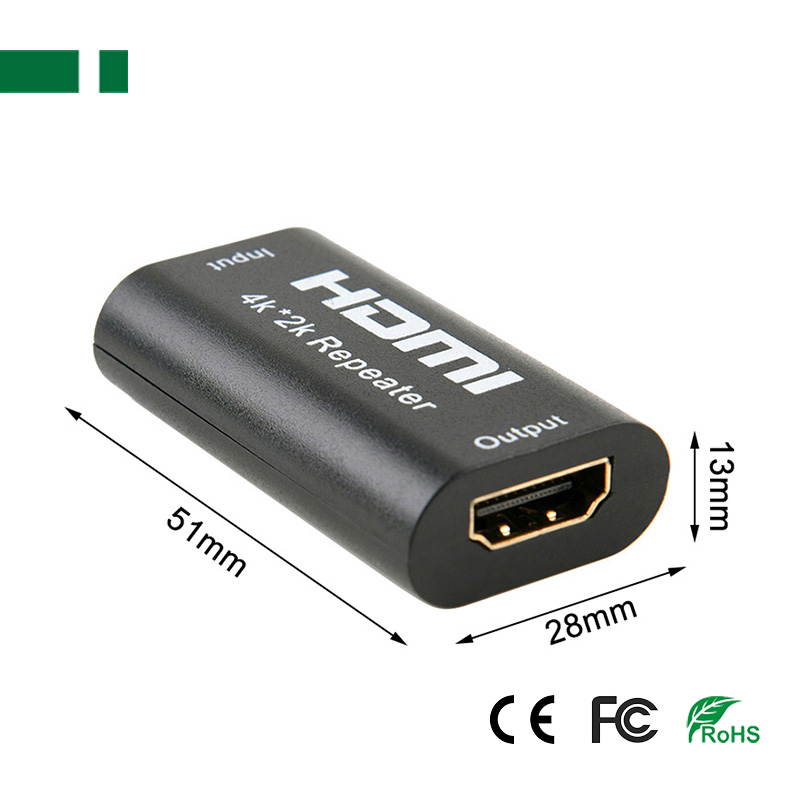

10. Dimensions: 28*13*51mm, 40G.
