Video & Audio Extender

  • CHM-2010
  • CHM-2010
  • CHM-2010
  • CHM-2010
  • CHM-2010


  • Product description: CASVIEW technology concentrating on switching power supply, power adapter, solar LED lights & cctv accessories etc. email:

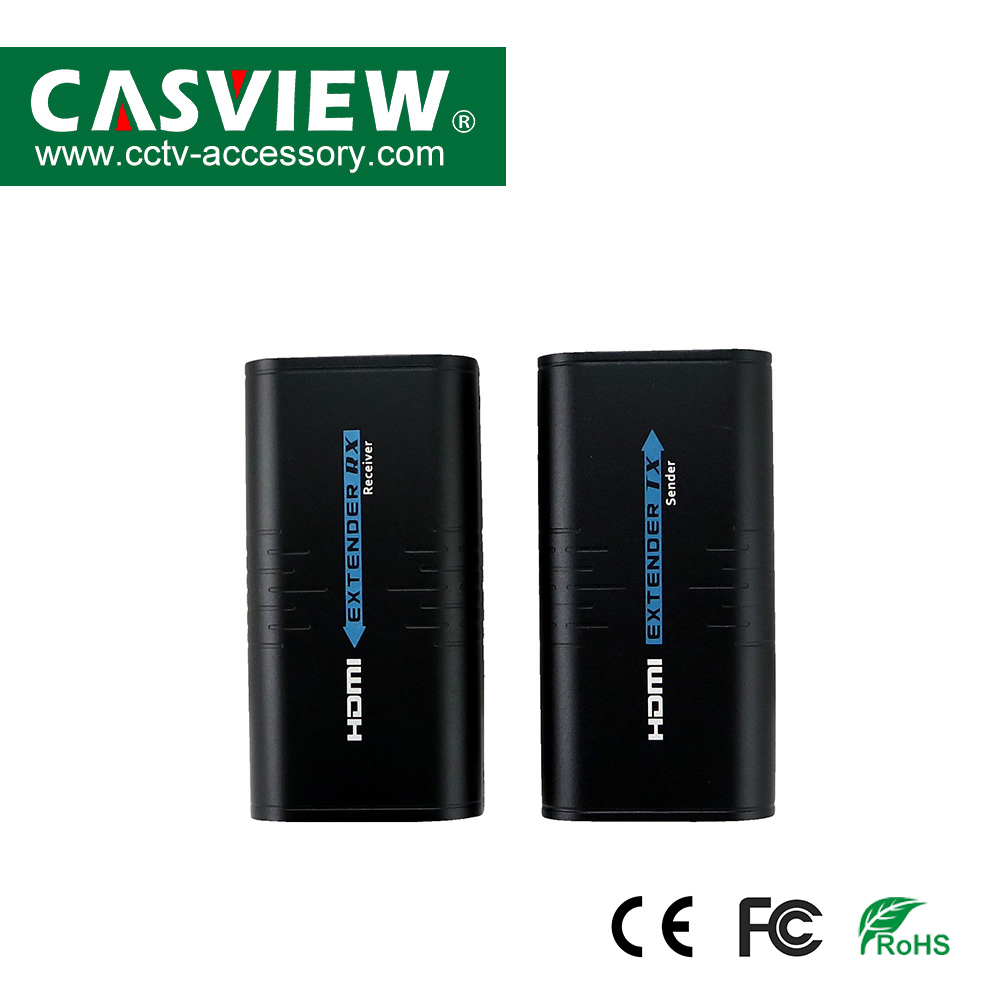

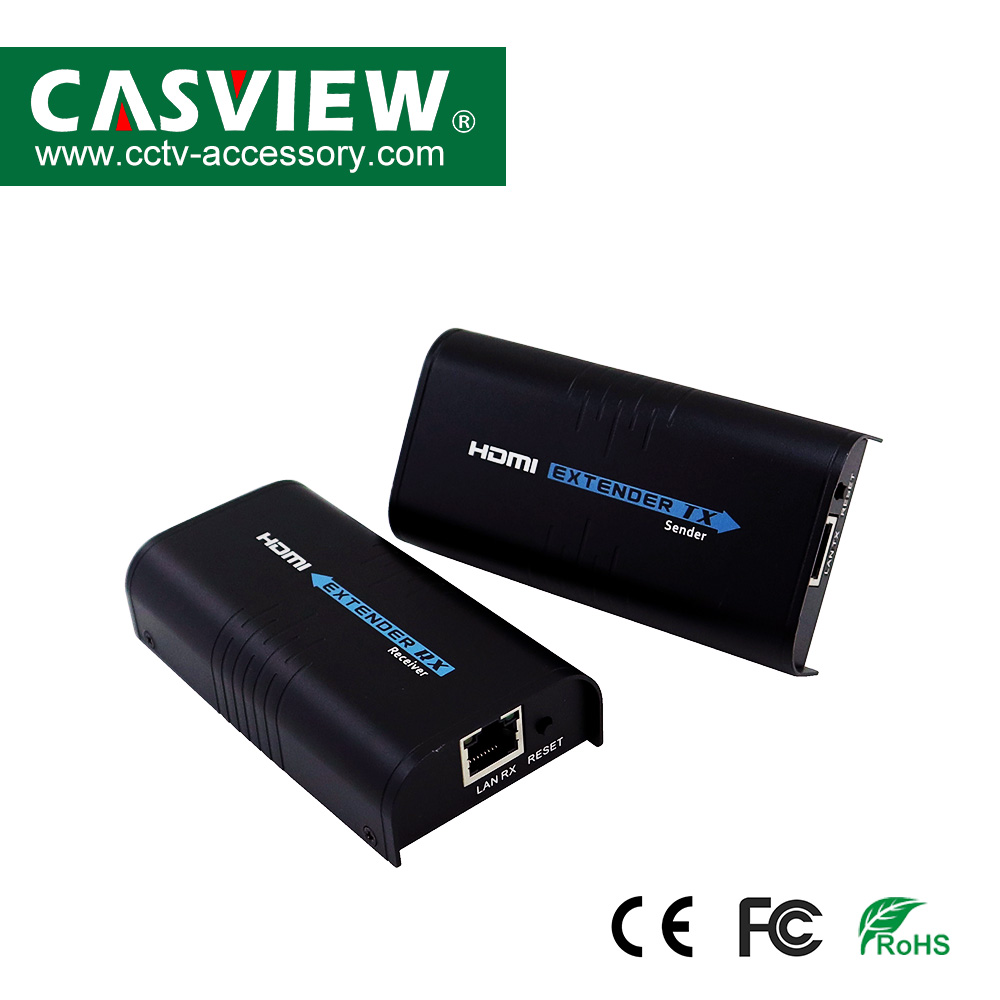

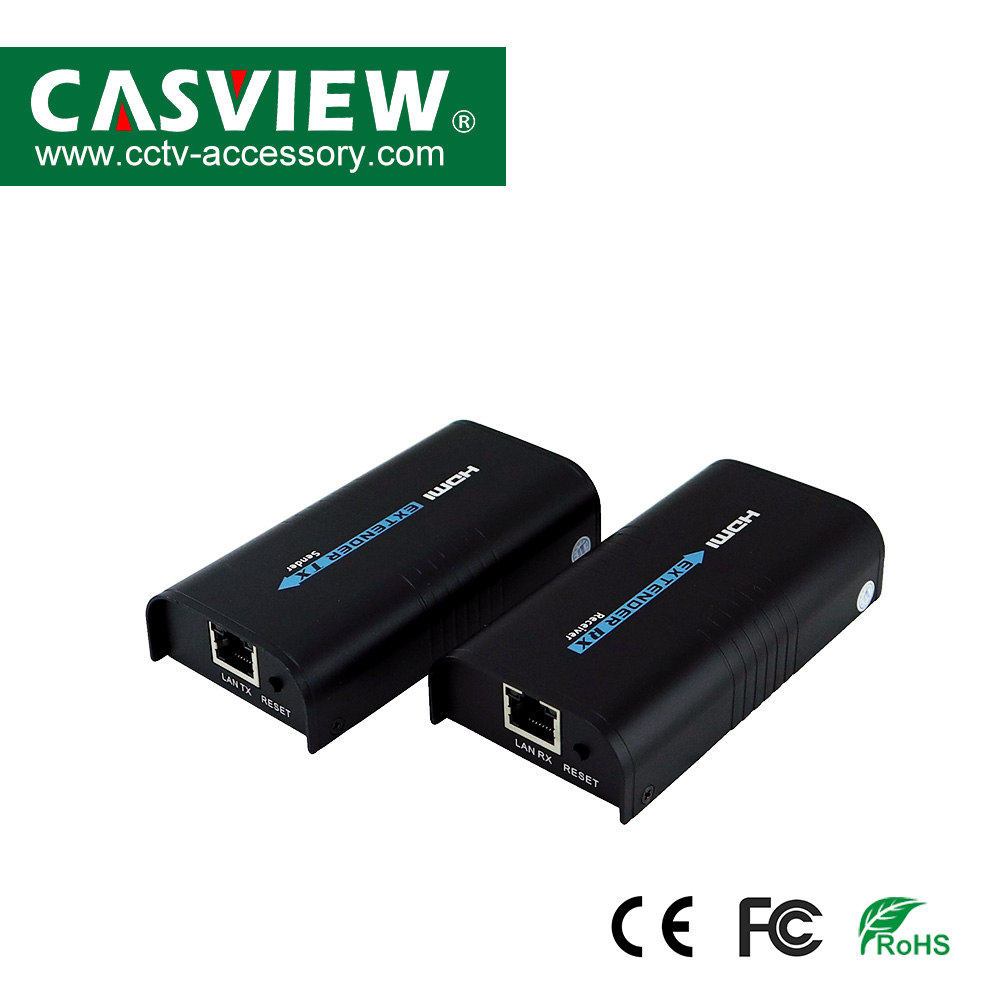

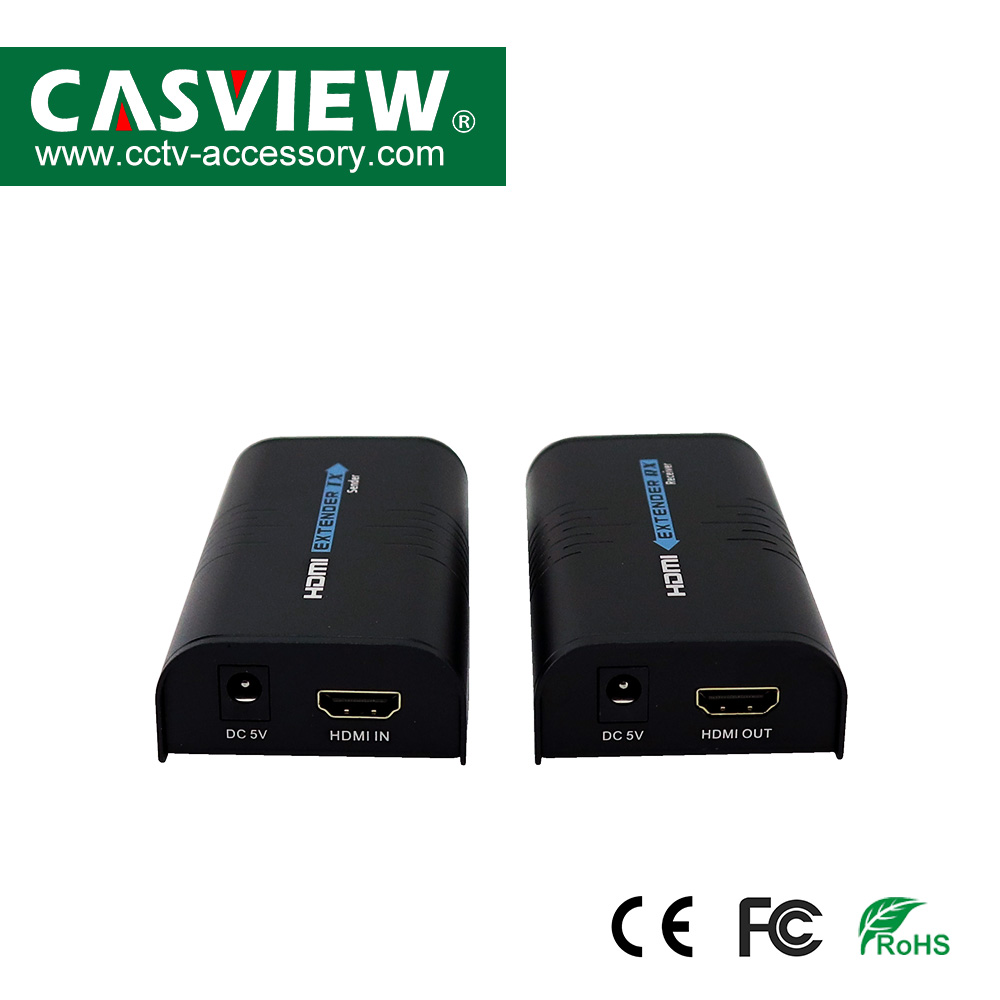

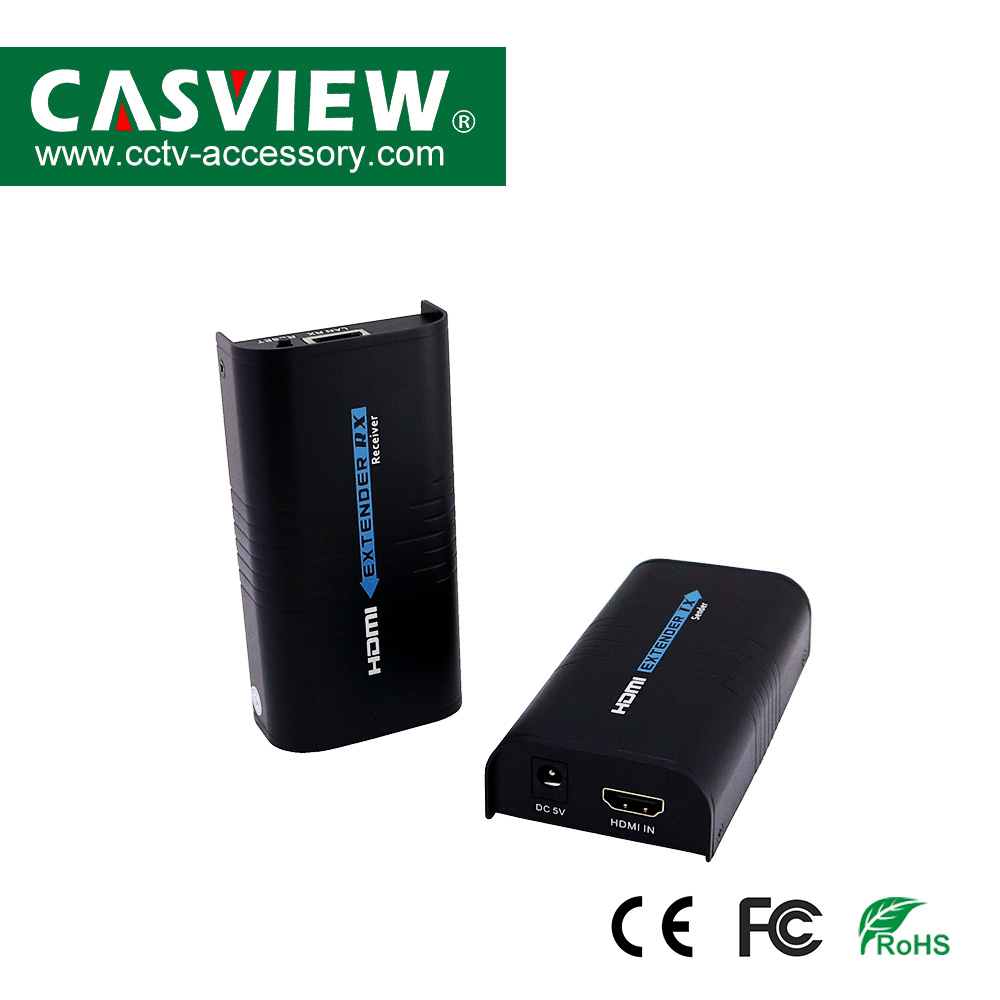

HDMI Extender (Sender+Receiver)

HDMI Ethernet Extender
Extends HDMI signal up to 120 meters for 1080p over CAT5e/6 cable
Supports TCP/IP extends HDMI signal unlimitedly over router or hub/switch
Follows the standard of IEEE-568B
Supports resolutions up to full HD1080p:480i60Hz480p60Hz576i50Hz576p50Hz720p50/60Hz1080i50/60Hz1080p50/60Hz
Supports ethernet bandwidth 100m
HDCP compliant
Extends by router connection or LAN connnection cable length requirments as
CAT5: Max.80meters between two devices
CAT5e: Max.100meters between two devices
CAT6:Max.120meters between two devices

This HDMI extender over cat5e/6 cable is designed to convert HDMI signal to standard TCP/IP and transimit by internet cable or Lan.With the advantage of TCP/IP standard,it can transmit HDMI signal source from HD STB,DVD,for PS3,HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipments

1 x HDMI Extender Sender
1 x HDMI Extender Receiver
2 x power supplier(US,EU,UK,AU)
1 x User manual
