CAP-409B

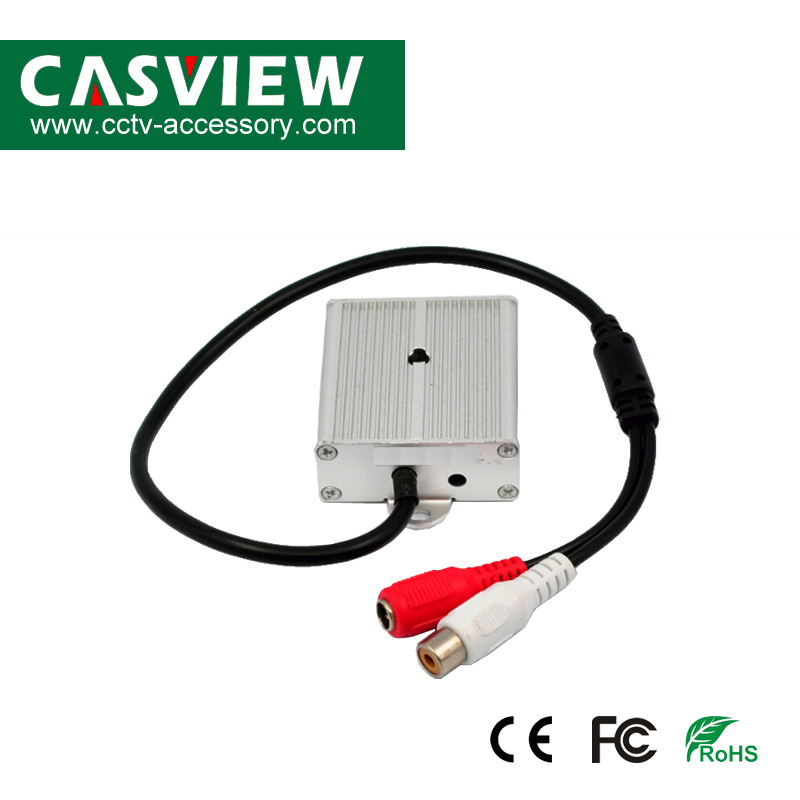

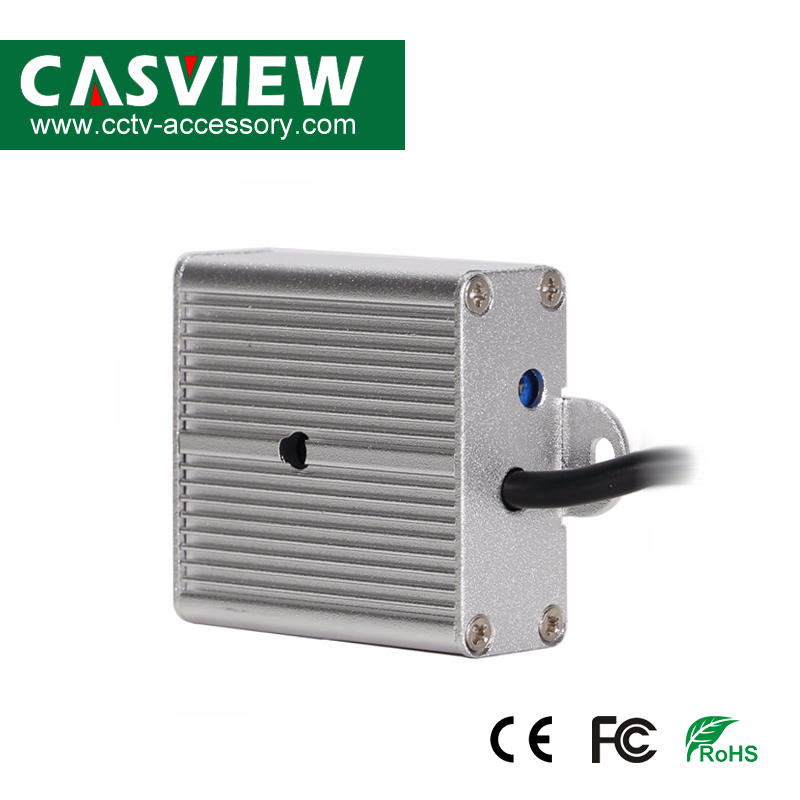

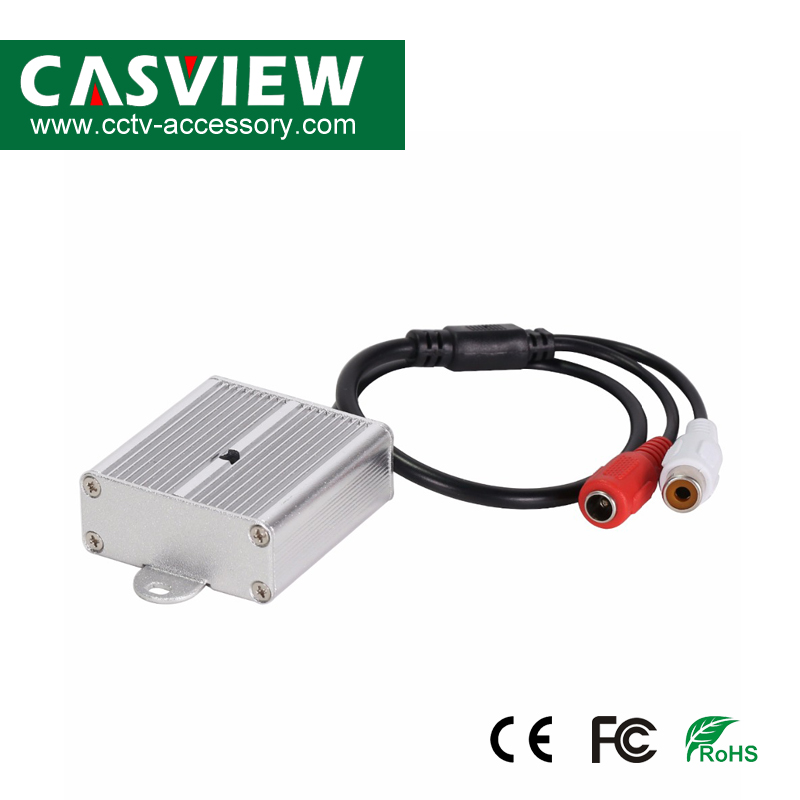

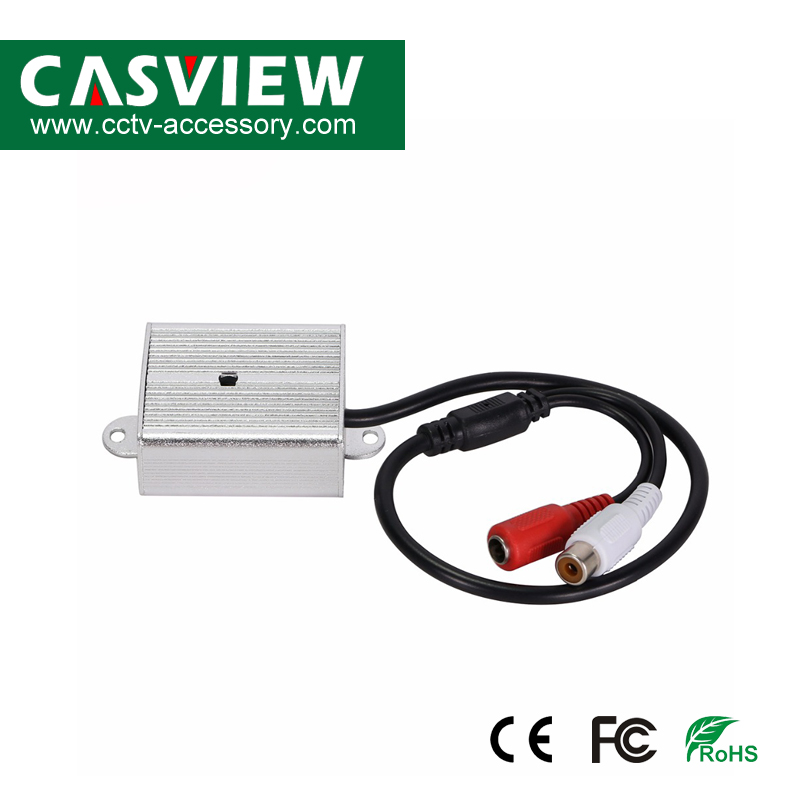

  • Mini High Sensitivity Hidden Audio Pickup
  • Audio Montor Range:30㎡ with better quality
  • DSP built-in noise reduction circuit
  • AGC circuit built-in gain
  • Product description: ◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
  • INQUIRY   EMAIL

Features:

1. Plug & Play
2. Extremely Sensitive
3. Great for Security Monitoring
4. Higher S/N Ratio
5. Range: 30 Square metres
6. Audio Output: RCA Female
7. Sensitivity : 200mA/ubar
8. Work current : 5 mA - 60mA
9. Work Voltage: 9 - 12V
10. Frequency: 200-6000HZ
11. Max output Voltage: 5V-upp


Specification:

Model

CAP-409B

Audio Monitoring Range

30m2

Connector Type

"+"Red power supply,"-" Black power supply, S+ White signal

Sensitivity

-47DB

Work Voltage

4-14V

Current Consumption

5mA-60mA

Frequency Range

100~~5kHz

Frequency Response

2.5dB

Max output Voltage

5VPP

Output Impedance

600Ω

Working Temperature

-10°C to +70°C

Size

6*14mm

Monitoring of: 10 m2 100m2 Signal transmission line With a core line with the best shield
