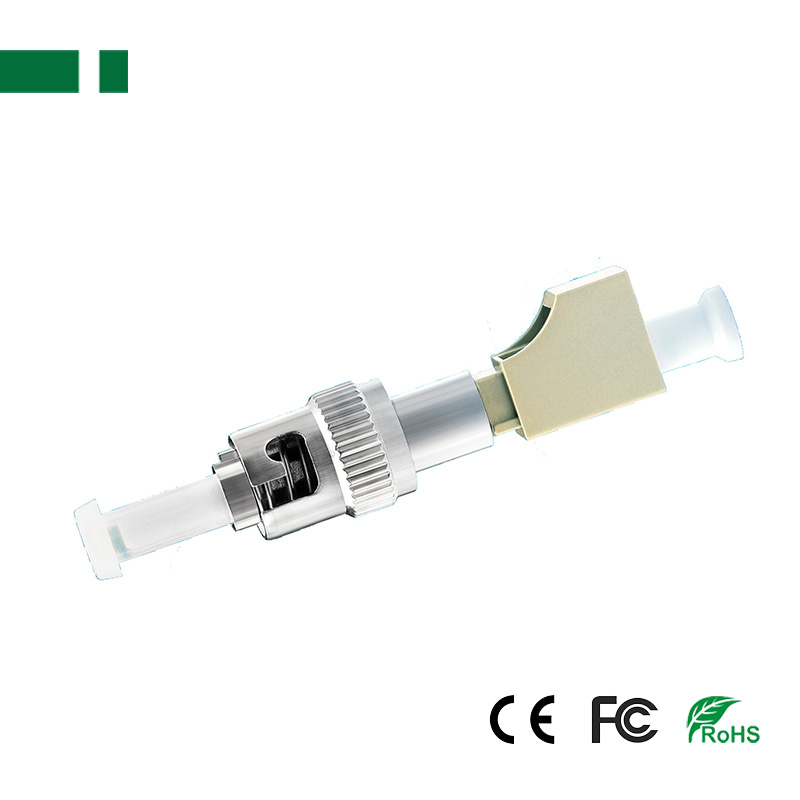

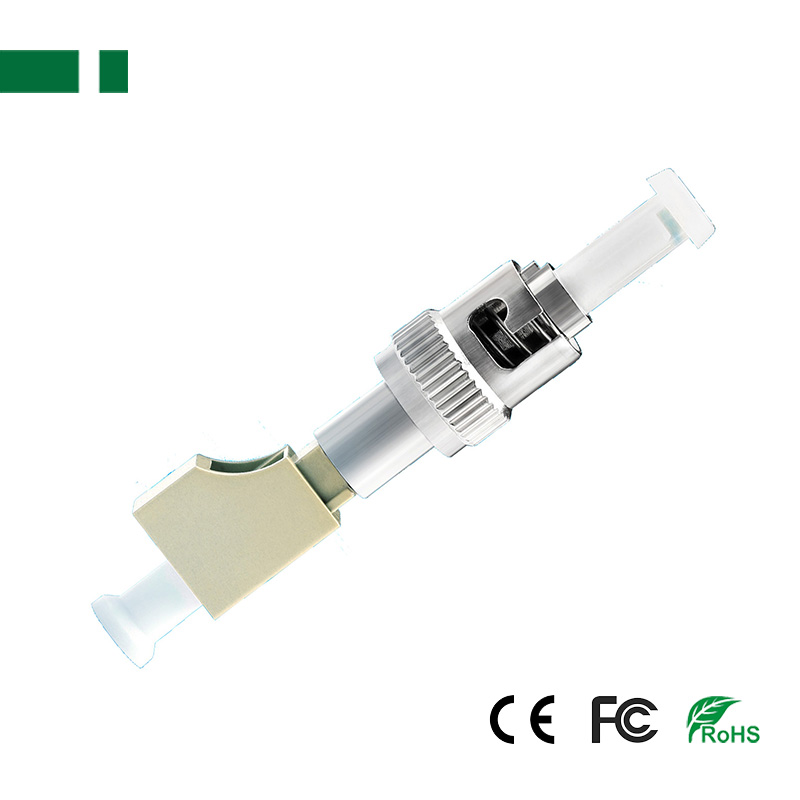

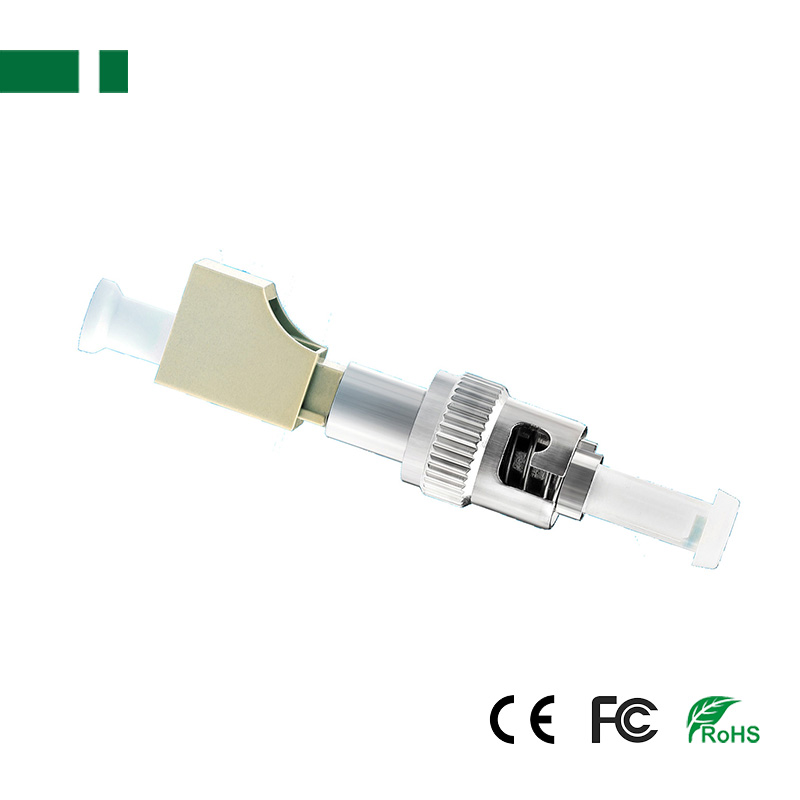

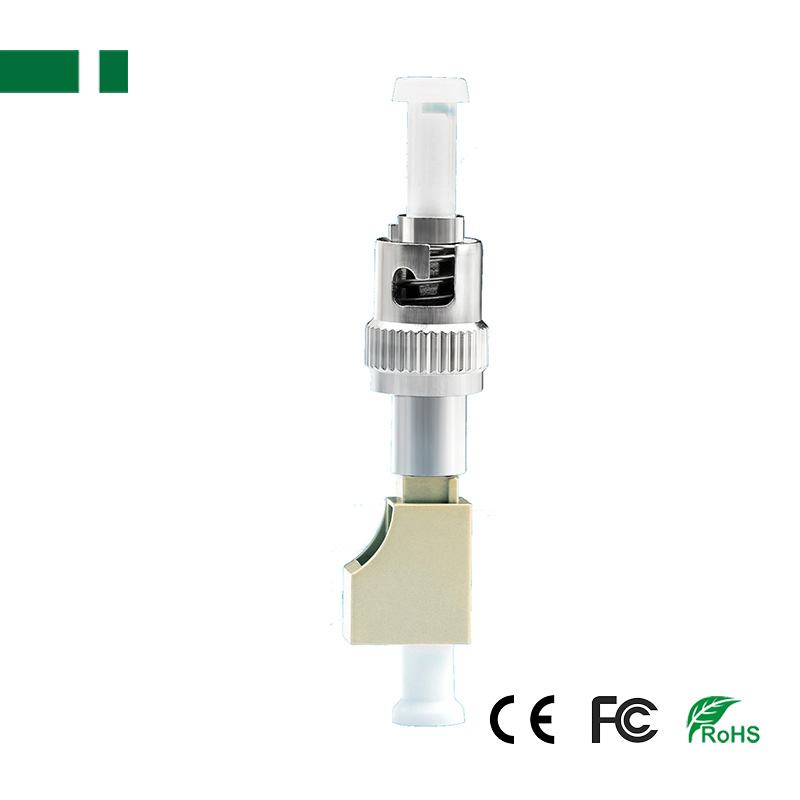

ST Male to LC Female hybrid adapter
Multi-mode 62.5/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
ST Male to LC Female Fiber Optic UPC Multi-mode 62.5/125 Adapter
Description:
ST Male to LC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts ST connector to LC connector, Variable ST interface conversion LC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
Specification:
| ITEM | ST UPC to LC UPC Connector Fiber Optic Adapter | ||
| Model | CFC05-STUM-LCUF-M1 | CFC05-STUM-LCUF-M2 | CFC05-STUM-LCUF-S |
| Connector A | ST Male UPC | ||
| Connector B | LC Female UPC | ||
| Mode | Multi-mode 62.5/125 | Multi-mode 50/125 | Single-mode 9/125 |

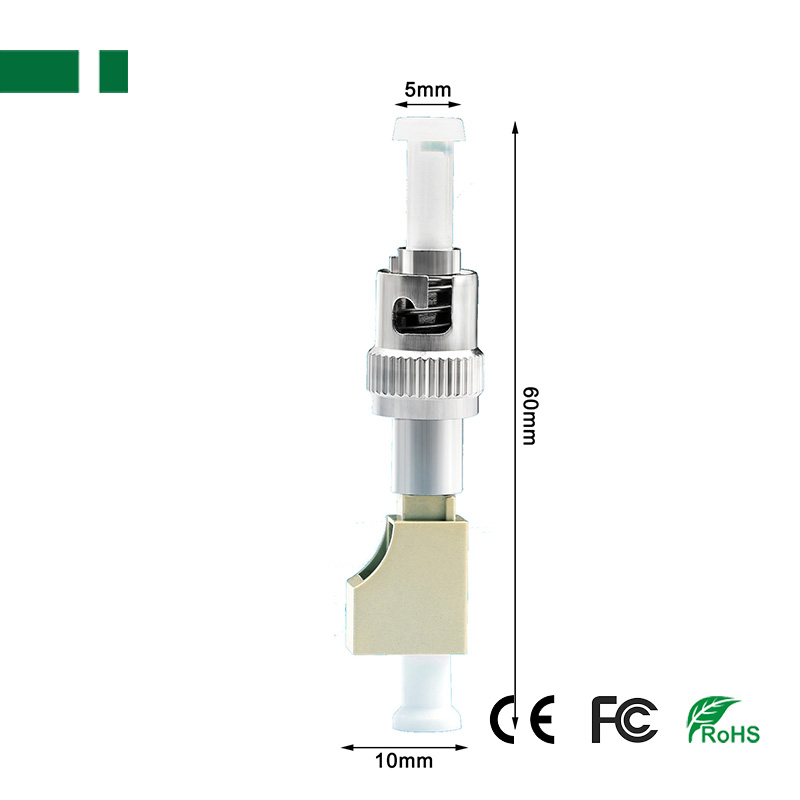

| Dimension | 60*10mm | ||
| Net Weight | 5.7g | ||
| Housing | Metal, Ceramic | ||
| Insert Loss | 1310nm<0.3dB, 1550nm<0.3dB | ||
| Return Loss | 1310nm≥50dB, 1550nm≥50dB | ||
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strength | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
