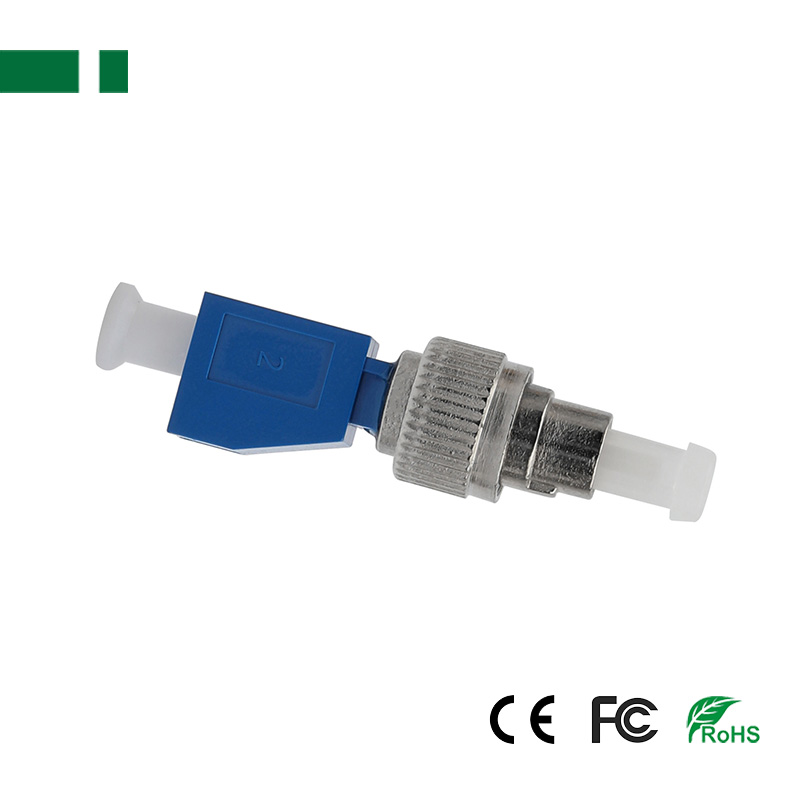

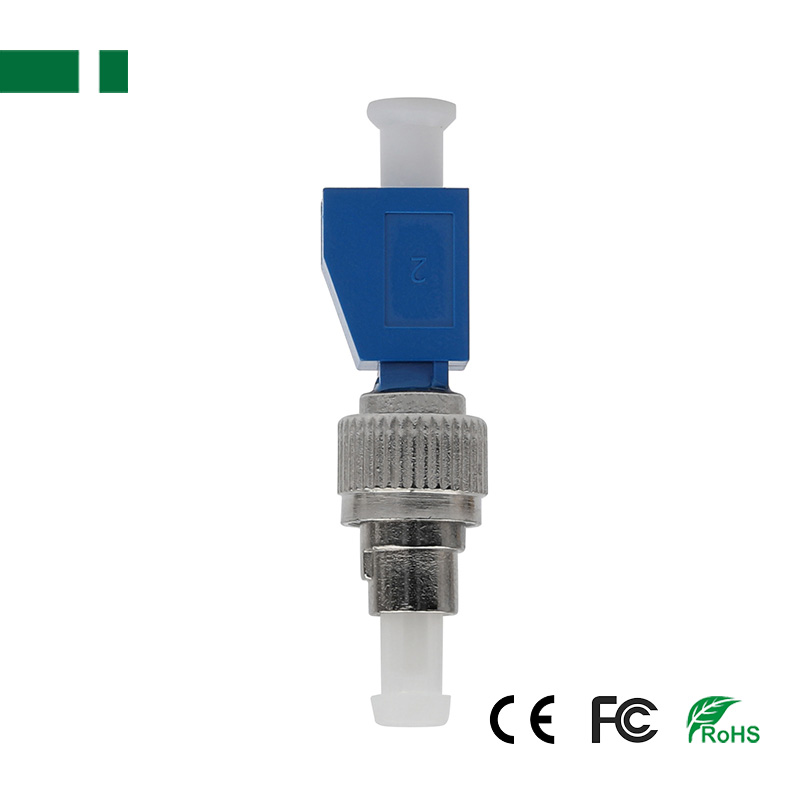

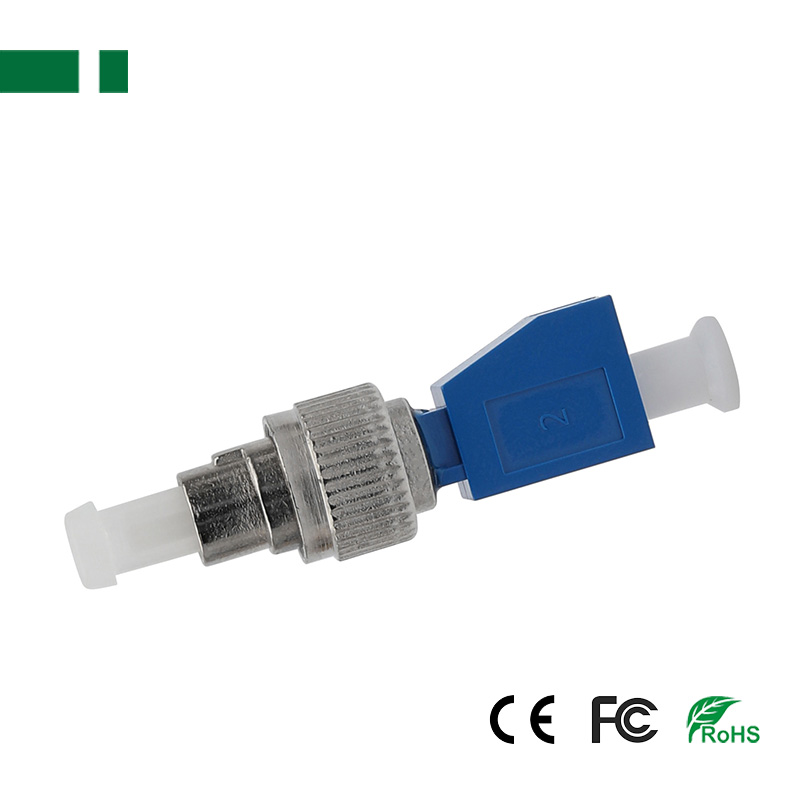

FC/UPC Male to LC/UPC Female Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
FC/UPC Male to LC/UPC Female Fiber Optic Single-mode 9/125 Adapter Specification:
Description:
The FC Male to LC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts FC connector to LC connector, Variable FC interface conversion LC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

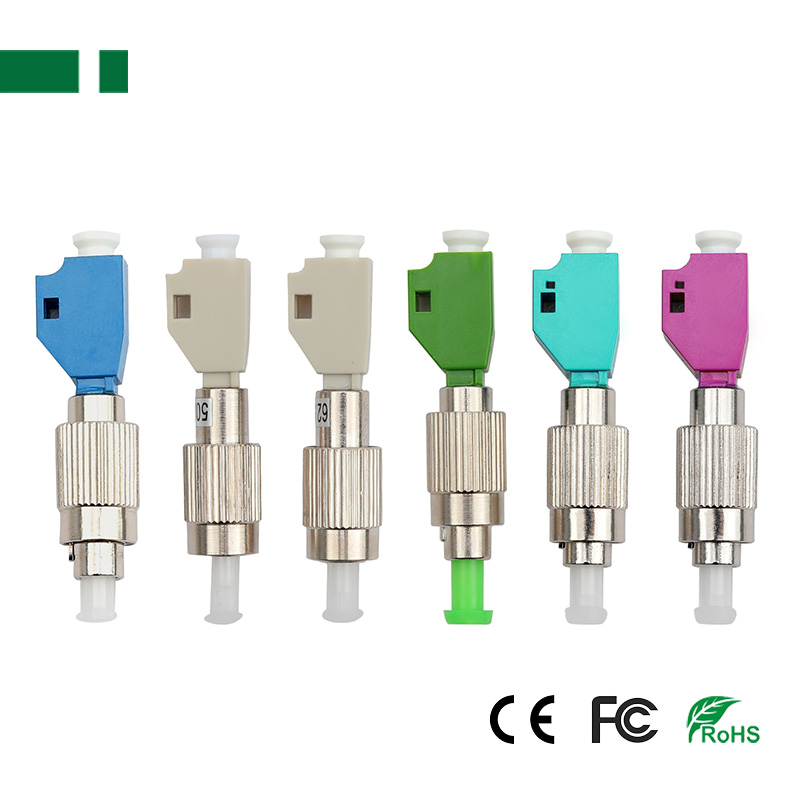

UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter
Model
Connector A
Connector B
Mode

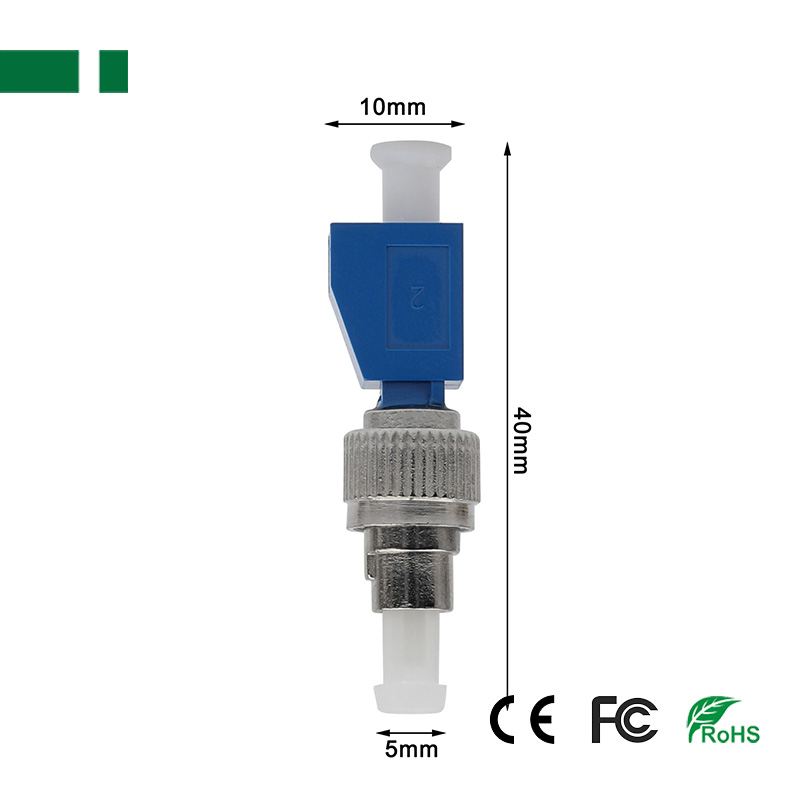

Dimension
N. W.
CFC04-FCAM-LCAF-S
FC Male APC
LC Female APC
Single-mode 9/125
10*48mm
7.7g
CFC04-FCAM-LCUF-S
LC Female UPC
7.5
CFC04-FCUM-LCAF-S
FC Male UPC
LC Female APC
7.4
CFC04-FCUM-LCUF-1S
FC Male UPC
LC Female UPC
Single-mode 9/125
7.3g
CFC04-FCUM-LCUF-2S
10*40mm
3.9g
CFC04-FCUM-LCUF-M1
OM1-62.5/125
10*48mm
7.7g
CFC04-FCUM-LCUF-M2
OM2-50/125
8.1g
CFC04-FCUM-LCUF-OM3
OM3-50/125
7.5
CFC04-FCUM-LCUF-OM4
OM4-50/125
7.8
