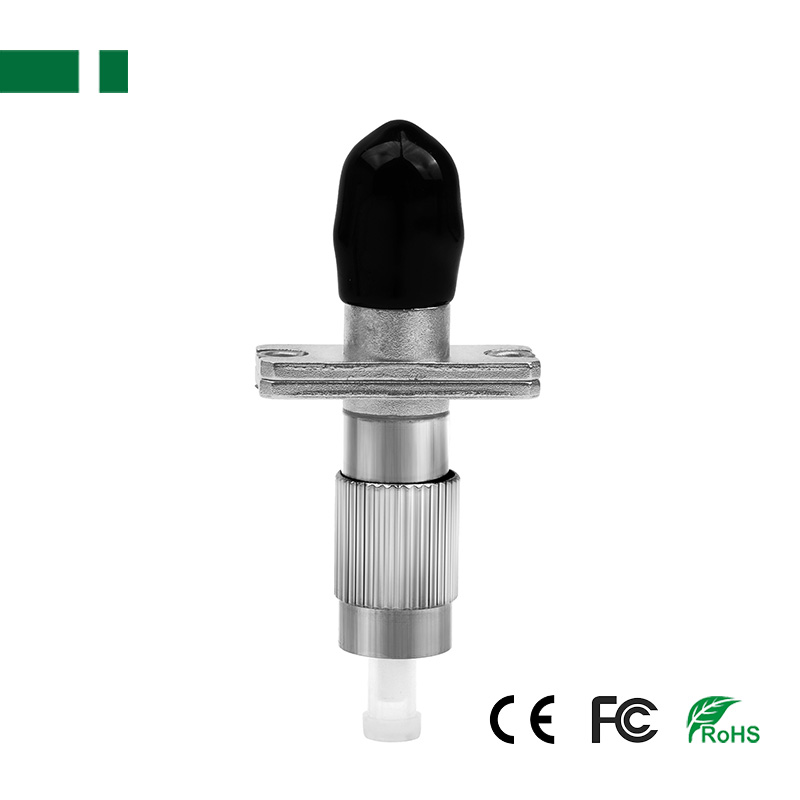

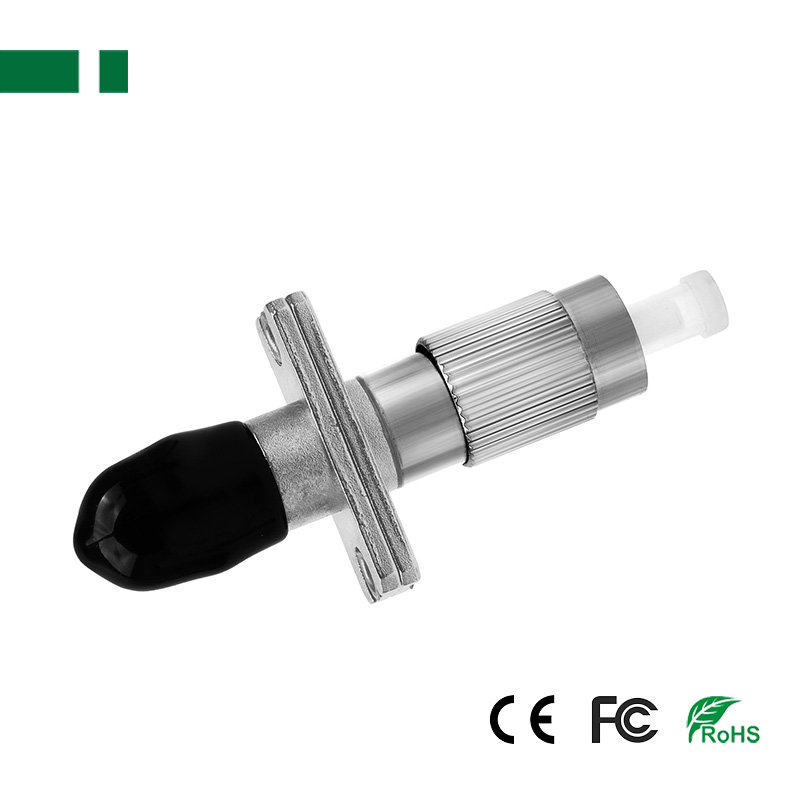

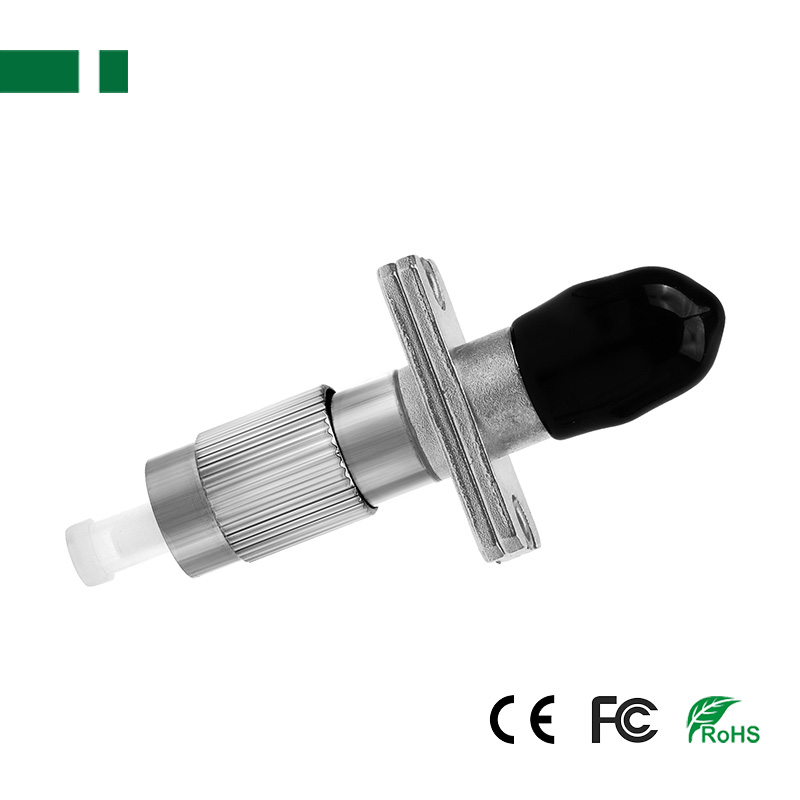

ITEM | UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter | ||

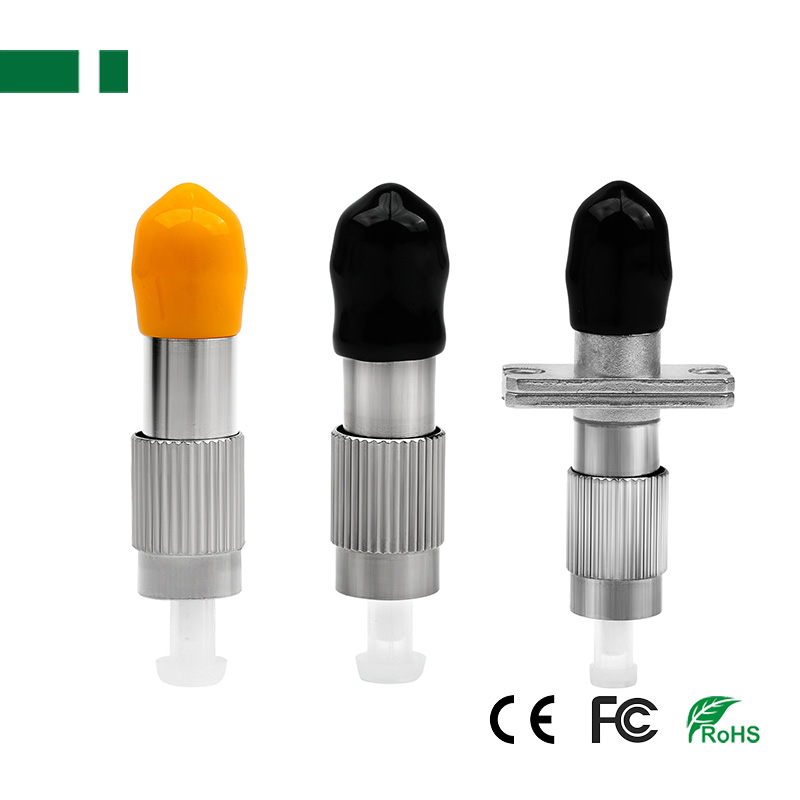

Model | CFC03-FCUM-STUF-1M | CFC03-FCUM-STUF-2M | CFC03-FCUM-STUF-S |
Connector A | FC Male UPC | ||
Connector B | ST Female UPC | ||
Mode | Multi-mode 62.5/125 | Multi-mode 62.5/125 | Single-mode 9/125 |

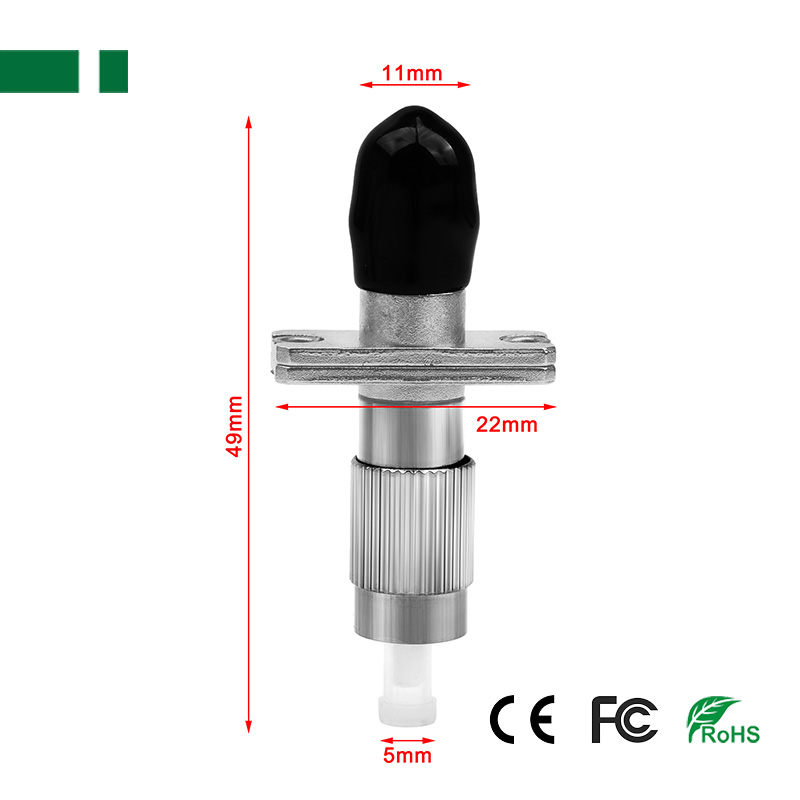

Dimension | 42*11*6mm | 49*11*5mm | 43*11*6mm |
Net Weight | 10g | ||
Housing | Metal, Ceramic | ||
Insert Loss | 1310nm<0.3dB, 1550nm<0.3dB | ||
Return Loss | 1310nm≥50dB, 1550nm≥50dB | ||
Interchangeability | ≤0.2dB | ||
Repeatability | ≤0.1dB | ||
Durability | ≤0.2dB (1000 times mating) | ||
Tensile Strength | > 10kg | ||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
