CFC02-LCUM-FCUF-M2 LC Male to FC Female Fiber Optic UPC Multi-Mode 62.5/125 Adapter

  • LC Male to FC Female
  • Multi-mode 62.5/125
  • Housing: Metal, Ceramic
  • Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
  • Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
  • INQUIRY   EMAIL

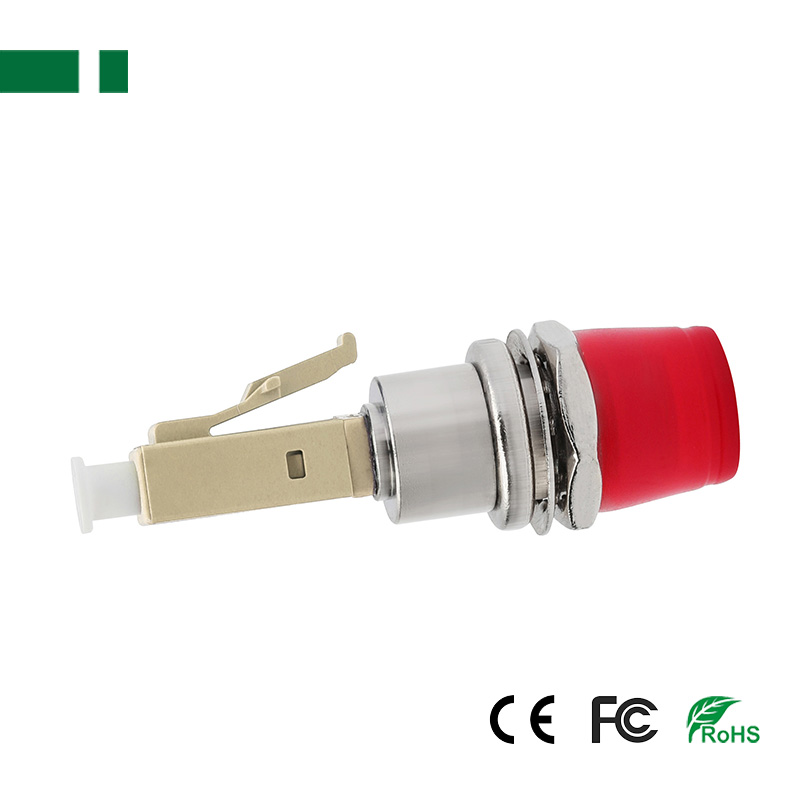

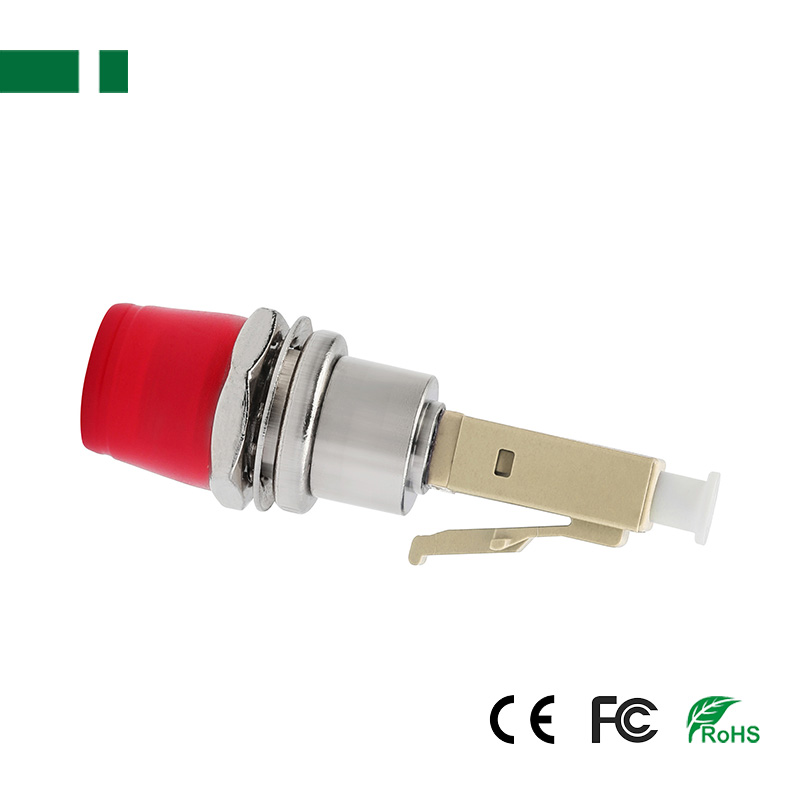

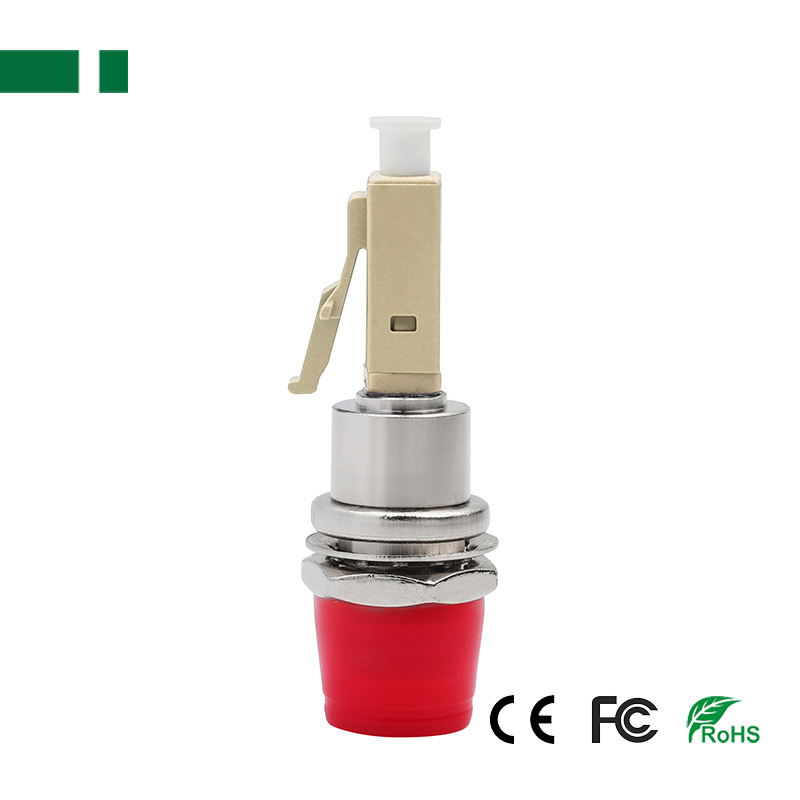

LC Male to FC Female Fiber Optic UPC Multi-Mode 62.5/125 Adapter

Description:
The LC Male to FC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts LC connector to FC connector, Variable LC interface conversion FC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

ITEM UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter
Model CFC02-LCUM-FCUF-M1 CFC02-LCUM-FCUF-M2 CFC02-LCUM-FCUF-S CFC02-LCUM-STUF-M1 CFC02-LCUM-STUF-M2 CFC02-LCUM-STUF-S CFC02-STUM-FCUF-S
Connector A LC Male UPC LC Male UPC LC Male UPC ST Male UPC
Connector B FC Female UPC ST Female UPC ST Female UPC FC Female UPC
Mode Multi-mode 50/125 Multi-mode 62.5/125 Single-mode 9/125 Multi-mode 50/125 Multi-mode 62.5/125 Single-mode 9/125

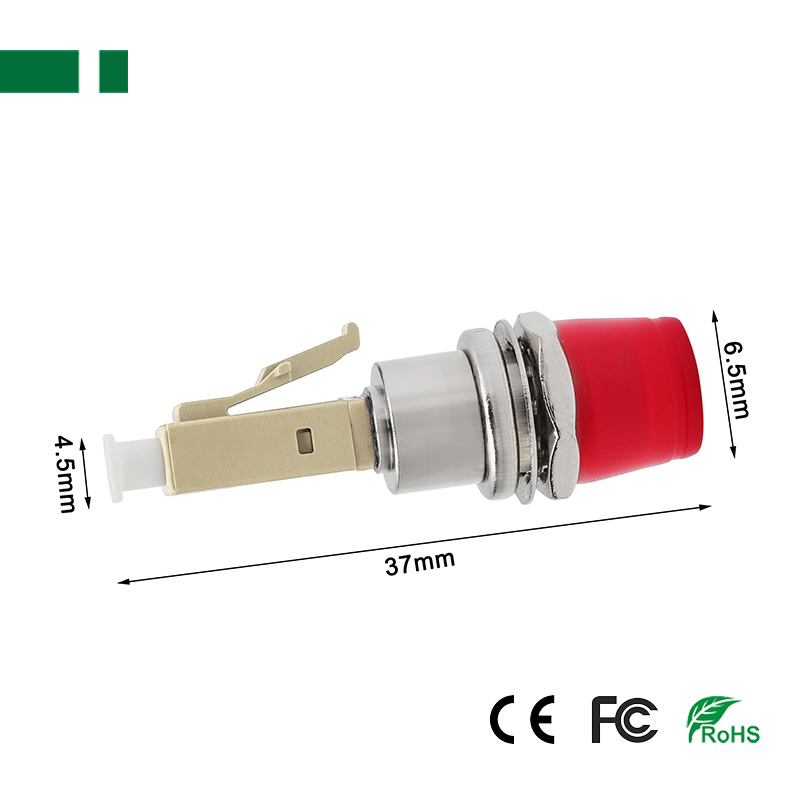

Dimension 37*6.5*4.5mm 44*9*4.5mm 44*9*4.5mm 49*9.5*5mm
Net Weight 7.5g 8.6g 8.6g 11.5g
Housing Metal, Ceramic
Insert Loss 1310nm<0.3dB, 1550nm<0.3dB
Return Loss 1310nm50dB, 1550nm50dB.
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity 0.2dB (+25+65 93 R.H.100 hours)
