1 Port 100Mbps Industrial Ethernet switch
Support 1* 10/100Mbps SC Port
Support IEEE 802.3, IEEE 802.3u, IEEE802.3x
DC12V-55V Dual Power input
The Industrial Ethernet switch can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation etc..
Description:
The Industrial Ethernet Switch can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries, is a eco-friendly low power industrial Ethernet switch.
Features:

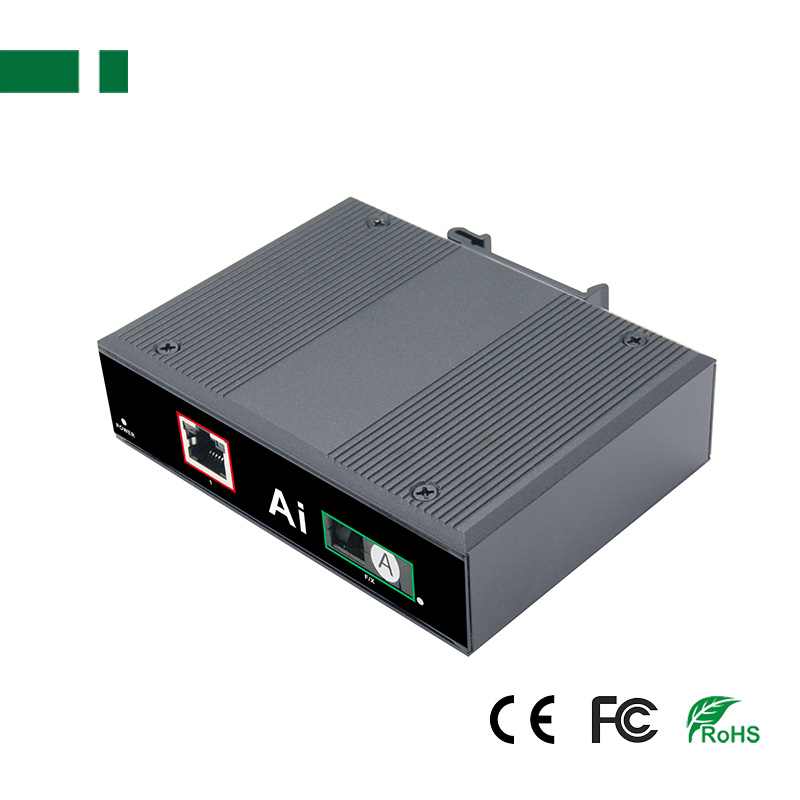

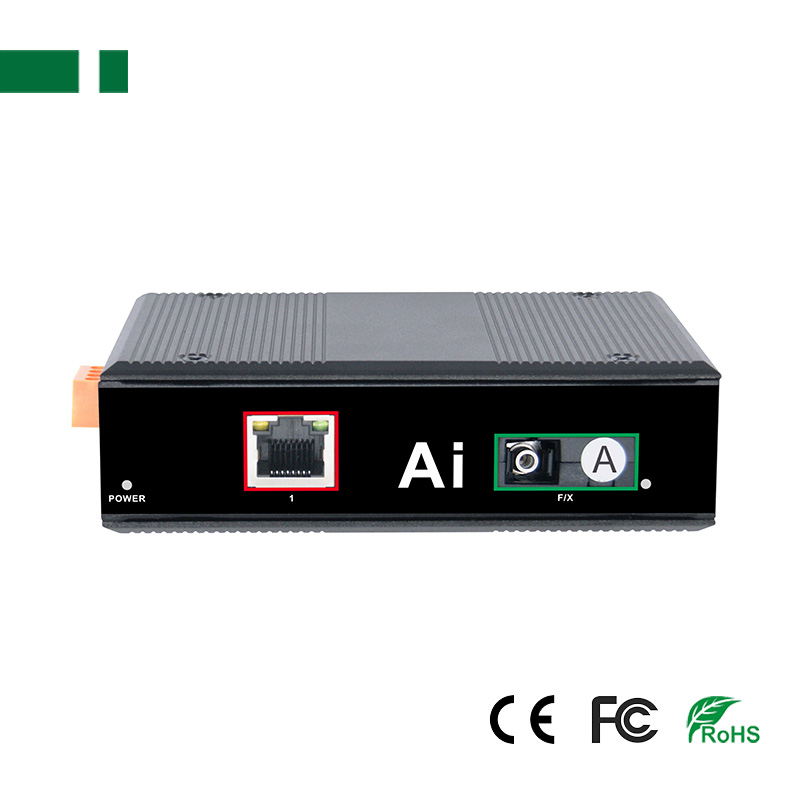

1. Support 1*10/100Mbps Ethernet port and 1* 10/100Mbps SC port;
2. The Transmission Distance:0-100 Meter;
3. Ethernet port supports 10/100Mbps self-adaptation;
4. Support IEEE 802.3, IEEE 802.3u, IEEE802.3x Standard;
5. Support ring network and network storm protection;
6. Support the AI watchdog

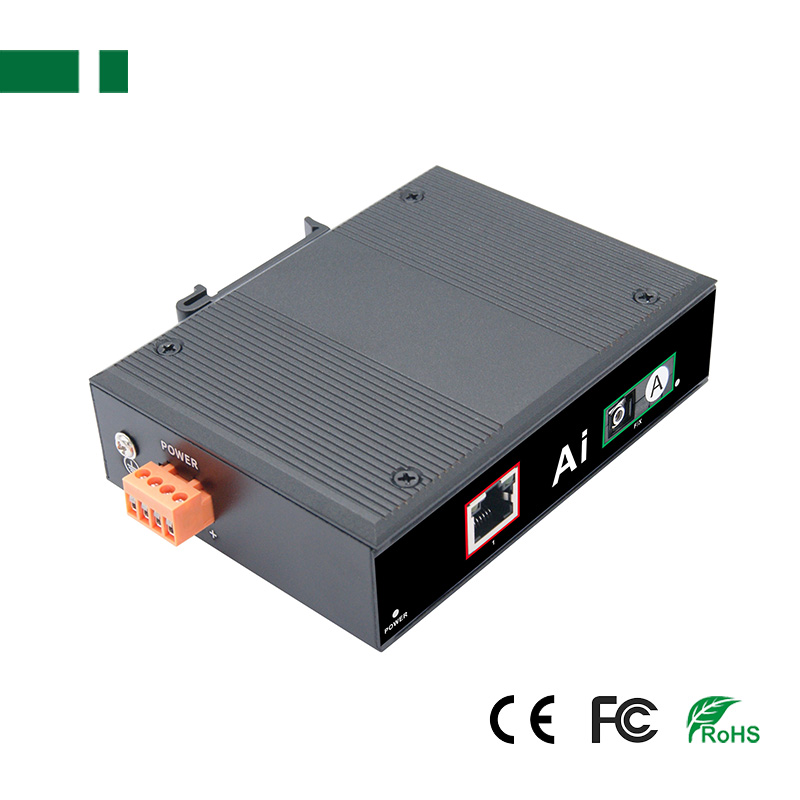

7. DC12V-55V Dual Power input.
8. Surge Protection: General 6KV, Differential 2KV; ESD 15KV(Air), 8KV (Contact);

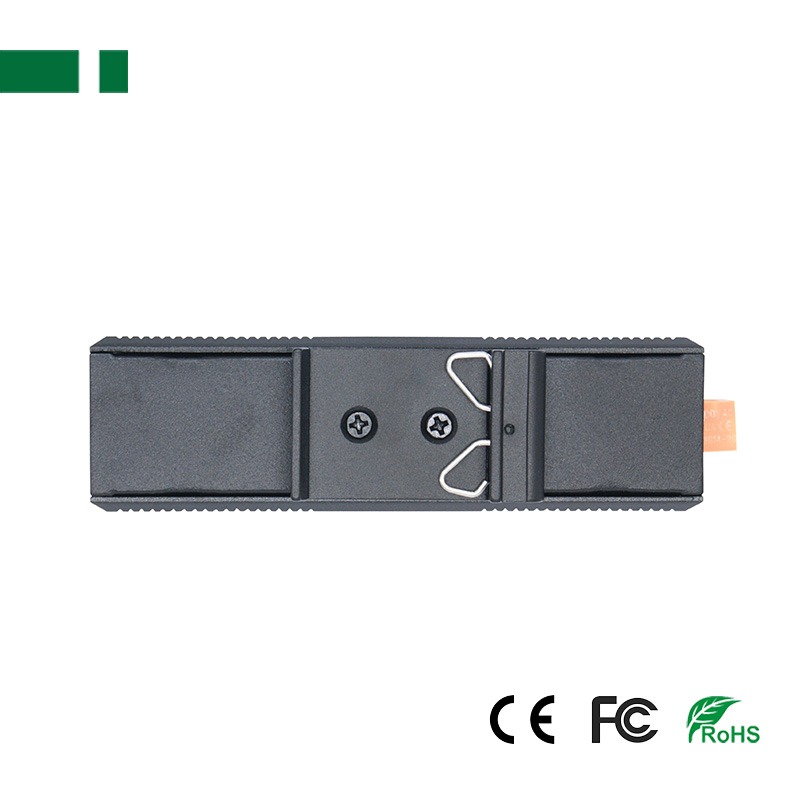

9. High strength iron shell, DIN35 Rail installation
Specification:
| Model | CES-0101SC | CES-G0101SC | CES-G0101E | |
| Network Ports | POE Ethernet Port | N/A | ||
| Ethernet Port | 1*10/100Mbps RJ45 | 1*10/100/1000Mbps RJ45 | 1*10/100/1000Mbps RJ45 | |
| Uplink Port | N/A | |||
| SFP Port | N/A | N/A | 1* 10/100/1000Mbps SFP | |
| SC Port | 1* 10/100Mbps SC, 20KM | 1* 10/100/1000Mbps SC, 3KM | N/A | |
| Standard | Network Protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3x (Flow Control) | ||
| POE Protocol | N/A | |||
| POE Feature | N/A | |||
| Forwarding Mode | Store-and-Forward | |||
| Bandwidth | 1.0Gbps | 10Gbps | 10Gbps | |
| MTBF | 100,000 hours | |||
| General | Power Input | DC12V-55V Dual Power input | ||

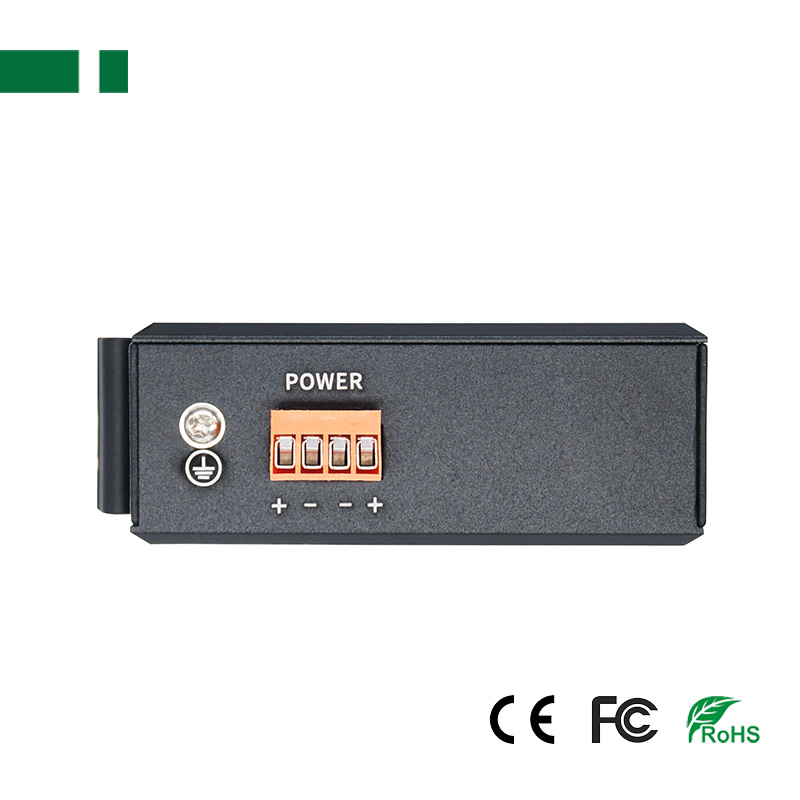

| Type of input | 4-Pin Industrial Terminal (Block V1+, V1-, V2+, V2-) | |||
| Network Medium | Cat5E/ 6/ 7/ 8 standardNetwork Cable | |||
| Data Pin | 1/2: +; 3/6: - | 1/2/4/5: +; 3/6/7/8: - | 1/2/4/5: +; 3/6/7/8: - | |
| Power Pin | N/A | |||
| Transmission Distance | 0-100M | |||
| ESD | Air discharge: 15KV, Contact discharge: 8KV | |||
| Anti-Thunder Level | Common mode: 6KV, Differential mode: 2KV | |||
| Industrial Standard | EMI: FCC Part 15 CISPR (EN55032)class A, EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) | |||
| Humidity | Working: 10%~90%，Storage: 5%~90%，non-condensing | |||
| Temperature | Working: -40~80°C, Storage: -40~85°C | |||

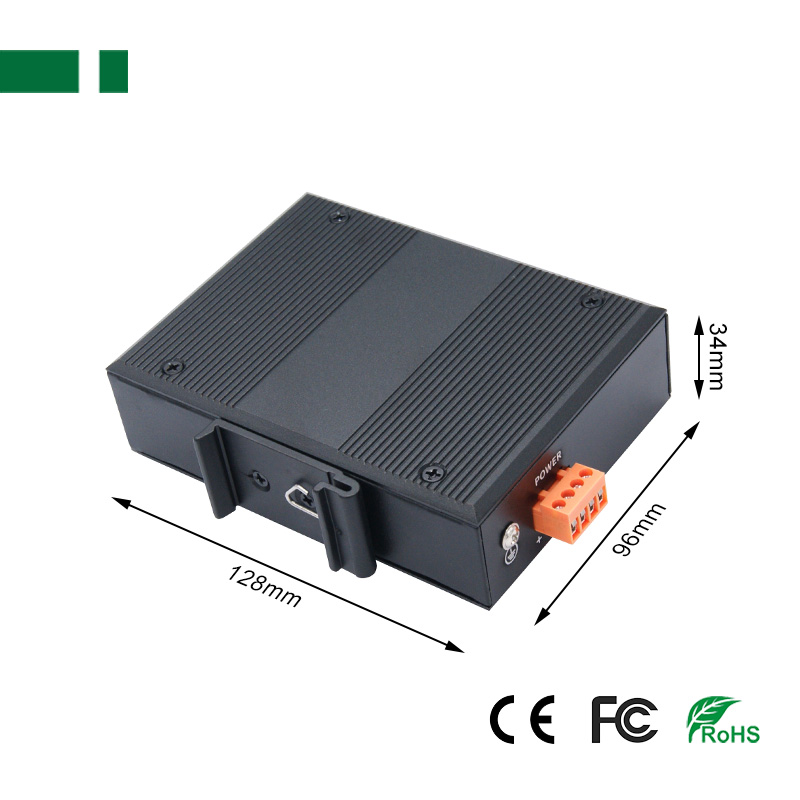

| Dimension | 128*96*34 mm (L×W×H), 0.385kg | |||
Application:
1. Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.;
2. Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries;
3. Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications;
4. Real-time monitoring: simultaneous transmission of real-time control signals, images and data;
5. Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances.
Packing list:
Industrial Switch: *1pc;
User Manual: *1pc;
Certification: *1pc;
Pull-arm: *1pc.
