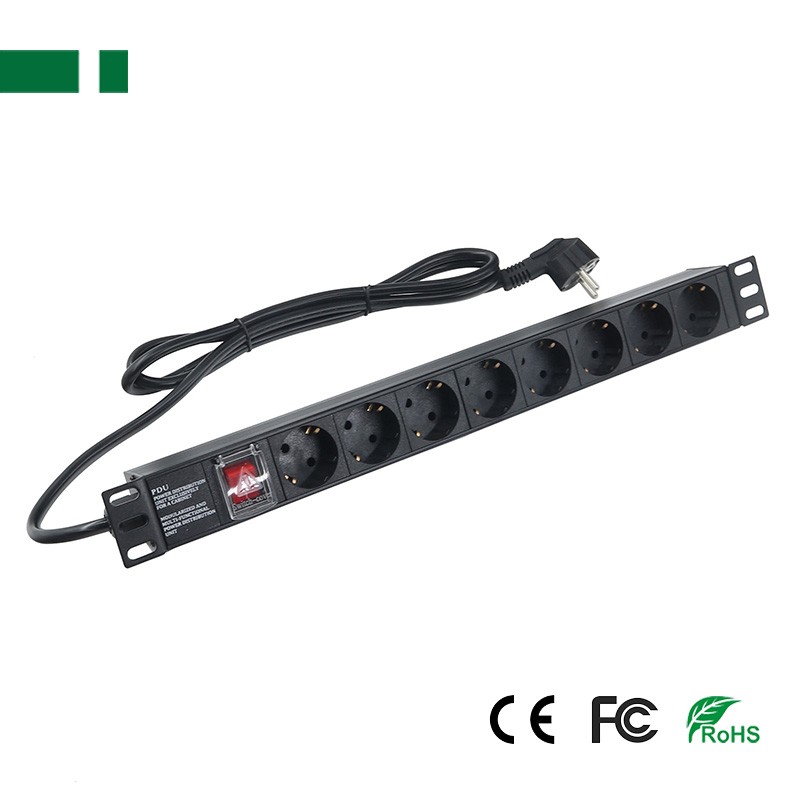

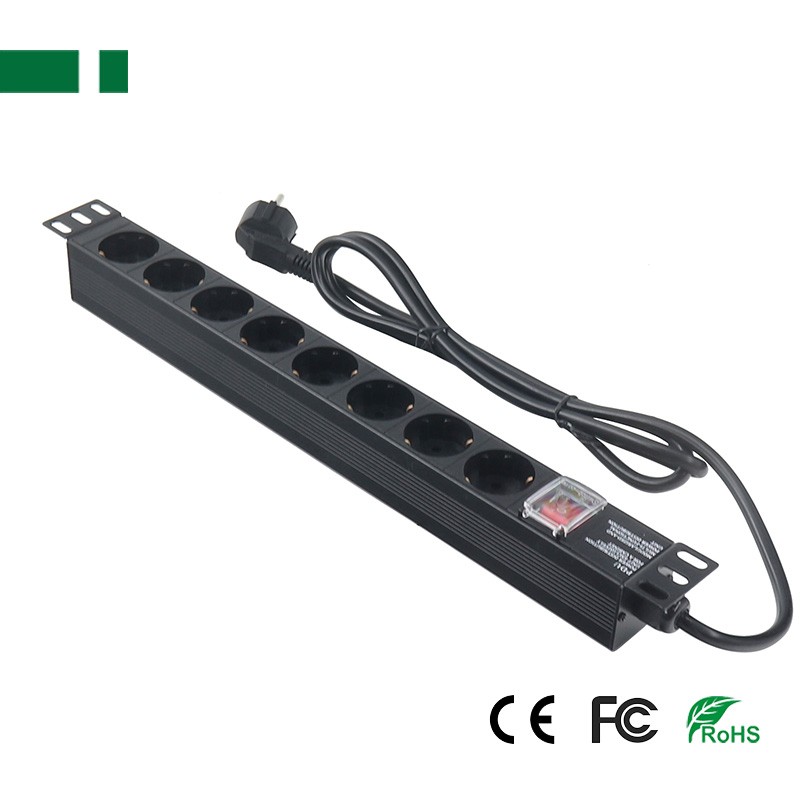

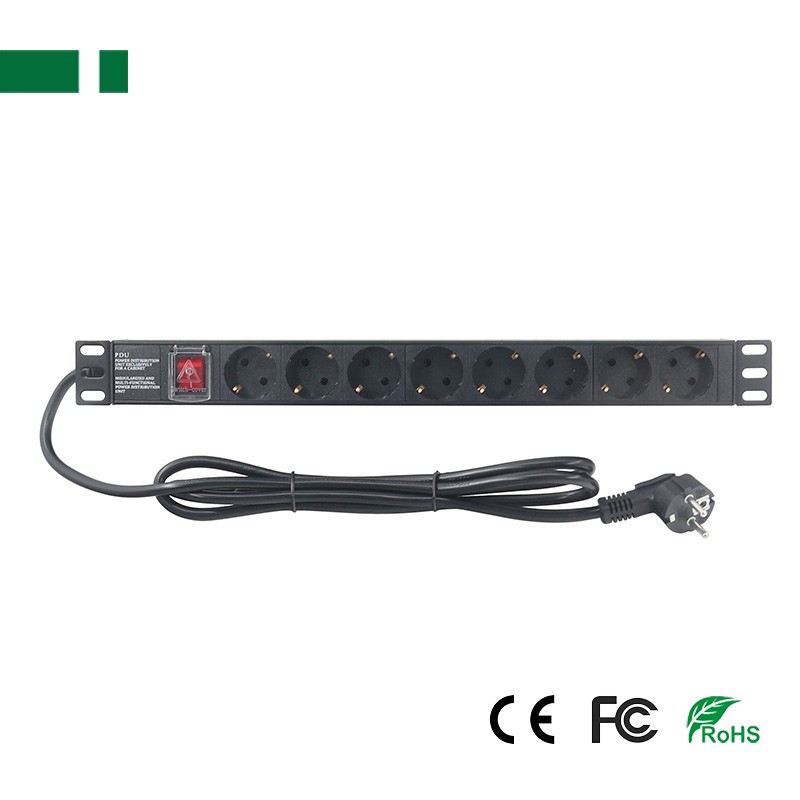

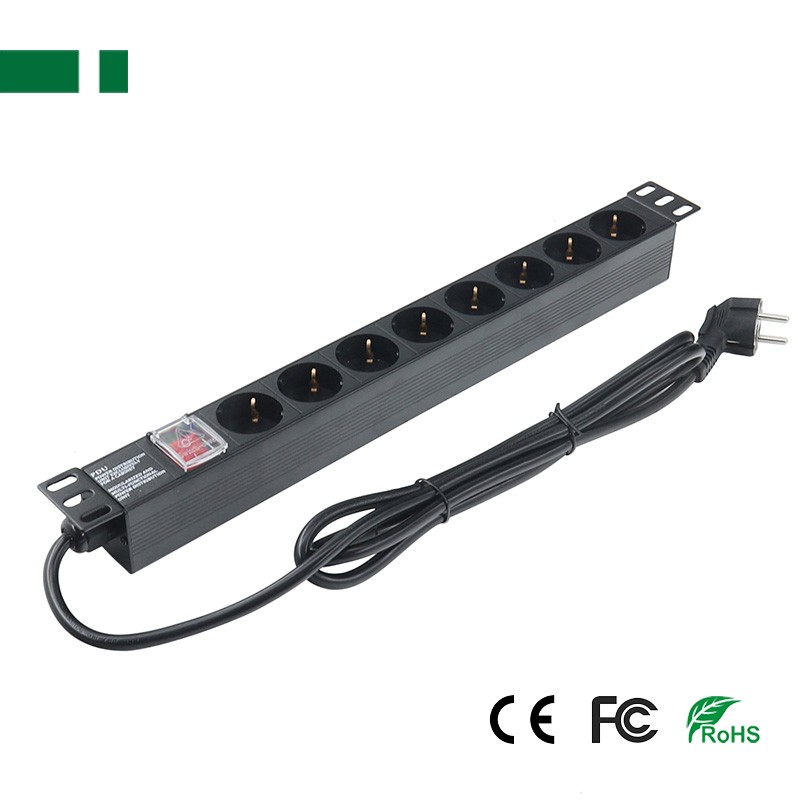

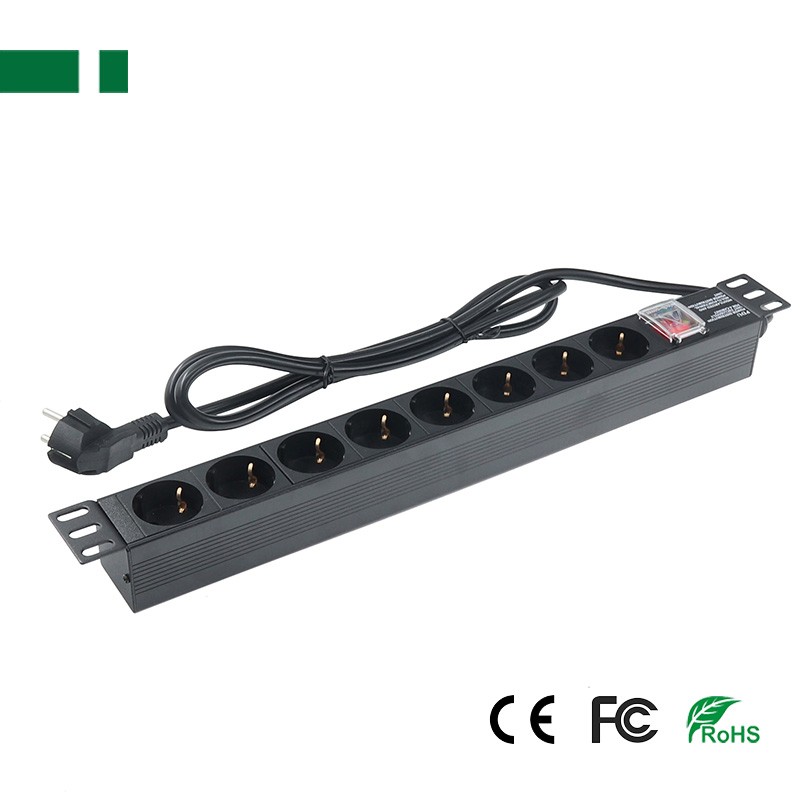

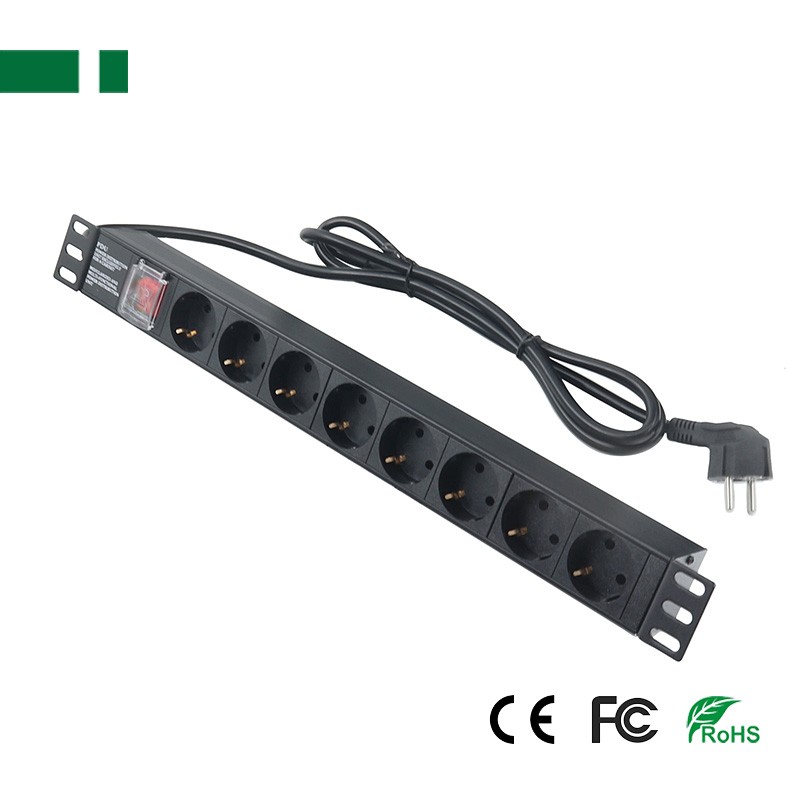

C-PD8B 8 PDU Power Socket Plug with Switch For 19 inch Network Cabinet

Description :

1. Function Introduction:

①Double-break switch module:(With protective cover)

Can cut off the fire line and zero line at the same time, avoid the danger caused by zero and

fire line inversion, improve the safety factor.

②Overload protection:

Provide two pole overload protection, which can effectively prevent problems caused byoverload.

③Lightning protection:Lightning protectionProtect sensitive electrical equipment from lightning.

2.Integral aluminum shell heat dissipation anti - shock, aluminum shell grounding more secure, integral aluminum alloy shell for heat shock protection , Unibody aluminum alloy pipe fitting, strong and durable, fast heat dissipation, grounding design to prevent accidental electric shock.

3.High temperature flame retardant PC material protection equipment security,Integral tin phosphor bronze design,The whole use of flame retardant engineering plastics, use at ease.

4.Thick power line, inside line 3*1.5mm pure copper, enough to withstand the use of 3500W power appliances, so that you can safely use electricity.

Application:PDU Cabinet

Feature:

▪ Rated current:16A

▪ Rated voltage:110-250V

▪ Rated power:4000W

▪ Color:black

▪ Shell material:aluminum alloy shell+ PC material

▪ Conductive material: tin phosphor bronze

▪ Horizontal/vertical installation of 19 inch PDU Cabinet power strip

▪ Proudct size:482*45mm(19*17inch)

Package include:

1PCS PDU socket
