Fiber Optic Connector

CFC04-FCAM-LCUF-S FC/APC Male to LC/UPC Female Fiber Optic Single-mode 9/125 Adapter

CFC04-FCAM-LCUF-S FC/APC Male to LC/UPC Female Fiber Optic Single-mode 9/125 Adapter

FC/APC Male to LC/APC Female Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
INQUIRY EMAIL

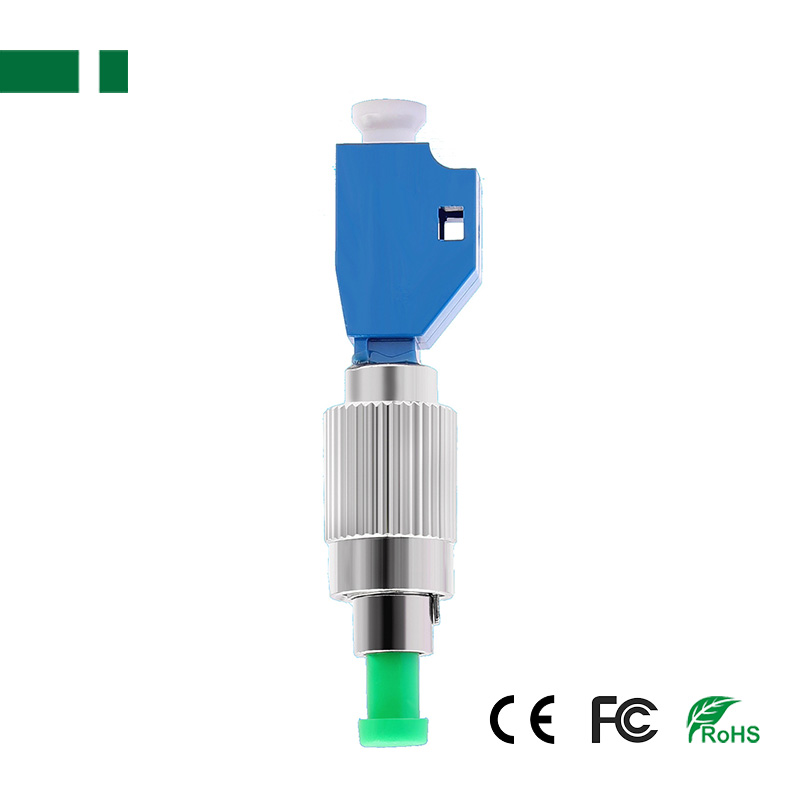

FC/APC Male to LC/UPC Female Fiber Optic Single-mode 9/125 Adapter

Description:
The FC Male to LC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts FC connector to LC connector, Variable FC interface conversion LC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter

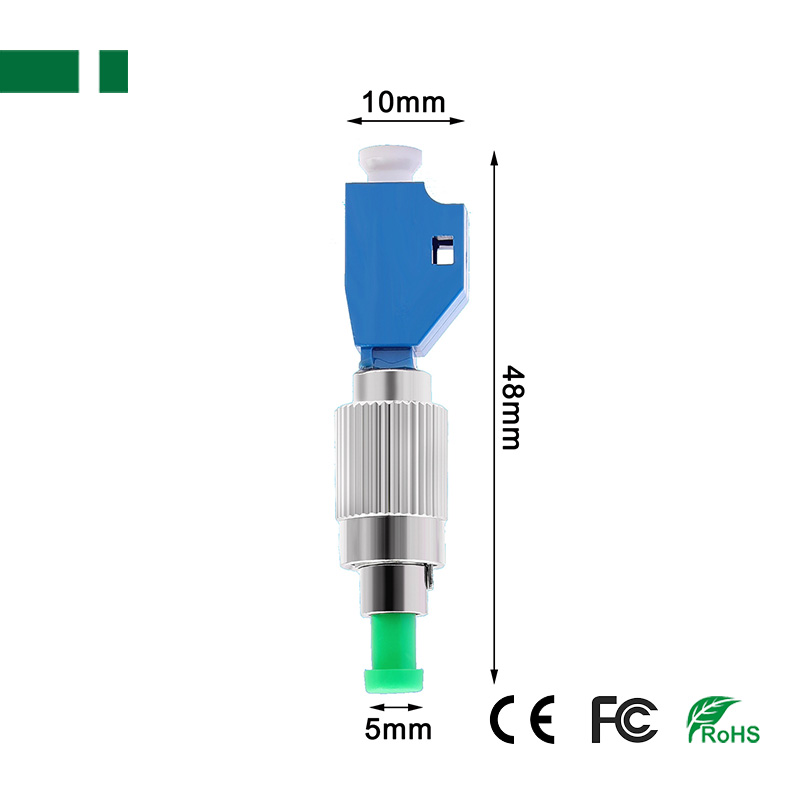

Model	Connector A	Connector B	Mode	Dimension	N. W.
CFC04-FCAM-LCAF-S	FC Male APC	LC Female APC	Single-mode 9/125	10*48mm	7.7g
CFC04-FCAM-LCUF-S	FC Male APC	LC Female UPC			7.5
CFC04-FCUM-LCAF-S	FC Male UPC	LC Female APC			7.4
CFC04-FCUM-LCUF-1S	FC Male UPC	LC Female UPC	Single-mode 9/125		7.3g
CFC04-FCUM-LCUF-2S			Single-mode 9/125	10*40mm	3.9g
CFC04-FCUM-LCUF-M1			OM1-62.5/125	10*48mm	7.7g
CFC04-FCUM-LCUF-M2			OM2-50/125		8.1g
CFC04-FCUM-LCUF-OM3			OM3-50/125		7.5
CFC04-FCUM-LCUF-OM4			OM4-50/125		7.8
