FC/APC Male to LC/APC Female Adapter
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

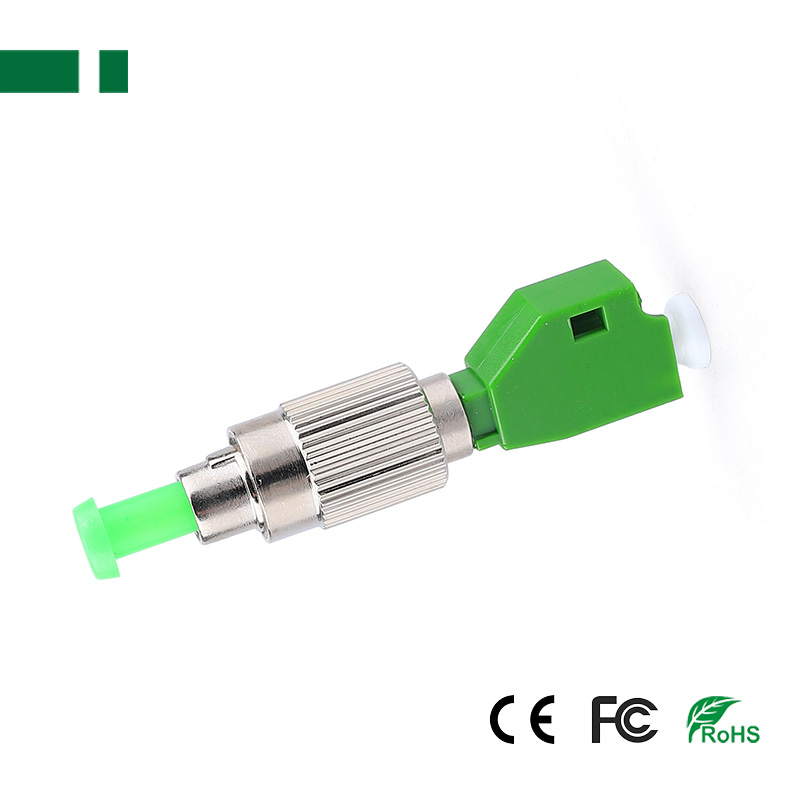

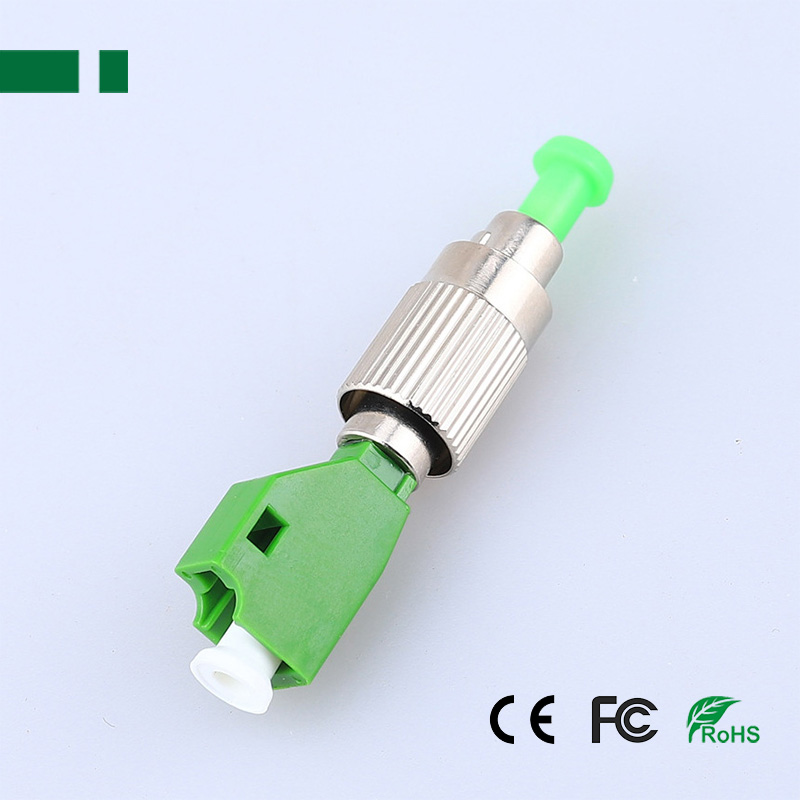

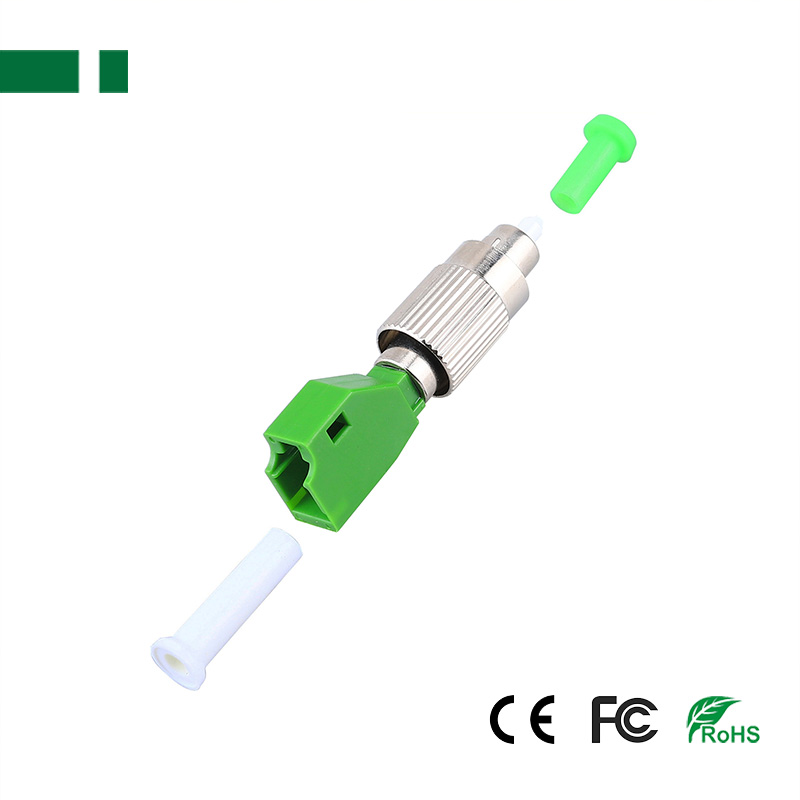

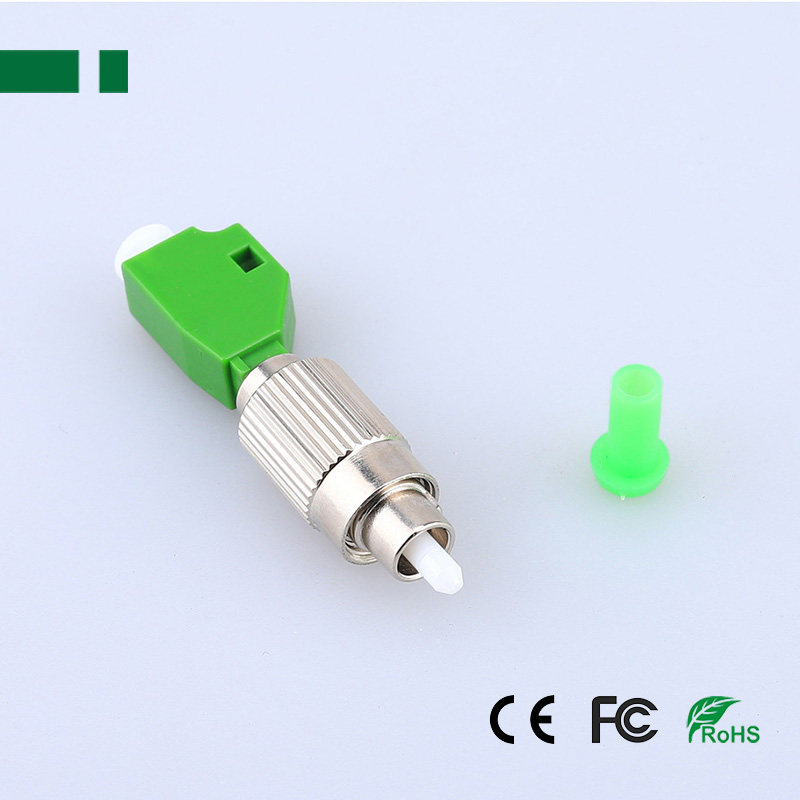

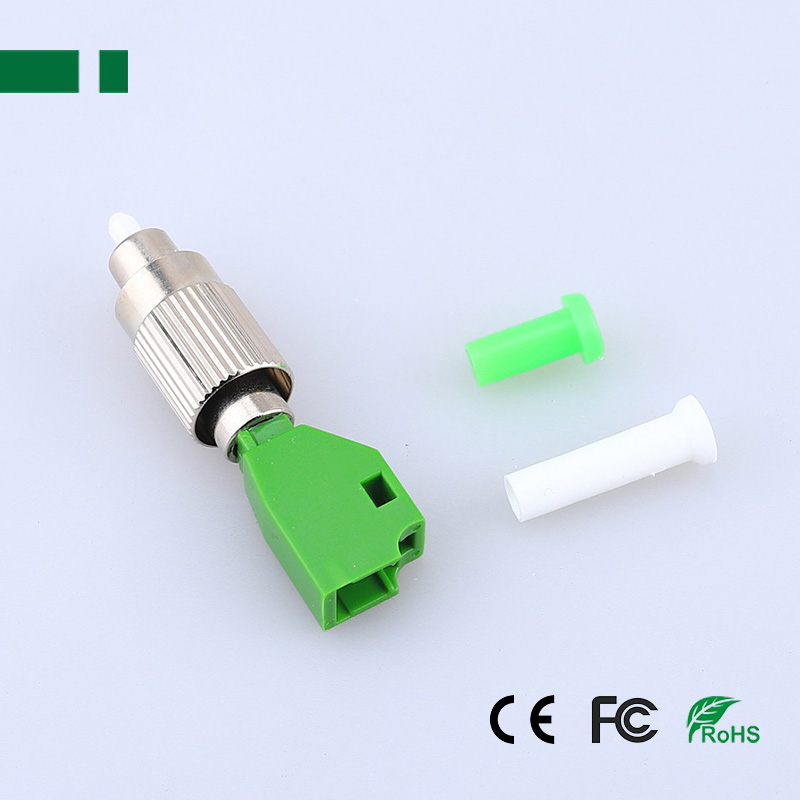

FC/APC Male to LC/APC Female Fiber Optic Single-mode 9/125 Adapter
Description:
The FC Male to LC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts FC connector to LC connector, Variable FC interface conversion LC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
Specification:
| UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter | |||||
| Model | Connector A | Connector B | Mode | Dimension | N. W. |

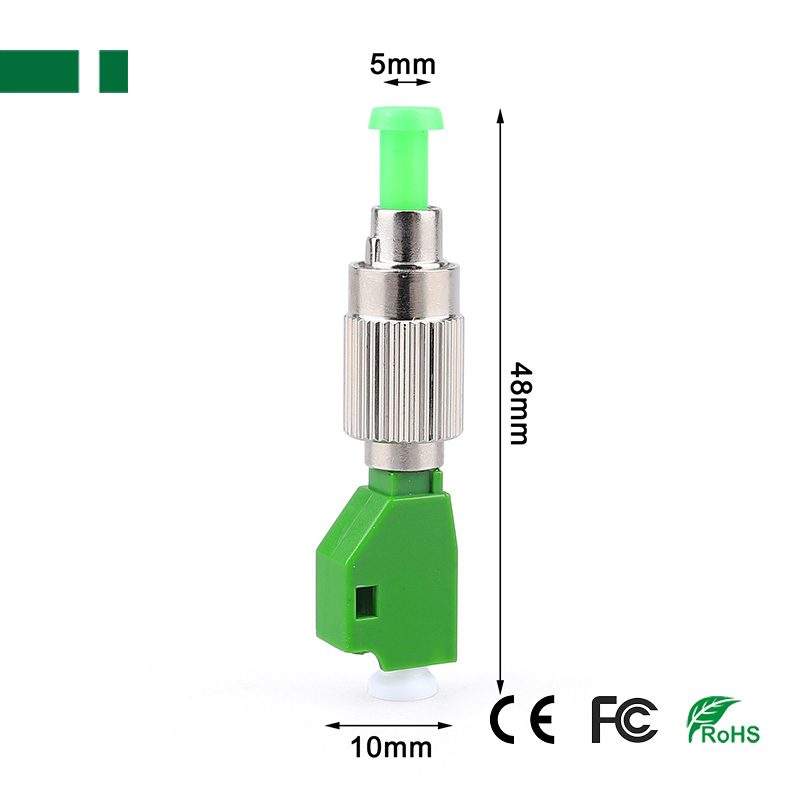

| CFC04-FCAM-LCAF-S | FC Male APC | LC Female APC | Single-mode 9/125 | 10*48mm | 7.7g |
| CFC04-FCAM-LCUF-S | LC Female UPC | 7.5 | |||
| CFC04-FCUM-LCAF-S | FC Male UPC | LC Female APC | 7.4 | ||
| CFC04-FCUM-LCUF-1S | FC Male UPC | LC Female UPC | Single-mode 9/125 | 7.3g | |
| CFC04-FCUM-LCUF-2S | 10*40mm | 3.9g | |||
| CFC04-FCUM-LCUF-M1 | OM1-62.5/125 | 10*48mm | 7.7g | ||
| CFC04-FCUM-LCUF-M2 | OM2-50/125 | 8.1g | |||
| CFC04-FCUM-LCUF-OM3 | OM3-50/125 | 7.5 | |||
| CFC04-FCUM-LCUF-OM4 | OM4-50/125 | 7.8 | |||
