LC Male to FC Female
Single-mode 9/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

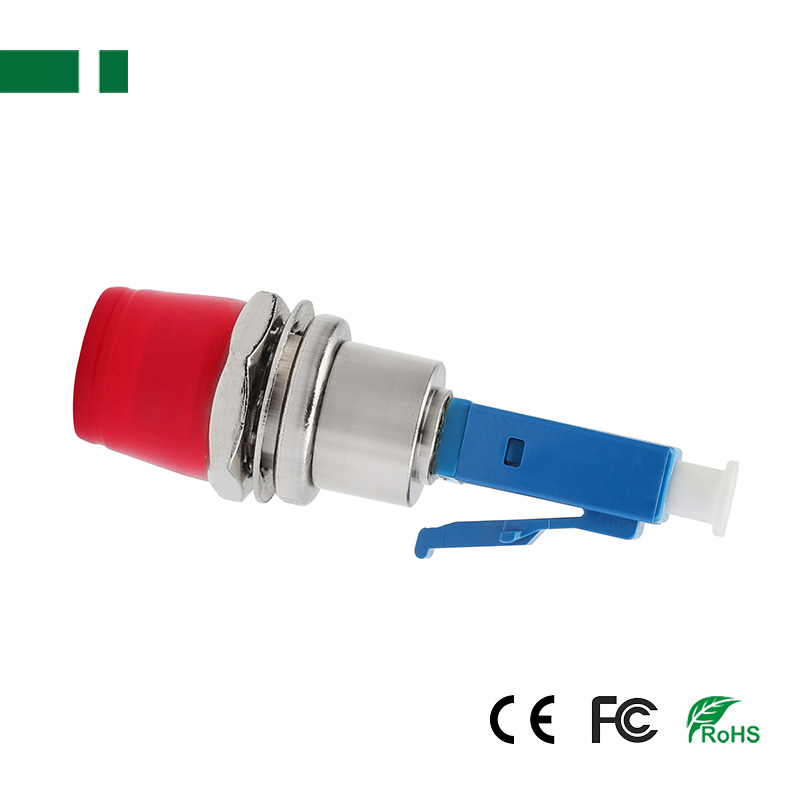

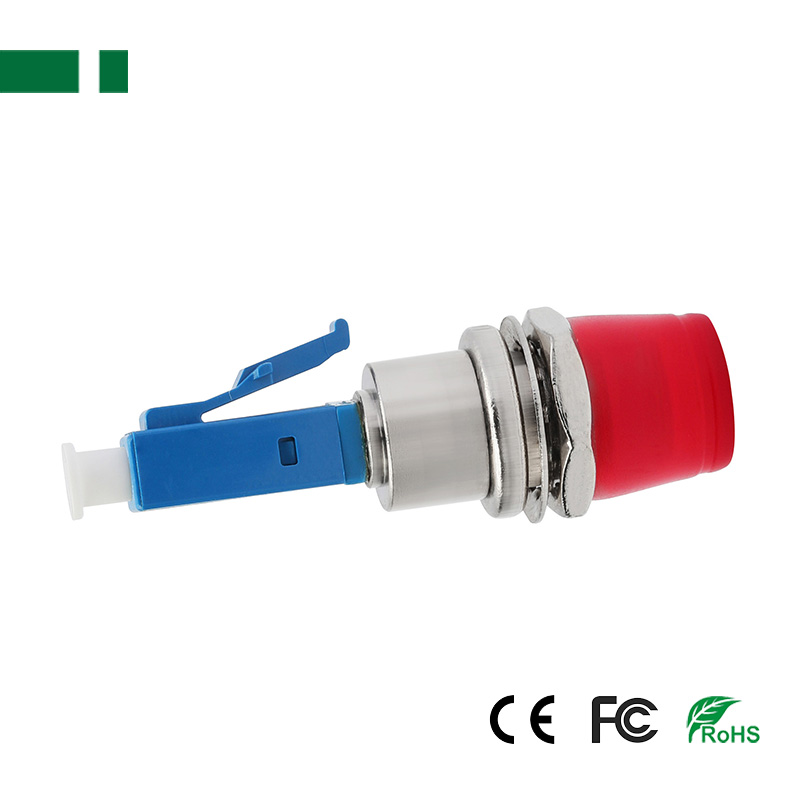

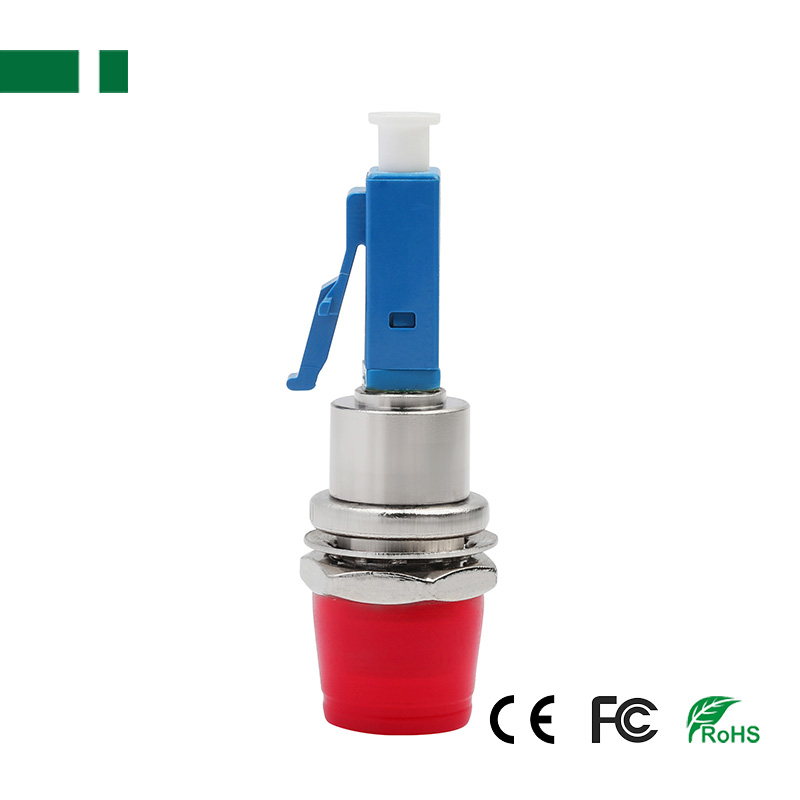

LC Male to FC Female Fiber Optic UPC Single-Mode 9/125 Adapter
Description:
The LC Male to FC Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts LC connector to FC connector, Variable LC interface conversion FC interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.
Specification:
| ITEM | UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter | ||||||
| Model | CFC02-LCUM-FCUF-M1 | CFC02-LCUM-FCUF-M2 | CFC02-LCUM-FCUF-S | CFC02-LCUM-STUF-M1 | CFC02-LCUM-STUF-M2 | CFC02-LCUM-STUF-S | CFC02-STUM-FCUF-S |
| Connector A | LC Male UPC | LC Male UPC | LC Male UPC | ST Male UPC | |||
| Connector B | FC Female UPC | ST Female UPC | ST Female UPC | FC Female UPC | |||
| Mode | Multi-mode 50/125 | Multi-mode 62.5/125 | Single-mode 9/125 | Multi-mode 50/125 | Multi-mode 62.5/125 | Single-mode 9/125 | |

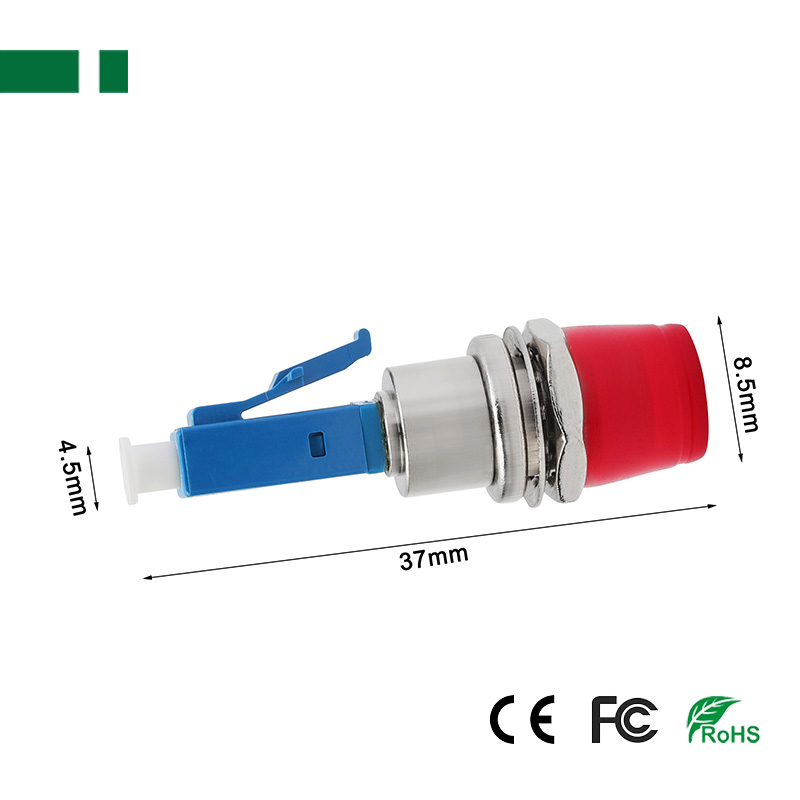

| Dimension | 37*6.5*4.5mm | 44*9*4.5mm | 44*9*4.5mm | 49*9.5*5mm | |||
| Net Weight | 7.5g | 8.6g | 8.6g | 11.5g | |||
| Housing | Metal, Ceramic | ||||||
| Insert Loss | 1310nm<0.3dB, 1550nm<0.3dB | ||||||
| Return Loss | 1310nm≥50dB, 1550nm≥50dB. | ||||||
| Interchangeability | ≤0.2dB | ||||||
| Repeatability | ≤0.1dB | ||||||
| Durability | ≤0.2dB (1000 times mating) | ||||||
| Tensile Strength | > 10kg | ||||||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||||||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||||||
