Fiber Optic Connector

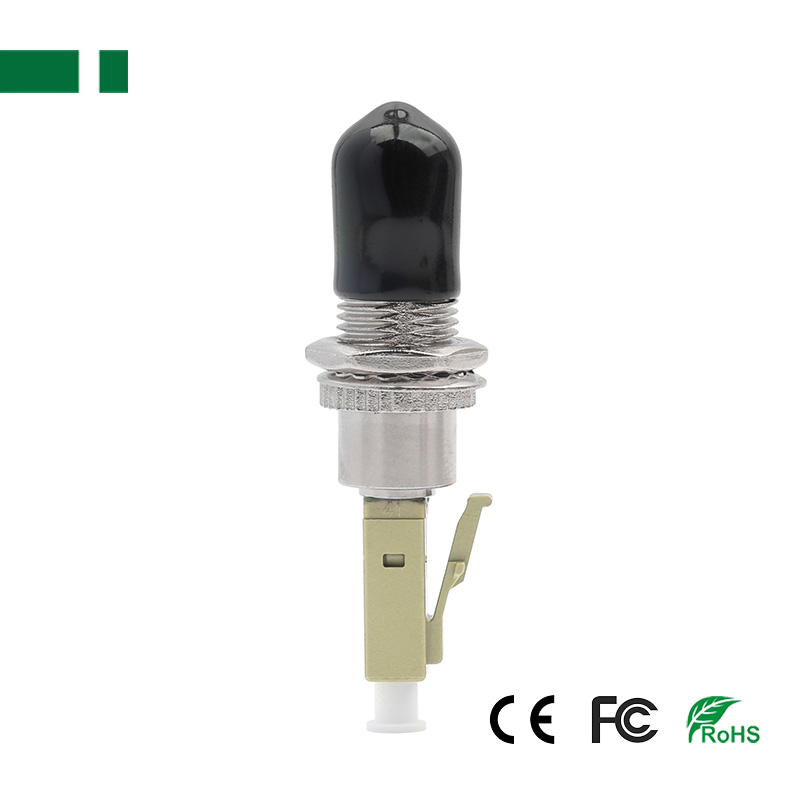

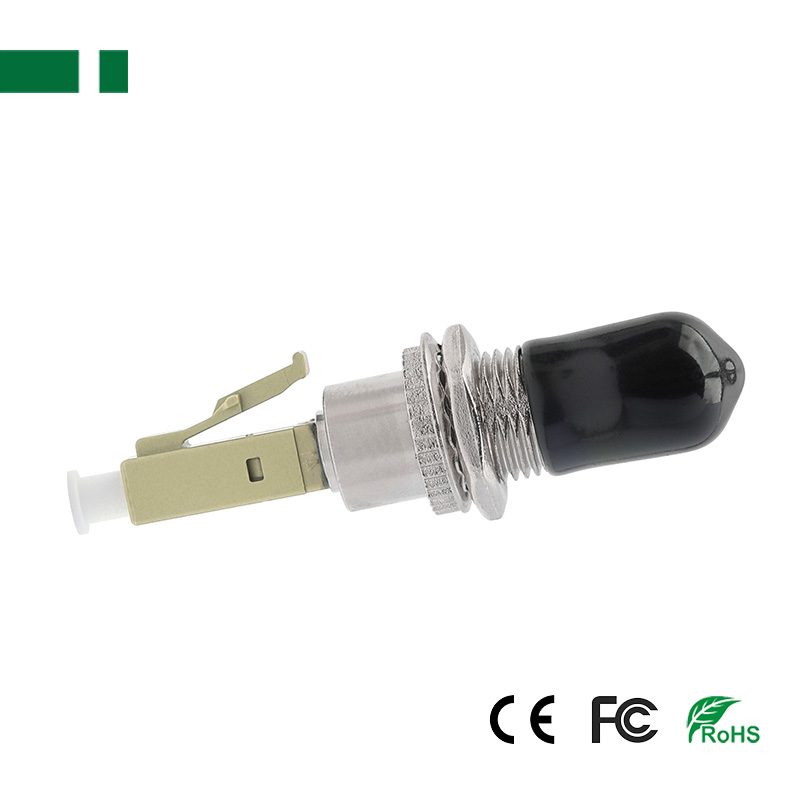

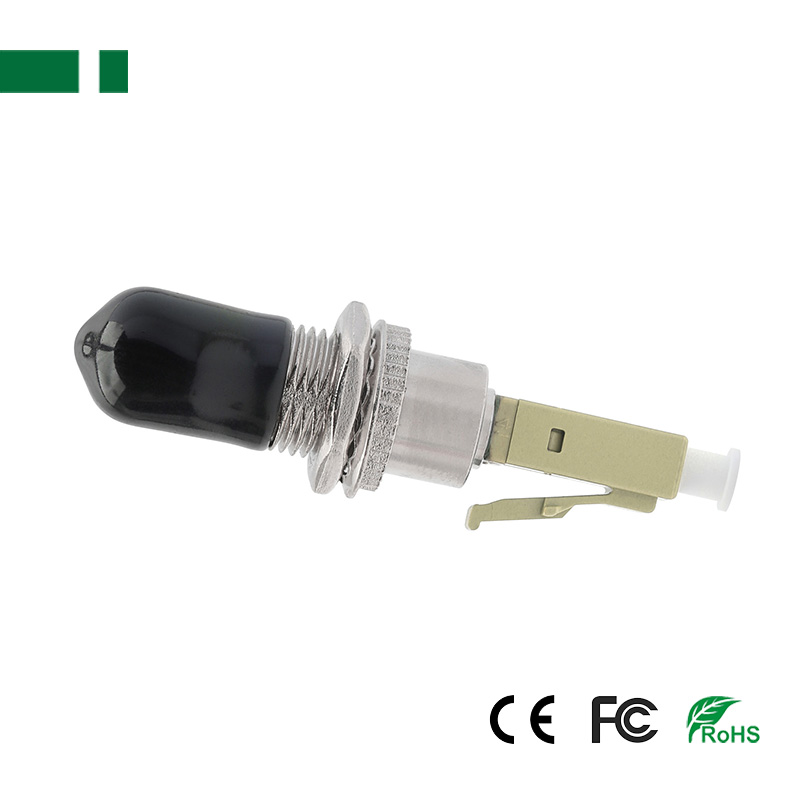

CFC02-LCUM-STUF-M2 LC Male to ST Female Fiber Optic UPC Multi-mode 62.5/125 Adapter

CFC02-LCUM-STUF-M2 LC Male to ST Female Fiber Optic UPC Multi-mode 62.5/125 Adapter

LC Male to ST Female
Multi-mode 62.5/125
Housing: Metal, Ceramic
Scope of Application: 3.0*2.0mm Butterfly shaped leather Cable
Product description: The hybrid adapter Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and th
INQUIRY EMAIL

LC Male to ST Female Fiber Optic UPC Multi-Mode 62.5/125 Adapter

Description:
The LC Male to ST Female hybrid adapter, using embedded fiber, ferrule and sleeve precision connection technology, Converts LC connector to ST connector, Variable LC interface conversion ST interface, Provides a simple and reliable solution for connecting two or more different optical fiber transmission joints, users can choose 9/125, 50/125, 62.5/125 and other fiber types and the corresponding connector type.

Specification:

ITEM	UPC/ APC LC/ ST/ SC/ FC to FC/ SC/ ST/ LC Connector Fiber Optic Adapter
Model	CFC02-LCUM-FCUF-M1	CFC02-LCUM-FCUF-M2	CFC02-LCUM-FCUF-S	CFC02-LCUM-STUF-M1	CFC02-LCUM-STUF-M2	CFC02-LCUM-STUF-S	CFC02-STUM-FCUF-S
Connector A	LC Male UPC			LC Male UPC		LC Male UPC	ST Male UPC
Connector B	FC Female UPC			ST Female UPC		ST Female UPC	FC Female UPC
Mode	Multi-mode 50/125	Multi-mode 62.5/125	Single-mode 9/125	Multi-mode 50/125	Multi-mode 62.5/125	Single-mode 9/125
Dimension	376.54.5mm			4494.5mm		4494.5mm	499.55mm
Net Weight	7.5g			8.6g		8.6g	11.5g
Housing	Metal, Ceramic
Insert Loss	1310nm<0.3dB, 1550nm<0.3dB
Return Loss	1310nm≥50dB, 1550nm≥50dB.
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strength	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
