RJ45 Patch Panel

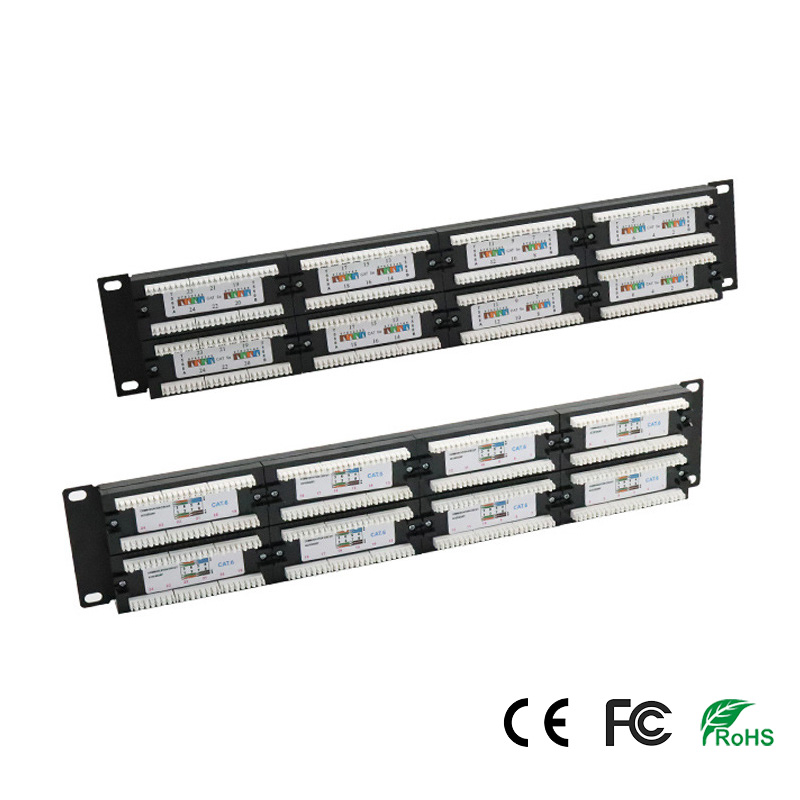

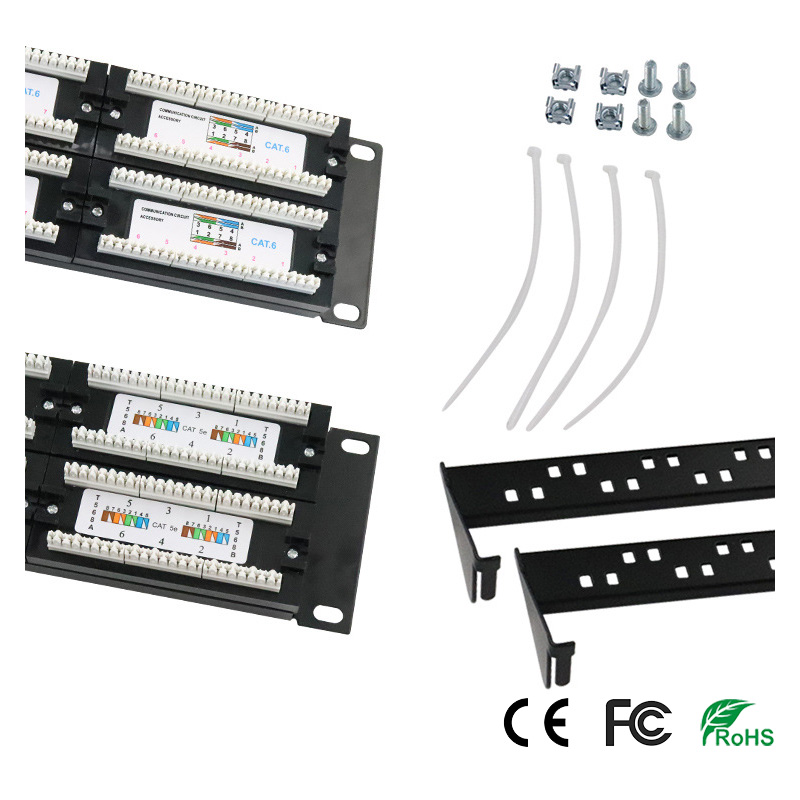

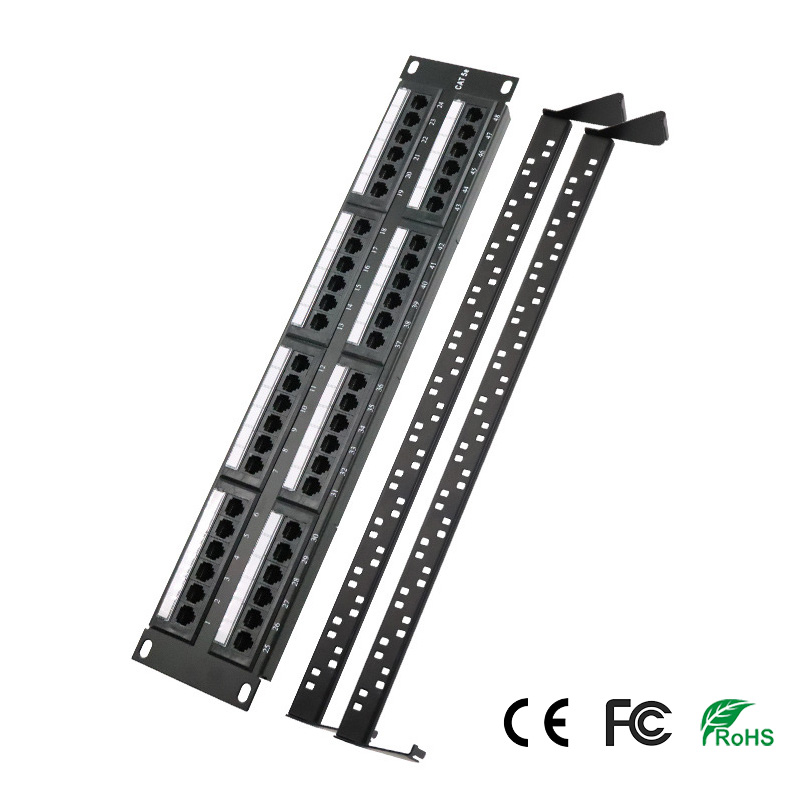

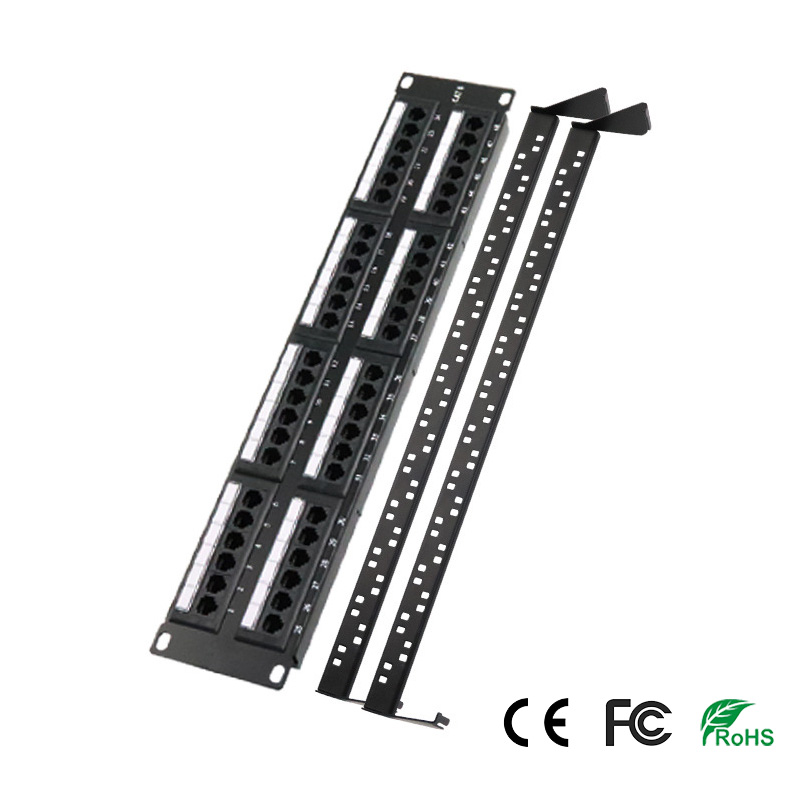

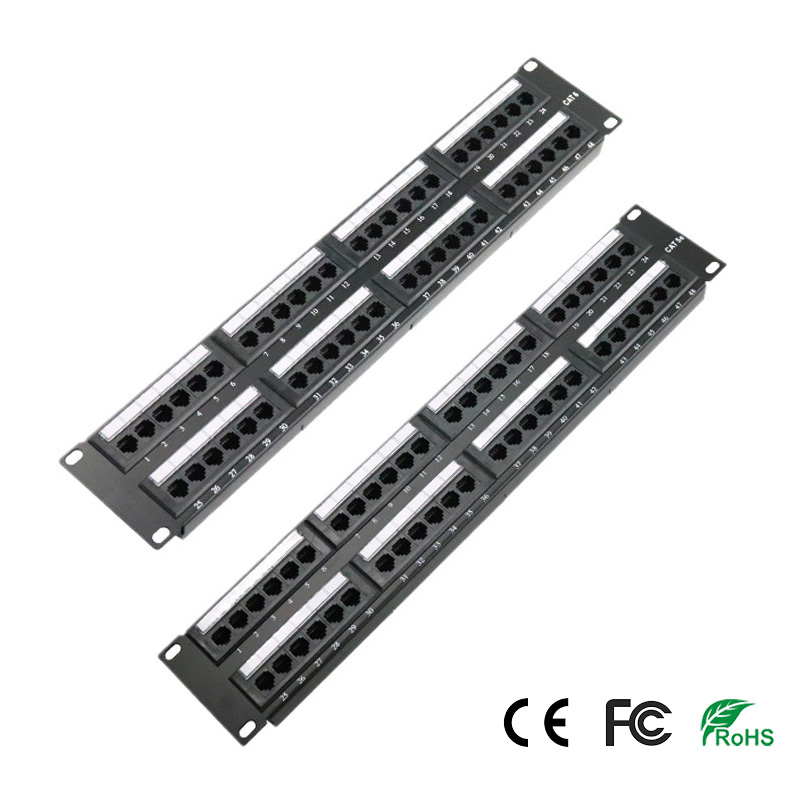

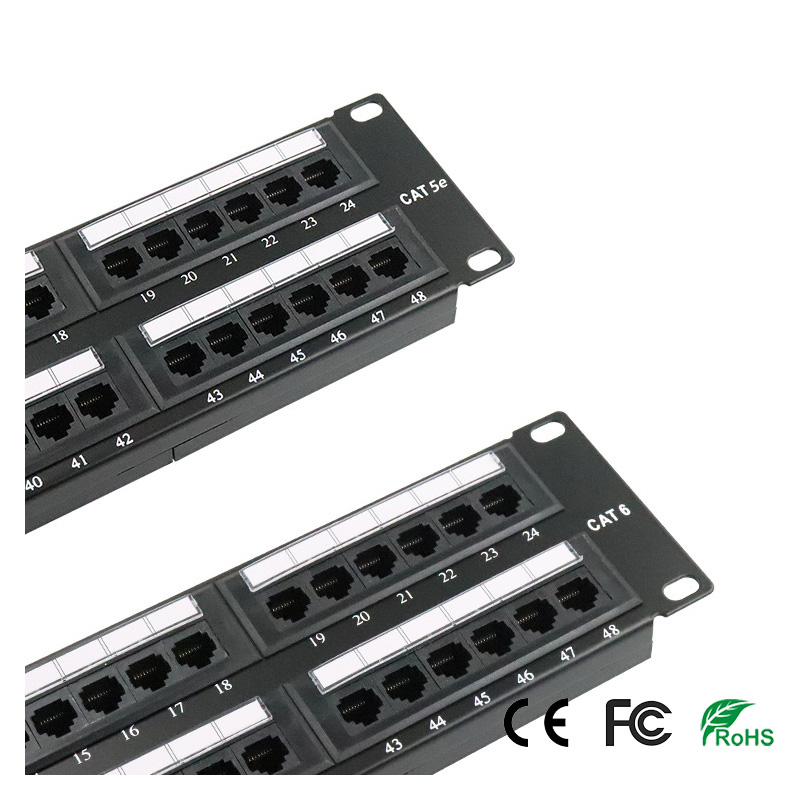

CPP02-5E-48DT CPP02-6-48DT 1U 48 Port Patch Panel

CPP02-5E-48DT CPP02-6-48DT 1U 48 Port Patch Panel

1U 19 inch 48 Port Patch Panel
Material: SPCC Steel
with UTP Cat5E or CAT6 Keystone Jack optional

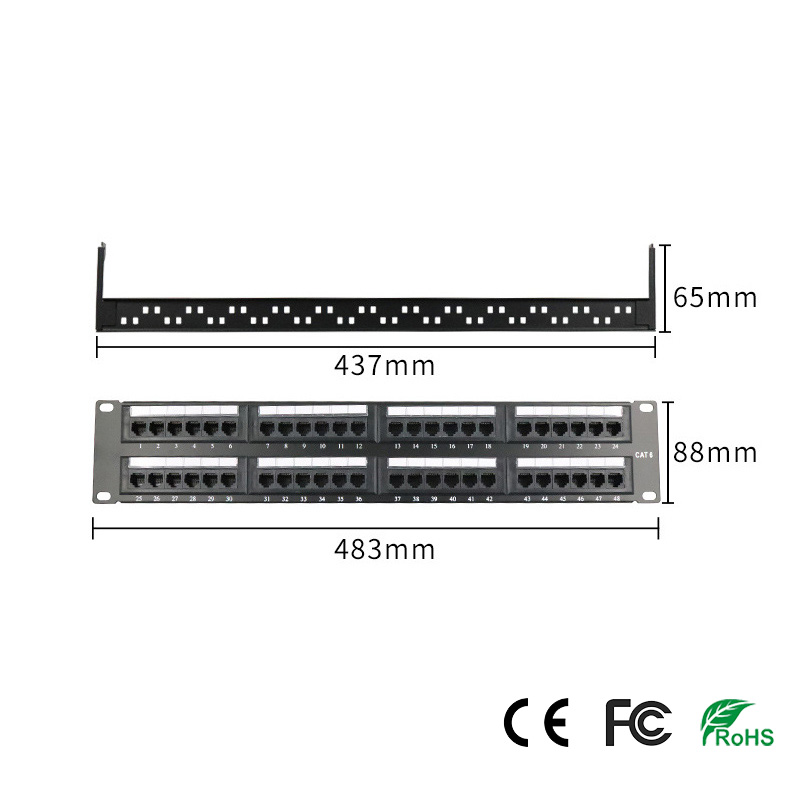

Size: 480*88*65mm
Product description: CPP02 1U 48-Port Patch Panel
INQUIRY EMAIL

Features
1U 19" 48-Port Patch Panel
Terminal material: phosphor bronze plating nickel, the number of insertions and is not less than 300 times
Eight-needle material: phosphor bronze bronzed, the number of insertions and is not less than 800 times
Contact resistance: no more than 2.5mΩ under normal atmospheric conditions
Insulation resistance: not less than 1000MΩ under normal atmospheric pressure
Electric strength: DC 1000V (AC, 750V) No breakdown and arcing in 1 minute

Design standard: designed and manufactured according to standard / IEC11801; / EIA568

Support 1000Mpbs network data transmission.

Specifications
1U 19" 48-Port Patch Panel,
Connection: 8-Pin LSA+ insulation displacement terminal
Material: SPCC Steel
Size: 480*88*65mm.

Optinoal Models:
CPP02-5E-48DT with UTP Cat5E Keystone Jack
CPP02-6-48DT with UTP Cat6 Keystone Jack
