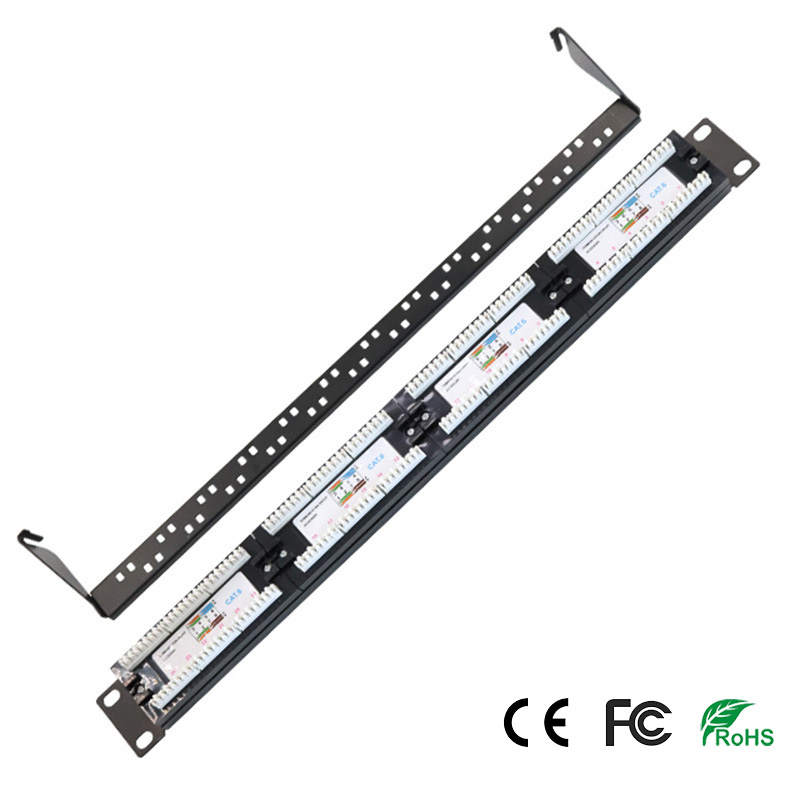

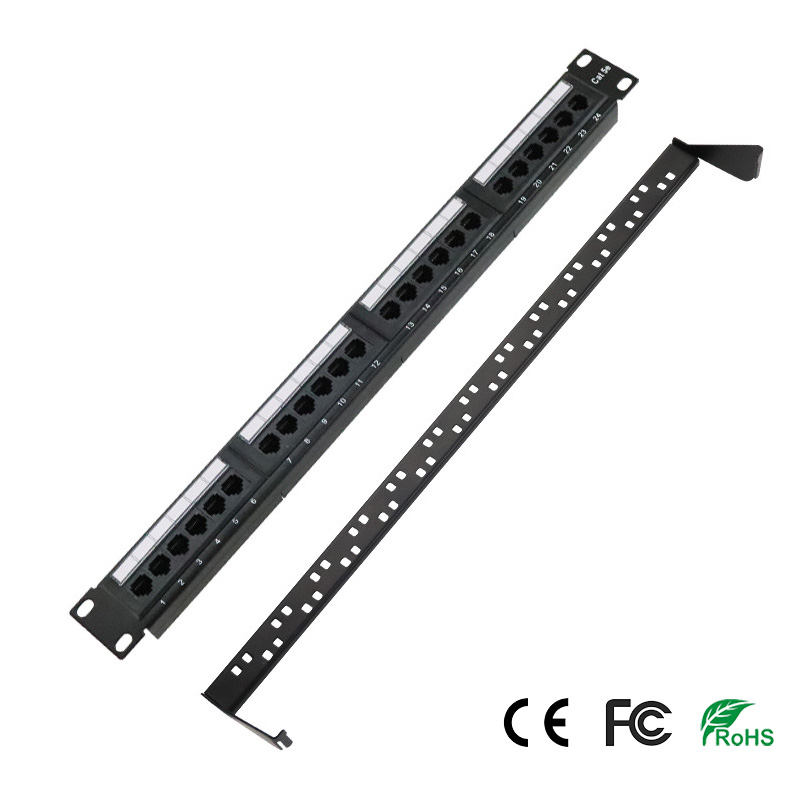

CPP02-5E-24DT CPP02-6-24DT 1U 24 Port Patch Panel

Features
1U 19" 24-Port Patch Panel
Terminal material: phosphor bronze plating nickel, the number of insertions and is not less than 300 times
Eight-needle material: phosphor bronze bronzed, the number of insertions and is not less than 800 times
Contact resistance: no more than 2.5mΩ under normal atmospheric conditions
Insulation resistance: not less than 1000MΩ under normal atmospheric pressure
Electric strength: DC 1000V (AC, 750V) No breakdown and arcing in 1 minute

Design standard: designed and manufactured according to standard / IEC11801; / EIA568

Support 1000Mpbs network data transmission.

Specifications
1U 19" 24-Port Patch Panel,

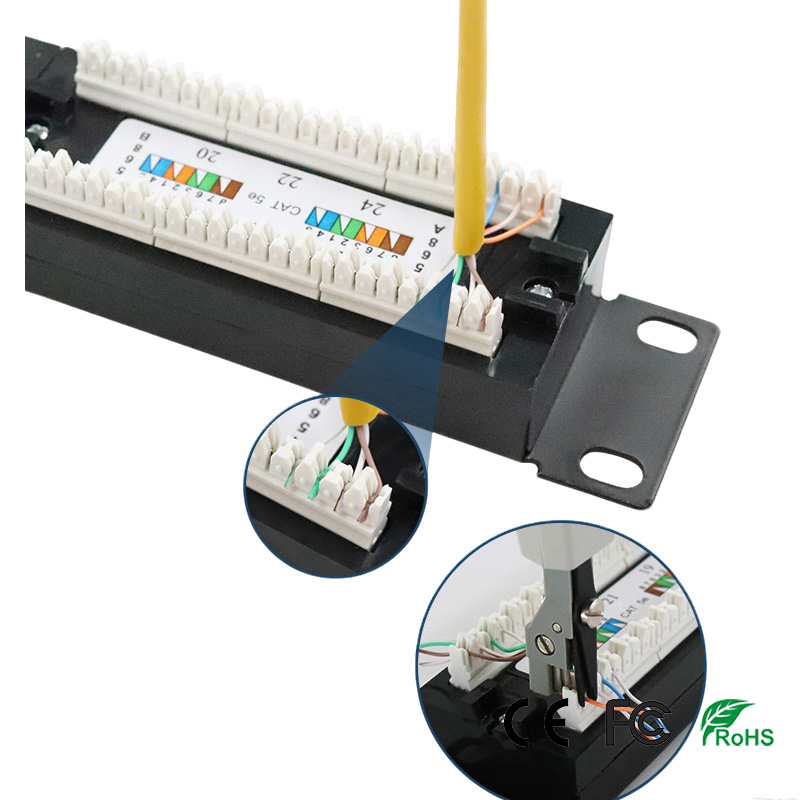

Connection: 8-Pin LSA+ insulation displacement terminal
Material: SPCC Steel

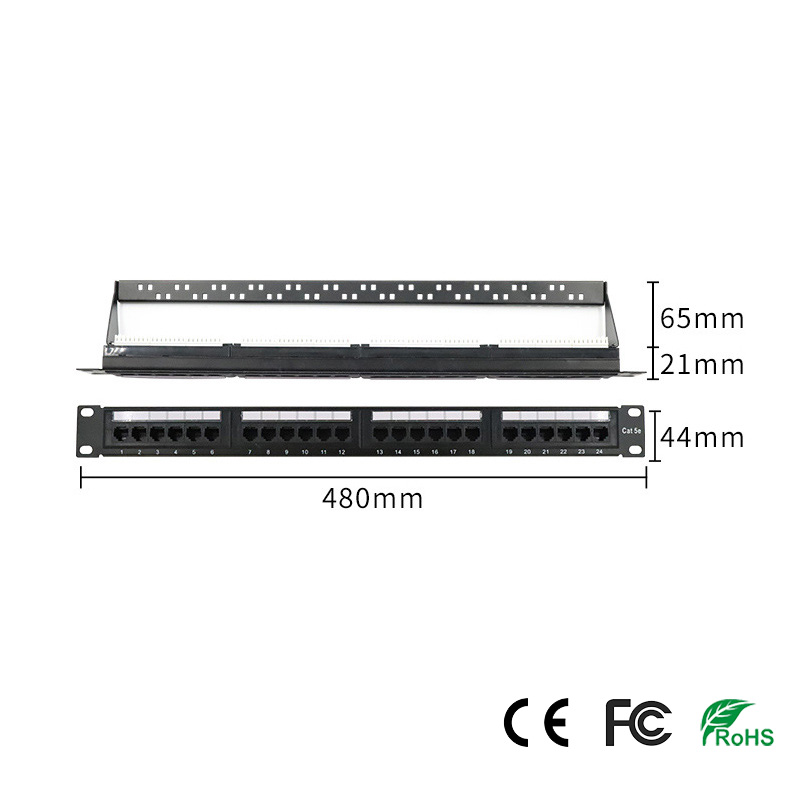

Size: 480*45*86mm.


Optinoal Models:
CPP02-5E-24DT  with UTP Cat5E Keystone Jack

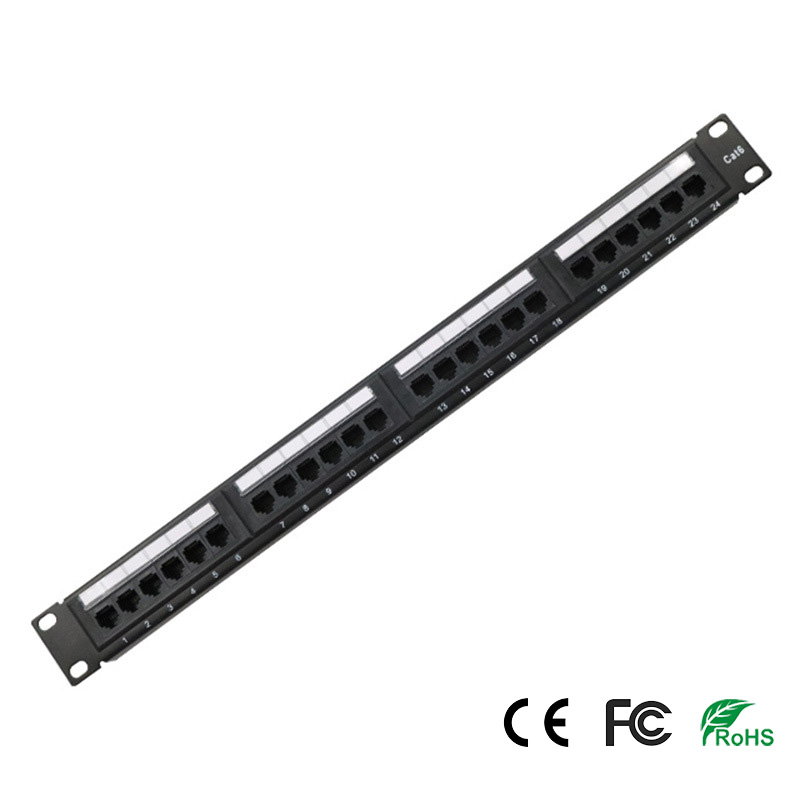

CPP02-6-24DT  with UTP Cat6 Keystone Jack
