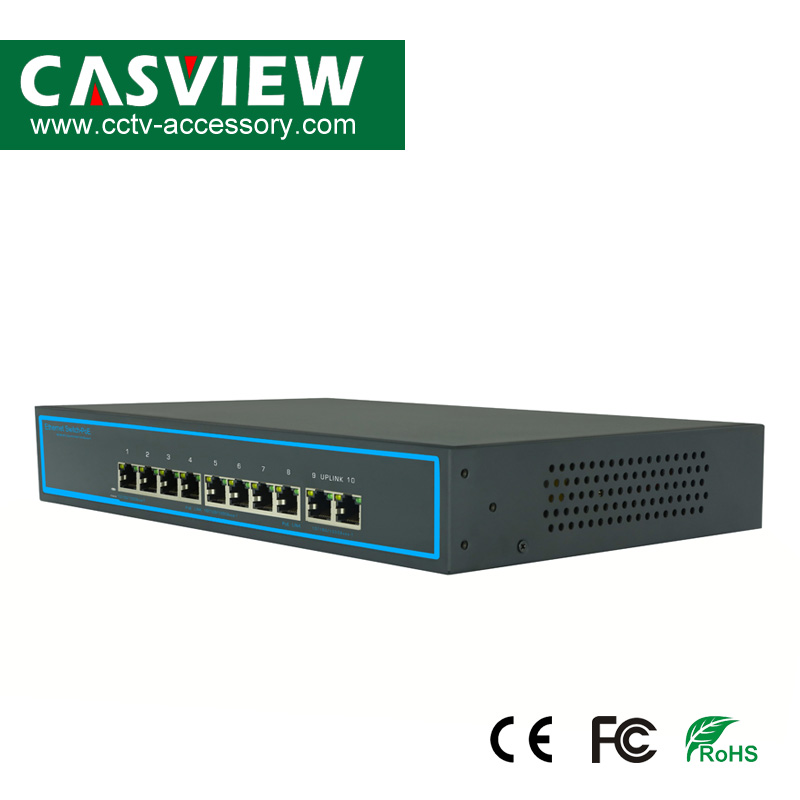

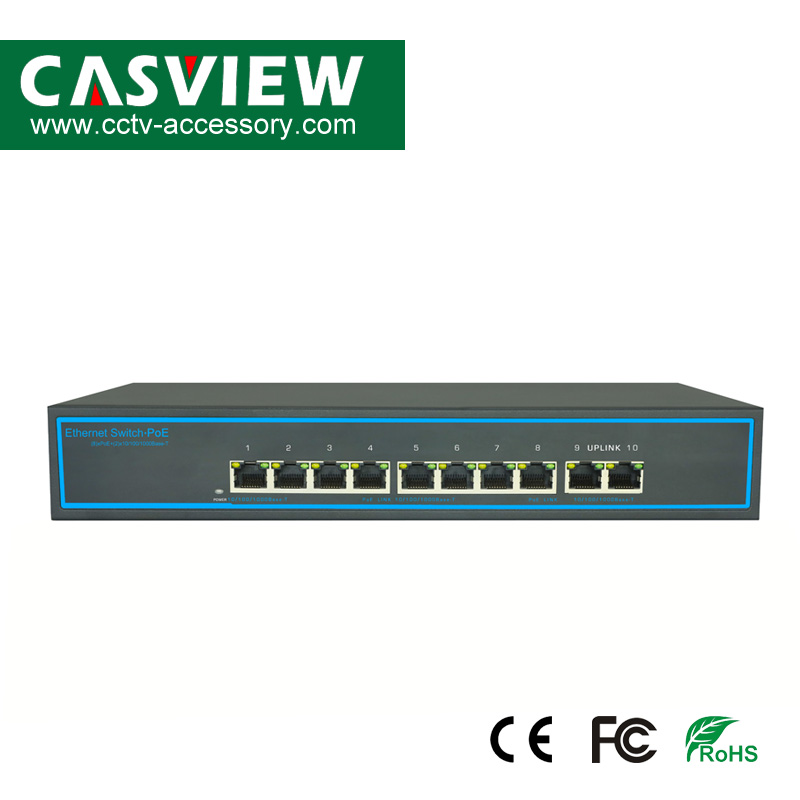

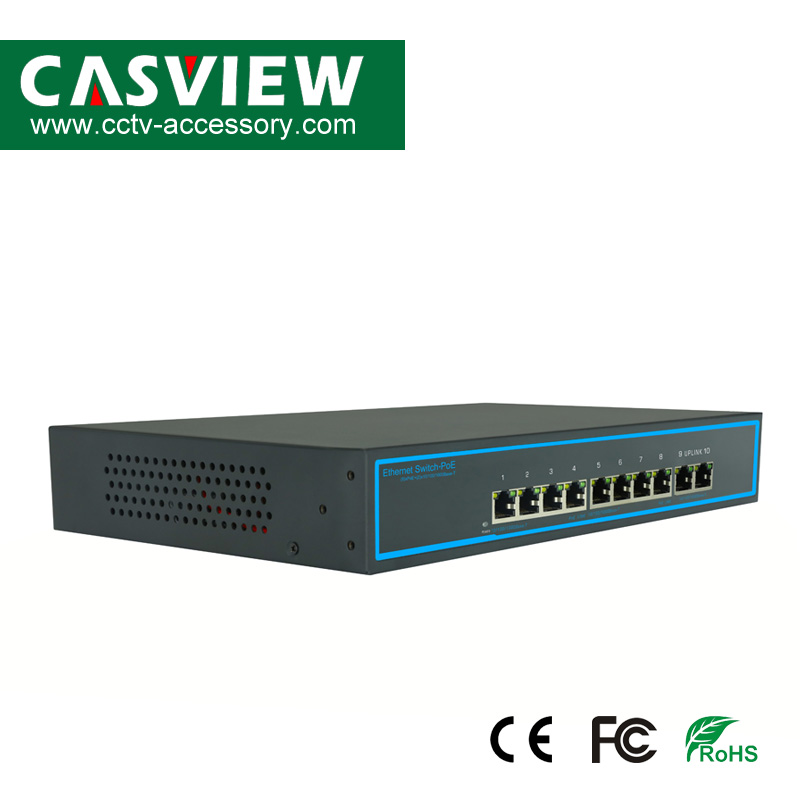

10 Ports 10/100Mbps Switch; with Build in 52V 2.9A 150W Power Supply
8x 10/100Mbps PoE ports, 2*10/100Mbps uplink port;
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~8 downlink ports only able to communicate with uplink ports.
The communication distance extends to 250 meters;
Supports port auto-flip (Auto MDI/ MDIX);

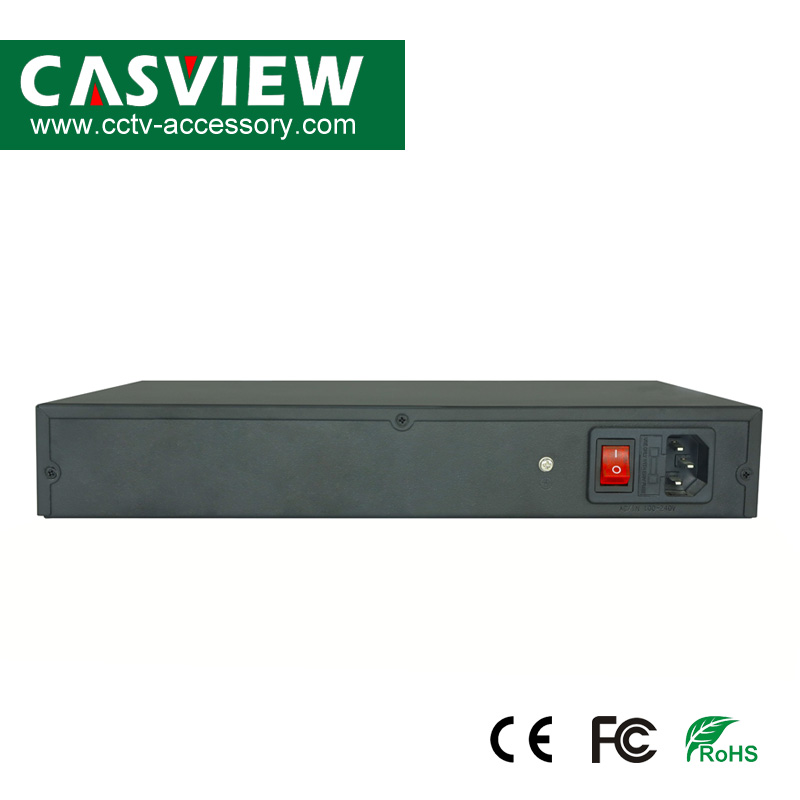

Build-in power supply;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 120W;
Adopts store-and-forward architecture;
IEEE 802.3af power on up to 8 ports;

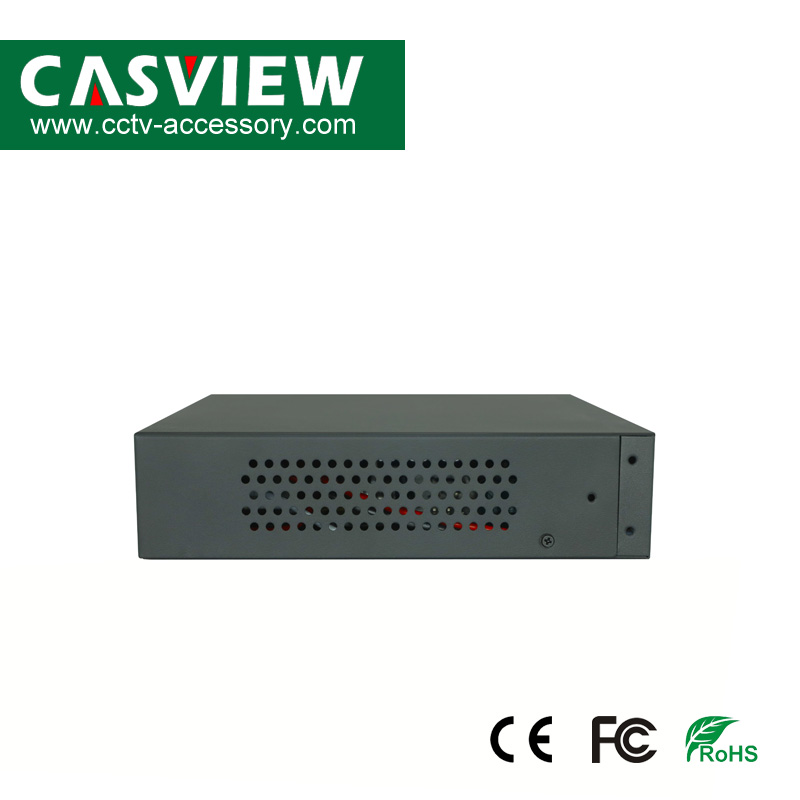

Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall
Description:
The 8 Port POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. The product support one key camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Specifications:
Model | CPE-4308B | ||
Power | Power Adapter Voltage | AC110-240V | |
Consumption | 120W | ||
Network Connector | Network port | POE Ethernet Port | 1~8 Port: 10/100Mbps |
Ethernet Port | Uplink Port: 10/100Mbps | ||
Transmission Distance |
1~8 Port: 100Mbps:0~100m 10Mbps: 0 ~ 250m; |
||
Uplink Port: 1~100m | |||
Transmission Medium | Cat5/5e/6 standard Network Cable | ||
Network Switch | Network Standard | IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az | |
Switch Capacity | 5.6Gbps | ||
Packet Forwarding Rate | 4.166Mbps | ||
MAC Table | 2K | ||
Power Over Ethernet | POE Standard | IEEE 802.3af | |
POE Power Supply Type | End-Span(1/2+;3/6-) | ||
POE Power Consumption | af=15.4W(every port) | ||
LED Status Indicator VLAN/Extend | PoE Ethernet LED Indicator Indicator | Power: 1 red light indicates that the power normal work; | |
POE: 8 yellow lights indicate that the POE is power on; | |||
Ethernet: 10 green lights indicate that the Ethernet link and act; | |||
Environmental | Working temperature | 0ºC~55ºC | |
Relative Humidity | 20~95% | ||
Storage Temperature | -20ºC~70ºC | ||
Mechanical | Dimension (L×W×H) | 201mm*120m*41mm | |
Color | Black | ||
Weight | 687g |
