10/100Mbps POE Switch

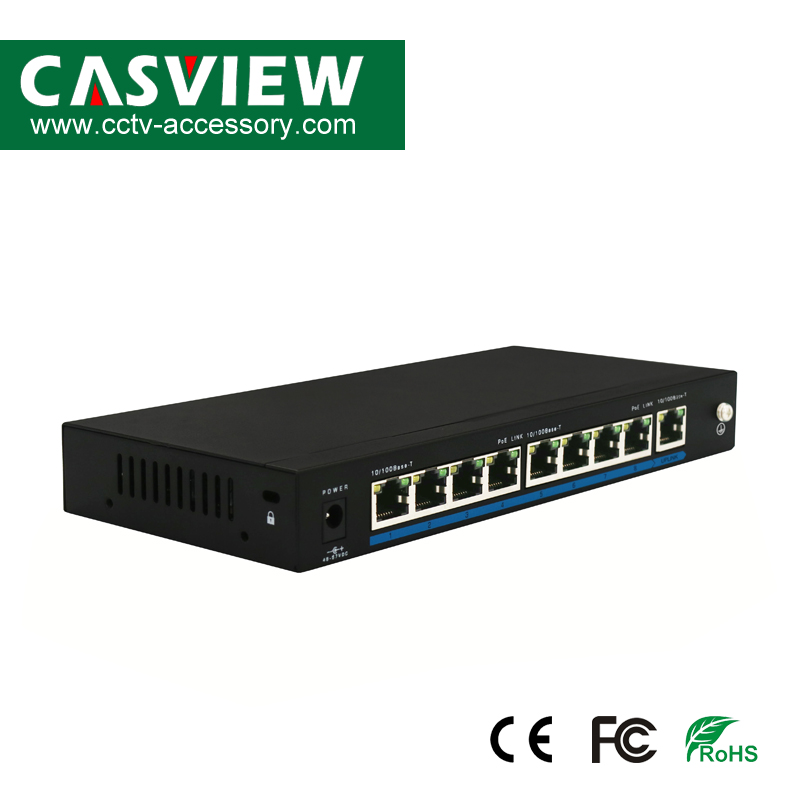

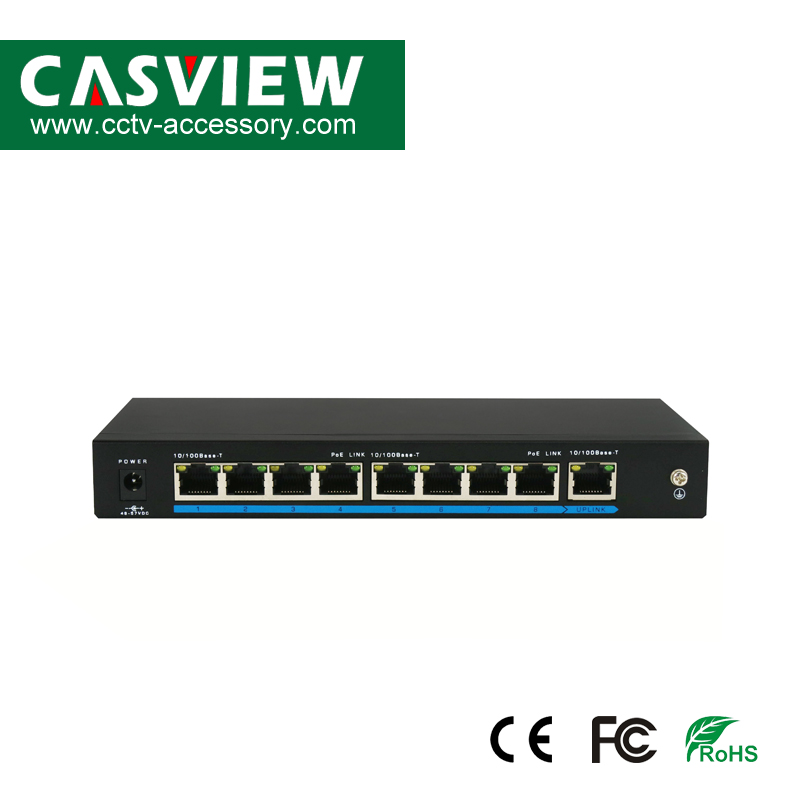

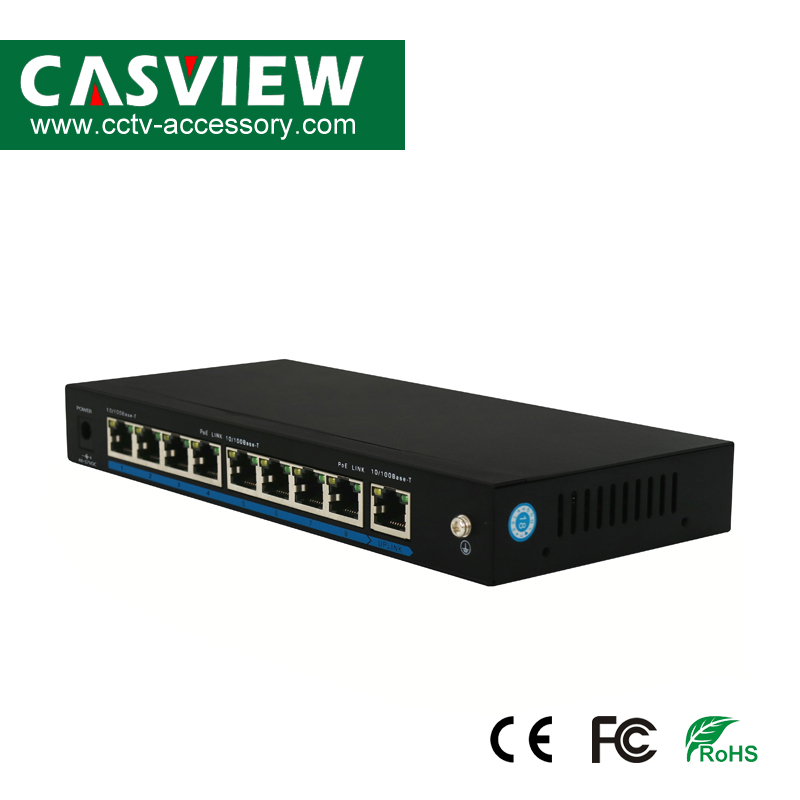

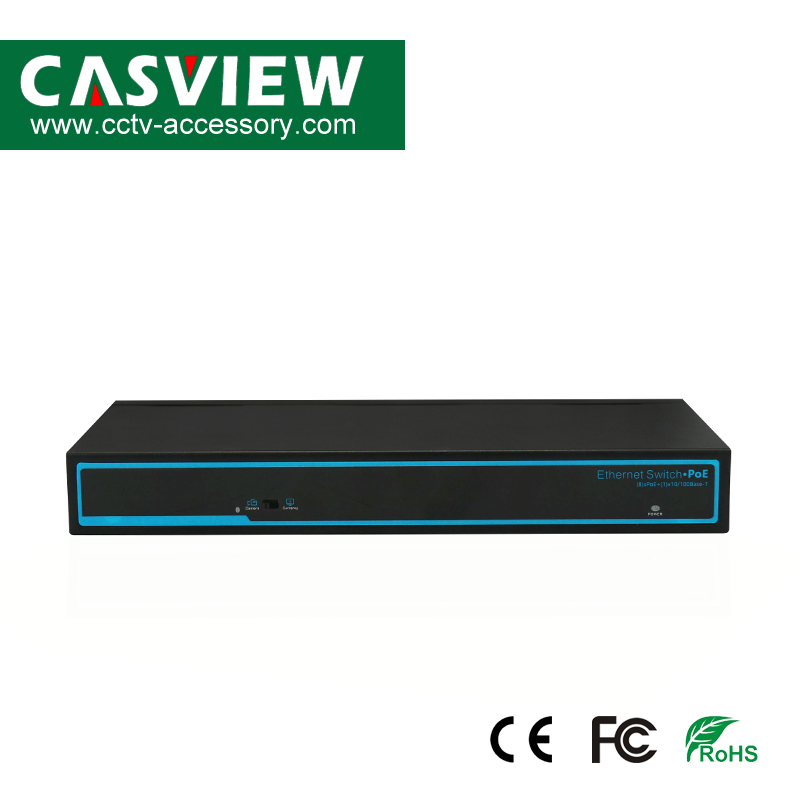

CPE-4108

10/100Mbps PoE ports
Uplink port
IEEE 802.3af/at
Protection: Excellent anti thunder, anti static and anti-Interference
Product description: 9 Ports 10/100Mbps Switch; with External 52V 2.3A 120W Power Supply 8x 10/100Mbps PoE ports, 1x uplink port;
INQUIRY EMAIL

9 Ports 10/100Mbps Switch; with External 52V 2.3A 120W Power Supply
8x 10/100Mbps PoE ports, 1x uplink port;
Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~8 downlink ports only able to communicate with uplink ports.
The communication distance extends to 250 meters;
Supports port auto-ﬂip (Auto MDI/ MDIX);
External power supply;
Maximum power of single PoE port: 15.4W;
Maximum PoE power: 75W;
Adopts store-and-forward architecture;
IEEE 802.3af power on up to 4 ports;
Fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall

Description:
The 8 Port POE Ethernet Switch is security surveillance Ethernet switch which aims at Ethernet high definition surveillance and security system. The products fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. The product support one key camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Specifications:

Model		CPE-4108
Power	Power Adapter Voltage	48-57V
	Consumption	120W
Network Connector	Network port	POE Ethernet Port	1~8 Port: 10/100Mbps
		Ethernet Port	Uplink Port: 10/100Mbps
	Transmission Distance		1~8 Port: 100Mbps:0~100m 10Mbps: 0 ~ 250m;
			Uplink Port: 1~100m
	Transmission Medium		Cat5/5e/6 standard Network Cable
Network Switch	Network Standard		IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
	Switch Capacity		1.8Gbps
	Packet Forwarding Rate		1.34Mbps
	MAC Table		2K
Power Over Ethernet	POE Standard		IEEE 802.3af
	POE Power Supply Type		End-Span(1/2+;3/6-)
	POE Power Consumption		af=15.4W(every port)
LED Status Indicator VLAN/Extend	PoE Ethernet LED Indicator Indicator		Power: 1 red light indicates that the power normal work;
			POE: 8 yellow lights indicate that the POE is power on;
			Ethernet: 9 green lights indicate that the Ethernet link and act;
	Surveillance Module Ligh		1pcs(Green), green indicates Camera
Environmental	Working temperature		0ºC~55ºC
	Relative Humidity		20~95%
	Storage Temperature		-20ºC~70ºC
Mechanical	Dimension (L×W×H)		208mm96m27mm
	Color		Black
	Weight		409g
